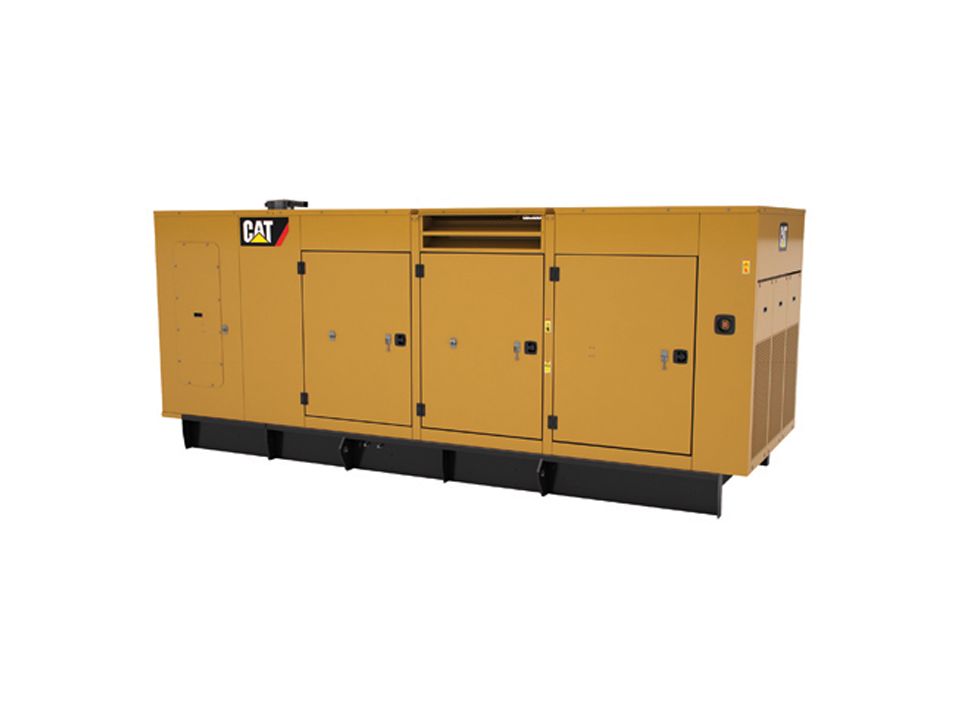

C13, C15, C18 WP Enclosure. 350-600 kW 60 Hz

Get in touch

Enclosures

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Weights and Dimensions

Height

2320 - 3209 mm
{"Name":"Height","SpecificationId":null,"TextValue":"2320 - 3209 mm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights and Dimensions","SortOrder":"99"}
Length

4948 - 7271 mm
{"Name":"Length","SpecificationId":null,"TextValue":"4948 - 7271 mm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights and Dimensions","SortOrder":"99"}
Width

2014 - 2056 mm
{"Name":"Width","SpecificationId":null,"TextValue":"2014 - 2056 mm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights and Dimensions","SortOrder":"99"}
Weight

253 - 563 kg
{"Name":"Weight","SpecificationId":null,"TextValue":"253 - 563 kg","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights and Dimensions","SortOrder":"99"}

Benefits

Excellent Access

Large cable entry area for installation ease
Accommodates side mounted single or multiple breakers
Three doors on both sides
Vertically hinged allow 180° opening rotation and retention with door stays
Lube oil and coolant drains piped to the exterior of the enclosure base
Radiator fi ll cover

Security And Safety

Lockable access doors which give full access to control panel and breaker
Cooling fan and battery charging alternator fully guarded
Fuel fi ll, oil fi ll and battery can only be reached via lockable access
Externally mounted emergency stop button
Designed for spreader bar lifting to ensure safety
Stub-up area is rodent proof

Transportability

These enclosures are of extremely rugged construction to withstand outdoor exposure and rough handling common on many construction sites.

Options

Enclosure constructed with 14 gauge steel
Enclosure constructed with 12 gauge aluminum (5052 grade)
Caterpillar yellow or white paint
Control panel viewing window
UL Listed integral fuel tank with 670, 400, and 300 gallon capacities
UL Listed sub base fuel tank with 660, 1000, 1900, and 2200 gallon capacities
Seismic certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, IBC 2012, CBC 2007, CBC 2010
IBC Certification for 150 mph wind loading
AC/DC lighting package
5 kW Canopy space heater to facilitate compliance with NFPA 110
Motorized louvers and gravity discharge damper
125A Load Center
GFCI outletse
