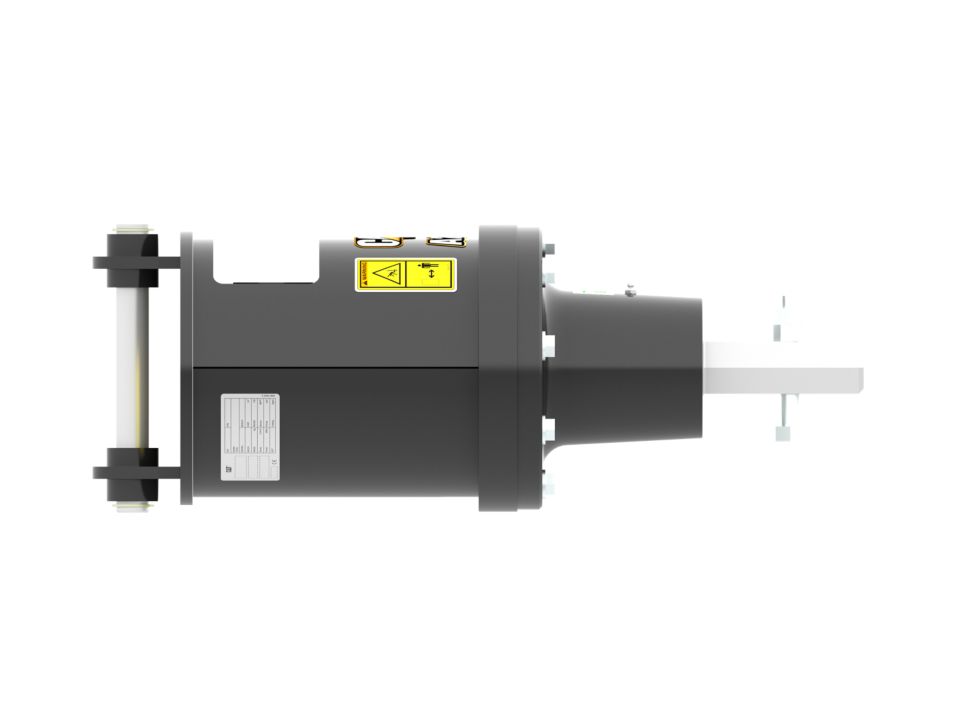

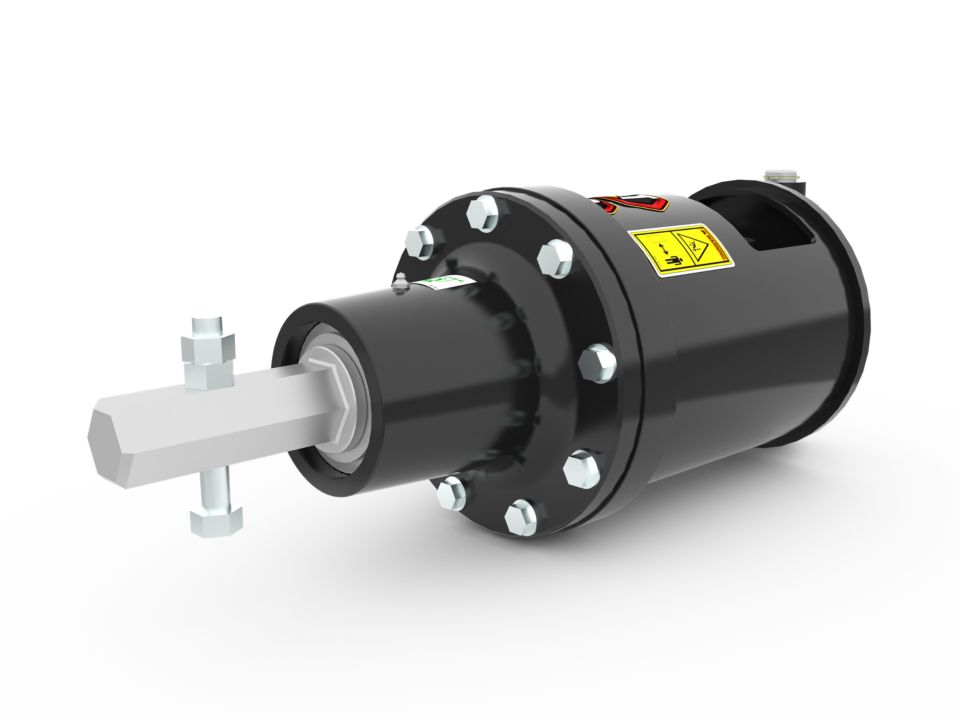

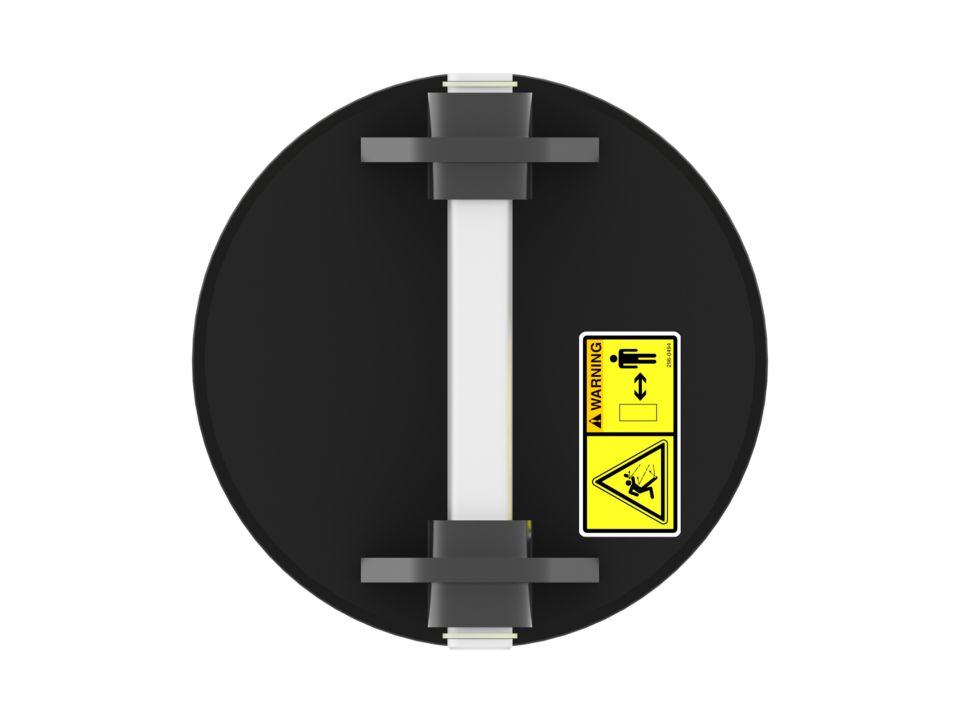

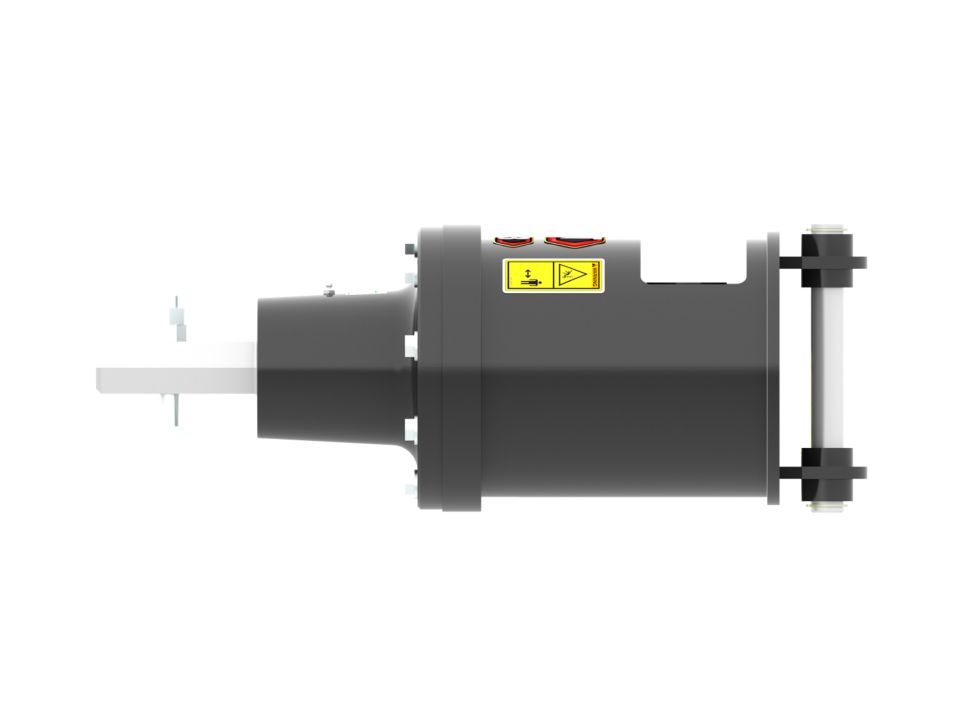

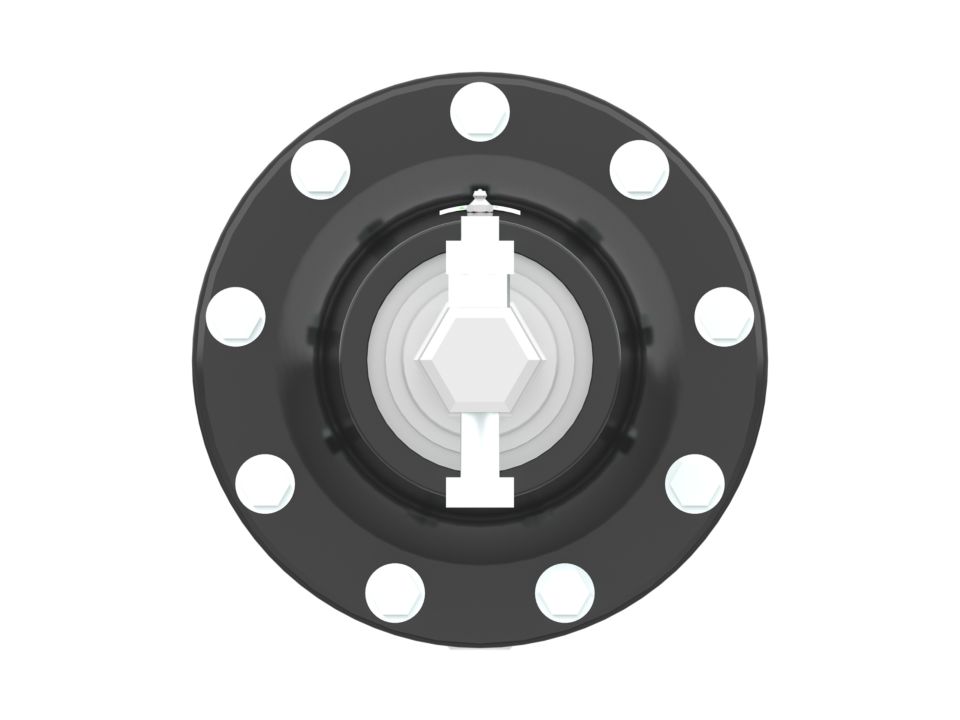

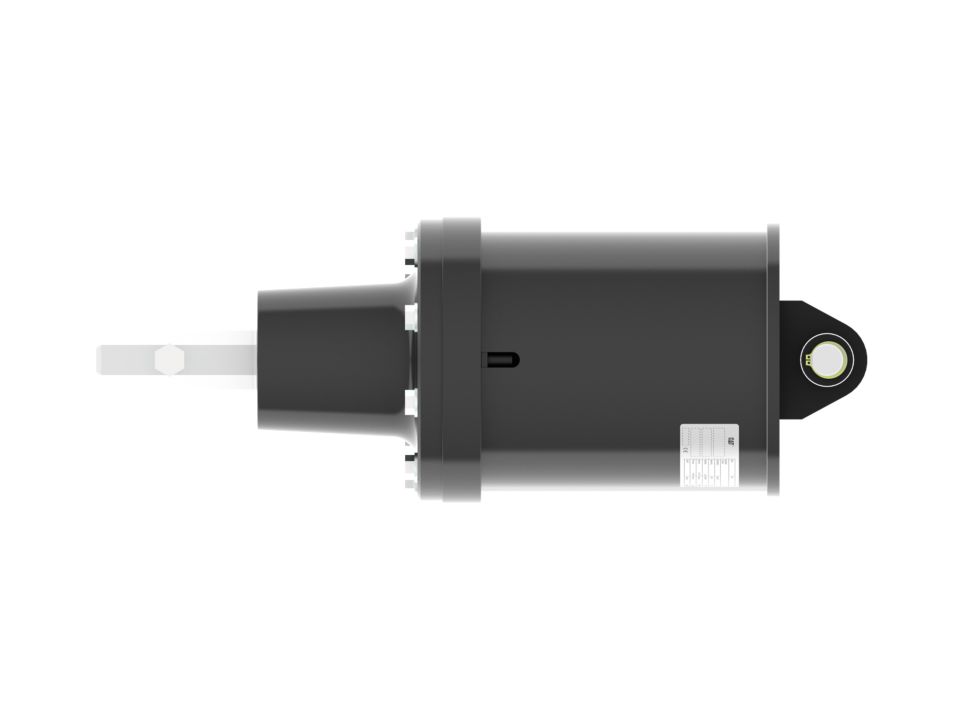

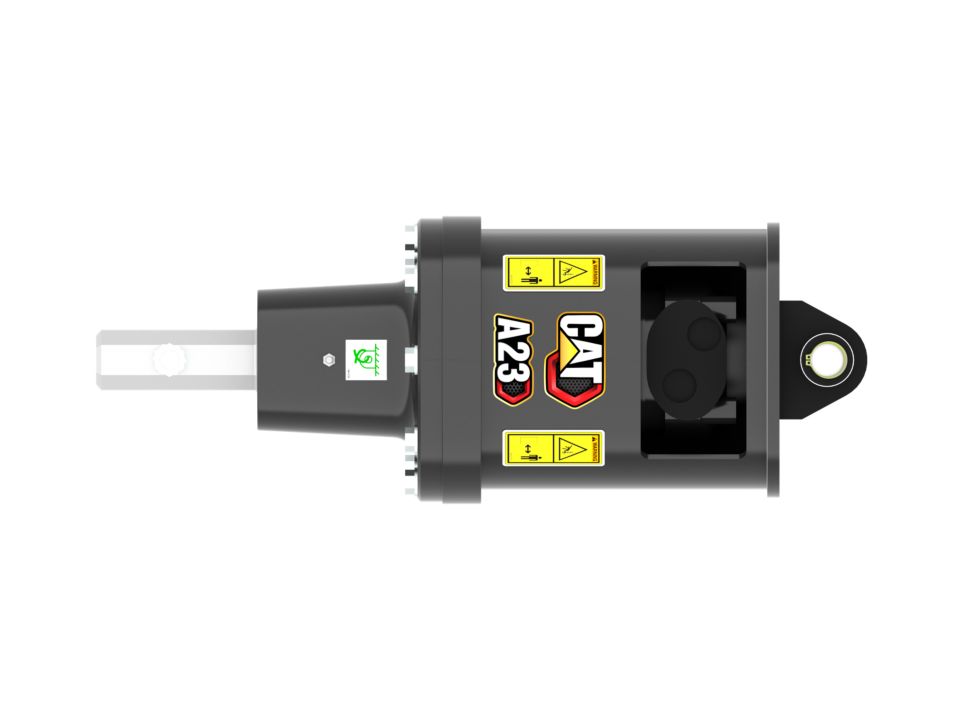

A23 Auger Drive Unit

Get in touch

Cat® Auger Drive Units are used as a replacement/upgrade to a customers already existing auger bracket. Cat auger drive units fit all existing brackets for the A11, A23, A41, and A68.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Drive Shaft Torque at Maximum Pressure

1699.3 lb/ft 2304 N·m
{"Name":"Drive Shaft Torque at Maximum Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"1699.3","MetricUnit":"N·m","MetricValue":"2304","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Drive Method

Gerotor Motor - Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Gerotor Motor - Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"2"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Optimal Hydraulic Flow

42-83 L/min (11-22 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-83 L/min (11-22 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-235 bar (2100-3400 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Overall Width

11 in 280 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11","MetricUnit":"mm","MetricValue":"280","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Overall Length

11.1 in 282 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"282","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Overall Height

29.6 in 751 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.6","MetricUnit":"mm","MetricValue":"751","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Housing Diameter

11 in 280 mm
{"Name":"Housing Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11","MetricUnit":"mm","MetricValue":"280","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Weight

199.1 lb 90.3 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"199.1","MetricUnit":"kg","MetricValue":"90.3","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Motor Displacement

38.4 in³ 629 cm³
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"38.4","MetricUnit":"cm³","MetricValue":"629","Type":"measurement","SpecificationGroup":null,"SortOrder":"11"}
Bit Speed at Maximum Flow

127 RPM
{"Name":"Bit Speed at Maximum Flow","SpecificationId":null,"TextValue":"127 RPM","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Hex Output Shaft Size

2 in 51 mm
{"Name":"Hex Output Shaft Size","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2","MetricUnit":"mm","MetricValue":"51","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}

Benefits

Cat® Customer Value Agreements simplify ownership with planned maintenance, genuine parts, dealer expertise, and smart monitoring to reduce costs and extend machine life. Flexible plans and options for customer‑managed (Convenience plan), dealer‑managed (Performance plan), or protection‑focused (Confidence) coverage.. With Toromont Fast Track, exclusive to Cat® CVAs, you get next‑day parts, two‑day repairs, and Cat® Credits if delays occur—keeping downtime off your schedule.

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A11 and A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.
