2007 mm (79 in)

Get in touch

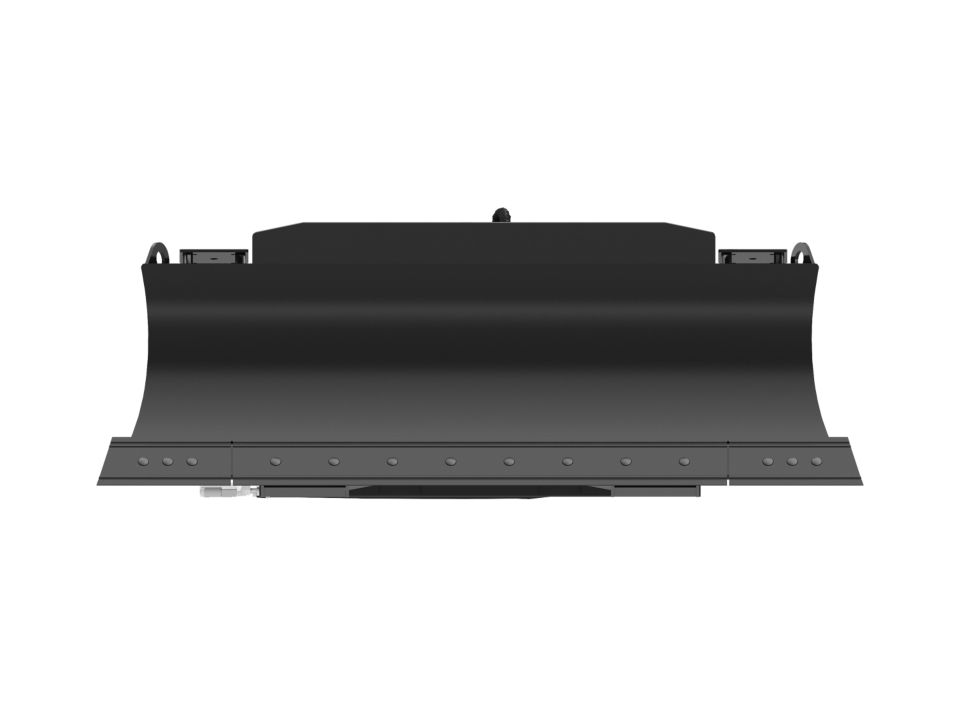

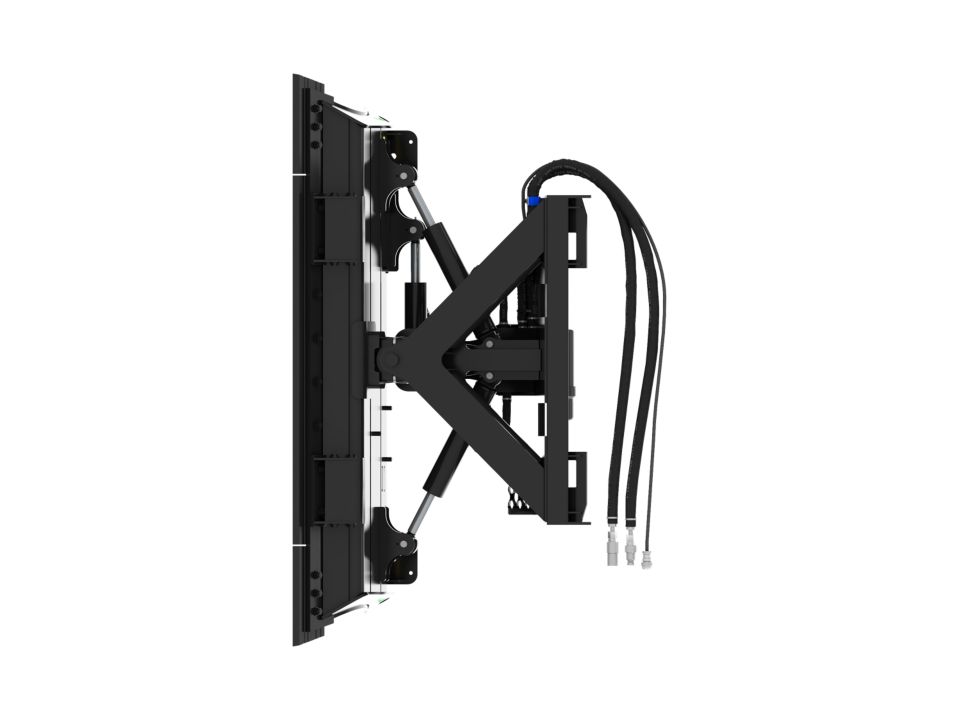

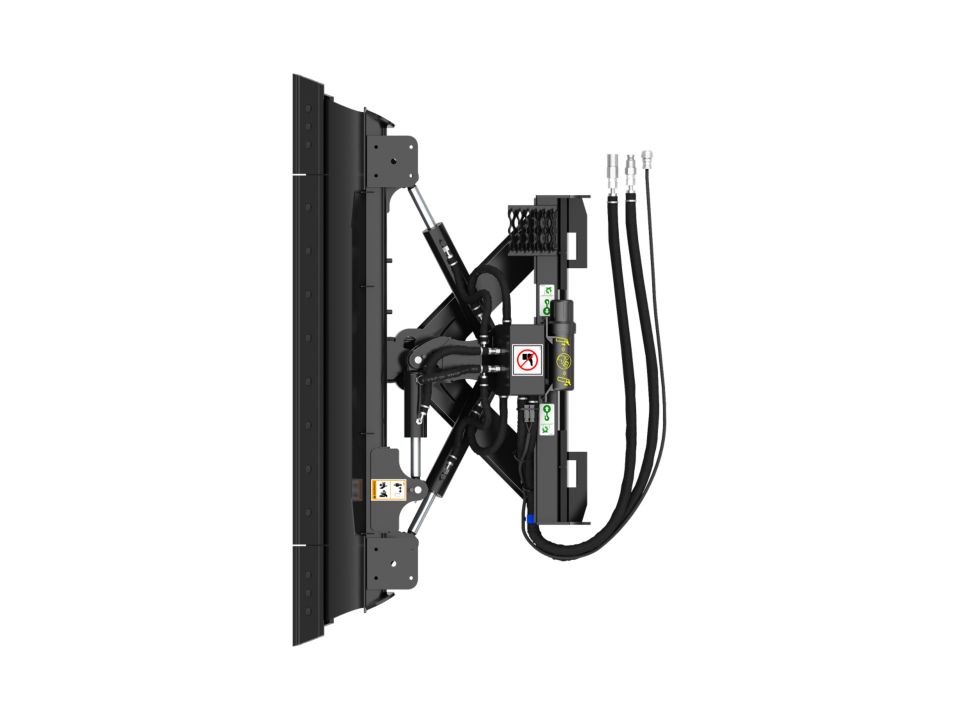

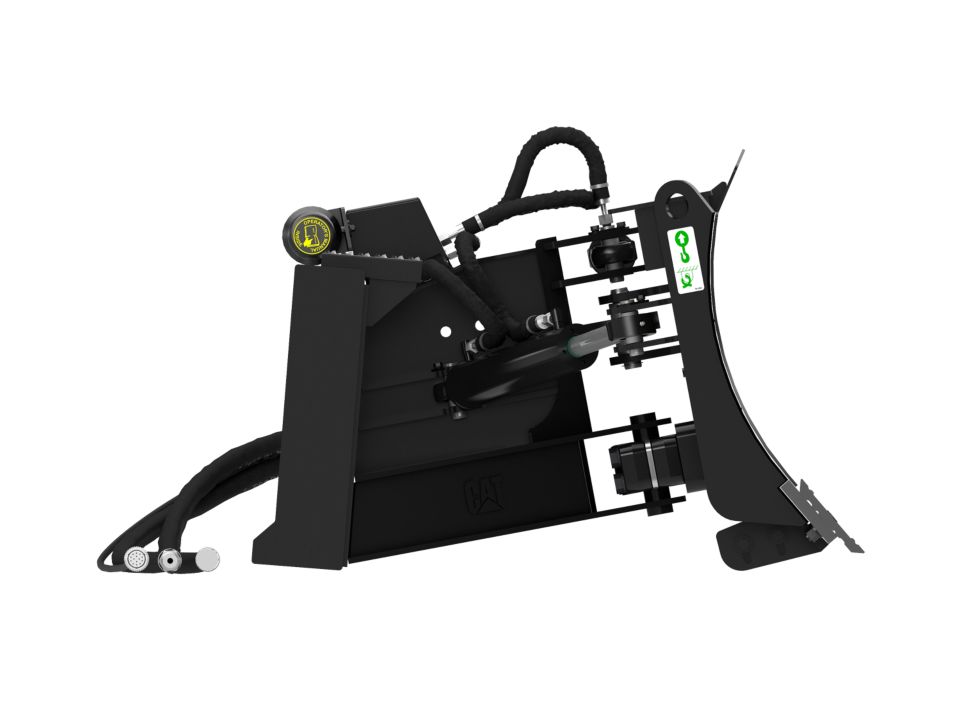

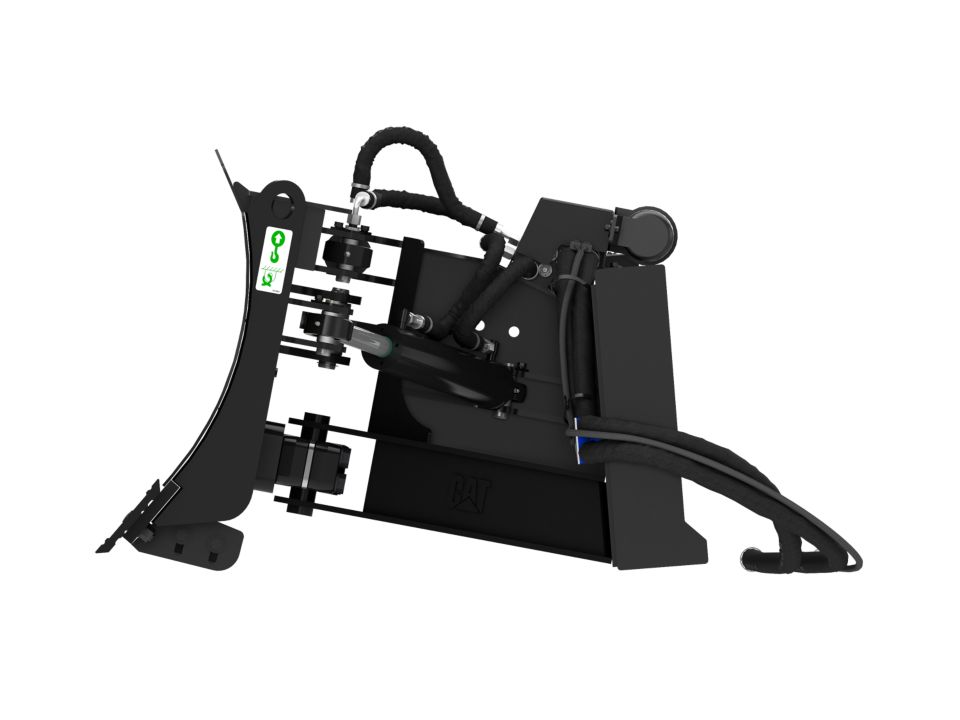

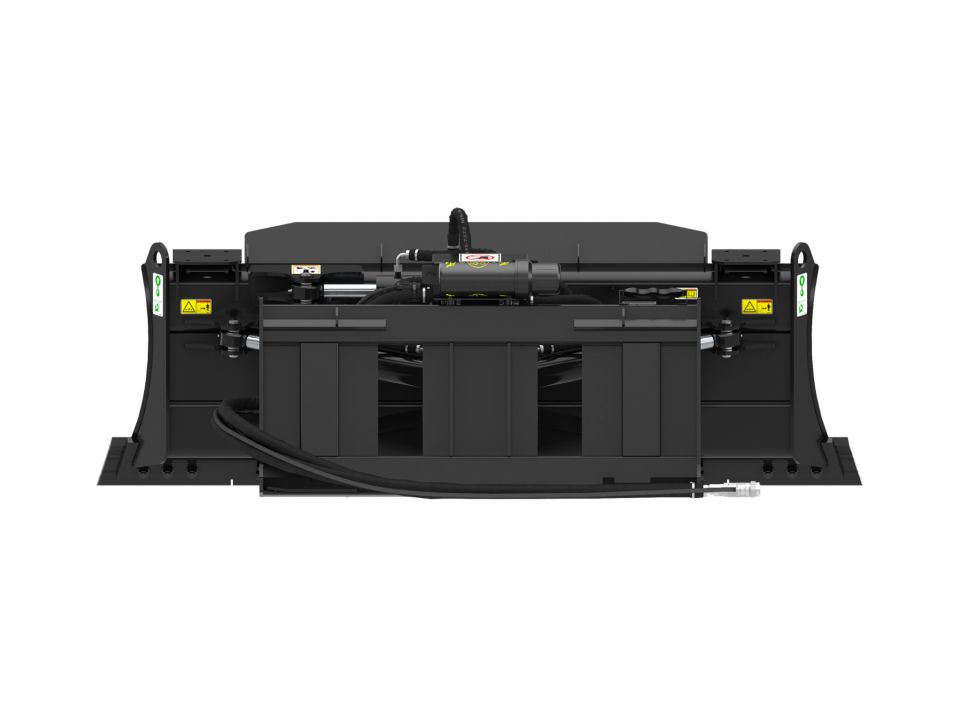

Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Blade Width

79 in 2007 mm
{"Name":"Blade Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"79","MetricUnit":"mm","MetricValue":"2007","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Width - Fully Angled

68.9 in 1750 mm
{"Name":"Width - Fully Angled","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"68.9","MetricUnit":"mm","MetricValue":"1750","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Maximum Blade Angle - Right/Left of Center

30 degrees
{"Name":"Maximum Blade Angle - Right/Left of Center","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Tilt Angle Range

10° Left/Right
{"Name":"Tilt Angle Range","SpecificationId":null,"TextValue":"10° Left/Right","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Blade Height

24.4 in 619 mm
{"Name":"Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"24.4","MetricUnit":"mm","MetricValue":"619","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Overall Height

25.1 in 637 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"25.1","MetricUnit":"mm","MetricValue":"637","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Length

40.5 in 1028 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"40.5","MetricUnit":"mm","MetricValue":"1028","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Weight

1014 lb 460 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1014","MetricUnit":"kg","MetricValue":"460","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Cutting Edge Thickness

0.6 in 16 mm
{"Name":"Cutting Edge Thickness","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":"in","EnglishValue":"0.6","MetricUnit":"mm","MetricValue":"16","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}
Optimal Hydraulic Flow

42-86 L/min (11-23 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-86 L/min (11-23 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-235 bar (2100-3400 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"13"}

Benefits

Application

Designed for rough and finish grading in dirt and gravel as well as for light dozing.

VPAT Design

Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

Replaceable Cutting Edge

Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.

Spill Guard

An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.

Angled Blade Ends

Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.

Mast Mounting Points

To accept external reference masts for use by GPS, Laser, or other leveling systems.

Removable Shims

Allows for adjustment of trunnion due to interface wear during normal usage.

OMM Container

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.
