340 UHD
340 UHD
Book a Demo
Explore my deals
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivale of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
-
Note (1)22 m (72'2") UHD Front
-
Shipping Height - Top of Cab11.1 ft 3383 mm
-
Cab Height - With OPG11.8 ft 3585 mm
-
Shipping Length49.8 ft 15160 mm
-
Tail Swing Radius11.6 ft 3521 mm
-
Counterweight Clearance4.6 ft 1397 mm
-
Ground Clearance1.7 ft 510 mm
-
Track Length18.9 ft 5770 mm
-
Track Length to Center of Rollers15.7 ft 4770 mm
-
Working Gauge - Extended Position11.2 ft 3400 mm
-
Shipping Gauge - Retracted Position7.8 ft 2400 mm
-
Transport Width10.7 ft 3255 mm
-
Machine Length - without Front, with Counterweight23.3 ft 7077 mm
-
Machine Length - without Front and Counterweight22.8 ft 6954 mm
-
Track Width - Extended13.1 ft 4000 mm
-
Track Width - Retracted9.8 ft 3000 mm
-
Note (2)600 mm (24") Track Shoes
-
Engine ModelCat C9.3B
-
Net Power - ISO 9249346 hp 258.3 kW
-
Net Power - ISO 9249 (DIN)351 hp (metric) 351 hp (metric)
-
Engine Power - ISO 14396347 hp 259 kW
-
Engine Power - ISO 14396 (DIN)352 hp (metric) 352 hp (metric)
-
Bore5 in 115 mm
-
Stroke6 in 149 mm
-
Displacement568 in³ 9.3 l
-
Biodiesel CapabilityUp to B20¹
-
EmissionsMeets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
-
Note (1)Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
-
Note (2)¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
-
Main System - Maximum Flow560 l/min (148 gal/min)
-
Maximum Pressure - Equipment5076 psi 35000 kPa
-
Maximum Pressure - Equipment - Lift Mode5511 psi 38000 kPa
-
Maximum Pressure - Travel5076 psi 35000 kPa
-
Maximum Pressure - Swing4264 psi 29400 kPa
-
Fuel Tank Capacity158.5 gal (US) 600 l
-
Cooling System10.5 gal (US) 40 l
-
Engine Oil8.5 gal (US) 32 l
-
Swing Drive4.8 gal (US) 18 l
-
Final Drive - Each2.1 gal (US) 8 l
-
Hydraulic System - Including Tank145.3 gal (US) 550 l
-
Hydraulic Tank42.5 gal (US) 161 l
-
DEF Tank21.1 gal (US) 80 l
-
Swing Speed8 r/min 8 r/min
-
Maximum Swing Torque105000 lbf·ft 143 kN·m
-
Swing Speed4.09 r/min 4.09 r/min
-
Operating Weight122600 lb 55600 kg
-
Note (1)Hydraulic Variable Gauge undercarriage, 25 m (72'2") UHD front, 600 mm (24") Heavy Duty (HD) triple grouser shoes and 9.0 mt (19,842 lb) counterweight. No work tool.
-
Machine Weight - Retrofit Configuration118600 lb 53800 kg
-
Note (2)Hydraulic Variable Gauge undercarriage, Retrofit boom, R3.2DB (10'6") stick, General Duty (GD) 2.27 m³ (2.97 yd³) bucket, 600 mm (24") HD triple grouser shoes and 9.0 mt (19,842 lb) counterweight.
-
UHD in Cradle18700 lb 8480 kg
-
Retrofit Boom in Cradle - R3.9 DB Stick13710 lb 6220 kg
-
Retrofit Boom in Cradle - R3.2 DB Stick13340 lb 6050 kg
-
Retrofit Boom in Cradle - R2.8 DB Stick13120 lb 5950 kg
-
2-Piece Retrofit Boom in Cradle - R3.2 DB Stick17440 lb 7910 kg
-
Maximum Pin Height at Stick Nose72.2 ft 22 m
-
Maximum Weight at Stick Nose8160 lb 3700 kg
-
Maximum Working Pin Height at Stick Nose - 1/261 ft 18590 mm
-
Maximum Working Reach at Stick Nose - 1/238.4 ft 11680 mm
-
Maximum Height at Stick Nose in Max Reach Position41.5 ft 12640 mm
-
Maximum Reach at Stick Nose44.4 ft 13550 mm
-
Note (1)22 m (72' 2") UHD Front (Over-the-Front)
-
Note 1Bent - R3.2DB (10'6") Stick - HVG Undercarriage
-
BucketGD 2.27 m³ (2.97 yd³)
-
Maximum Digging Depth21.4 ft 6520 mm
-
Maximum Reach - Ground Level36.7 ft 11180 mm
-
Maximum Cutting Height35.4 ft 10790 mm
-
Maximum Loading Height24.9 ft 7600 mm
-
Minimum Loading Height10.4 ft 3180 mm
-
Bucket Digging Force - ISO47160 lbf 210 kN
-
Stick Digging Force - ISO37300 lbf 166 kN
-

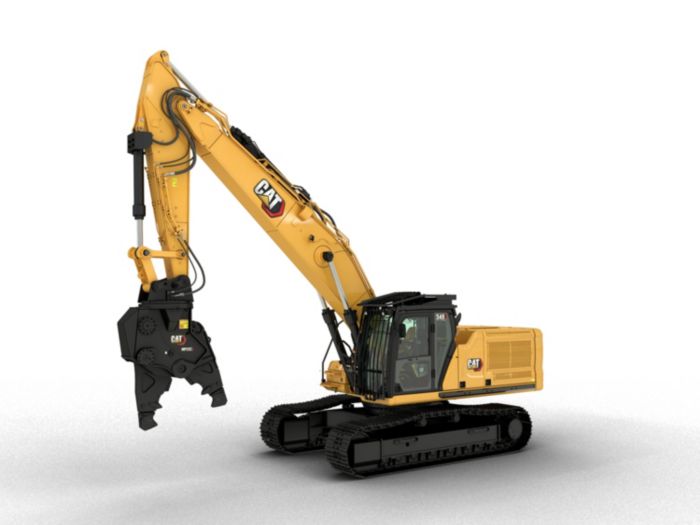

Note 1Straight - R3.2DB m (10' 6") Stick (Over-the-Front) - HVG Undercarriage
-
BucketGD 2.27 m³ (2.97 yd³)
-
Maximum Pin Height at Stick Nose39.8 ft 12.13 m
-
Maximum Weight at Stick Nose9260 lb 4200 kg
-
Maximum Height at Stick Nose in Max Reach Position7.6 ft 2310 mm
-
Maximum Reach at Stick Nose34.8 ft 10620 mm
-
Maximum Digging Depth16.1 ft 4910 mm
-
Maximum Reach - Ground Level39.9 ft 12160 mm
-
Maximum Loading Height34 ft 10370 mm
-
Minimum Loading Height15.8 ft 4790 mm
-
Bucket Digging Force - ISO47160 lbf 210 kN
-
Stick Digging Force - ISO37300 lbf 166 kN
Latest Features
- At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
- The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Cat Payload and Advanced Payload*
- Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™** to analyze jobsites and individual assets for remote management of production targets and key metrics.
*Payload technologies are not legal for trade.
**VisionLink subscription required.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 08D.
High Performance

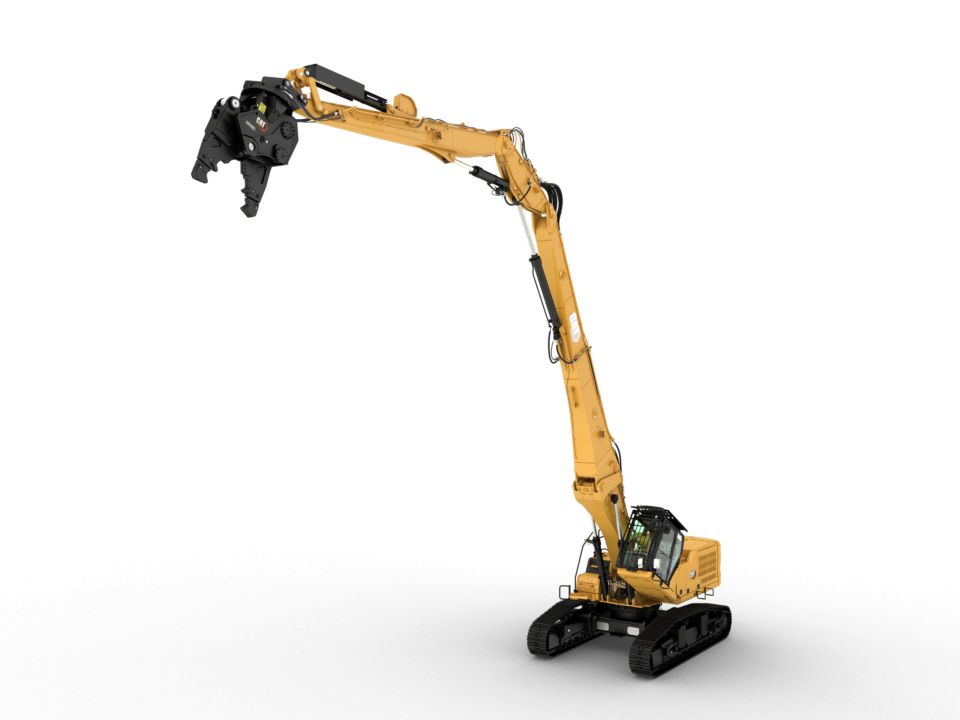

- UHD can reach up to 18.6m (60 ft 11 in) of working vertical pin height, using a 3.7 ton (8,157 lbs) tool with 11.7m (38 ft 4 in) horizontal reach.
- Cat active stability monitoring system continuously informs operators of work tool position within the safe working range and warns when approaching the stability limit.
- Hydraulically actuated variable gauge undercarriage provides outstanding stability extended to 4000 mm (13 ft); it retracts to 3000 mm (10 ft) to make transportation easier.
- Standard rearview and right-hand sideview cameras give clear views on the monitor.
- The C9.3B engine can run on biodiesel up to B20 and meets EU Stage V, U.S. EPA Tier 4 Final, and Japan 2014 emission standards.
- Match the excavator to the job with three power modes – Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working requirements, providing maximum power when needed and reducing power when it isn’t to help save fuel.
- The high-efficiency hydraulic reversing fan cools the engine on demand to help reduce fuel consumption.
- Cat technologies increase operating efficiency to lower operator fatigue, operating costs, and fuel consumption.
Work in Comfort
- Demolition cab with standard Operator Protective Guards (OPG) includes front and roof of P5A
10 mm (0.4”) laminated glass. - Tilt-up 30° for a more productive and comfortable sight line.
- The windshield and roof one-piece parallel wipers with three intermittent settings include washer spray.
- Premium heated and cooled seat is standard.
- Get in and out of the cab easier using the tip-up left console.
- Control the excavator comfortably with easy-to-reach controls all located in front of you.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
- Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.
Simple to Operate
- Start the engine with a push button; use a Bluetooth® key fob or the unique Operator ID function.
- Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
- Automatic hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.
- Navigate quickly on the high-resolution 254 mm (10 in) touchscreen monitor or with the aid of the jog dial control.
- Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
- Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
Boost Efficiency and Productivity with Cat Technology
- The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
- VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
- Cat Payload onboard weighing helps you achieve precise load targets to improve your operating efficiency with a retrofit boom. Pick up a load of material – with either a bucket or grapple – and get a real-time weight estimate without even swinging.
- Combine Payload with VisionLink™ and remotely manage your production targets. The monitor’s USB port lets you download results from one shift all the way up to 30 days of work, so you can manage your progress without needing an internet connection or VisionLink subscription.
- Standard Cat Grade with 2D with a retrofit boom indicates depth and slope on the monitor with auditory alerts.
- The stability monitoring system continuously informs operators of work tool position within the safe working range and warns when approaching the stability limit.
- Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
*Data field availability can vary by equipment manufacturer.
Easy Maintenance
- Enjoy low maintenance cost due to extended service intervals.
- Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
- Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
- Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters are grouped and located on the right-hand side of the machine for easy maintenance.
- The engine air intake filter with pre-cleaner has double the dust holding capacity of the previous air intake filter.
- The hydraulic oil filter provides improved filtration; anti-drain valves keep oil clean when the filter is replaced.
- Boost productivity with proactive service reminders. The Integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
- S•O•SSM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.
Dedicated Service and Superior Support
When you work with your local Cat dealer, you'll be supported by one of the industry's most extensive, knowledgeable dealer networks. Comprised of 160 independent dealers, the Cat Dealer Network serves 197 countries with thousands of branches around the globe.
It’s more uptime, cost-saving service and repair options, quality parts, and precision components. It’s all about support built around your success.
Ask your Cat dealer today about the many services that help you do your work your way.
- The importance of buying genuine Cat parts.
- Designed by Caterpillar engineers to the exact specs of your Cat equipment.
- Rigorously tested to ensure maximum performance.
- Covered by a 12-month warranty.
- Cat Inspect – Work made easy.
- Record real-time inspection data.
- Simplify inspections and reporting.
- Easy-to-read results all in one place.
- Cat Ground Engaging Tools (GET) – Longer wear. More work.
- GET for every machine and application.
- Tools to extend life and track GET lifecycles.
- Bucket rebuild options for optimal performance.
- Cat Hydraulic Components – Durability quality you can work with.
- Flexible options – New, reman, exchange, rebuild or repair.
- Expert diagnostics, testing, and contamination control.
- Buy in-store, online, or on your mobile device.
- Cat Hose Service – Fast, safe—to get you back to work.
- Hoses and couplings for most makes and models.
- OEM database ensures an exact fit.
- Industry-best tooling, training, and assembly standards.
- Cat Certified Rebuild – An investment that works. Again, and again.
- Better-than-when-new performance at a fraction of the cost.
- Performance, safety, and technology upgrades and enhancements.
- Full warranty coverage, Customer Value Agreement, and special financing.
- Cat Remote Services – Work done in a flash.
- Cut downtime for updates and service.
- Install the latest machine software remotely.
- Troubleshoot issues before a technician arrives.
Get industry-leading support for any question or problem you have 24 hours a day, 7 days a week, 365 days a year.
Learn more at https://parts.cat.com/
Safely Home Every Day
- On-board stability monitoring helps the operator enhance job safety.
- A travel direction indicator helps the operator know which way to activate the travel levers.
- Enjoy greater visibility in each swing direction with the help of narrow cab pillars and large windows.
- A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Rearview and right-hand sideview cameras are standard.
- Serrated steps and an anti-skid punch plate on the service platform help prevent slipping.
- Standard 2D E-Fence (swing) helps you avoid swinging into obstacles to the side of the machine such as live traffic and structures.
Attachments
- Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
- Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.
- Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.
- Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
- Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations
- Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.
- Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.
- Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.
- Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.
- Compactors (Vibratory Plate): Compact soil, sand, gravel and asphalt quickly and efficiently to create a stable foundation. Vibratory plate compactors deliver high-impact force and even coverage, reducing air pockets and improving surface integrity for trenching, roadwork, and patching.
- Rotary Cutters: Get accurate, precise work with less noise and vibration. Cat® Rotary Cutters deliver high torque and precision for a range of applications: demolition, grinding, profiling, trenching, tunneling, and quarrying. Specifically designed for excavator-mounted use to handle heavy-duty materials like concrete, rock, and dense brush with ease.
Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.
Not all attachments are available in all regions. Contact your Cat Dealer for details.
Sustainability
- The Cat® C9.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
- Cat® Payload for excavators provides on-the-go material weighing which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
- Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe but also helps you avoid repairs, downtime, and costly job site fines.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
NOTE
CAB
CAT TECHNOLOGY
ELECTRICAL SYSTEM
ENGINE
HYDRAULIC SYSTEM
SAFETY AND SECURITY
SERVICE AND MAINTENANCE
UNDERCARRIAGE AND STRUCTURES
The Toromont Cat advantage
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.
Contact an equipment specialist
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.
