1524 mm (60 in)

Get in touch

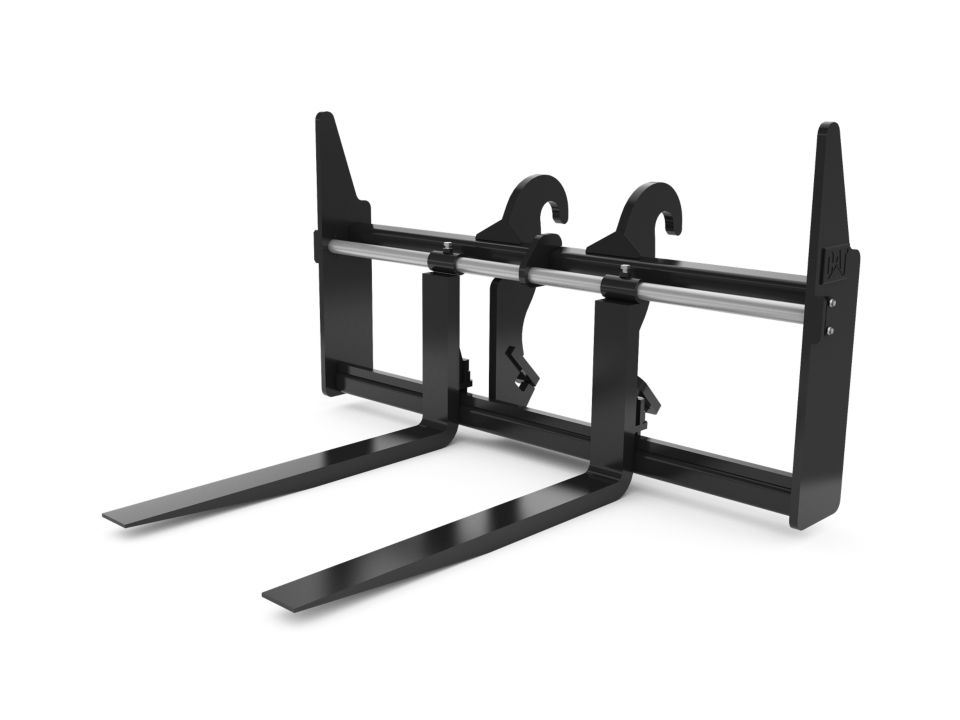

Cat® Construction Forks for Small Wheel Loaders are wider than pallet forks and designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Height

54.1 in 1375 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"54.1","MetricUnit":"mm","MetricValue":"1375","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Width

96.1 in 2440 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96.1","MetricUnit":"mm","MetricValue":"2440","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

1206.4 lb 547.2 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1206.4","MetricUnit":"kg","MetricValue":"547.2","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Tine Length

60 in 1524 mm
{"Name":"Tine Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"60","MetricUnit":"mm","MetricValue":"1524","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Tine Width

5.9 in 150 mm
{"Name":"Tine Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.9","MetricUnit":"mm","MetricValue":"150","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Tine Height

30.2 in 768 mm
{"Name":"Tine Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30.2","MetricUnit":"mm","MetricValue":"768","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Tine Thickness

2.8 in 70 mm
{"Name":"Tine Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"70","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Tine Weight

437.4 lb 198.4 kg
{"Name":"Tine Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"437.4","MetricUnit":"kg","MetricValue":"198.4","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Combined Weight

2081.2 lb 944 kg
{"Name":"Combined Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2081.2","MetricUnit":"kg","MetricValue":"944","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Overall Length

85.4 in 2168 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"85.4","MetricUnit":"mm","MetricValue":"2168","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Interface Type

Fusion™ Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}

Benefits

Application

Construction Forks are a highly versatile and rugged tool, designed to move bulky palletized material, pipe and pole, liquid containers, and lumber.

High Back Support

Risers on the upper corners of the frame support oversize loads.

User-configurable

Forks can be configured to allow the tines to either swing or stay in a fixed position, using common hand tools.
