Specifications

Buckets

Bucket Capacities

0.6-1.0 m3 (0.8-1.3 yd3)
{"Name":"Bucket Capacities","SpecificationId":null,"TextValue":"0.6-1.0 m3 (0.8-1.3 yd3)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Buckets","SortOrder":"3"}
Bucket Capacities - General Purpose

0.6 m3 (0.8 yd3)
{"Name":"Bucket Capacities - General Purpose","SpecificationId":null,"TextValue":"0.6 m3 (0.8 yd3)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Buckets","SortOrder":"4"}
Bucket Capacities - Light Material

1.0 m3 (1.3 yd3)
{"Name":"Bucket Capacities - Light Material","SpecificationId":null,"TextValue":"1.0 m3 (1.3 yd3)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Buckets","SortOrder":"5"}

Cab

ROPS

ISO 3471:2008
{"Name":"ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"4"}
FOPS

ISO 3449:2005 Level I
{"Name":"FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level I","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"5"}

Dimensions (Approximate) - High Lift

Cab Height

8.25 ft 2510 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.25","MetricUnit":"mm","MetricValue":"2510","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"4"}
Ground Clearance

10 in 250 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"10","MetricUnit":"mm","MetricValue":"250","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"5"}
Wheel Base

6.42 ft 1950 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.42","MetricUnit":"mm","MetricValue":"1950","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"6"}
Overall Length - With Bucket*

16.03 ft 4894 mm
{"Name":"Overall Length - With Bucket*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"16.03","MetricUnit":"mm","MetricValue":"4894","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"7"}
Reach at Maximum Dump Height*

2.33 ft 715 mm
{"Name":"Reach at Maximum Dump Height*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.33","MetricUnit":"mm","MetricValue":"715","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"8"}
Dig Depth

6 in 163 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"163","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"9"}
Maximum Dump Height*

8.16 ft 2496 mm
{"Name":"Maximum Dump Height*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.16","MetricUnit":"mm","MetricValue":"2496","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"10"}
Load Over Height

9.75 ft 2974 mm
{"Name":"Load Over Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.75","MetricUnit":"mm","MetricValue":"2974","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"11"}
Hinge Pin at Maximum Height

10.58 ft 3227 mm
{"Name":"Hinge Pin at Maximum Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.58","MetricUnit":"mm","MetricValue":"3227","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"12"}
Departure Angle - Degrees

30°
{"Name":"Departure Angle - Degrees","SpecificationId":null,"TextValue":"30°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"13"}
Overall Length - With Forks

17.25 ft 5263 mm
{"Name":"Overall Length - With Forks","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"17.25","MetricUnit":"mm","MetricValue":"5263","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"14"}
Reach - Ground Level

2.9 ft 900 mm
{"Name":"Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.9","MetricUnit":"mm","MetricValue":"900","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"15"}
Maximum Reach

4.66 ft 1429 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.66","MetricUnit":"mm","MetricValue":"1429","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"16"}
Fork Depth Above Ground

2 in 40 mm
{"Name":"Fork Depth Above Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2","MetricUnit":"mm","MetricValue":"40","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"17"}
Fork Height at Maximum Reach

4.66 ft 1429 mm
{"Name":"Fork Height at Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.66","MetricUnit":"mm","MetricValue":"1429","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"18"}
Maximum Fork Height

10.4 ft 3172 mm
{"Name":"Maximum Fork Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.4","MetricUnit":"mm","MetricValue":"3172","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"19"}
Fork Reach at Maximum Height

1.8 ft 552 mm
{"Name":"Fork Reach at Maximum Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.8","MetricUnit":"mm","MetricValue":"552","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"20"}
Turning Radius - Over Bucket*

13.4 ft 3977 mm
{"Name":"Turning Radius - Over Bucket*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.4","MetricUnit":"mm","MetricValue":"3977","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"21"}
Turning Radius - Inside Tire**

6 ft 1834 mm
{"Name":"Turning Radius - Inside Tire**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6","MetricUnit":"mm","MetricValue":"1834","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"22"}
Width - Over Bucket*

5.83 ft 1790 mm
{"Name":"Width - Over Bucket*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"5.83","MetricUnit":"mm","MetricValue":"1790","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"23"}
Tire Gauge

4.33 ft 1314 mm
{"Name":"Tire Gauge","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.33","MetricUnit":"mm","MetricValue":"1314","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"24"}
Machine Width**

5.58 ft 1708 mm
{"Name":"Machine Width**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"5.58","MetricUnit":"mm","MetricValue":"1708","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"25"}
Articulation Angle

40°
{"Name":"Articulation Angle","SpecificationId":null,"TextValue":"40°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"26"}
Steering Angle

80°
{"Name":"Steering Angle","SpecificationId":null,"TextValue":"80°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"27"}
Dump Angle at Maximum Height

40°
{"Name":"Dump Angle at Maximum Height","SpecificationId":null,"TextValue":"40°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"28"}
Note (1)

*Vary with bucket size.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Vary with bucket size.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"29"}
Note (2)

**Vary with tire size.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Vary with tire size.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"30"}
Note (3)

Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"31"}

Dimensions (Approximate) - Standard Lift

Cab Height

8.25 ft 2510 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.25","MetricUnit":"mm","MetricValue":"2510","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"4"}
Ground Clearance

10 in 250 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"10","MetricUnit":"mm","MetricValue":"250","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"5"}
Wheel Base

6.42 ft 1950 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.42","MetricUnit":"mm","MetricValue":"1950","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"6"}
Overall Length - With Bucket*

15.4 ft 4693 mm
{"Name":"Overall Length - With Bucket*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.4","MetricUnit":"mm","MetricValue":"4693","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"7"}
Reach at Maximum Dump Height*

2.33 ft 705 mm
{"Name":"Reach at Maximum Dump Height*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.33","MetricUnit":"mm","MetricValue":"705","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"8"}
Dig Depth

5 in 131 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5","MetricUnit":"mm","MetricValue":"131","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"9"}
Maximum Dump Height*

7.75 ft 2355 mm
{"Name":"Maximum Dump Height*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"7.75","MetricUnit":"mm","MetricValue":"2355","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"10"}
Load Over Height

9.25 ft 2832 mm
{"Name":"Load Over Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.25","MetricUnit":"mm","MetricValue":"2832","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"11"}
Hinge Pin at Maximum Height

10.08 ft 3086 mm
{"Name":"Hinge Pin at Maximum Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.08","MetricUnit":"mm","MetricValue":"3086","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"12"}
Departure Angle - Degrees

30°
{"Name":"Departure Angle - Degrees","SpecificationId":null,"TextValue":"30°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"13"}
Overall Length - With Forks

16.83 ft 5129 mm
{"Name":"Overall Length - With Forks","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"16.83","MetricUnit":"mm","MetricValue":"5129","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"14"}
Reach - Ground Level

2.5 ft 765 mm
{"Name":"Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.5","MetricUnit":"mm","MetricValue":"765","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"15"}
Maximum Reach

4.33 ft 1311 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.33","MetricUnit":"mm","MetricValue":"1311","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"16"}
Fork Depth Above Ground

3 in 67 mm
{"Name":"Fork Depth Above Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"67","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"17"}
Fork Height at Maximum Reach

4.75 ft 1447 mm
{"Name":"Fork Height at Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.75","MetricUnit":"mm","MetricValue":"1447","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"18"}
Maximum Fork Height

9.9 ft 3031 mm
{"Name":"Maximum Fork Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.9","MetricUnit":"mm","MetricValue":"3031","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"19"}
Fork Reach at Maximum Height

1.75 ft 543 mm
{"Name":"Fork Reach at Maximum Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.75","MetricUnit":"mm","MetricValue":"543","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"20"}
Turning Radius - Over Bucket*

12.75 ft 3891 mm
{"Name":"Turning Radius - Over Bucket*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.75","MetricUnit":"mm","MetricValue":"3891","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"21"}
Turning Radius - Inside Tire**

6 ft 1834 mm
{"Name":"Turning Radius - Inside Tire**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6","MetricUnit":"mm","MetricValue":"1834","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"22"}
Width - Over Bucket*

5.83 ft 1790 mm
{"Name":"Width - Over Bucket*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"5.83","MetricUnit":"mm","MetricValue":"1790","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"23"}
Tire Gauge

4.33 ft 1314 mm
{"Name":"Tire Gauge","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.33","MetricUnit":"mm","MetricValue":"1314","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"24"}
Machine Width**

5.58 ft 1708 mm
{"Name":"Machine Width**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"5.58","MetricUnit":"mm","MetricValue":"1708","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"25"}
Articulation Angle

40°
{"Name":"Articulation Angle","SpecificationId":null,"TextValue":"40°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"26"}
Steering Angle

80°
{"Name":"Steering Angle","SpecificationId":null,"TextValue":"80°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"27"}
Dump Angle at Maximum Height

40°
{"Name":"Dump Angle at Maximum Height","SpecificationId":null,"TextValue":"40°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"28"}
Note (1)

*Vary with bucket size.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Vary with bucket size.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"29"}
Note (2)

**Vary with tire size.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Vary with tire size.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"30"}
Note (3)

Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift","SortOrder":"31"}

Engine

Maximum Gross Power

48 hp 36 kW
{"Name":"Maximum Gross Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"48","MetricUnit":"kW","MetricValue":"36","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

Cat C1.7*
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat C1.7*","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Net Power @ 2,200 rpm - SAE J1349:2011

45 hp 33.6 kW
{"Name":"Net Power @ 2,200 rpm - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"45","MetricUnit":"kW","MetricValue":"33.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Net Power @ 2,200 rpm - ISO 9249:2007

45 hp 33.6 kW
{"Name":"Net Power @ 2,200 rpm - ISO 9249:2007","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"45","MetricUnit":"kW","MetricValue":"33.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Bore

3.3 in 84 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.3","MetricUnit":"mm","MetricValue":"84","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Stroke

3.9 in 100 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.9","MetricUnit":"mm","MetricValue":"100","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Displacement

104 in² 1.7 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"104","MetricUnit":"l","MetricValue":"1.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Note (1)

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
Note (2)

Net power advertised is the power available at the flywheel.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Note

*Engine meets U.S. EPA Tier 4 Final emission standards.
{"Name":"Note","SpecificationId":null,"TextValue":"*Engine meets U.S. EPA Tier 4 Final emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}

Hydraulic System

Main Relief

3336 psi 230 bar
{"Name":"Main Relief","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3336","MetricUnit":"bar","MetricValue":"230","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"4"}
3rd Auxiliary Flow

14.1 gpm 53.5 L/min
{"Name":"3rd Auxiliary Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"14.1","MetricUnit":"L/min","MetricValue":"53.5","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"5"}
Hydraulic Cycle Time - Lift

4.5 s 4.5 s
{"Name":"Hydraulic Cycle Time - Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"4.5","MetricUnit":"s","MetricValue":"4.5","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"6"}
Hydraulic Cycle Time - Dump

0.7 s 0.7 s
{"Name":"Hydraulic Cycle Time - Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"0.7","MetricUnit":"s","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"7"}
Hydraulic Cycle Time - Lower, Float

2.3 s 2.3 s
{"Name":"Hydraulic Cycle Time - Lower, Float","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"2.3","MetricUnit":"s","MetricValue":"2.3","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"8"}

Maximum Material Densities - General Purpose

Bucket Type

General Purpose
{"Name":"Bucket Type","SpecificationId":null,"TextValue":"General Purpose","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Maximum Material Densities - General Purpose","SortOrder":"4"}
Rated Capacity

0.8 yd³ 0.6 m³
{"Name":"Rated Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.8","MetricUnit":"m³","MetricValue":"0.6","Type":"measurement","SpecificationGroup":"Maximum Material Densities - General Purpose","SortOrder":"5"}
Dump Height

93 in 2355 mm
{"Name":"Dump Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"93","MetricUnit":"mm","MetricValue":"2355","Type":"measurement","SpecificationGroup":"Maximum Material Densities - General Purpose","SortOrder":"6"}
Maximum Material Density

3169 lb/yd³ 1880 kg/m³
{"Name":"Maximum Material Density","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/yd³","EnglishValue":"3169","MetricUnit":"kg/m³","MetricValue":"1880","Type":"measurement","SpecificationGroup":"Maximum Material Densities - General Purpose","SortOrder":"7"}
Bucket Width

70 in 1790 mm
{"Name":"Bucket Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"70","MetricUnit":"mm","MetricValue":"1790","Type":"measurement","SpecificationGroup":"Maximum Material Densities - General Purpose","SortOrder":"8"}
Note

Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.
{"Name":"Note","SpecificationId":null,"TextValue":"Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Maximum Material Densities - General Purpose","SortOrder":"9"}

Maximum Material Densities - Light Material

Bucket Type

Light Material
{"Name":"Bucket Type","SpecificationId":null,"TextValue":"Light Material","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Maximum Material Densities - Light Material","SortOrder":"4"}
Rated Capacity

1.3 yd³ 1 m³
{"Name":"Rated Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"1.3","MetricUnit":"m³","MetricValue":"1","Type":"measurement","SpecificationGroup":"Maximum Material Densities - Light Material","SortOrder":"5"}
Dump Height

88 in 2225 mm
{"Name":"Dump Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"88","MetricUnit":"mm","MetricValue":"2225","Type":"measurement","SpecificationGroup":"Maximum Material Densities - Light Material","SortOrder":"6"}
Maximum Material Density

1989 lb/yd³ 1180 kg/m³
{"Name":"Maximum Material Density","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/yd³","EnglishValue":"1989","MetricUnit":"kg/m³","MetricValue":"1180","Type":"measurement","SpecificationGroup":"Maximum Material Densities - Light Material","SortOrder":"7"}
Bucket Width

74 in 1880 mm
{"Name":"Bucket Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74","MetricUnit":"mm","MetricValue":"1880","Type":"measurement","SpecificationGroup":"Maximum Material Densities - Light Material","SortOrder":"8"}
Note

Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.
{"Name":"Note","SpecificationId":null,"TextValue":"Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Maximum Material Densities - Light Material","SortOrder":"9"}

Operating Specifications - High Lift

Tire Size

33 × 15.5-16.5, 12 PR
{"Name":"Tire Size","SpecificationId":null,"TextValue":"33 × 15.5-16.5, 12 PR","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"4"}
Rated Bucket Capacity

0.8 yd³ 0.6 m³
{"Name":"Rated Bucket Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.8","MetricUnit":"m³","MetricValue":"0.6","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"5"}
Breakout Force

6519 lbf 29 kN
{"Name":"Breakout Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"6519","MetricUnit":"kN","MetricValue":"29","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"6"}
Operating Weight

9231 lb 4187 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9231","MetricUnit":"kg","MetricValue":"4187","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"7"}
Rated Operating Load at Full Turn - Bucket***

2553 lb 1158 kg
{"Name":"Rated Operating Load at Full Turn - Bucket***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2553","MetricUnit":"kg","MetricValue":"1158","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"8"}
Straight Tipping Load - Bucket***

5975 lb 2710 kg
{"Name":"Straight Tipping Load - Bucket***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5975","MetricUnit":"kg","MetricValue":"2710","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"9"}
Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***

5108 lb 2317 kg
{"Name":"Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5108","MetricUnit":"kg","MetricValue":"2317","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"10"}
Full Turn Static Tipping Load - Bucket (Rigid Tire**)***

5238 lb 2376 kg
{"Name":"Full Turn Static Tipping Load - Bucket (Rigid Tire**)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5238","MetricUnit":"kg","MetricValue":"2376","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"11"}
Rack Back - Transport Position

51°
{"Name":"Rack Back - Transport Position","SpecificationId":null,"TextValue":"51°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"12"}
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***

3175 lb 1440 kg
{"Name":"Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3175","MetricUnit":"kg","MetricValue":"1440","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"13"}
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***

2381 lb 1080 kg
{"Name":"Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2381","MetricUnit":"kg","MetricValue":"1080","Type":"measurement","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"14"}
Note (1)

*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"15"}
Note (2)

**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"16"}
Note (3)

***Manual quick coupler, precleaner hood.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"***Manual quick coupler, precleaner hood.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"17"}
Note (4)

Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - High Lift","SortOrder":"18"}

Operating Specifications - Standard Lift

Tire Size

33 × 15.5-16.5, 12 PR
{"Name":"Tire Size","SpecificationId":null,"TextValue":"33 × 15.5-16.5, 12 PR","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"4"}
Rated Bucket Capacity

0.8 yd³ 0.6 m³
{"Name":"Rated Bucket Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.8","MetricUnit":"m³","MetricValue":"0.6","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"5"}
Breakout Force

6294 lbf 28 kN
{"Name":"Breakout Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"6294","MetricUnit":"kN","MetricValue":"28","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"6"}
Operating Weight

9200 lb 4173 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9200","MetricUnit":"kg","MetricValue":"4173","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"7"}
Rated Operating Load at Full Turn - Bucket***

2756 lb 1251 kg
{"Name":"Rated Operating Load at Full Turn - Bucket***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2756","MetricUnit":"kg","MetricValue":"1251","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"8"}
Straight Tipping Load - Bucket***

6415 lb 2910 kg
{"Name":"Straight Tipping Load - Bucket***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6415","MetricUnit":"kg","MetricValue":"2910","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"9"}
Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***

5516 lb 2502 kg
{"Name":"Full Turn Static Tipping Load - Bucket (ISO 14397-1*)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5516","MetricUnit":"kg","MetricValue":"2502","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"10"}
Full Turn Static Tipping Load - Bucket (Rigid Tire**)***

5626 lb 2552 kg
{"Name":"Full Turn Static Tipping Load - Bucket (Rigid Tire**)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5626","MetricUnit":"kg","MetricValue":"2552","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"11"}
Rack Back - Transport Position

51°
{"Name":"Rack Back - Transport Position","SpecificationId":null,"TextValue":"51°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"12"}
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***

3393 lb 1539 kg
{"Name":"Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3393","MetricUnit":"kg","MetricValue":"1539","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"13"}
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***

2544 lb 1154 kg
{"Name":"Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2544","MetricUnit":"kg","MetricValue":"1154","Type":"measurement","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"14"}
Note (1)

*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"15"}
Note (2)

**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Compliance to ISO 14397-1 (2007) Sections 1 thru 5.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"16"}
Note (3)

***Manual quick coupler, precleaner hood.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"***Manual quick coupler, precleaner hood.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"17"}
Note (4)

Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications - Standard Lift","SortOrder":"18"}

Service Refill Capacities

Cooling System

3 gal (US) 11 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"3","MetricUnit":"l","MetricValue":"11","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"4"}
Fuel Tank

11.4 gal (US) 43 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11.4","MetricUnit":"l","MetricValue":"43","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"5"}
Hydraulic System

6.3 gal (US) 24 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.3","MetricUnit":"l","MetricValue":"24","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"6"}
Engine Oil

1.6 gal (US) 6 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.6","MetricUnit":"l","MetricValue":"6","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"7"}

Sound Levels

Interior Sound

80.8 dB(A)
{"Name":"Interior Sound","SpecificationId":null,"TextValue":"80.8 dB(A)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"4"}
Exterior Sound

99.8 dB(A)
{"Name":"Exterior Sound","SpecificationId":null,"TextValue":"99.8 dB(A)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"5"}

Sustainability

Recyclability

95%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"95%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"4"}

Transmission

Travel Speed

12.4 mile/h 20 km/h
{"Name":"Travel Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12.4","MetricUnit":"km/h","MetricValue":"20","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"4"}

Weights

Operating Weight

9200 lb 4173 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9200","MetricUnit":"kg","MetricValue":"4173","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Benefits

Work Made Easy

The 903 makes work easy with a 17% increase in horsepower with the all-new Cat C1.7 engine. This provides for improved performance when operating on grades and when using drive, steer, and lift simultaneously. The all-new optional hydraulic skid steer loader style coupler allows for faster and more efficient work tool changes while providing a viewing window that enables the operator to see the fork tips when using compact wheel loader style forks. Optional front and rear diff-lock can be activated on the fly, providing maximum traction in slick underfoot conditions.

Enjoy All Day Comfort

Operators will enjoy all day comfort with a multi-function joystick, spacious leg room, ergonomic pedal positioning, easy entry/exit, and optional speed sensitive ride control. The all-new seat provides optimal comfort, while featuring yellow adjustment touch points that make finding that perfect seat position easy. The minimal engine overhang provides excellent rear and corner visibility, making the 903 easy to operate in confined areas.

Configured for Success

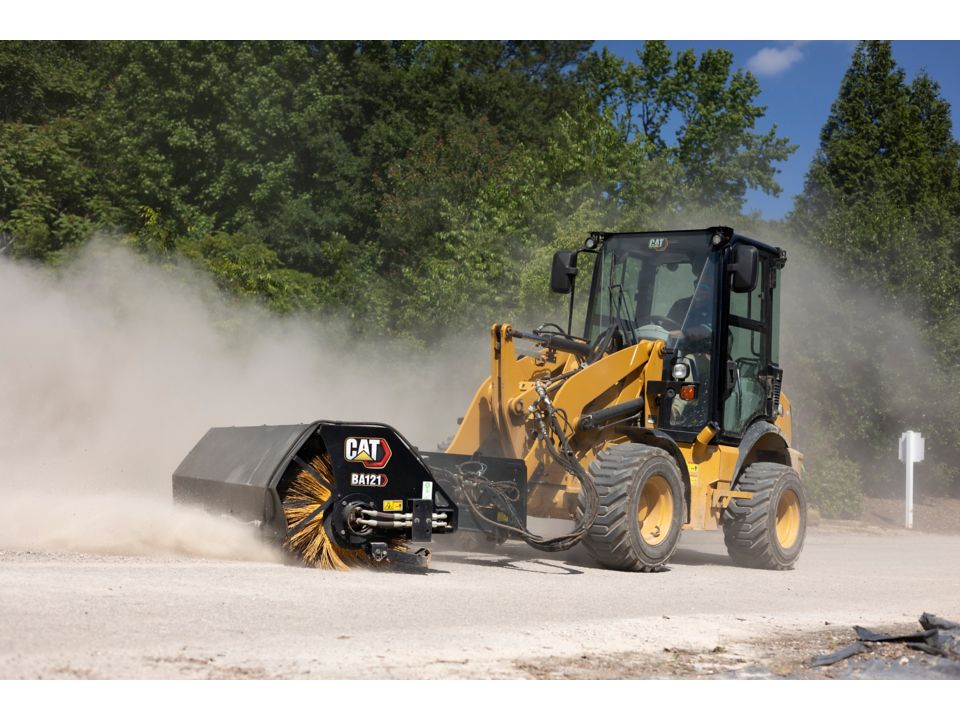

Configure the 903 for success with new options such as engine and ground speed control, ideally suited for hydro-mechanical work such as using a broom. With the addition of a work tool electrical harness option, you can now run more tools than ever before. Two loader linkage options, standard and high lift, provide either improved capacity or improved lift height based on your application.

Simply Reliable

Fully opening rear hood allows easy access to the engine compartment featuring side-by-side coolers and transparent fuel/water separator with optional engine air pre-cleaner and radiator screen for high debris applications. Rear tie down locations under the machine allow for easy transport, while the service locations under the hood provide easy access for daily maintenance.

Equipment Info

POWER TRAIN

Air cleaner, two stage with visual indicator

ELECTRICAL

12 volt direct electric starting

OPERATOR ENVIRONMENT

Cup holder

OTHER STANDARD EQUIPMENT

3rd valve auxiliary hydraulics with continuous flow detent, standard flow

Product Brochures

Product Brochure #1

Product Brochure #2

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

903

903

Work Made Easy

Enjoy All Day Comfort

Configured for Success

Simply Reliable

POWER TRAIN

ELECTRICAL

OPERATOR ENVIRONMENT

OTHER STANDARD EQUIPMENT

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
