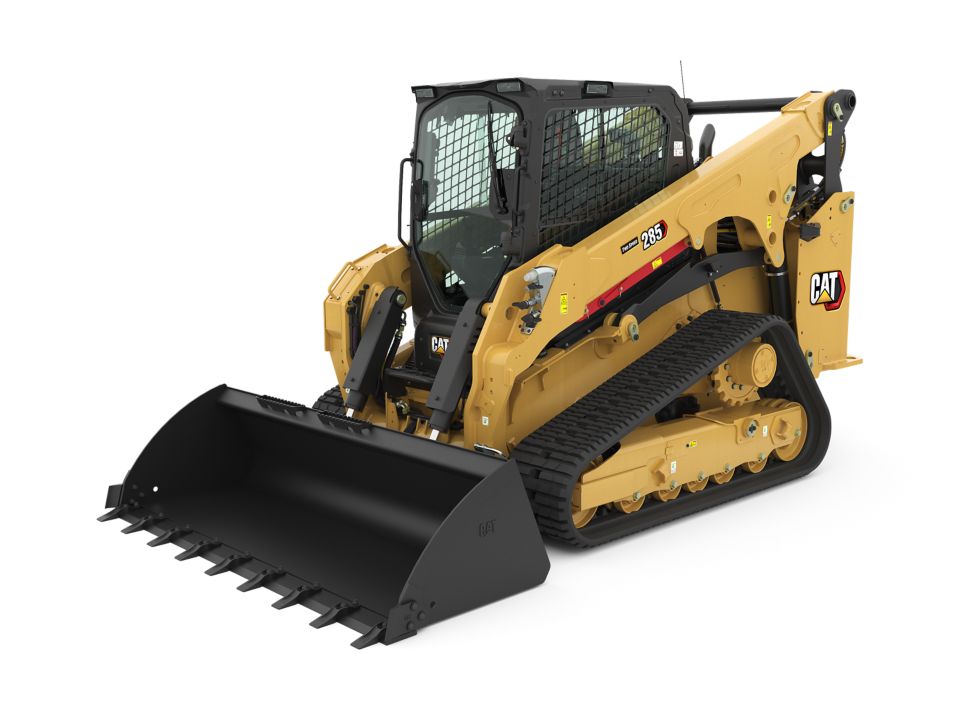

285

Get in touch

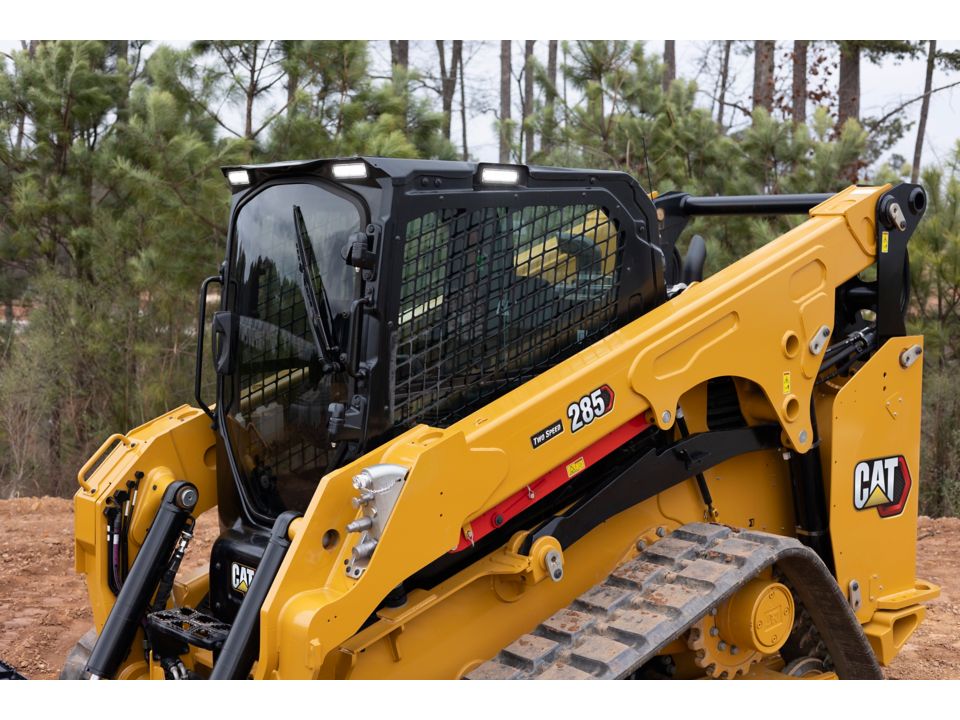

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Cab

ROPS

ISO 3471:2008
{"Name":"ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"4"}
FOPS

ISO 3449:2005 Level I
{"Name":"FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level I","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"4"}
FOPS Level II

ISO 3449:2005 Level II (Optional)
{"Name":"FOPS Level II","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II (Optional)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"6"}

Dimensions

Bucket Pin Height - Carry Position

8.2 in 209 mm
{"Name":"Bucket Pin Height - Carry Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8.2","MetricUnit":"mm","MetricValue":"209","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"4"}

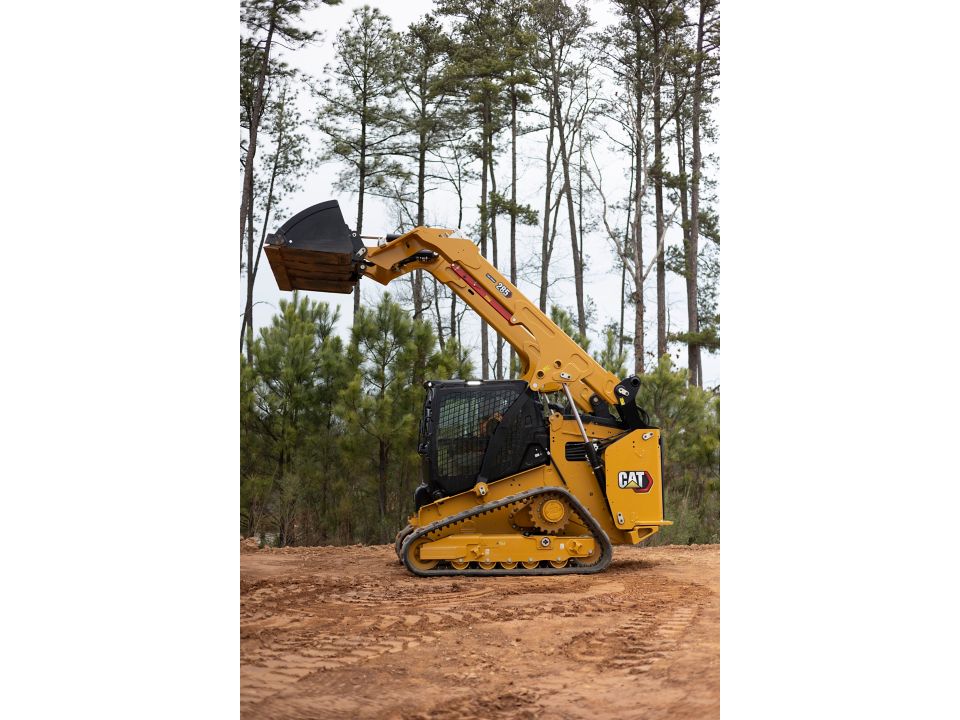

Bucket Pin Height - Maximum Lift

146.6 in 3724 mm
{"Name":"Bucket Pin Height - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"146.6","MetricUnit":"mm","MetricValue":"3724","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"5"}
Bucket Pin Reach - Maximum Lift

16.3 in 413 mm
{"Name":"Bucket Pin Reach - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16.3","MetricUnit":"mm","MetricValue":"413","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"6"}
Clearance at Maximum Lift and Dump

119.6 in 3039 mm
{"Name":"Clearance at Maximum Lift and Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"119.6","MetricUnit":"mm","MetricValue":"3039","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"7"}
Departure Angle

26°
{"Name":"Departure Angle","SpecificationId":null,"TextValue":"26°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"8"}
Ground Clearance

11 in 280 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11","MetricUnit":"mm","MetricValue":"280","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"9"}
Height - Top of Cab

87.8 in 2230 mm
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"87.8","MetricUnit":"mm","MetricValue":"2230","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"10"}
Length - Track on Ground

72 in 1830 mm
{"Name":"Length - Track on Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72","MetricUnit":"mm","MetricValue":"1830","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"11"}
Length - With Bucket on Ground

157.4 in 3998 mm
{"Name":"Length - With Bucket on Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"157.4","MetricUnit":"mm","MetricValue":"3998","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"12"}
Length - Without Bucket

132.3 in 3360 mm
{"Name":"Length - Without Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"132.3","MetricUnit":"mm","MetricValue":"3360","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"13"}
Maximum Overall Height

178 in 4520 mm
{"Name":"Maximum Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"178","MetricUnit":"mm","MetricValue":"4520","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"14"}
Maximum Reach - With Arms Parallel to Ground

50.6 in 1285 mm
{"Name":"Maximum Reach - With Arms Parallel to Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"50.6","MetricUnit":"mm","MetricValue":"1285","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"15"}
Overall Length - Track

85.8 in 2180 mm
{"Name":"Overall Length - Track","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"85.8","MetricUnit":"mm","MetricValue":"2180","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"16"}
Rack Back Angle - Maximum Height

89°
{"Name":"Rack Back Angle - Maximum Height","SpecificationId":null,"TextValue":"89°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"17"}
Reach at Maximum Lift/Dump

34.7 in 882 mm
{"Name":"Reach at Maximum Lift/Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"34.7","MetricUnit":"mm","MetricValue":"882","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"18"}
Roll Back Angle

27.2°
{"Name":"Roll Back Angle","SpecificationId":null,"TextValue":"27.2°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"19"}
Turning Radius from Center - Bucket (racked)

94.5 in 2400 mm
{"Name":"Turning Radius from Center - Bucket (racked)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"94.5","MetricUnit":"mm","MetricValue":"2400","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"20"}
Turning Radius from Center - Coupler

62.1 in 1578 mm
{"Name":"Turning Radius from Center - Coupler","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"62.1","MetricUnit":"mm","MetricValue":"1578","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"21"}
Turning Radius from Center - Machine Rear

74.3 in 1887 mm
{"Name":"Turning Radius from Center - Machine Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.3","MetricUnit":"mm","MetricValue":"1887","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"22"}
Vehicle Width (450 mm/17.7 in tracks)

81.8 in 2078 mm
{"Name":"Vehicle Width (450 mm/17.7 in tracks)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"81.8","MetricUnit":"mm","MetricValue":"2078","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"23"}
Maximum Dump Angle

40.5°
{"Name":"Maximum Dump Angle","SpecificationId":null,"TextValue":"40.5°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"24"}

Engine

Gross Power - SAE J1995:2014

111 hp 82 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"111","MetricUnit":"kW","MetricValue":"82","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Bore

4.7 in 120 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.7","MetricUnit":"mm","MetricValue":"120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
Displacement

220 in² 3.6 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"220","MetricUnit":"l","MetricValue":"3.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Net Power - ISO 9249

109 hp 81 kW
{"Name":"Net Power - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"109","MetricUnit":"kW","MetricValue":"81","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Net Power - SAE 1349

82 hp 111 kW
{"Name":"Net Power - SAE 1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"82","MetricUnit":"kW","MetricValue":"111","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Peak Torque - 1,500 rpm - SAE J1995

370 lb/ft 501 N·m
{"Name":"Peak Torque - 1,500 rpm - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"370","MetricUnit":"N·m","MetricValue":"501","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Stroke

4.7 in 120 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.7","MetricUnit":"mm","MetricValue":"120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Engine Model

Cat® C3.6 TA (turbocharged after-cooled)
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C3.6 TA (turbocharged after-cooled)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)

80.7 hp 60.2 kW
{"Name":"Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"80.7","MetricUnit":"kW","MetricValue":"60.2","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"13"}
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow

34 gpm 129 L/min
{"Name":"Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"34","MetricUnit":"L/min","MetricValue":"129","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"14"}
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure

4061 psi 28000 kPa
{"Name":"Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"15"}
Hydraulic Flow - Standard - Hydraulic Power (Calculated)

46.4 hp 34.6 kW
{"Name":"Hydraulic Flow - Standard - Hydraulic Power (Calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"46.4","MetricUnit":"kW","MetricValue":"34.6","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"16"}
Hydraulic Flow - Standard - Loader Hydraulic Flow

23 gpm 86 L/min
{"Name":"Hydraulic Flow - Standard - Loader Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"23","MetricUnit":"L/min","MetricValue":"86","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"17"}
Hydraulic Flow - Standard - Loader Hydraulic Pressure

3500 psi 24130 kPa
{"Name":"Hydraulic Flow - Standard - Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3500","MetricUnit":"kPa","MetricValue":"24130","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"18"}

Operating Specifications

Rated Operating Capacities - 35% Tipping Load

4461 lb 2023 kg
{"Name":"Rated Operating Capacities - 35% Tipping Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4461","MetricUnit":"kg","MetricValue":"2023","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"2"}
Breakout Force - Lift Cylinder

8730 lb 3960 kg
{"Name":"Breakout Force - Lift Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"8730","MetricUnit":"kg","MetricValue":"3960","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"4"}
Breakout Force - Tilt Cylinder

13920 lb 6314 kg
{"Name":"Breakout Force - Tilt Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"13920","MetricUnit":"kg","MetricValue":"6314","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"5"}
Ground Contact Area - With 450 mm/17.7 in Track

2724 in² 1.76 m²
{"Name":"Ground Contact Area - With 450 mm/17.7 in Track","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"2724","MetricUnit":"m²","MetricValue":"1.76","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"6"}
Ground Pressure - With 450 mm/17.7 in Track

5 psi 34.3 kPa
{"Name":"Ground Pressure - With 450 mm/17.7 in Track","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5","MetricUnit":"kPa","MetricValue":"34.3","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"10"}
Rated Operating Capacities - 50% Tipping Load

6372 lb 2891 kg
{"Name":"Rated Operating Capacities - 50% Tipping Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6372","MetricUnit":"kg","MetricValue":"2891","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"11"}
Tipping Load

12745 lb 5781 kg
{"Name":"Tipping Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"12745","MetricUnit":"kg","MetricValue":"5781","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"13"}

Power Train

Travel Speed - Forward or Reverse - One Speed

4.8 mile/h 7.8 km/h
{"Name":"Travel Speed - Forward or Reverse - One Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"4.8","MetricUnit":"km/h","MetricValue":"7.8","Type":"measurement","SpecificationGroup":"Power Train","SortOrder":"5"}
Travel Speed - Forward or Reverse - Two Speed

7.7 mile/h 12.4 km/h
{"Name":"Travel Speed - Forward or Reverse - Two Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Power Train","SortOrder":"6"}

Service Refill Capacities

Cooling System

4.6 gal (US) 17.5 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.6","MetricUnit":"l","MetricValue":"17.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"5"}
Engine Crankcase

2.4 gal (US) 9 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.4","MetricUnit":"l","MetricValue":"9","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"6"}
Fuel Tank

36 gal (US) 136.1 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"36","MetricUnit":"l","MetricValue":"136.1","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"7"}
Hydraulic System

10.8 gal (US) 41 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"10.8","MetricUnit":"l","MetricValue":"41","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"8"}
Hydraulic Tank

6.9 gal (US) 26 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"9"}
Diesel Exhaust Fluid (DEF) Tank

2.9 gal (US) 11 l
{"Name":"Diesel Exhaust Fluid (DEF) Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.9","MetricUnit":"l","MetricValue":"11","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"10"}

Weights*

Operating Weight

13497 lb 6122 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"13497","MetricUnit":"kg","MetricValue":"6122","Type":"measurement","SpecificationGroup":"Weights*","SortOrder":"3"}
Counterweight Adds to Operating Weight

428 lb 194 kg
{"Name":"Counterweight Adds to Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"428","MetricUnit":"kg","MetricValue":"194","Type":"measurement","SpecificationGroup":"Weights*","SortOrder":"5"}
Counterweight Adds to Operating Weight - ROC (35%)

296 lb 134 kg
{"Name":"Counterweight Adds to Operating Weight - ROC (35%)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"296","MetricUnit":"kg","MetricValue":"134","Type":"measurement","SpecificationGroup":"Weights*","SortOrder":"6"}
Counterweight Adds to Operating Weight - Tip Load

847 lb 384 kg
{"Name":"Counterweight Adds to Operating Weight - Tip Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"847","MetricUnit":"kg","MetricValue":"384","Type":"measurement","SpecificationGroup":"Weights*","SortOrder":"7"}
Note

*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights*","SortOrder":"16"}

Benefits

Redesigned Operator Station

Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 285 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

Available Ventilated and Heated High-Back Air Ride Seat

Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.

High-Performance Power Train

The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.

Three Levels of Auxiliary Hydraulic Performance

Three levels of auxiliary hydraulic performance are available - Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications

Electronically Controlled Cat C3.6TA (turbocharged, aftercooled) Engine

The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.

Standard Equalizer Bar (E-bar) Undercarriage and Standard Two-Speed Travel

The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.

Advanced Touchscreen Monitor

The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

Advanced Joysticks

Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

Ground-Level Access

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

Cat Attachments

Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.

Equipment Info

STANDARD EQUIPMENT

Quick Coupler: Manual or Hydraulic

OPERATOR ENVIRONMENT

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.

HYDRAULICS

Selectable control pattern – ISO or H

POWER TRAIN

Cat C3.6TA turbocharged, after-cooled diesel engine, meeting U.S. EPA Tier 4 Final and EU Stage V Emission Standards: • Glow plugs starting aid • Liquid cooled, direct injection

UNDERCARRIAGE

Torsion Suspension (4 independent torsion axles)

FRAME

Machine tie down points (9)

OTHER

Auxiliary Hydraulics, Continuous Flow

PERFORMANCE PACKAGES

Performance Package HP1: Standard Flow Hydraulics

COMFORT PACKAGES

Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat)

TECHNOLOGY PACKAGES

T2 – Standard Display, Standard Joysticks, traditional Key Start switch, and Rear-view camera.

RADIO

Radio, none – for open canopy machines and countries not certified for Bluetooth® technology

PRODUCT LINK™

Product Link™ Basic series PL243

COOLING FAN

On-demand, variable speed hydraulic cooling fan

GUARDING AND SEALING PACKAGES

HD0 – base guarding and sealing (engine air inlet rain cap, front cab to-frame sealing, and hydraulic fill access door)

ELECTRICAL

Work Tool Electrical Harness
