730 Bare Chassis

Get in touch

Articulated Truck Bare Chassis

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Engine

Engine Model

Cat® C13
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C13","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"3"}
Gross Power - SAE J1995:2014

375 hp 280 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"375","MetricUnit":"kW","MetricValue":"280","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Net Power - SAE J1349:2011

367 hp 274 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"367","MetricUnit":"kW","MetricValue":"274","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Bore

5.1 in 130 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.1","MetricUnit":"mm","MetricValue":"130","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Stroke

6.2 in 157 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.2","MetricUnit":"mm","MetricValue":"157","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Displacement

762.8 in³ 12.5 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"762.8","MetricUnit":"l","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Net Power - ISO 14396

370 hp 276 kW
{"Name":"Net Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"370","MetricUnit":"kW","MetricValue":"276","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Engine Torque Speed

1200 r/min 1200 r/min
{"Name":"Peak Engine Torque Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1200","MetricUnit":"r/min","MetricValue":"1200","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Engine Torque Gross (SAE J1995)

1579 lb/ft 2141 N·m
{"Name":"Peak Engine Torque Gross (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"1579","MetricUnit":"N·m","MetricValue":"2141","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Engine Torque Net (SAE J1349)

1554 ft·lbf 2107 N·m
{"Name":"Peak Engine Torque Net (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"1554","MetricUnit":"N·m","MetricValue":"2107","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
No Engine De-rating Required Below

12500 ft 3810 m
{"Name":"No Engine De-rating Required Below","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12500","MetricUnit":"m","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"100"}
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV

Cat® C13
{"Name":"Engine Model - U.S. EPA Tier 4 Final/EU Stage IV","SpecificationId":null,"TextValue":"Cat® C13","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"105"}

Service Refill Capacities

Fuel Tank

108.8 gal (US) 412 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"108.8","MetricUnit":"l","MetricValue":"412","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"40"}
Cooling System

21.9 gal (US) 83 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"21.9","MetricUnit":"l","MetricValue":"83","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"41"}
Hydraulic System

29.1 gal (US) 110 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"29.1","MetricUnit":"l","MetricValue":"110","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"42"}
Engine Crankcase

10 gal (US) 38 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"10","MetricUnit":"l","MetricValue":"38","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"43"}
Transmission

12.4 gal (US) 47 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"12.4","MetricUnit":"l","MetricValue":"47","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"44"}
Final Drives/Differential

33 gal (US) 125 l
{"Name":"Final Drives/Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"33","MetricUnit":"l","MetricValue":"125","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"45"}
Output Transfer Gear Box

6.3 gal (US) 24 l
{"Name":"Output Transfer Gear Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.3","MetricUnit":"l","MetricValue":"24","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"46"}
DEF Tank

5.3 gal (US) 20 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5.3","MetricUnit":"l","MetricValue":"20","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Sound Levels

Interior Cab

72 dB(A) 72 dB(A)
{"Name":"Interior Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Levels","SortOrder":"50"}

Standards

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"54"}
Cab - FOPS

ISO 3449:2005 Level II
{"Name":"Cab - FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"55"}
Cab - ROPS

ISO 3471:2008
{"Name":"Cab - ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"56"}
Steering

ISO 5010:2019
{"Name":"Steering","SpecificationId":null,"TextValue":"ISO 5010:2019","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"114"}

Steering

Lock to Lock

4.75 seconds @ 60 rpm
{"Name":"Lock to Lock","SpecificationId":null,"TextValue":"4.75 seconds @ 60 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}

Transmission

Forward - 1

5 mile/h 8 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"12"}
Forward - 2

9 mile/h 15 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"15","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"13"}
Forward - 3

14 mile/h 22 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14","MetricUnit":"km/h","MetricValue":"22","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"14"}
Forward - 4

21 mile/h 34 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"21","MetricUnit":"km/h","MetricValue":"34","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"15"}
Forward - 5

29 mile/h 47 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"29","MetricUnit":"km/h","MetricValue":"47","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"16"}
Forward - 6

34 mile/h 55 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34","MetricUnit":"km/h","MetricValue":"55","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"17"}
Reverse - 1

6 mile/h 9 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6","MetricUnit":"km/h","MetricValue":"9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"20"}

Turning Circle

Turning Dimensions - Inside Radius

153 in 3879 mm
{"Name":"Turning Dimensions - Inside Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153","MetricUnit":"mm","MetricValue":"3879","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - SAE Turning Radius

294 in 7470 mm
{"Name":"Turning Dimensions - SAE Turning Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"294","MetricUnit":"mm","MetricValue":"7470","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Aisle Width

210 in 5332 mm
{"Name":"Turning Dimensions - Aisle Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"210","MetricUnit":"mm","MetricValue":"5332","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Clearance Radius

318 in 8075 mm
{"Name":"Turning Dimensions - Clearance Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"318","MetricUnit":"mm","MetricValue":"8075","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Steer Angle - Left/Right

45 ° 45 °
{"Name":"Turning Dimensions - Steer Angle - Left/Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"45","MetricUnit":"°","MetricValue":"45","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Note

Dimensions are for machines equipped with 23.5 R25 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Dimensions are for machines equipped with 23.5 R25 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"100"}

Weights

Rated Payload

38.9 ton (US) 35.3 t
{"Name":"Rated Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"38.9","MetricUnit":"t","MetricValue":"35.3","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Wheel Base Length

Standard Wheel Base

156.7 in 3979 mm
{"Name":"Standard Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"156.7","MetricUnit":"mm","MetricValue":"3979","Type":"measurement","SpecificationGroup":"Wheel Base Length","SortOrder":"1"}
Long Wheel Base

215.2 in 5465 mm
{"Name":"Long Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"215.2","MetricUnit":"mm","MetricValue":"5465","Type":"measurement","SpecificationGroup":"Wheel Base Length","SortOrder":"4"}

Benefits

Long Wheel Base

The 730 can be ordered with or without hoist cylinders, and in standard wheel base (SWB) or long wheel base (LWB) configurations through your local Cat dealer.

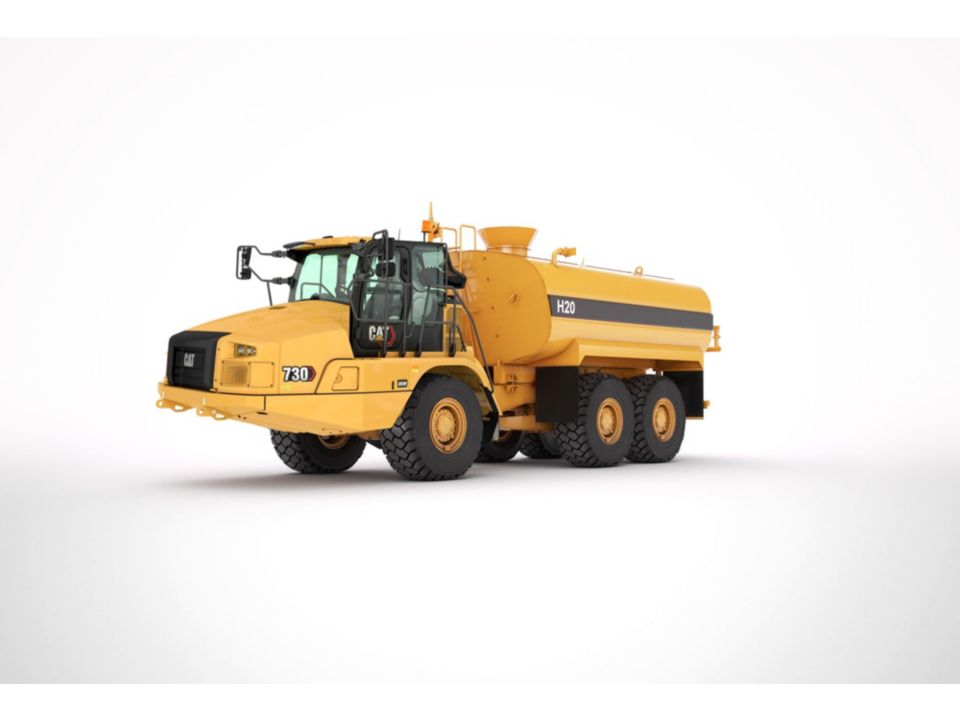

Water Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications.
Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

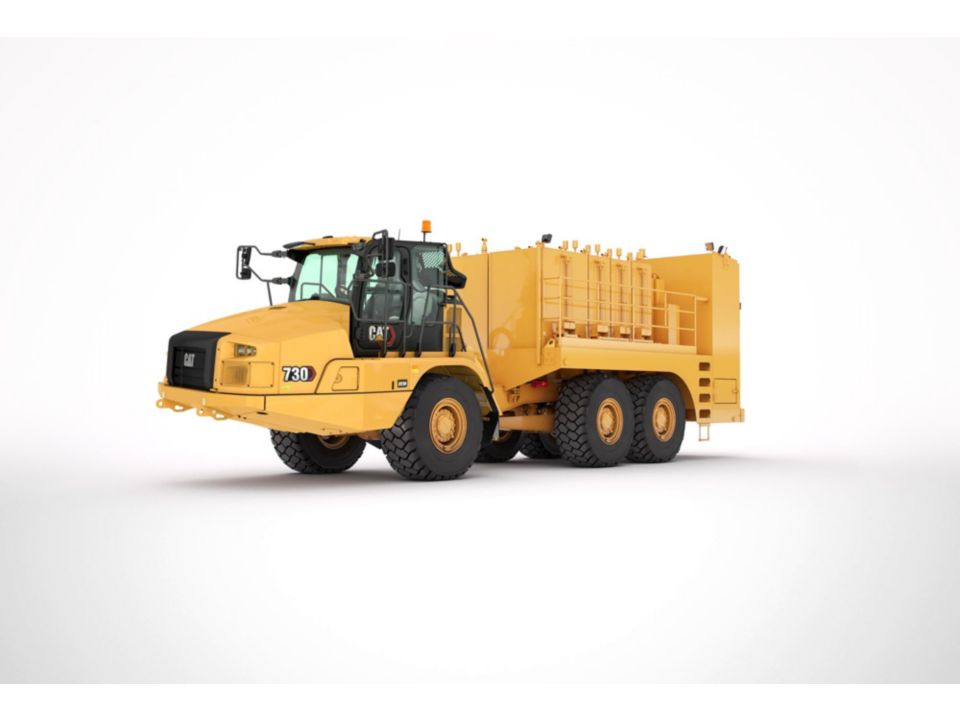

Service Truck Applications

Cat Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

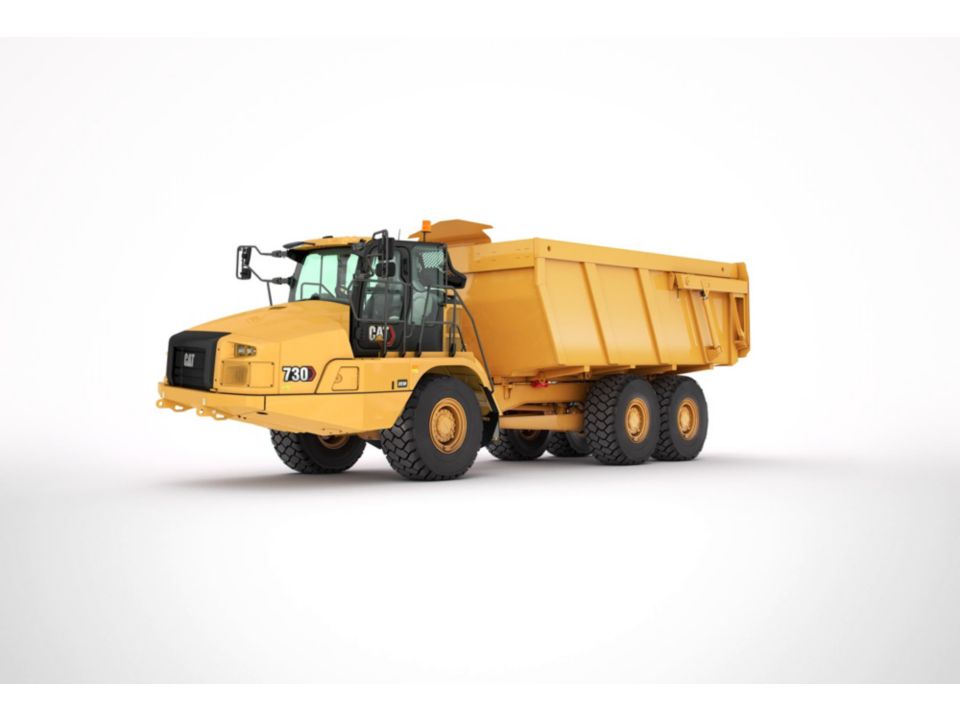

Specialty Body Applications

Cat Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications.
Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications.
Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

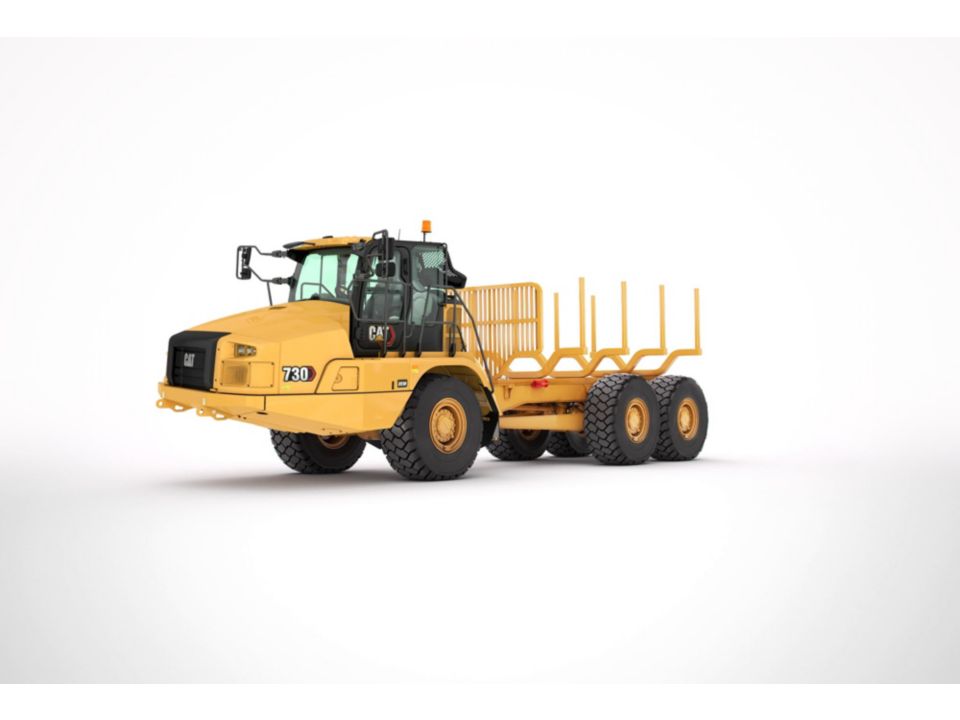

Forestry Applications

Cat Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications.
Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications.
Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Equipment Info

For more information on 730 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Windshield wiper and washer, two speed (rear)

CAT TECHNOLOGIES

Cat Detect with Stability Assist

ELECTRICAL AND LIGHTING

Remote starting receptacle (cables not included)

POWERTRAIN

Retarder: engine compression brake

SAFETY

ROPS/FOPS cab

GUARDS

Rear window

OTHER STANDARD EQUIPMENT

Sound suppression (only standard in Europe)
