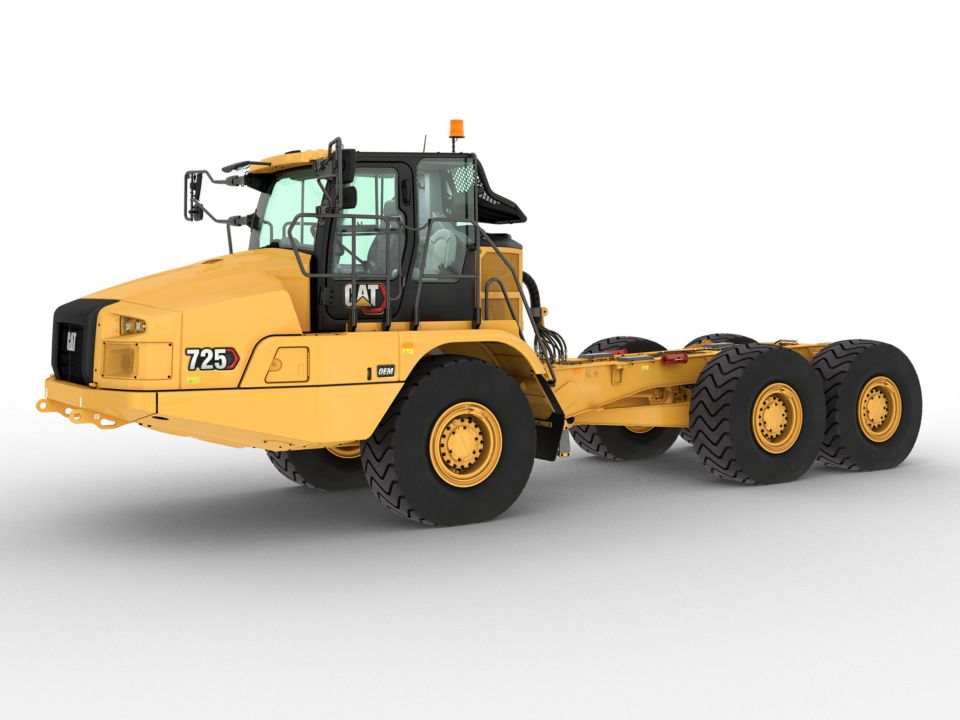

725 Bare Chassis

Get in touch

Articulated Truck Bare Chassis

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Engine

Engine Model

Cat® C9.3
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C9.3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"3"}
Gross Power - SAE J1995:2014

342 hp 255 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"342","MetricUnit":"kW","MetricValue":"255","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Net Power - SAE J1349:2011

334 hp 249 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"334","MetricUnit":"kW","MetricValue":"249","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Net Power - ISO 14396

338 hp 252 kW
{"Name":"Net Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"338","MetricUnit":"kW","MetricValue":"252","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Bore

4.5 in 115 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.5","MetricUnit":"mm","MetricValue":"115","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Stroke

45.2 in 1149 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"45.2","MetricUnit":"mm","MetricValue":"1149","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Displacement

567.5 in³ 9.3 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"567.5","MetricUnit":"l","MetricValue":"9.3","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Peak Engine Torque Speed

1200 r/min 1200 r/min
{"Name":"Peak Engine Torque Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1200","MetricUnit":"r/min","MetricValue":"1200","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"90"}
Peak Engine Torque Gross (SAE J1995)

1275 lb/ft 1729 N·m
{"Name":"Peak Engine Torque Gross (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"1275","MetricUnit":"N·m","MetricValue":"1729","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Engine Torque Net (SAE J1349)

1263 ft·lbf 1712 N·m
{"Name":"Peak Engine Torque Net (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"1263","MetricUnit":"N·m","MetricValue":"1712","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
No Engine De-rating Required Below

3000 ft 914 m
{"Name":"No Engine De-rating Required Below","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3000","MetricUnit":"m","MetricValue":"914","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"100"}
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV

Cat® C9.3
{"Name":"Engine Model - U.S. EPA Tier 4 Final/EU Stage IV","SpecificationId":null,"TextValue":"Cat® C9.3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"105"}

Service Refill Capacities

Fuel Tank

91 gal (US) 412 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"91","MetricUnit":"l","MetricValue":"412","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"40"}
Cooling System

18 gal (US) 83 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"18","MetricUnit":"l","MetricValue":"83","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"41"}
Hydraulic System

24 gal (US) 110 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"24","MetricUnit":"l","MetricValue":"110","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"42"}
Engine Crankcase

8 gal (US) 38 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8","MetricUnit":"l","MetricValue":"38","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"43"}
Transmission

10 gal (US) 47 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"10","MetricUnit":"l","MetricValue":"47","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"44"}
Output Transfer Gear Box

5 gal (US) 24 l
{"Name":"Output Transfer Gear Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"24","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"45"}
Final Drives/Differential

33 gal (US) 125 l
{"Name":"Final Drives/Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"33","MetricUnit":"l","MetricValue":"125","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"45"}
Final Drive - Each

1.6 gal (US) 7.5 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.6","MetricUnit":"l","MetricValue":"7.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"46"}
DEF Tank

4 gal (US) 20 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4","MetricUnit":"l","MetricValue":"20","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Standards

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"54"}
Cab - FOPS

ISO 3449:2005 Level II
{"Name":"Cab - FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"55"}
Cab - ROPS

ISO 3471:2008
{"Name":"Cab - ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"56"}
Steering

ISO 5010:2019
{"Name":"Steering","SpecificationId":null,"TextValue":"ISO 5010:2019","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"57"}

Steering

Lock to Lock

4.75 seconds at 60 rpm
{"Name":"Lock to Lock","SpecificationId":null,"TextValue":"4.75 seconds at 60 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"10"}

Transmission

Forward - 1

5 mile/h 8.1 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"8.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"12"}
Forward - 2

9.4 mile/h 15.2 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9.4","MetricUnit":"km/h","MetricValue":"15.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"13"}
Forward - 3

14.4 mile/h 23.2 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.4","MetricUnit":"km/h","MetricValue":"23.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"14"}
Forward - 4

22.1 mile/h 35.5 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"22.1","MetricUnit":"km/h","MetricValue":"35.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"15"}
Forward - 5

30.7 mile/h 49.4 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"30.7","MetricUnit":"km/h","MetricValue":"49.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"16"}
Forward - 6

36.3 mile/h 58.4 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"36.3","MetricUnit":"km/h","MetricValue":"58.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"17"}
Reverse - 1

5.5 mile/h 8.9 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.5","MetricUnit":"km/h","MetricValue":"8.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"20"}

Turning Circle

Turning Dimensions - SAE Turning Radius

294 in 7470 mm
{"Name":"Turning Dimensions - SAE Turning Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"294","MetricUnit":"mm","MetricValue":"7470","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Inside Radius

153 in 3879 mm
{"Name":"Turning Dimensions - Inside Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153","MetricUnit":"mm","MetricValue":"3879","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Clearance Radius

318 in 8075 mm
{"Name":"Turning Dimensions - Clearance Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"318","MetricUnit":"mm","MetricValue":"8075","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Aisle Width

210 in 5332 mm
{"Name":"Turning Dimensions - Aisle Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"210","MetricUnit":"mm","MetricValue":"5332","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Turning Dimensions - Steer Angle - Left/Right

45 ° 45 °
{"Name":"Turning Dimensions - Steer Angle - Left/Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"45","MetricUnit":"°","MetricValue":"45","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"99"}
Note

Dimensions are for machines equipped with 23.5R25 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Dimensions are for machines equipped with 23.5R25 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"100"}

Weights

Rated Payload

30.4 ton (US) 27.6 t
{"Name":"Rated Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"30.4","MetricUnit":"t","MetricValue":"27.6","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Wheel Base Length

Standard Wheel Base

156.7 in 3979 mm
{"Name":"Standard Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"156.7","MetricUnit":"mm","MetricValue":"3979","Type":"measurement","SpecificationGroup":"Wheel Base Length","SortOrder":"1"}

Benefits

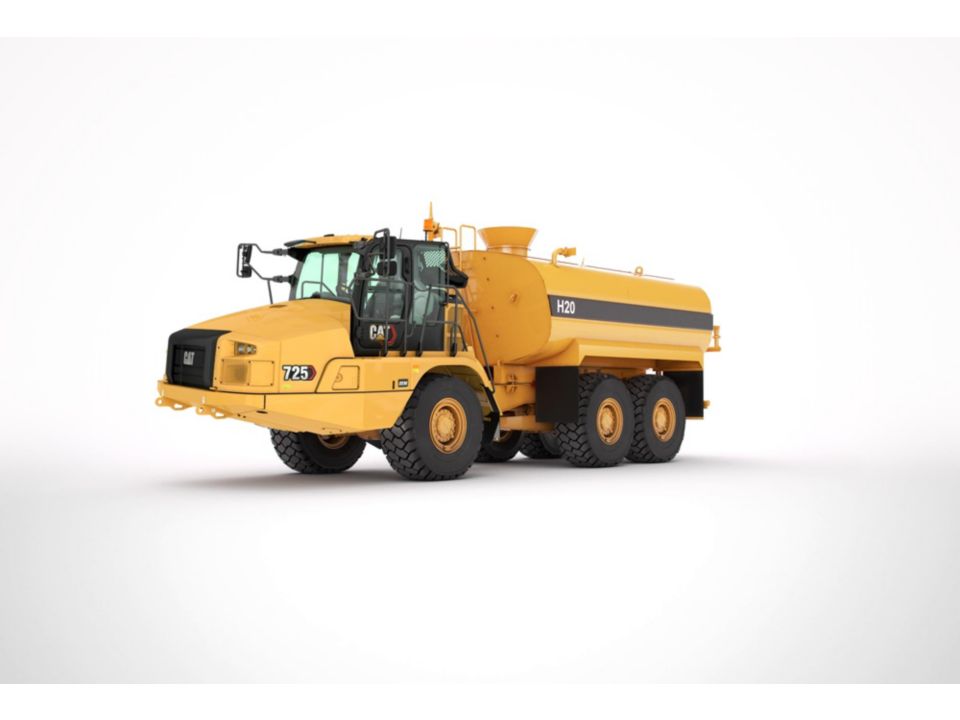

Water Truck Applications

Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications.
Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

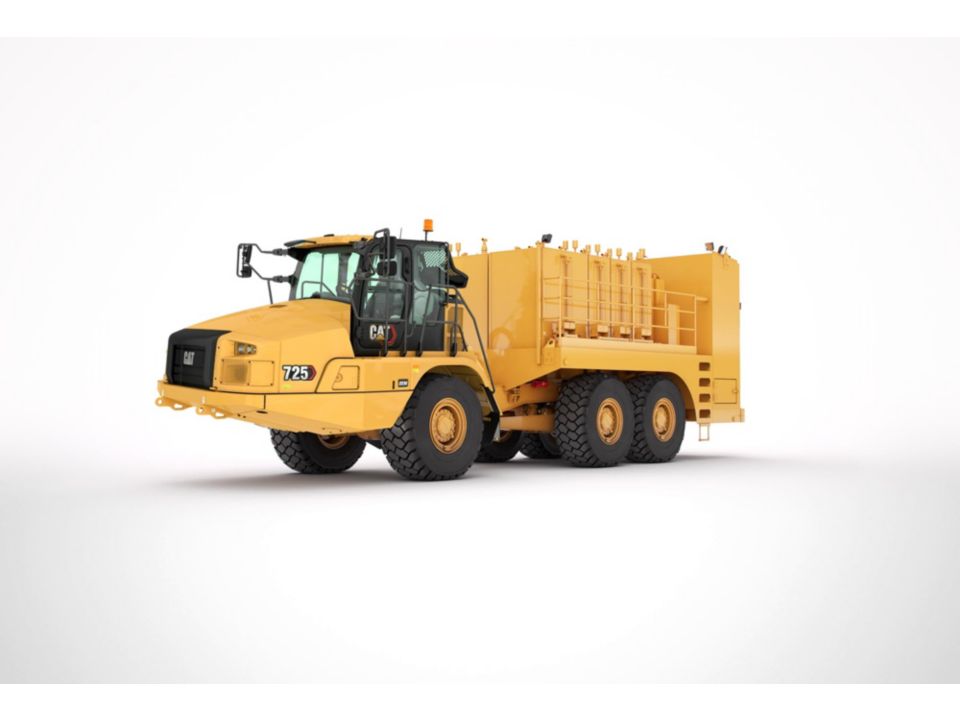

Service Truck Applications

Cat Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

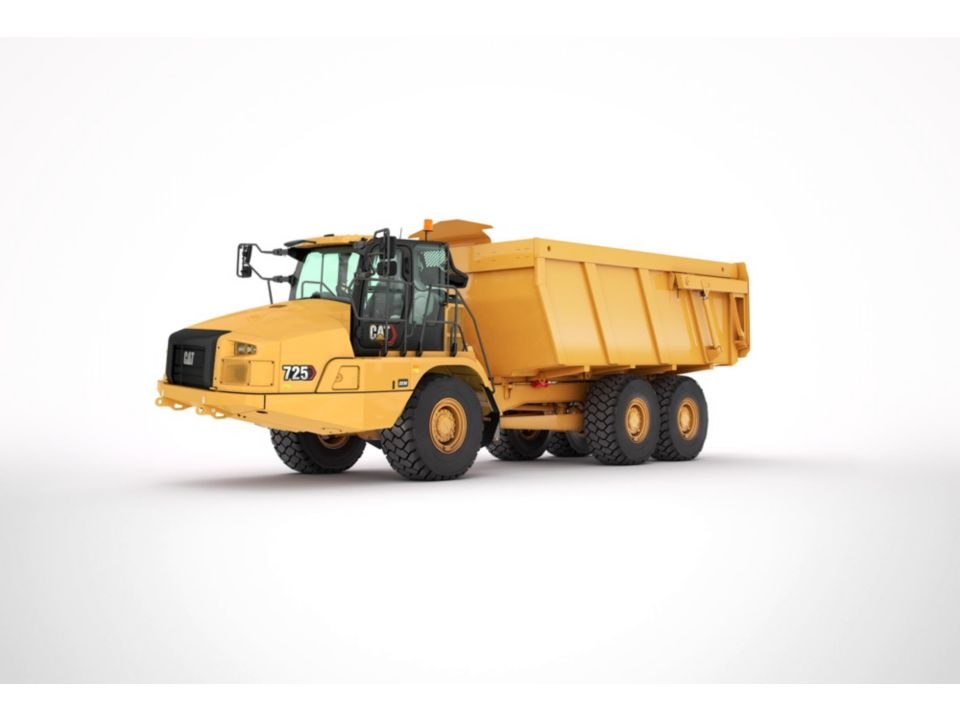

Specialty Body Applications

Cat Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications.
Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications.
Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

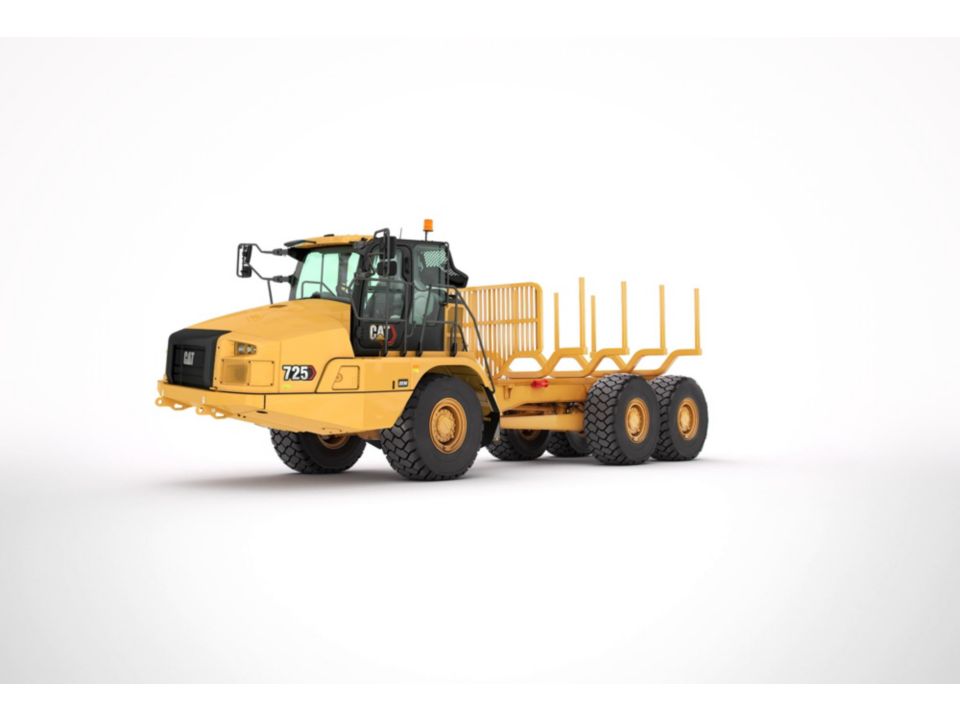

Forestry Applications

Cat Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications.
Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications.
Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

Equipment Info

For more information on 725 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp

CAT TECHNOLOGIES

Product Link

ELECTRICAL AND LIGHTING

Batteries (two) maintenance free

POWERTRAIN

Dual circuit oil immersed, enclosed brakes – all wheels

SAFETY

Rearview camera

GUARDS

Axle

OTHER STANDARD EQUIPMENT

Sound suppression (only standard in Europe)
