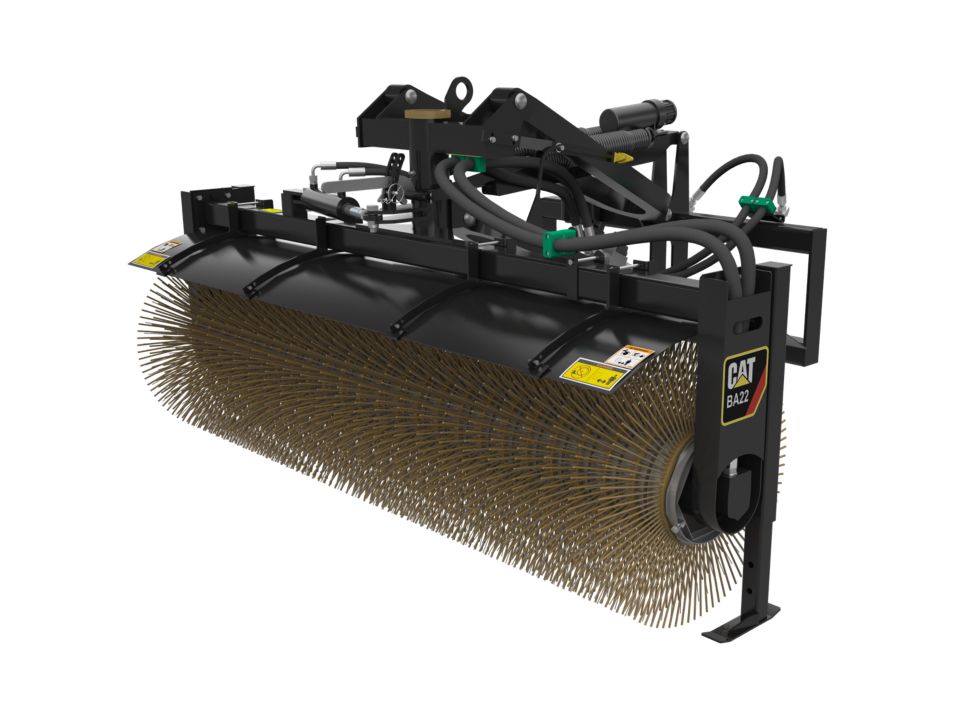

BA22 Hydraulic

Get in touch

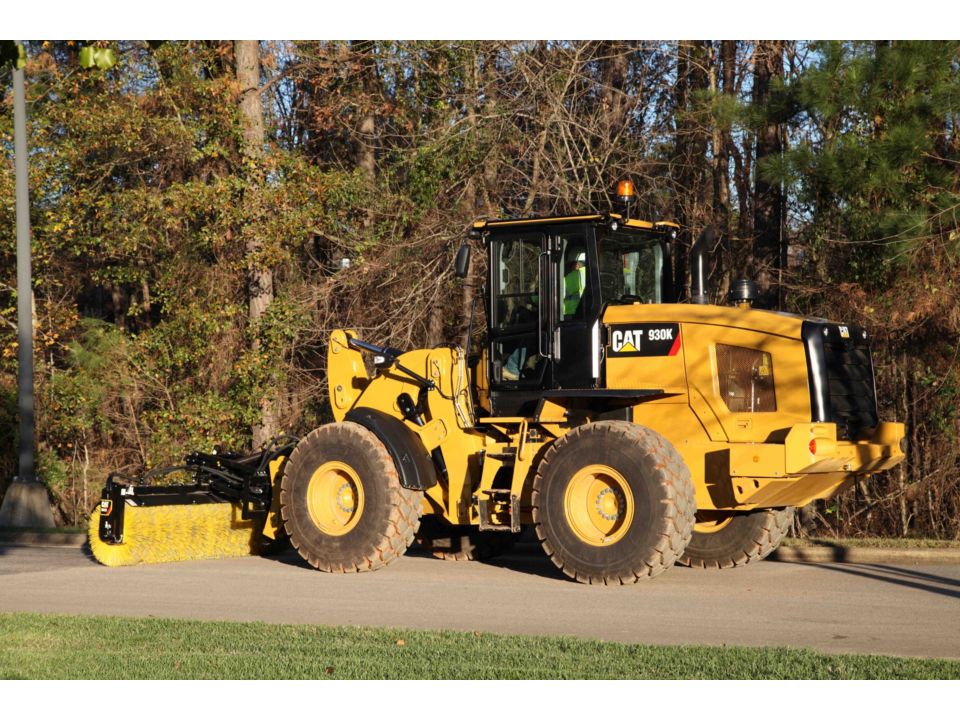

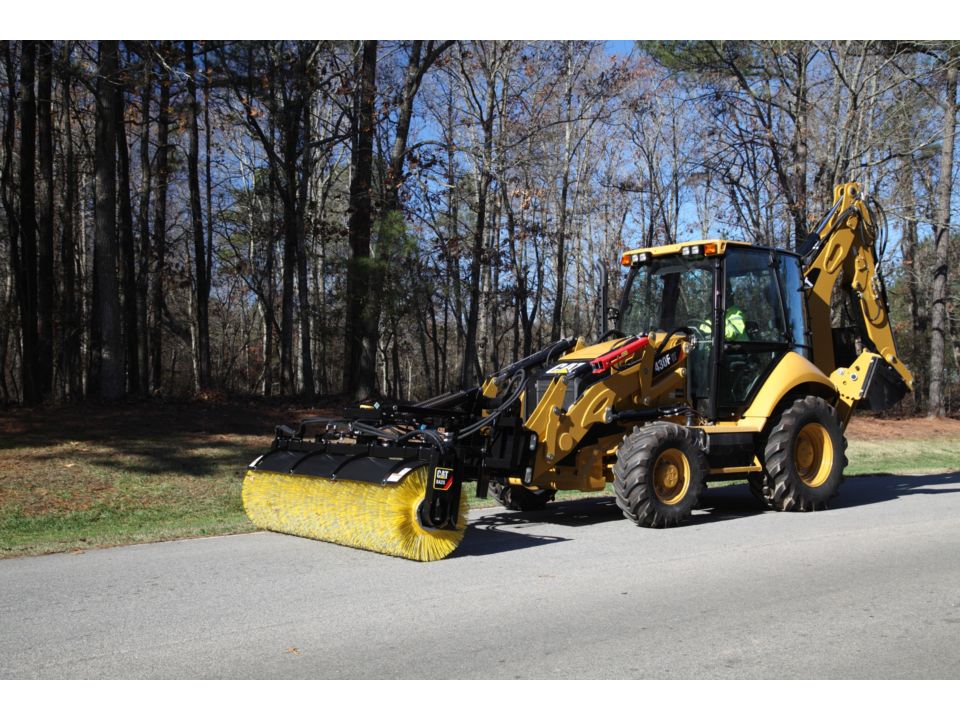

Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

93.7 in 2380 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"93.7","MetricUnit":"mm","MetricValue":"2380","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Sweeping Width

84.6 in 2150 mm
{"Name":"Sweeping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"84.6","MetricUnit":"mm","MetricValue":"2150","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Brush Diameter

27.6 in 700 mm
{"Name":"Brush Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"27.6","MetricUnit":"mm","MetricValue":"700","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Height

51.2 in 1300 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51.2","MetricUnit":"mm","MetricValue":"1300","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Length

61 in 1550 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"61","MetricUnit":"mm","MetricValue":"1550","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

1014.1 lb 460 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1014.1","MetricUnit":"kg","MetricValue":"460","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

20-80 L/min (5-21 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"20-80 L/min (5-21 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

150-260 bar (2176-3771 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"150-260 bar (2176-3771 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

15 in³/rev 245 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"15","MetricUnit":"cm³/rev","MetricValue":"245","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Brush Speed at Maximum Flow

300 rpm
{"Name":"Brush Speed at Maximum Flow","SpecificationId":null,"TextValue":"300 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Sweeping Width - Angled (± 30 Degrees)

74.8 in 1900 mm
{"Name":"Sweeping Width - Angled (± 30 Degrees)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.8","MetricUnit":"mm","MetricValue":"1900","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Overall Width - Angled (± 30 Degrees)

86.1 in 2186 mm
{"Name":"Overall Width - Angled (± 30 Degrees)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"86.1","MetricUnit":"mm","MetricValue":"2186","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Drive Method

Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}
Interface Type

Tool Interface
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Tool Interface","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}

Benefits

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Unique Suspension

Unique suspension system eliminates the need for support wheels. Brush maintains constant ground pressure through a range of vertical motion from the initial setting.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Leveling Indicator

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Protected Hydraulic Motors

Hydraulic motors are protected form dust and debris - yet are easily accessible if needed.

Optional Water Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
