BA30 Hydraulic

Get in touch

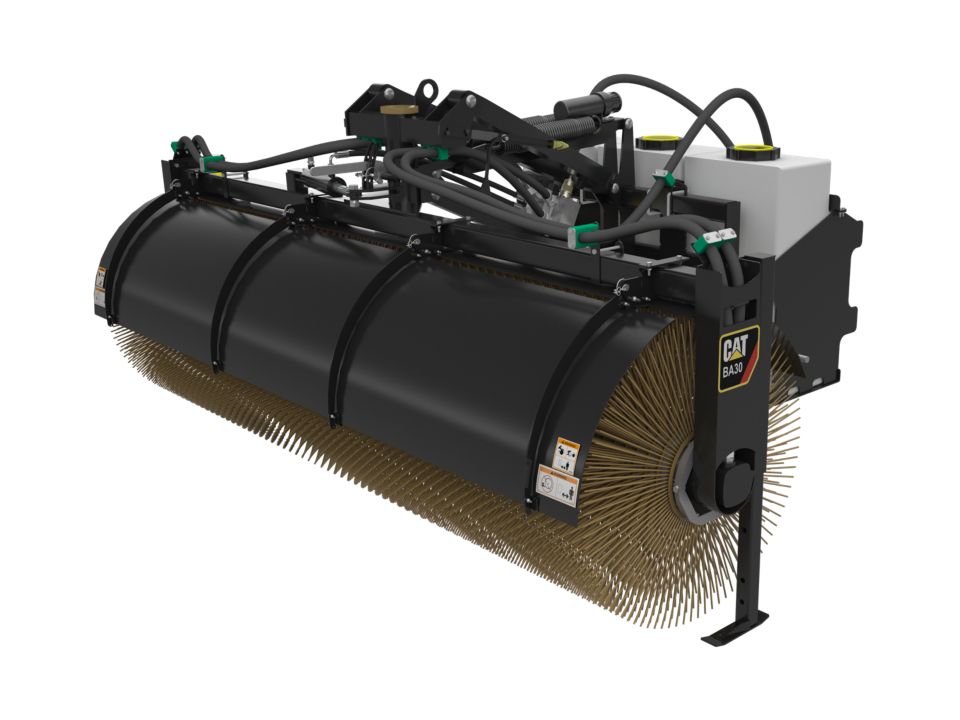

Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

126 in 3200 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"126","MetricUnit":"mm","MetricValue":"3200","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Sweeping Width

118.1 in 3000 mm
{"Name":"Sweeping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"118.1","MetricUnit":"mm","MetricValue":"3000","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Brush Diameter

36 in 915 mm
{"Name":"Brush Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36","MetricUnit":"mm","MetricValue":"915","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Height

61.6 in 1565 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"61.6","MetricUnit":"mm","MetricValue":"1565","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Length

91.7 in 2330 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"91.7","MetricUnit":"mm","MetricValue":"2330","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

1785.7 lb 810 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1785.7","MetricUnit":"kg","MetricValue":"810","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

42-300 L/min (11-79 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-300 L/min (11-79 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

150-260 bar (2176-3771 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"150-260 bar (2176-3771 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

18.9 in³/rev 310 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"18.9","MetricUnit":"cm³/rev","MetricValue":"310","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Brush Speed at Maximum Flow

450 rpm
{"Name":"Brush Speed at Maximum Flow","SpecificationId":null,"TextValue":"450 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Sweeping Width - Angled (± 30 Degrees)

85.2 in 2165 mm
{"Name":"Sweeping Width - Angled (± 30 Degrees)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"85.2","MetricUnit":"mm","MetricValue":"2165","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Overall Width - Angled (± 30 Degrees)

95.8 in 2434 mm
{"Name":"Overall Width - Angled (± 30 Degrees)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"95.8","MetricUnit":"mm","MetricValue":"2434","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Drive Method

Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}
Interface Type

Tool Interface
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Tool Interface","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}
Water Tank Capacity

158.5 gal (US) 600 l
{"Name":"Water Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"158.5","MetricUnit":"l","MetricValue":"600","Type":"measurement","SpecificationGroup":null,"SortOrder":"16"}

Benefits

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Unique Suspension

Unique suspension system eliminates the need for support wheels. Brush maintains constant ground pressure through a range of vertical motion from the initial setting.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Leveling Indicator

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Protected Hydraulic Motors

Hydraulic motors are protected form dust and debris - yet are easily accessible if needed.

Optional Water Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
