BA118C Manual, Polypropylene/Wire

Get in touch

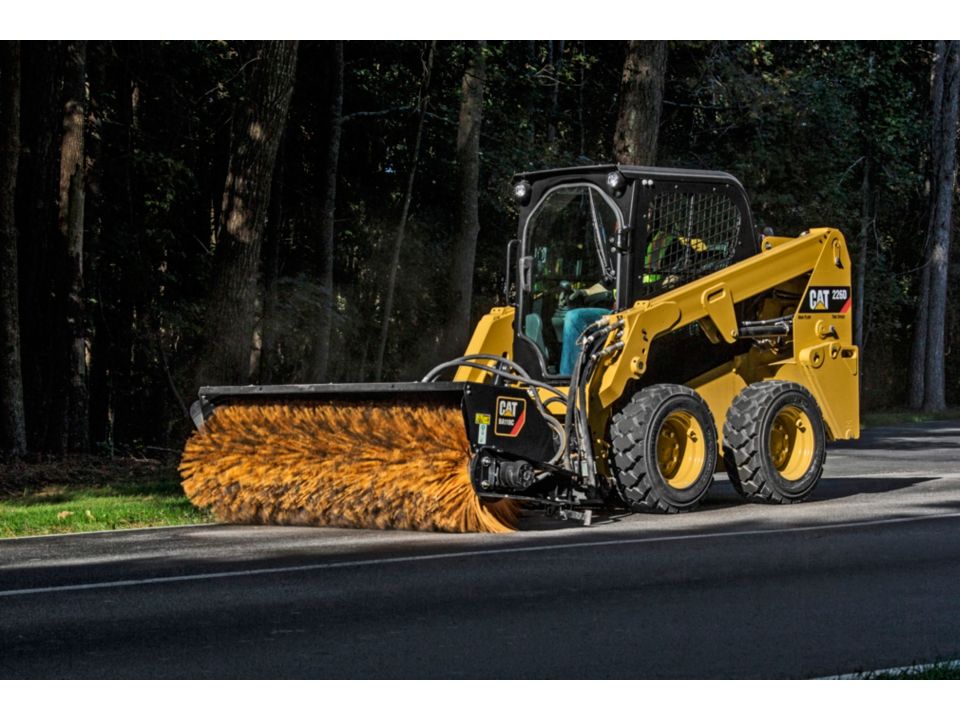

Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

103.8 in 2637 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"103.8","MetricUnit":"mm","MetricValue":"2637","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Sweeping Width

83.4 in 2119 mm
{"Name":"Sweeping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"83.4","MetricUnit":"mm","MetricValue":"2119","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Brush Diameter

32.1 in 815 mm
{"Name":"Brush Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"32.1","MetricUnit":"mm","MetricValue":"815","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Height

36.1 in 918 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36.1","MetricUnit":"mm","MetricValue":"918","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Length

68.5 in 1741 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"68.5","MetricUnit":"mm","MetricValue":"1741","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

906.1 lb 411 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"906.1","MetricUnit":"kg","MetricValue":"411","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

42-86 L/min (11-23 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-86 L/min (11-23 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-235 bar (2100-3400 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

24.7 in³/rev 405 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"24.7","MetricUnit":"cm³/rev","MetricValue":"405","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Brush Speed at Maximum Flow

199 rpm
{"Name":"Brush Speed at Maximum Flow","SpecificationId":null,"TextValue":"199 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Sweeping Width - Angled (± 30 Degrees)

72.8 in 1849 mm
{"Name":"Sweeping Width - Angled (± 30 Degrees)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72.8","MetricUnit":"mm","MetricValue":"1849","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Overall Width - Angled (± 30 Degrees)

98.7 in 2508 mm
{"Name":"Overall Width - Angled (± 30 Degrees)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"98.7","MetricUnit":"mm","MetricValue":"2508","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Drive Method

Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}
Optional Hood Extension

39.7 lb 18 kg
{"Name":"Optional Hood Extension","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"39.7","MetricUnit":"kg","MetricValue":"18","Type":"measurement","SpecificationGroup":null,"SortOrder":"17"}

Benefits

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Reliable Hydraulic Motor

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines. The motor is easily removed using quick release pins for bristle wafer replacement.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Optional Water Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.
