B6s

Get in touch

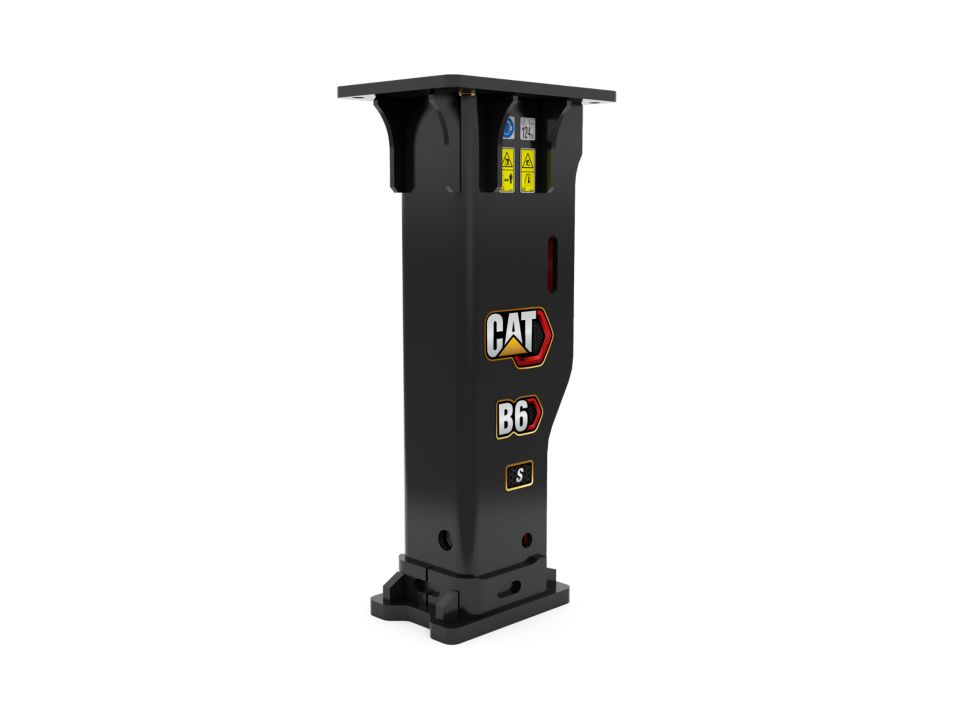

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Operating Weight - With Tool

610.7 lb 277 kg
{"Name":"Operating Weight - With Tool","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"610.7","MetricUnit":"kg","MetricValue":"277","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Energy Class

501.5 ft·lbf 680 J
{"Name":"Energy Class","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"501.5","MetricUnit":"J","MetricValue":"680","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Machine Class

4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
{"Name":"Machine Class","SpecificationId":null,"TextValue":"4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders","EnglishUnit":"in","EnglishValue":"2.7","MetricUnit":"mm","MetricValue":"68","Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Tool Shaft Diameter

2.7 in 68 mm
{"Name":"Tool Shaft Diameter","SpecificationId":null,"TextValue":"500-900 bpm","EnglishUnit":"in","EnglishValue":"2.7","MetricUnit":"mm","MetricValue":"68","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Impact Frequency

500-900 bpm
{"Name":"Impact Frequency","SpecificationId":null,"TextValue":"500-900 bpm","EnglishUnit":"psi","EnglishValue":"1775","MetricUnit":"kPa","MetricValue":"12238","Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Minimum Operating Pressure

1775 psi 12238 kPa
{"Name":"Minimum Operating Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1775","MetricUnit":"kPa","MetricValue":"12238","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Minimum Carrier Weight

8000.6 lb 3629 kg
{"Name":"Minimum Carrier Weight","SpecificationId":null,"TextValue":"40-70 lpm (10.6-18.5 gpm)","EnglishUnit":"lb","EnglishValue":"8000.6","MetricUnit":"kg","MetricValue":"3629","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

40-70 lpm (10.6-18.5 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"40-70 lpm (10.6-18.5 gpm)","EnglishUnit":"in","EnglishValue":"17.3","MetricUnit":"mm","MetricValue":"440","Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Overall Width

12.4 in 316 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12.4","MetricUnit":"mm","MetricValue":"316","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Overall Length

17.3 in 440 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.3","MetricUnit":"mm","MetricValue":"440","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Overall Height

53.9 in 1370 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"53.9","MetricUnit":"mm","MetricValue":"1370","Type":"measurement","SpecificationGroup":null,"SortOrder":"11"}
Height - Without Tool

39.1 in 993 mm
{"Name":"Height - Without Tool","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"39.1","MetricUnit":"mm","MetricValue":"993","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Sound Level

124 dB
{"Name":"Sound Level","SpecificationId":null,"TextValue":"124 dB","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"13"}
Mounting Bracket Size

Large
{"Name":"Mounting Bracket Size","SpecificationId":null,"TextValue":"Large","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}

Benefits

Cat® Customer Value Agreements simplify ownership with planned maintenance, genuine parts, dealer expertise, and smart monitoring to reduce costs and extend machine life. Flexible plans and options for customer‑managed (Convenience plan), dealer‑managed (Performance plan), or protection‑focused (Confidence) coverage.. With Toromont Fast Track, exclusive to Cat® CVAs, you get next‑day parts, two‑day repairs, and Cat® Credits if delays occur—keeping downtime off your schedule.

Application

CatÂ® B Hammers are suitable for use in a wide range of construction and light demolition applications â€“ such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

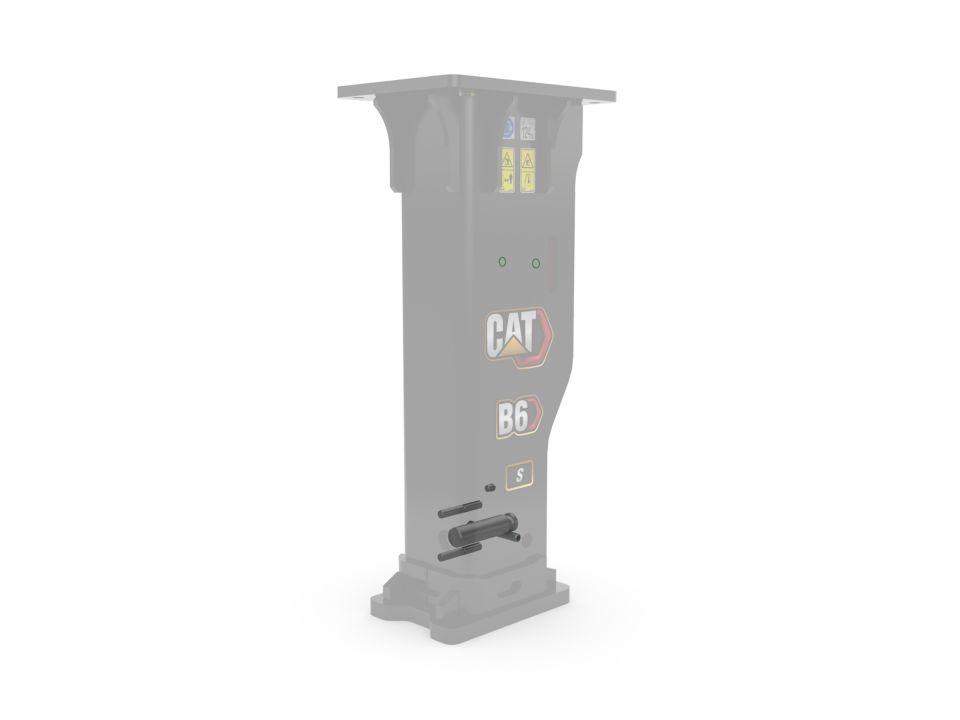

Ergonomically Positioned Hydraulic Lines

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breakerâ€™s condition.

Gas Fired Design

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

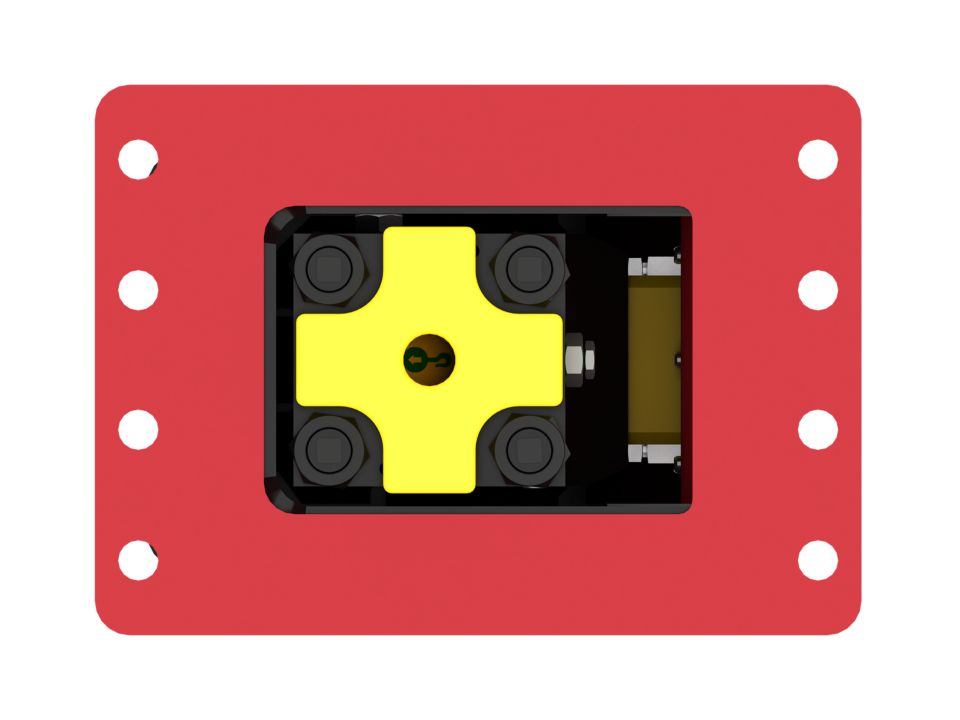

Flat Top/Top Mount Style

Flat Top/Top Mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

Newly Designed Skid Steer loader Mounting Bracket

Newly designed skid steer loader mounting bracket features enhanced hose routing and improved ingress/egress with new bolt-on step and updated central step. Brackets are compatible with all B series hammers, H Model Hammers, and older E Series Hammers.

Slip Fit Bushings

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360Â°, lower bushing has two positions and can be rotated 90Â°.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted OMM holder is sealed from the elements and includes all operation manuals and maintenance guides required for proper operation of the hammer (Skid Steer Loader bracket only).
