HM418 Bite Limiter

Get in touch

Cat® Mulchers for Skid Steer Loaders, Compact Track Loaders, and Mini Excavators are designed for high-performance cutting and mulching vegetation and undergrowth from forested terrain. The hydraulic mulcher reduces saplings, shrubs and trees into mulched material, making it ideal for environmental maintenance, such as creating fire lanes. Other applications include land reclamation, foliage removal from building construction sites, and shredding pruned material and organic waste for biomass production.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

83.5 in 2122 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"83.5","MetricUnit":"mm","MetricValue":"2122","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Working Width

71.7 in 1822 mm
{"Name":"Working Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"71.7","MetricUnit":"mm","MetricValue":"1822","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Length

53.3 in 1354 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"53.3","MetricUnit":"mm","MetricValue":"1354","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Overall Height

58.3 in 1480 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"58.3","MetricUnit":"mm","MetricValue":"1480","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Weight

3315.7 lb 1504 kg
{"Name":"Weight","SpecificationId":null,"TextValue":"Polychain Belt","EnglishUnit":"lb","EnglishValue":"3315.7","MetricUnit":"kg","MetricValue":"1504","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Drive Method

Polychain Belt
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Polychain Belt","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}
Motor

Axial Piston Dual Speed
{"Name":"Motor","SpecificationId":null,"TextValue":"Axial Piston Dual Speed","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"7"}
Required Hydraulics

XHP / XE
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"XHP / XE","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Flow

150-155 L/min (40-41 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"150-155 L/min (40-41 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Optimal Hydraulic Pressure

200-278 bar (2900-4061 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"200-278 bar (2900-4061 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}
Drum Speed

2673-2762 rpm
{"Name":"Drum Speed","SpecificationId":null,"TextValue":"2673-2762 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Fixed Teeth per Drum

32
{"Name":"Fixed Teeth per Drum","SpecificationId":null,"TextValue":"32","EnglishUnit":"in","EnglishValue":"7.9","MetricUnit":"mm","MetricValue":"200","Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Maximum Cutting Diameter

7.9 in 200 mm
{"Name":"Maximum Cutting Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.9","MetricUnit":"mm","MetricValue":"200","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Maximum Cutting Depth

1 in 26 mm
{"Name":"Maximum Cutting Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"26","Type":"measurement","SpecificationGroup":null,"SortOrder":"14"}

Benefits

Application

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

High Performance Mulching

Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.

Rugged Mulching Head

Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.

Dual Speed Hydraulic Motor

Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.

Adjustable Push Frame

Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.

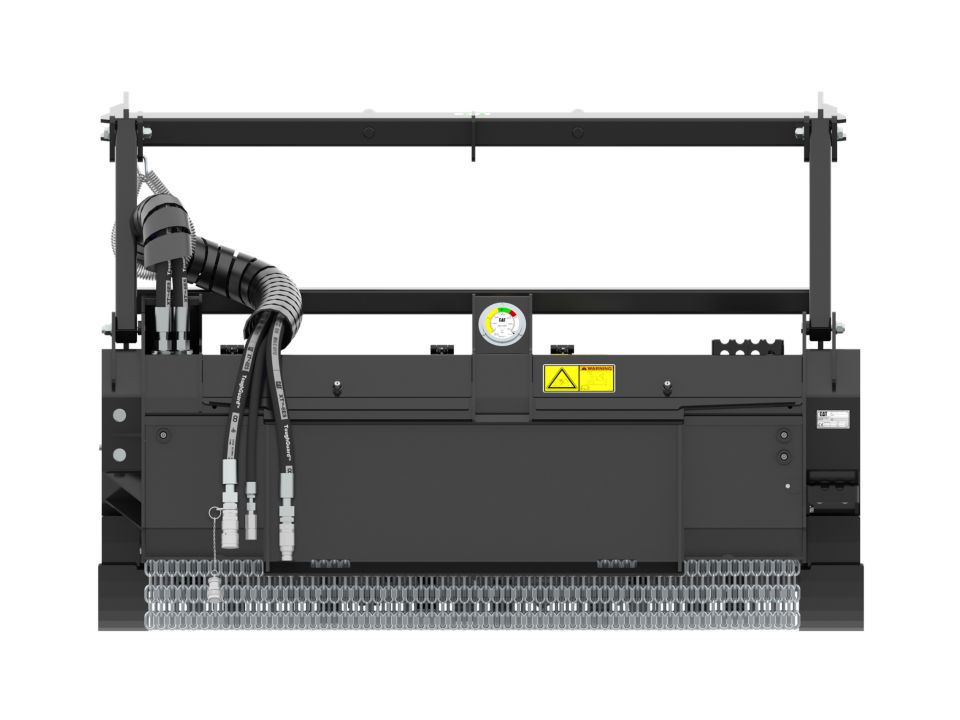

Color-Coded Pressure Gauge

Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.

Rear Chain Guard Protection

Rear chain guard protection reduces spread of material.

Serrated Steps

Serrated steps allow for safe and easy access in and out of the cab.

Lockable Service Panel

Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat® key, the service panel allows easy access to drive train components during service and inspection.

Adjustable Skid Shoes

Adjustable and replaceable skid shoes allow operator to control the ground height to accommodate different types of terrain.

Chisel Teeth Standard

Provide a consistent cut and consistent finished product.
