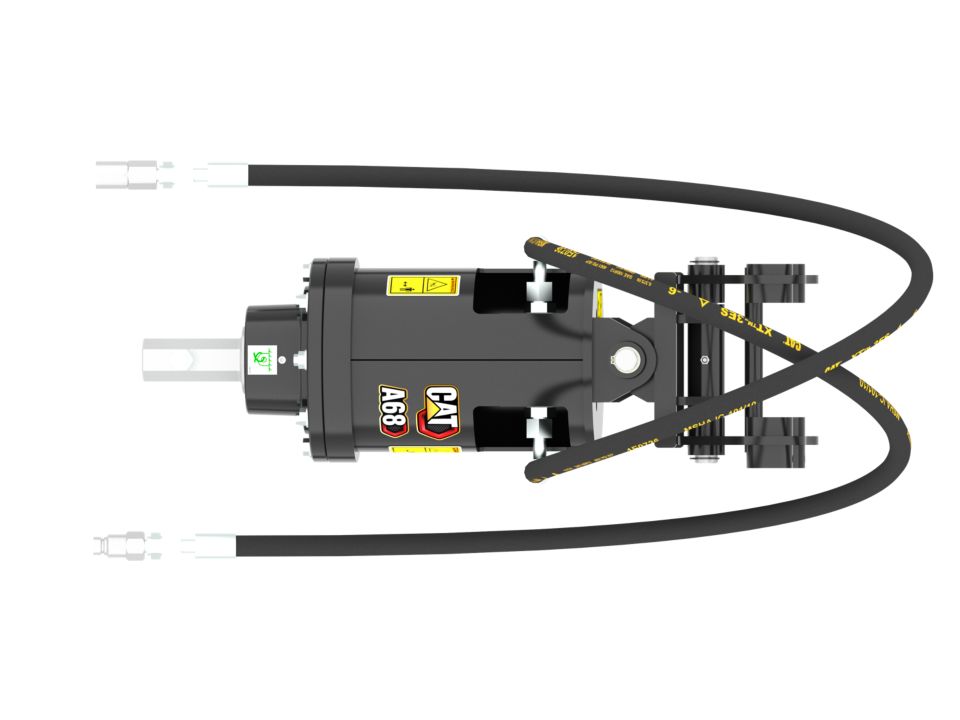

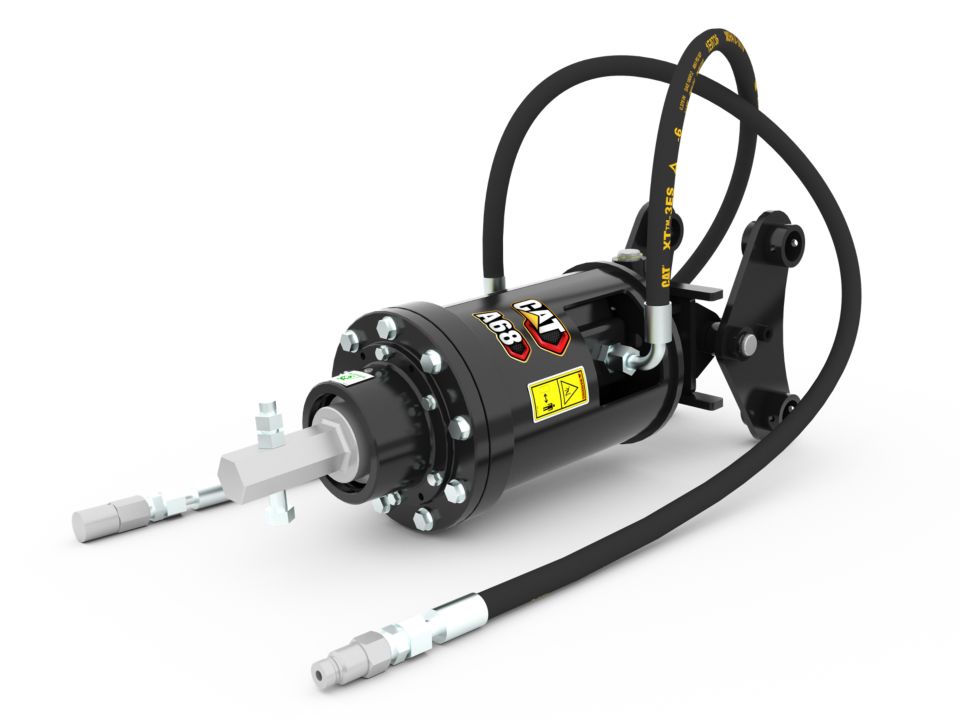

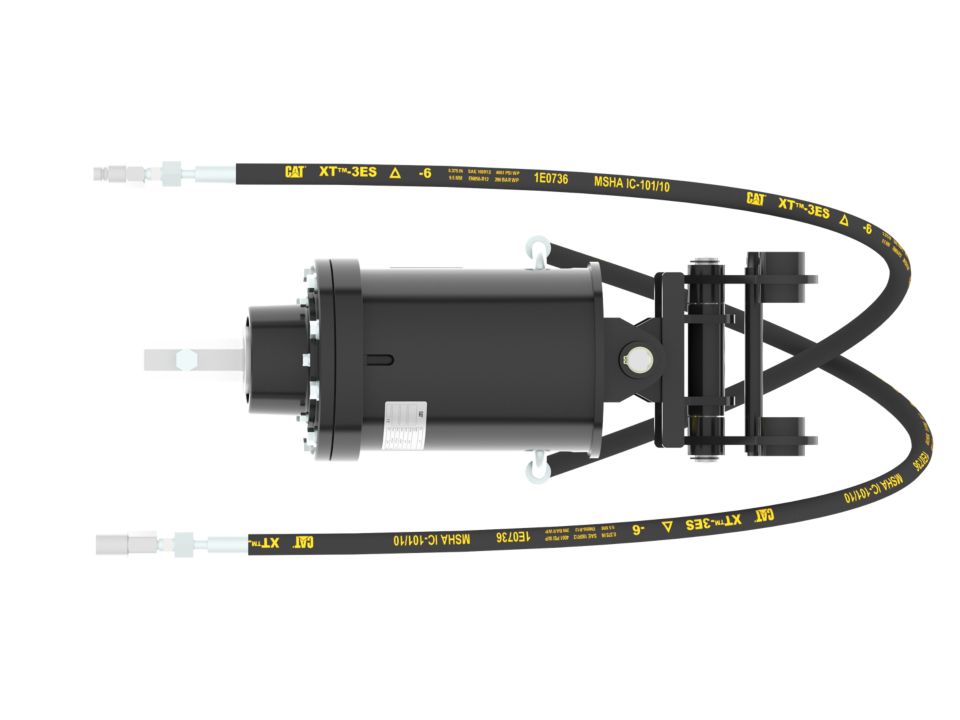

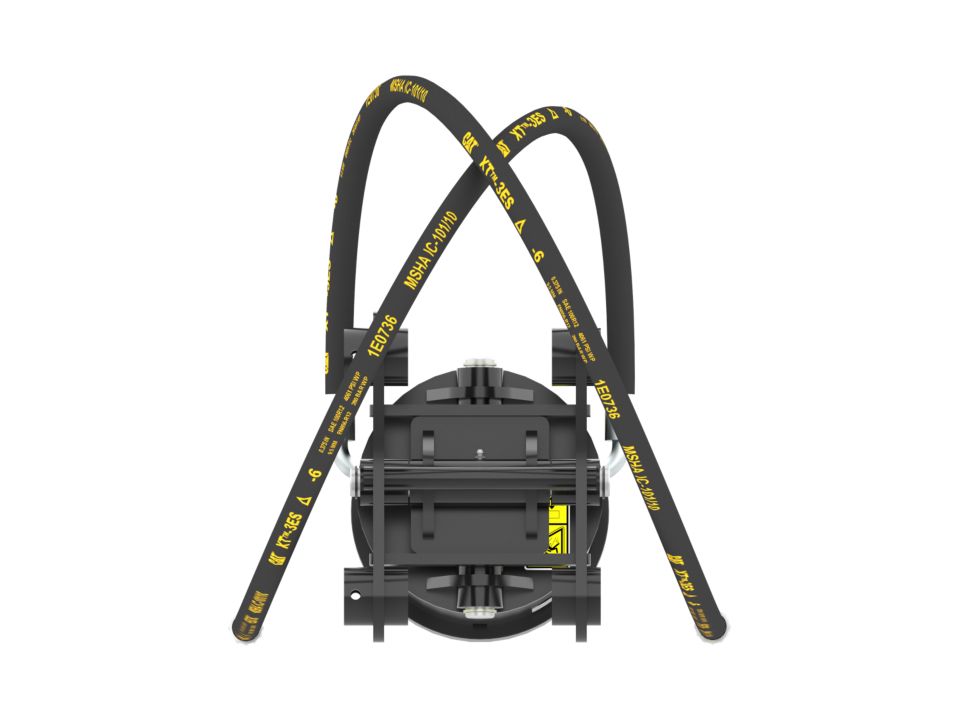

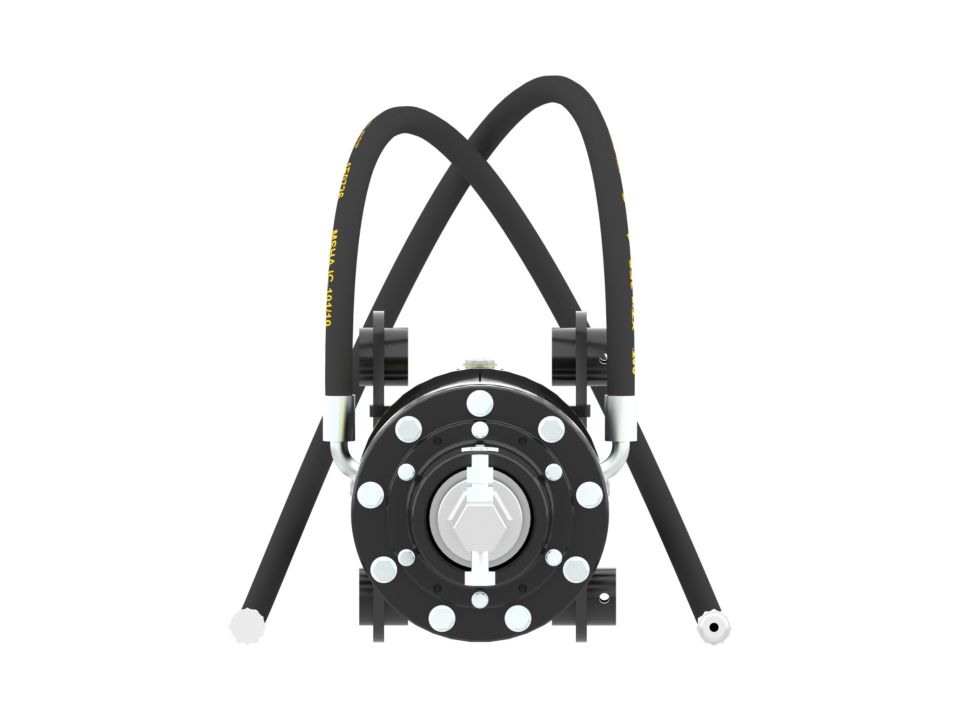

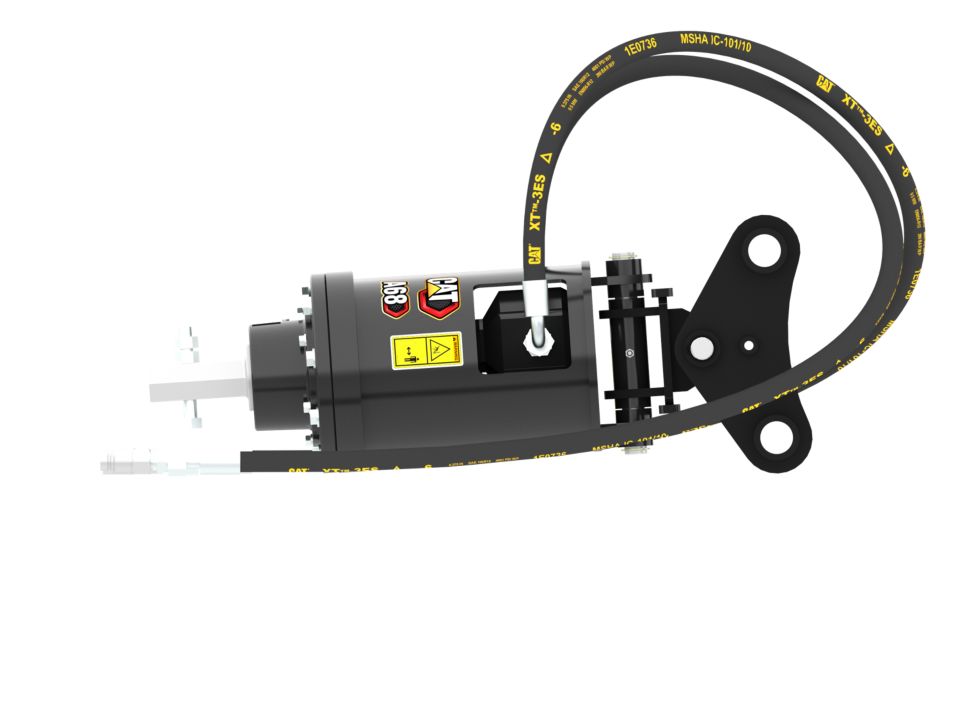

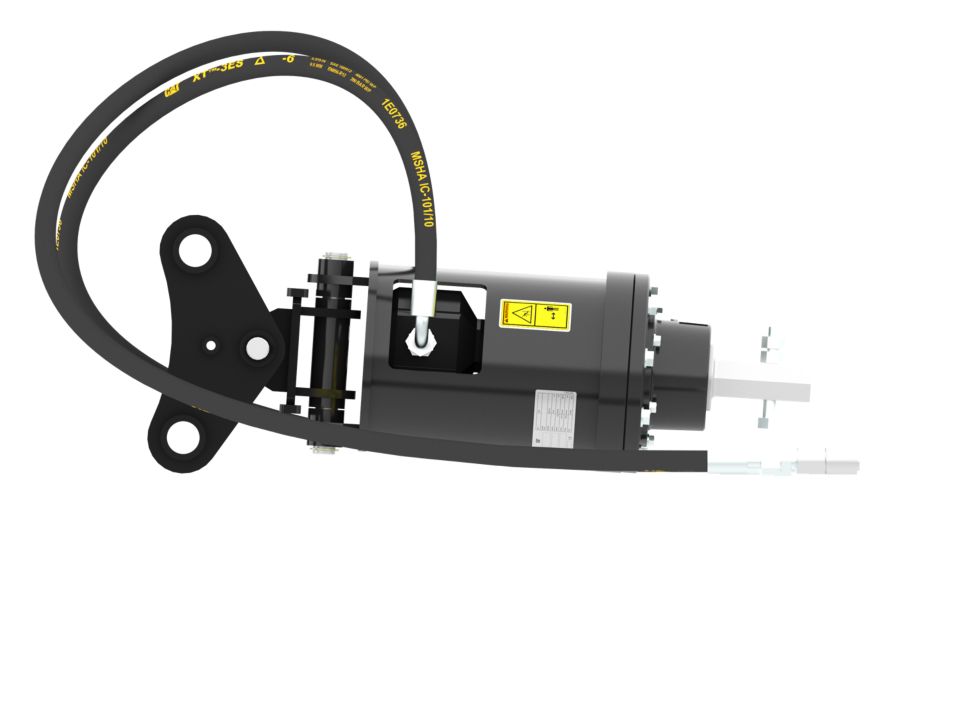

A68. 5 Ton Mini Excavators

Get in touch

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Drive Shaft Torque at Maximum Pressure

5034.6 lb/ft 6826 N·m
{"Name":"Drive Shaft Torque at Maximum Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"5034.6","MetricUnit":"N·m","MetricValue":"6826","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Drive Method

Gerotor Motor - Double Planetary Reduction
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Gerotor Motor - Double Planetary Reduction","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"2"}
Mounting Bracket Design

5 Ton Mini Excavator Pin On
{"Name":"Mounting Bracket Design","SpecificationId":null,"TextValue":"5 Ton Mini Excavator Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

High Flow XPS
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"High Flow XPS","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Optimal Hydraulic Flow

95-130 L/min (25-34 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"95-130 L/min (25-34 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Optimal Hydraulic Pressure

207-290 bar (3002-4206 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"207-290 bar (3002-4206 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}
Overall Width - With Bracket

11.4 in 289 mm
{"Name":"Overall Width - With Bracket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.4","MetricUnit":"mm","MetricValue":"289","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Overall Length - With Bracket

14.2 in 361 mm
{"Name":"Overall Length - With Bracket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.2","MetricUnit":"mm","MetricValue":"361","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Overall Height

36.1 in 916 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36.1","MetricUnit":"mm","MetricValue":"916","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Housing Diameter

11 in 280 mm
{"Name":"Housing Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11","MetricUnit":"mm","MetricValue":"280","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Swing Range (fore/aft)

60 degrees
{"Name":"Swing Range (fore/aft)","SpecificationId":null,"TextValue":"60 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Swing Range (L/R)

76 degrees
{"Name":"Swing Range (L/R)","SpecificationId":null,"TextValue":"76 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"13"}
Weight

233.7 lb 106 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"233.7","MetricUnit":"kg","MetricValue":"106","Type":"measurement","SpecificationGroup":null,"SortOrder":"14"}
Motor Displacement

2.67 in³ 44 cm³
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"2.67","MetricUnit":"cm³","MetricValue":"44","Type":"measurement","SpecificationGroup":null,"SortOrder":"15"}
Bit Speed at Maximum Flow

81 rpm
{"Name":"Bit Speed at Maximum Flow","SpecificationId":null,"TextValue":"81 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"16"}
Hex Output Shaft Size

2 in 51 mm
{"Name":"Hex Output Shaft Size","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2","MetricUnit":"mm","MetricValue":"51","Type":"measurement","SpecificationGroup":null,"SortOrder":"17"}

Benefits

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated Joint

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical Swing Stops

Mechanical swing stops protect from auger over swing.
