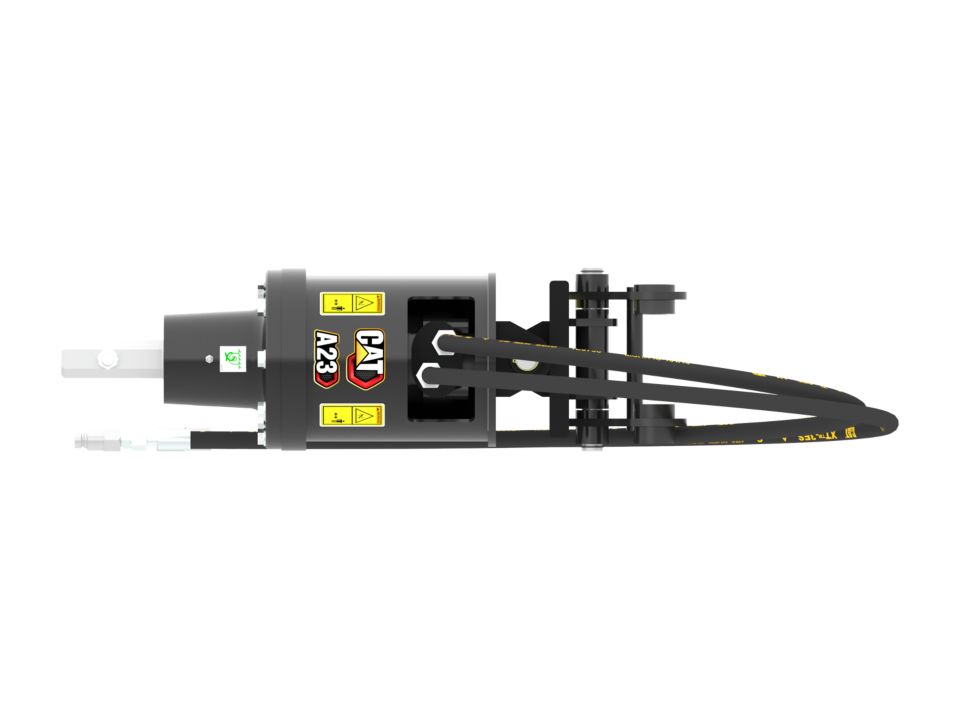

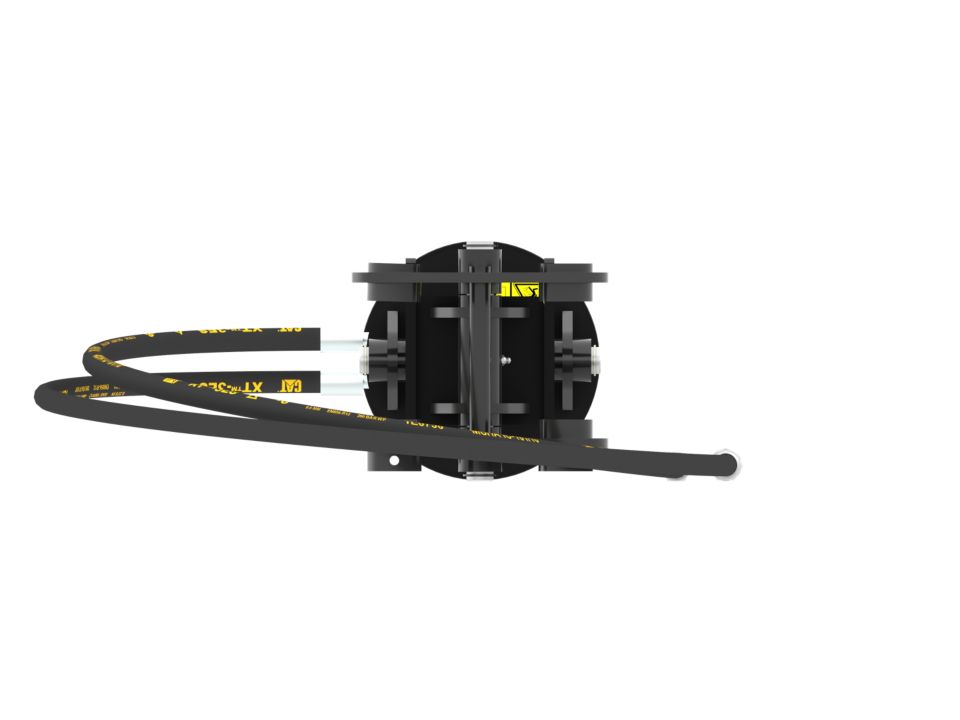

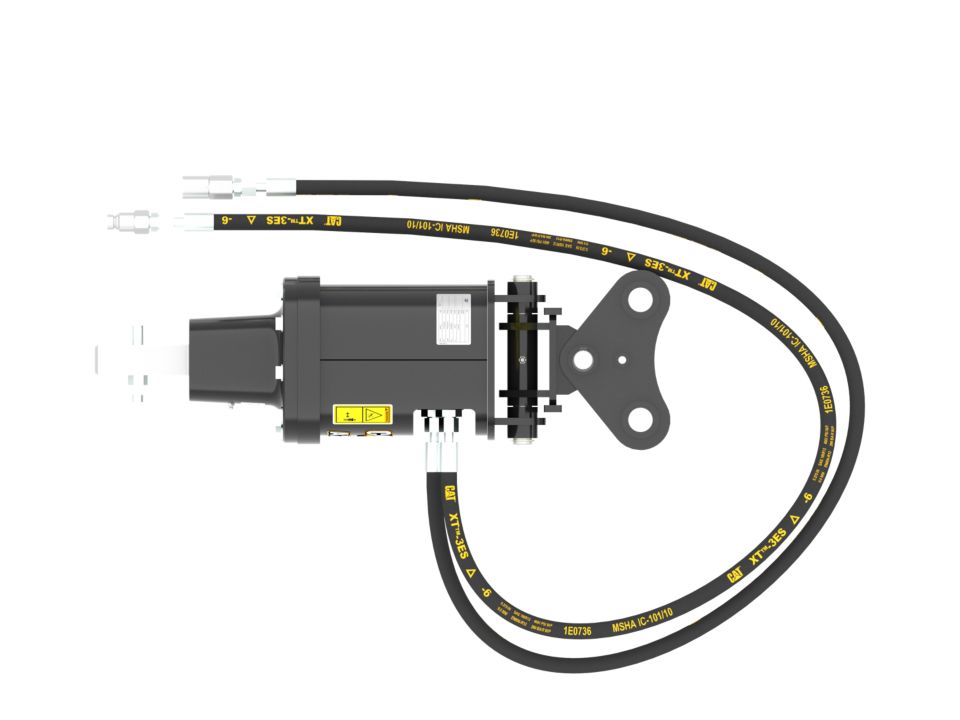

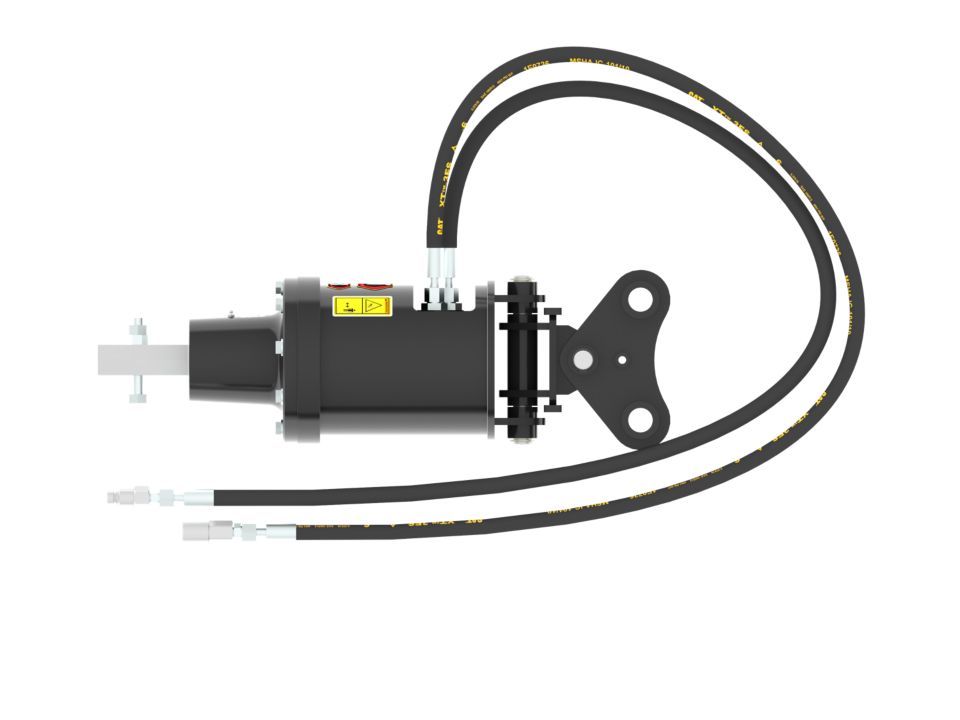

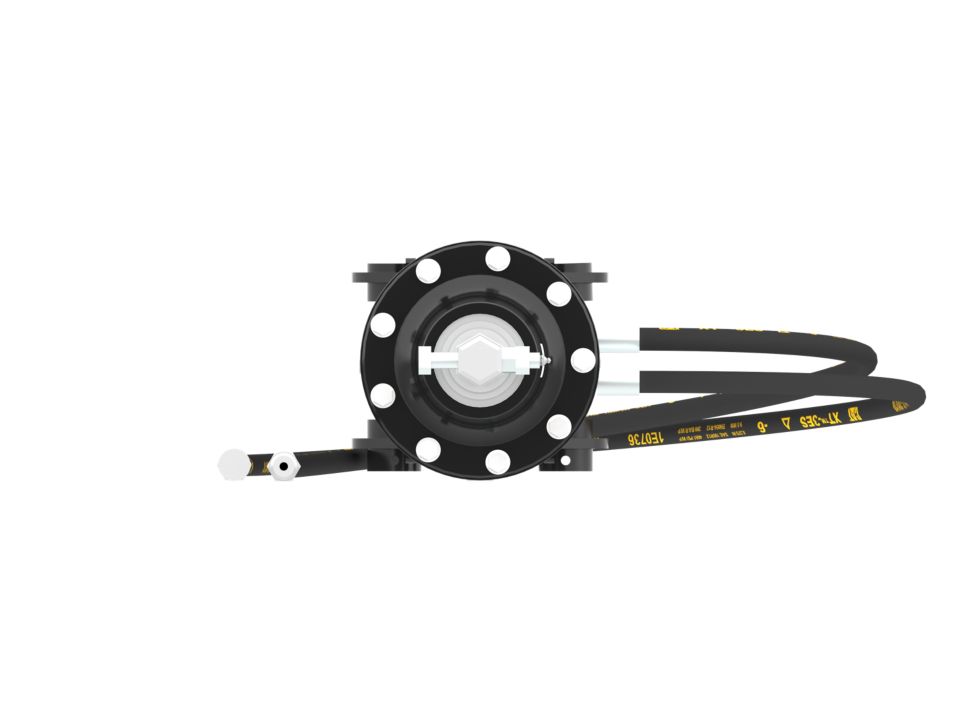

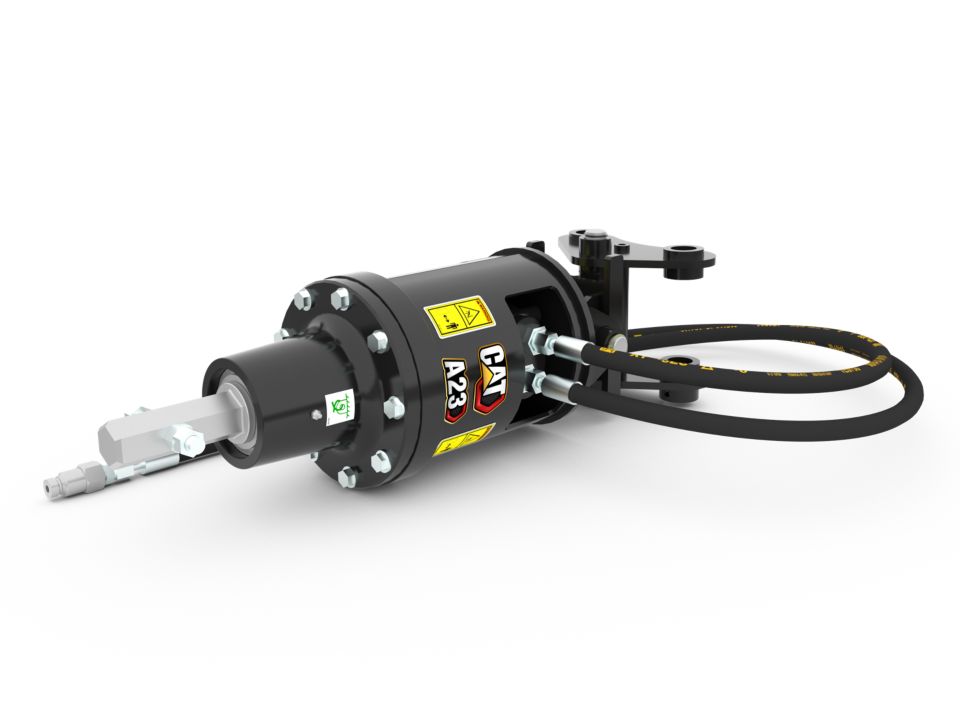

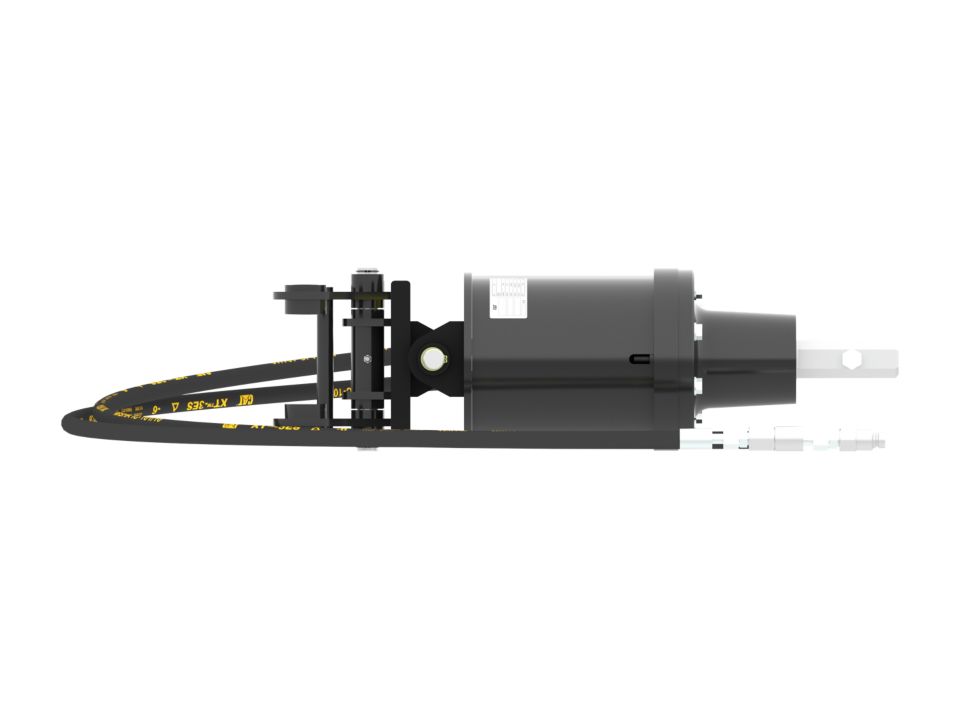

A23, 3 Ton Mini Excavators

Get in touch

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Drive Shaft Torque at Maximum Pressure

1699.3 lb/ft 2304 N·m
{"Name":"Drive Shaft Torque at Maximum Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"1699.3","MetricUnit":"N·m","MetricValue":"2304","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Drive Method

Gerotor Motor - Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Gerotor Motor - Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"2"}
Mounting Bracket Design

3 Ton Mini Excavator Pin On
{"Name":"Mounting Bracket Design","SpecificationId":null,"TextValue":"3 Ton Mini Excavator Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Optimal Hydraulic Flow

42-83 L/min (11-22 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-83 L/min (11-22 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-235 bar (2100-3400 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}
Overall Width - With Bracket

11.8 in 300 mm
{"Name":"Overall Width - With Bracket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.8","MetricUnit":"mm","MetricValue":"300","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Overall Length - With Bracket

11.1 in 282 mm
{"Name":"Overall Length - With Bracket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"282","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Overall Height

37.7 in 958 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"37.7","MetricUnit":"mm","MetricValue":"958","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Housing Diameter

11 in 280 mm
{"Name":"Housing Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11","MetricUnit":"mm","MetricValue":"280","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Swing Range (fore/aft)

70 degrees
{"Name":"Swing Range (fore/aft)","SpecificationId":null,"TextValue":"70 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Swing Range (L/R)

76 degrees
{"Name":"Swing Range (L/R)","SpecificationId":null,"TextValue":"76 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"13"}
Weight

264.6 lb 120 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"264.6","MetricUnit":"kg","MetricValue":"120","Type":"measurement","SpecificationGroup":null,"SortOrder":"14"}
Motor Displacement

39 in³ 629 cm³
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"39","MetricUnit":"cm³","MetricValue":"629","Type":"measurement","SpecificationGroup":null,"SortOrder":"15"}
Bit Speed at Maximum Flow

127 rpm
{"Name":"Bit Speed at Maximum Flow","SpecificationId":null,"TextValue":"127 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"16"}
Hex Output Shaft Size

2 in 51 mm
{"Name":"Hex Output Shaft Size","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2","MetricUnit":"mm","MetricValue":"51","Type":"measurement","SpecificationGroup":null,"SortOrder":"17"}

Benefits

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Articulated Joint

Articulated joint ensures auger hangs straight, independent of machine positioning.

Mechanical Swing Stops

Mechanical swing stops protect from auger over swing.
