A41, Pin On

Get in touch

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Drive Shaft Torque at Maximum Pressure

3038.8 lb/ft 4120 N·m
{"Name":"Drive Shaft Torque at Maximum Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"3038.8","MetricUnit":"N·m","MetricValue":"4120","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Drive Method

Gerotor Motor - Single Planetary Reduction
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Gerotor Motor - Single Planetary Reduction","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"2"}
Mounting Bracket Design

3 Ton Mini Excavator Pin On
{"Name":"Mounting Bracket Design","SpecificationId":null,"TextValue":"3 Ton Mini Excavator Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Optimal Hydraulic Flow

42-83 L/min (11-22 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-83 L/min (11-22 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-235 bar (2100-3400 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}
Overall Width - With Bracket

11.4 in 289 mm
{"Name":"Overall Width - With Bracket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.4","MetricUnit":"mm","MetricValue":"289","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Overall Length - With Bracket

14.2 in 361 mm
{"Name":"Overall Length - With Bracket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.2","MetricUnit":"mm","MetricValue":"361","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Overall Height

34.4 in 875 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"34.4","MetricUnit":"mm","MetricValue":"875","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Housing Diameter

11 in 280 mm
{"Name":"Housing Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11","MetricUnit":"mm","MetricValue":"280","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Swing Range (fore/aft)

72 degrees
{"Name":"Swing Range (fore/aft)","SpecificationId":null,"TextValue":"72 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Swing Range (L/R)

76 degrees
{"Name":"Swing Range (L/R)","SpecificationId":null,"TextValue":"76 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"13"}
Weight

209.4 lb 95 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"209.4","MetricUnit":"kg","MetricValue":"95","Type":"measurement","SpecificationGroup":null,"SortOrder":"14"}
Motor Displacement

14 in³ 230 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"14","MetricUnit":"cm³/rev","MetricValue":"230","Type":"measurement","SpecificationGroup":null,"SortOrder":"15"}
Bit Speed at Maximum Flow

71 rpm
{"Name":"Bit Speed at Maximum Flow","SpecificationId":null,"TextValue":"71 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"16"}
Hex Output Shaft Size

2 in 51 mm
{"Name":"Hex Output Shaft Size","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2","MetricUnit":"mm","MetricValue":"51","Type":"measurement","SpecificationGroup":null,"SortOrder":"17"}
Effective Displacement

15.26 in³ 250 cm³/rev
{"Name":"Effective Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"15.26","MetricUnit":"cm³/rev","MetricValue":"250","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Drive Unit Weight (w/o Bits)

209 lb 95 kg
{"Name":"Drive Unit Weight (w/o Bits)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"209","MetricUnit":"kg","MetricValue":"95","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Overall Drive Unit Height

35 in 875 mm
{"Name":"Overall Drive Unit Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"35","MetricUnit":"mm","MetricValue":"875","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Required Hydraulic Flow

42-83 L/min (11-22 gpm)
{"Name":"Required Hydraulic Flow","SpecificationId":null,"TextValue":"42-83 L/min (11-22 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Drive Gear Reduction

4.5:1
{"Name":"Drive Gear Reduction","SpecificationId":null,"TextValue":"4.5:1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}

Benefits

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A14B feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.

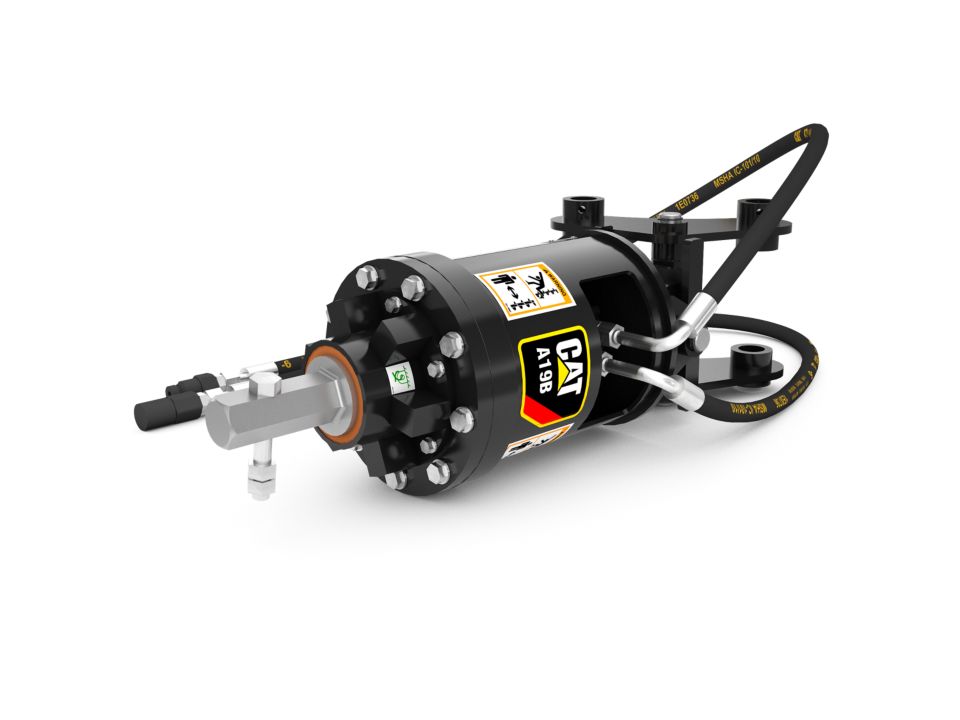

A19B features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A26B features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged Mounting Bracket

Exclusive Cat® mounting bracket for superior structural reinforcement, positioning flexibility, easy transportation, and near vertical storage. Also includes serrated step to allow safer and easier access into the cab.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.
