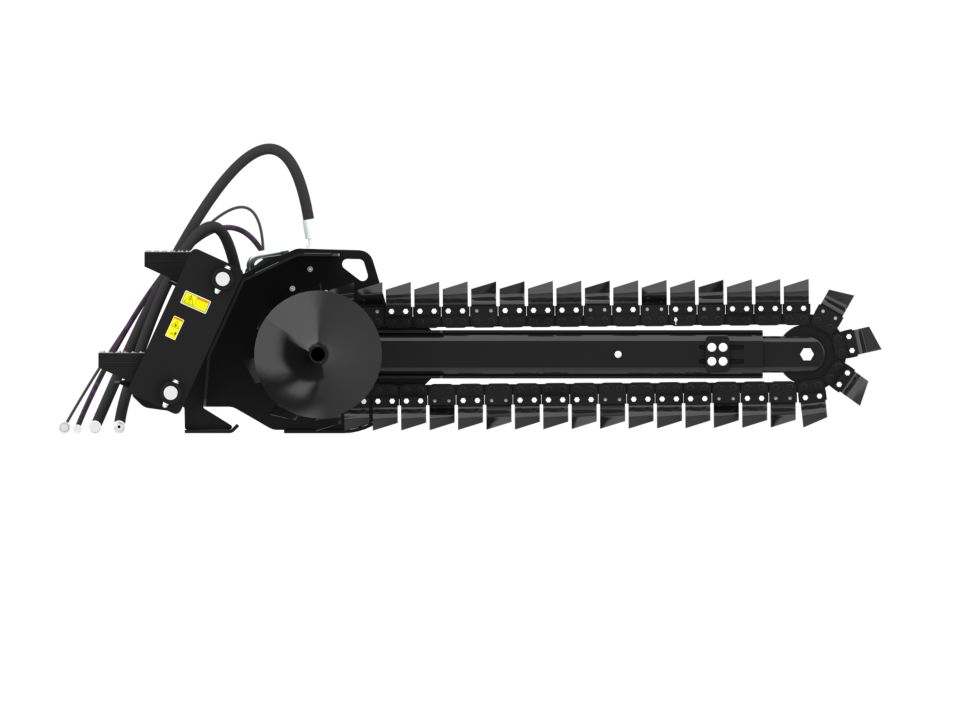

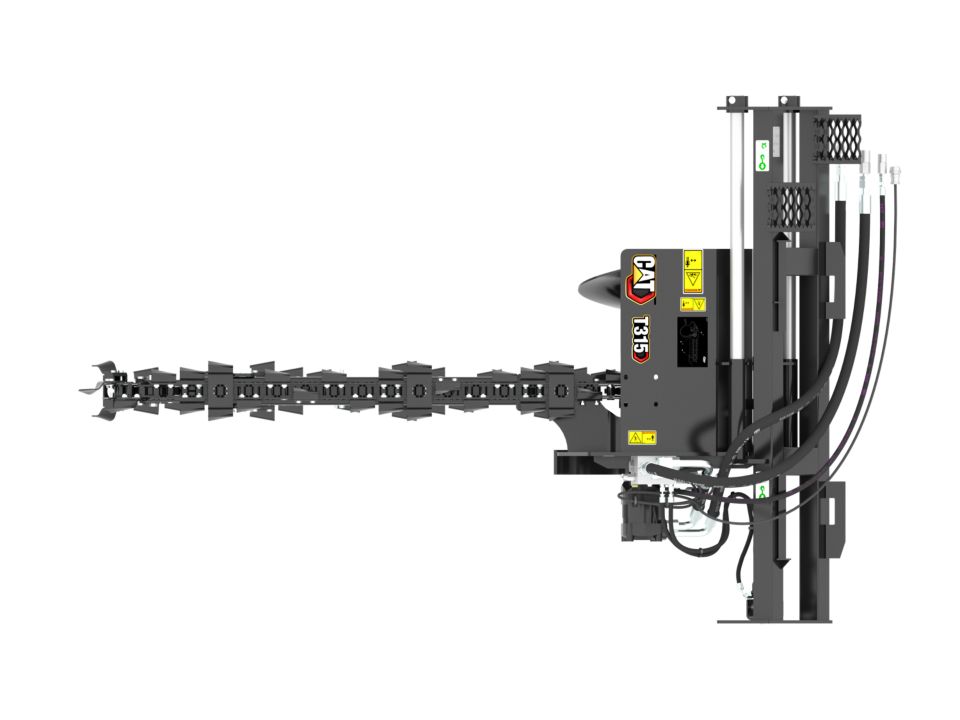

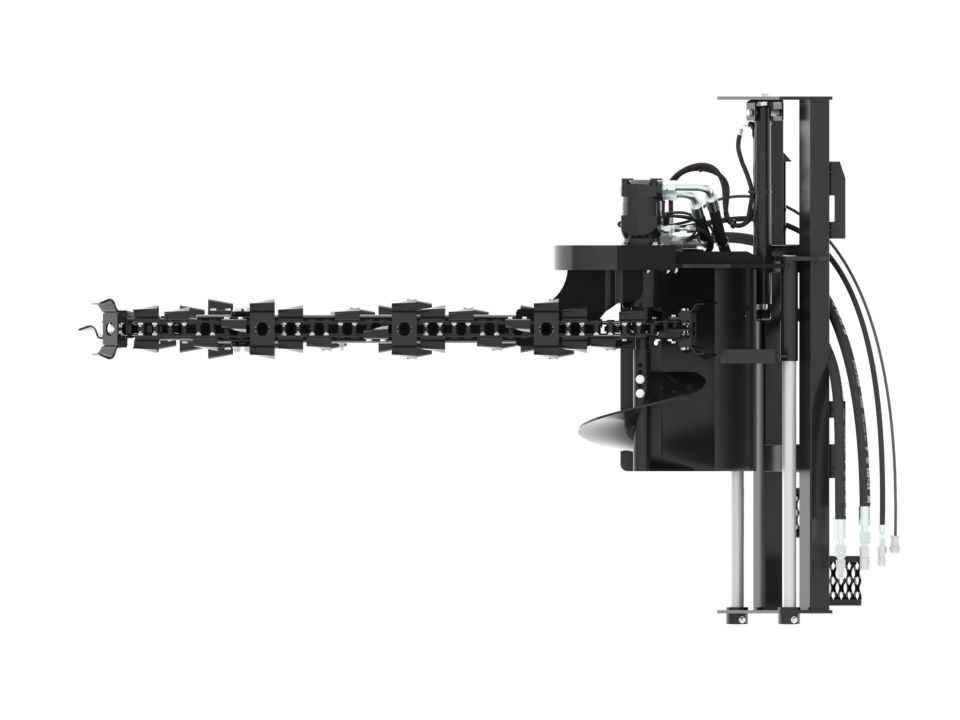

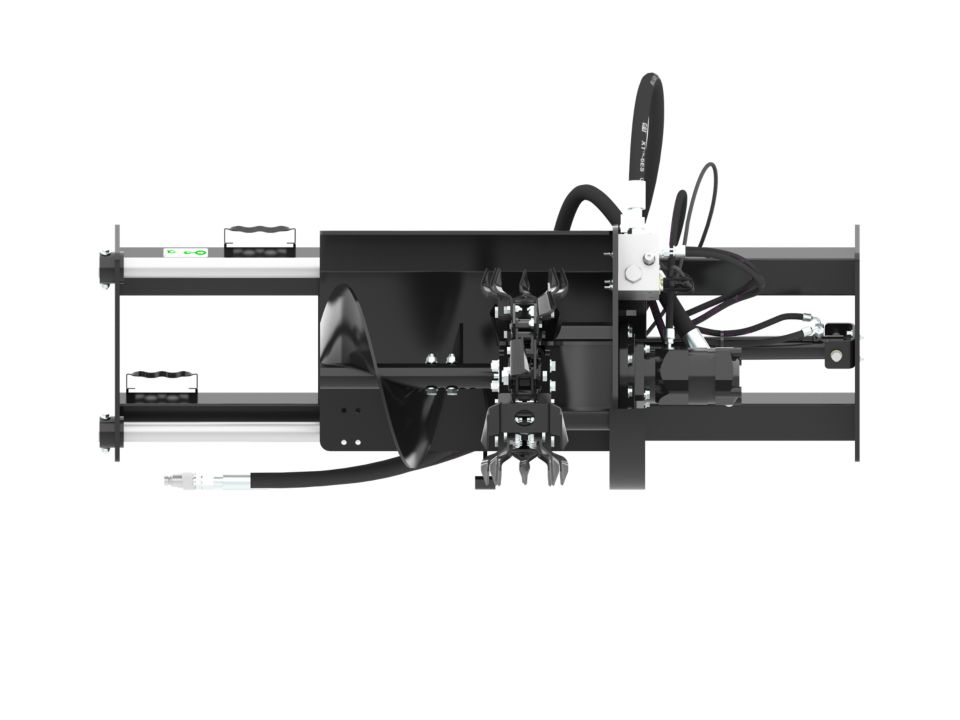

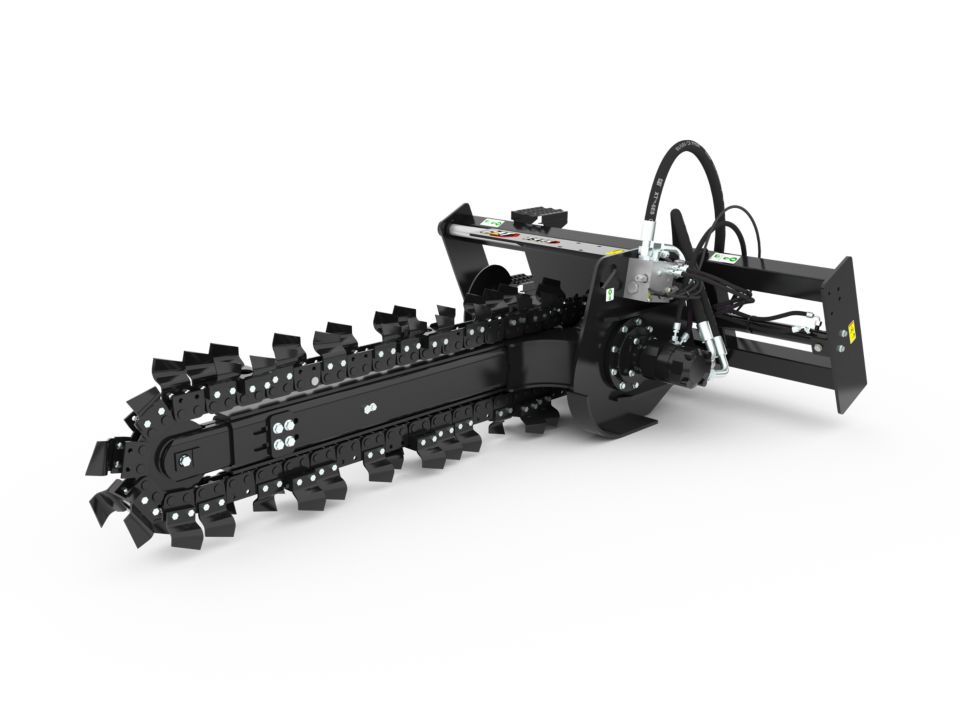

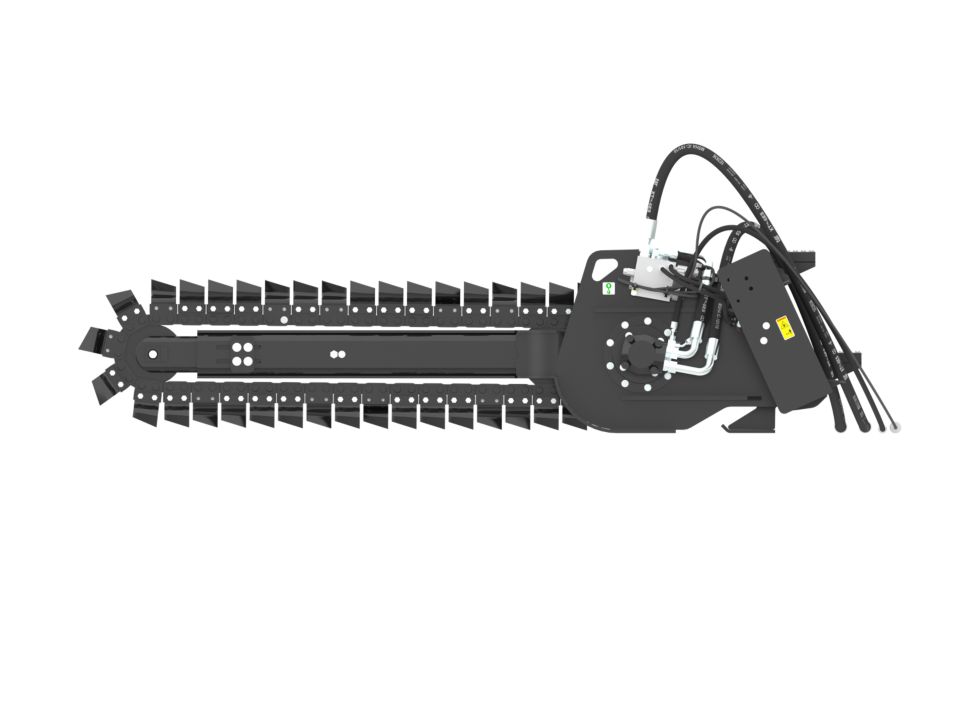

T315 Hydraulic Side Shift, Standard Chain

Get in touch

Cat® Trenchers are designed for cutting narrow straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe. Trenchers are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Standard Boom Length

60 in 1524 mm
{"Name":"Standard Boom Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"60","MetricUnit":"mm","MetricValue":"1524","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Cutting Width

8 in 203 mm
{"Name":"Cutting Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8","MetricUnit":"mm","MetricValue":"203","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Chain Type

Standard
{"Name":"Chain Type","SpecificationId":null,"TextValue":"Standard","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

High Flow XPS
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"High Flow XPS","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Overall Width

74.8 in 1901 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.8","MetricUnit":"mm","MetricValue":"1901","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Overall Length

118.5 in 3010 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"118.5","MetricUnit":"mm","MetricValue":"3010","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

1287.1 lb 583.8 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1287.1","MetricUnit":"kg","MetricValue":"583.8","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Overall Height

30.9 in 786 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30.9","MetricUnit":"mm","MetricValue":"786","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Flow

95-152 L/min (25-40 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"95-152 L/min (25-40 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Optimal Hydraulic Pressure

207-310 bar (3300-4500 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"207-310 bar (3300-4500 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}
Drive Shaft Speed at Maximum Flow

207 rpm
{"Name":"Drive Shaft Speed at Maximum Flow","SpecificationId":null,"TextValue":"207 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Side Shift Travel

22 in 559 mm
{"Name":"Side Shift Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22","MetricUnit":"mm","MetricValue":"559","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Maximum Auger Clearance

21 in 534 mm
{"Name":"Maximum Auger Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21","MetricUnit":"mm","MetricValue":"534","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Spoil Auger Diameter

18 in 457 mm
{"Name":"Spoil Auger Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18","MetricUnit":"mm","MetricValue":"457","Type":"measurement","SpecificationGroup":null,"SortOrder":"14"}
Optional Cutting Widths

152, 254, 305 mm (6, 10, 12 in)
{"Name":"Optional Cutting Widths","SpecificationId":null,"TextValue":"152, 254, 305 mm (6, 10, 12 in)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}

Benefits

Application

Designed for cutting narrow, straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Direct Drive System

Direct drive system features a variable speed, bi-directional, gerotor style motor that delivers optimal chain speed, chain pull and torque for maximum trenching performance in a broad range of soil types.

Durable Anti-Back Flex Chain

Durable, double standard anti-back flex chain eliminates chain backlash and ensures teeth are positioned at the most efficient angle for smooth cutting and longer tooth life.

Hard-faced, Tungsten Carbide Steel Cupped Teeth

Hard-faced, tungsten carbide steel cupped teeth deliver long life in many soil conditions. Teeth are spaced for optimum digging performance in most soil types.

Hydraulic or Manual Side Shift

Hydraulic or manual side shift provides close trenching flexibility near structures or obstructions. Hydraulic side shift, standard on the T315 (optional on T109 and T112) is controlled from operator’s compartment using the standard flow auxiliary hydraulic circuit selector control.

Optional Chain Types and Cutting Widths

Optional chain types and cutting widths are available for specific soil, digging requirements and trench widths. These chain types include Standard, Combo, Terminator, and Rockfrost.

Large Diameter Bolt-On Spoil Auger

Large diameter bolt-on spoil auger improves loose soil removal from trenching area and allows for quick, easy removal and servicing.

Optional Bolt-On Crumber Bar

Optional bolt-on crumber bar with shoe improves soil removal to provide cleaner trench. Shoes available in size range to accommodate trench width.
