1140 mm (45 in), Dual Tine

Get in touch

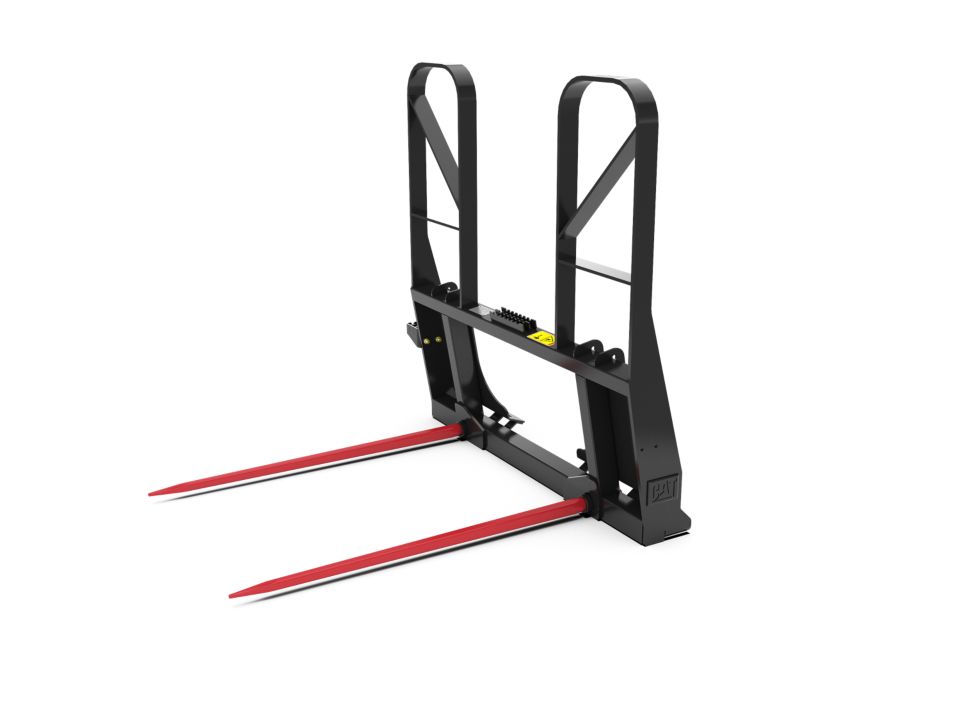

Cat® Bale Spears are designed for loading and carrying of round and square baled materials. Bales of wheat, hay and other materials can be transported for livestock feed, bedding or carrying for loading, unloading, or moving to storage. Offering optimal rigidity and capacity, the Bale Spear work tools are designed for a long working life.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

55.4 in 1407 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.4","MetricUnit":"mm","MetricValue":"1407","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Overall Height

51.8 in 1315 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51.8","MetricUnit":"mm","MetricValue":"1315","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Capacity

3007.1 lb 1364 kg
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3007.1","MetricUnit":"kg","MetricValue":"1364","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Usable Tine Length

44.9 in 1140 mm
{"Name":"Usable Tine Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"44.9","MetricUnit":"mm","MetricValue":"1140","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Overall Depth

53 in 1347 mm
{"Name":"Overall Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"53","MetricUnit":"mm","MetricValue":"1347","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Weight

266.8 lb 121 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"266.8","MetricUnit":"kg","MetricValue":"121","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Tine Spacing

28.3 in 720 mm
{"Name":"Tine Spacing","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28.3","MetricUnit":"mm","MetricValue":"720","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}

Benefits

Application

Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.

Two Length Options

Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.

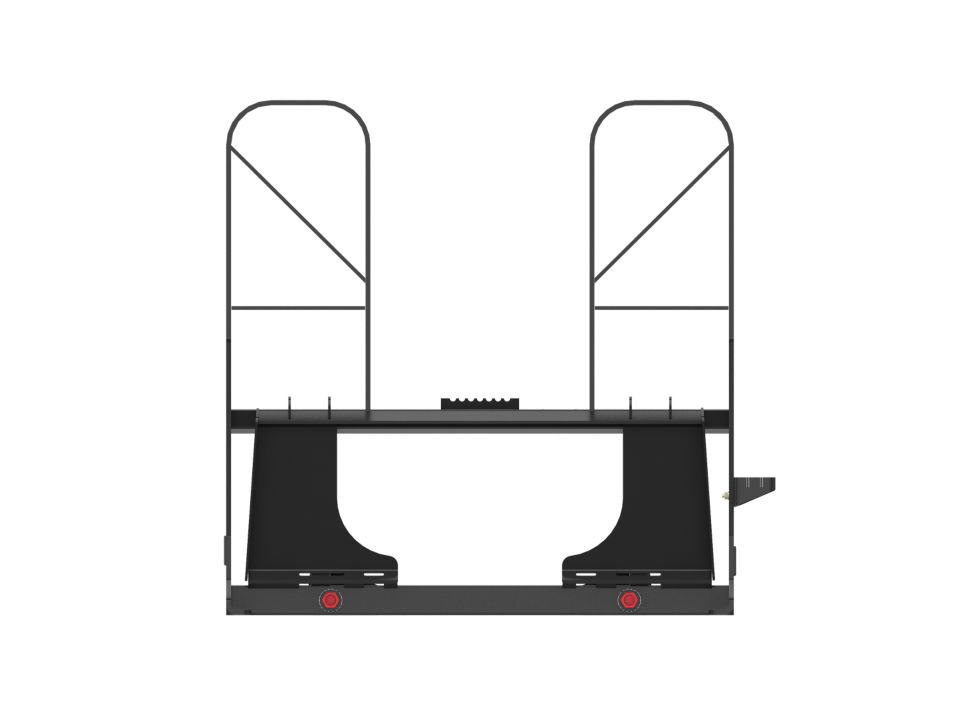

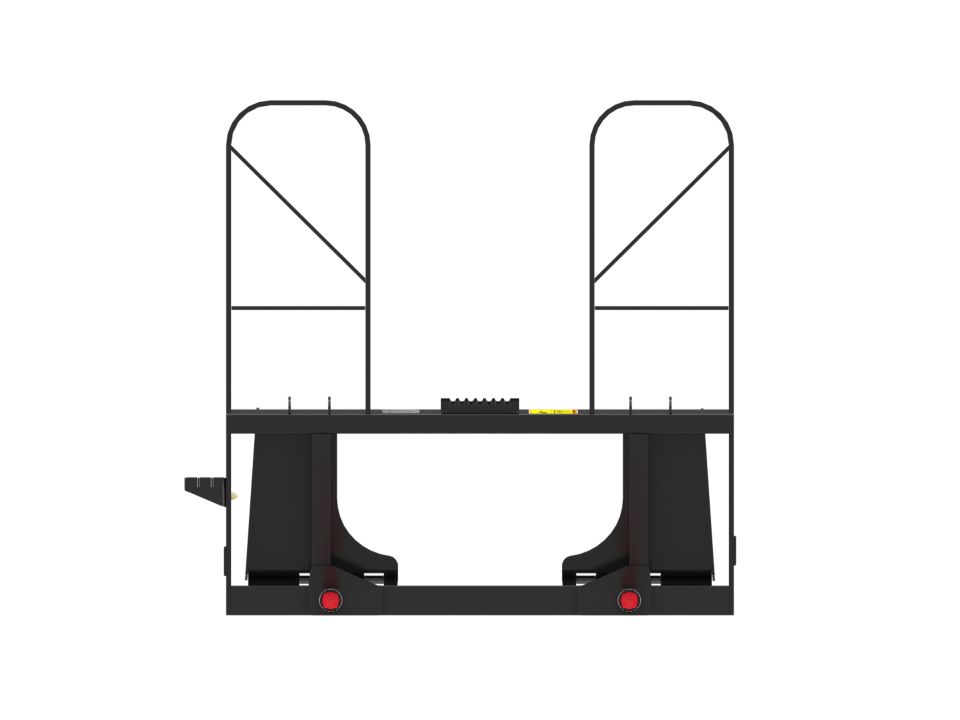

Heavy Duty High Back Structure

Dual tine Bale Spear models are equipped with a durable heavy duty back rest that allows excellent visibility, and easy ingress and egress from the machine cab.

Conical Tapered Tines

A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
