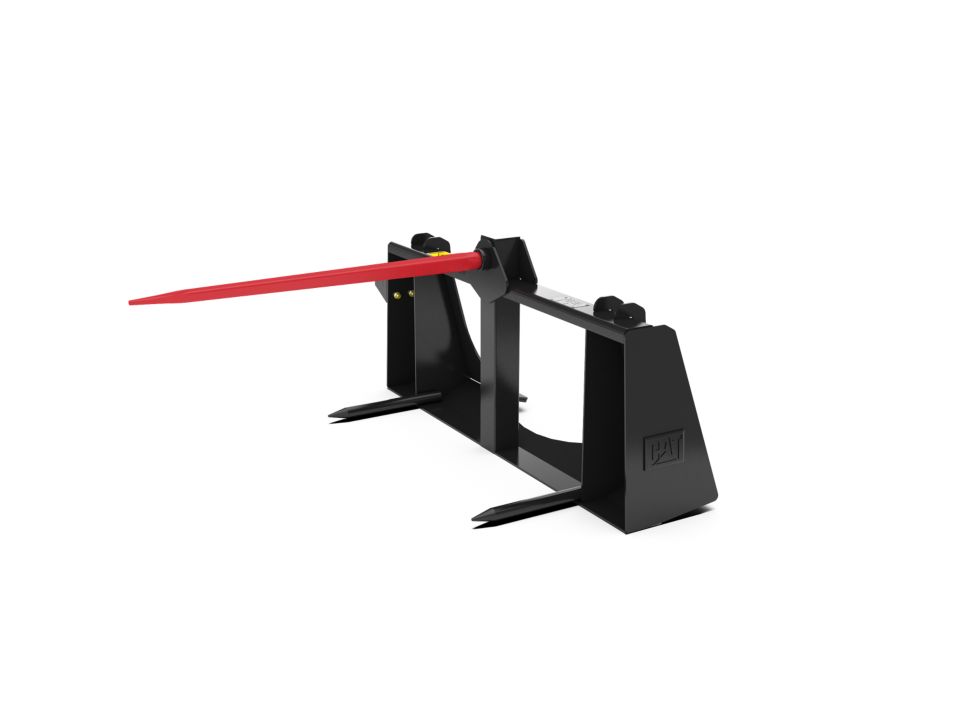

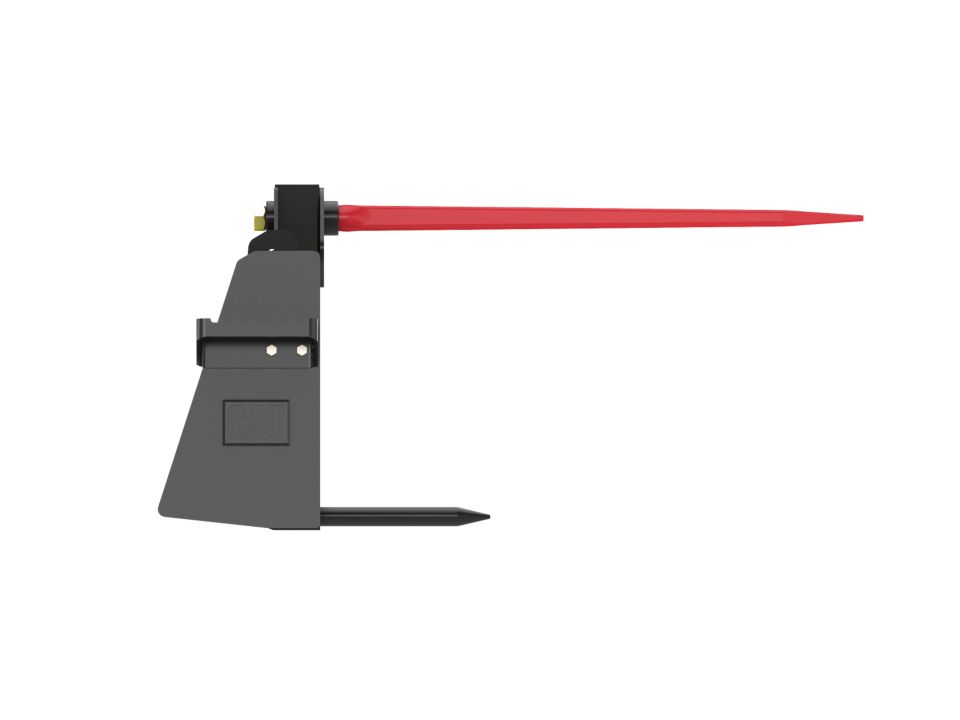

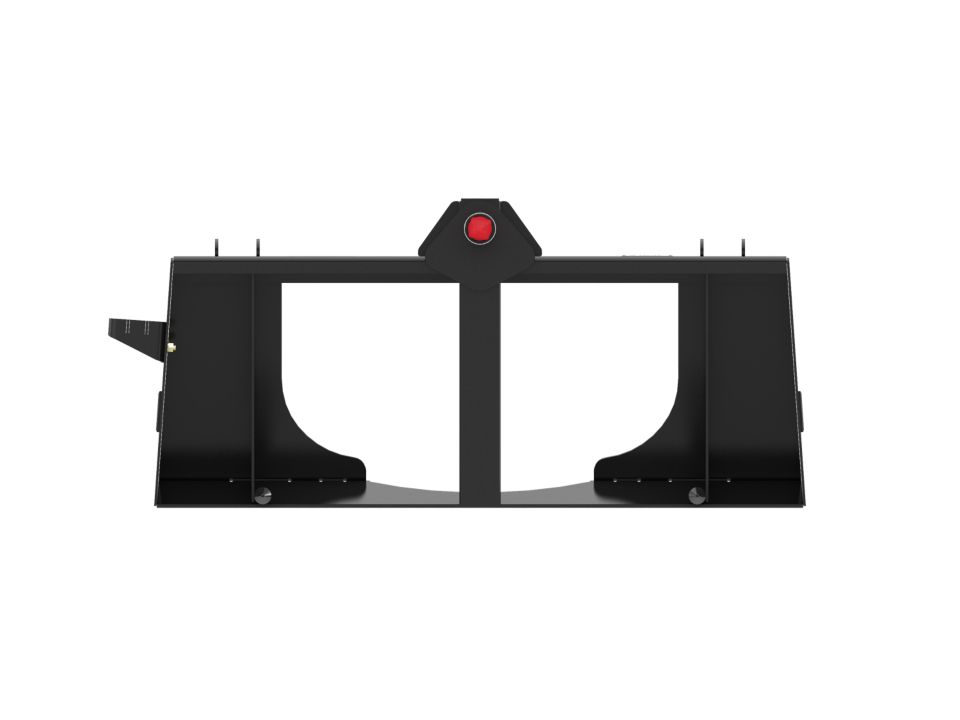

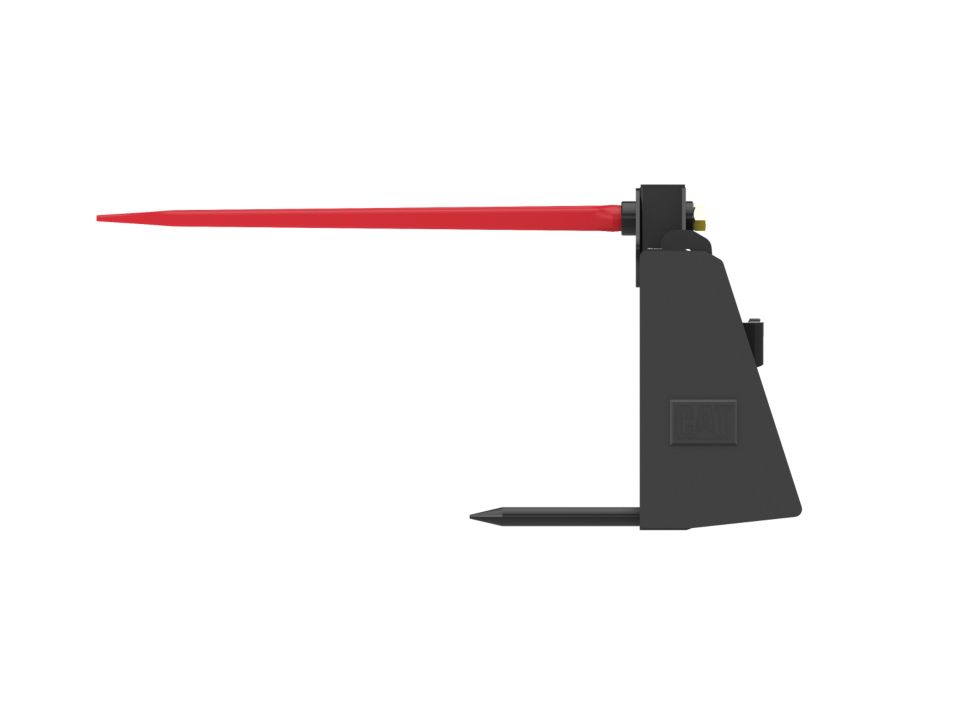

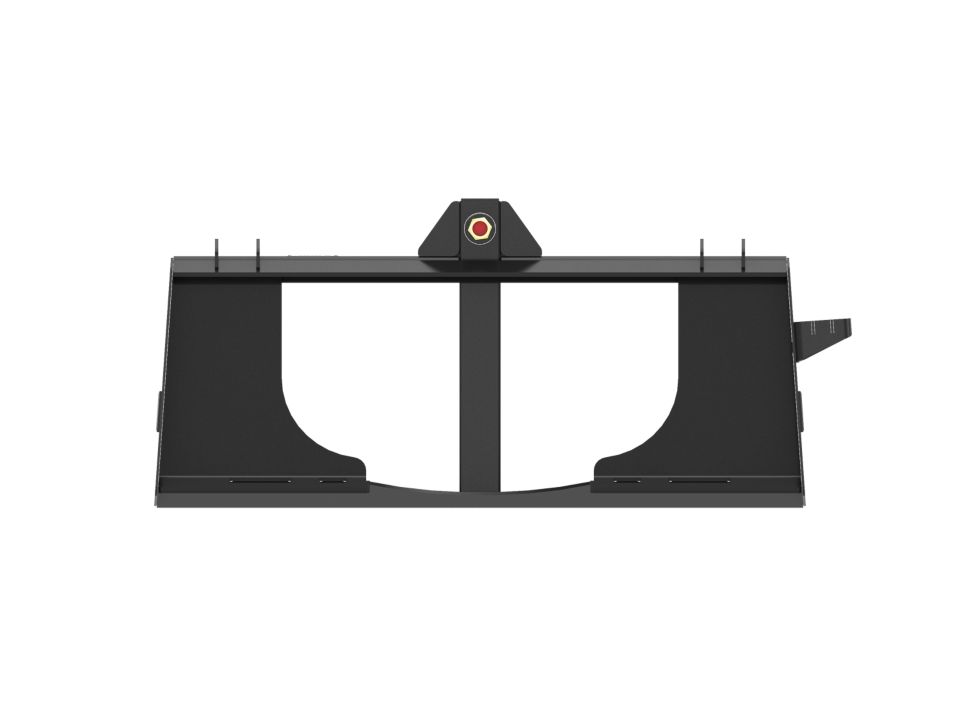

890 mm (35 in), Single Tine

Get in touch

Cat® Bale Spears are designed for loading and carrying of round and square baled materials. Bales of wheat, hay and other materials can be transported for livestock feed, bedding or carrying for loading, unloading, or moving to storage. Offering optimal rigidity and capacity, the Bale Spear work tools are designed for a long working life.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

50.6 in 1285 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"50.6","MetricUnit":"mm","MetricValue":"1285","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Overall Height

22.4 in 570 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22.4","MetricUnit":"mm","MetricValue":"570","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Capacity

2004 lb 909 kg
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2004","MetricUnit":"kg","MetricValue":"909","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Usable Tine Length

35 in 890 mm
{"Name":"Usable Tine Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"35","MetricUnit":"mm","MetricValue":"890","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Overall Depth

46.7 in 1186 mm
{"Name":"Overall Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"46.7","MetricUnit":"mm","MetricValue":"1186","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Weight

154.3 lb 70 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"154.3","MetricUnit":"kg","MetricValue":"70","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Tine Spacing

31.5 in 800 mm
{"Name":"Tine Spacing","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31.5","MetricUnit":"mm","MetricValue":"800","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Stabilizer Tine Length

11.1 in 281 mm
{"Name":"Stabilizer Tine Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"281","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}

Benefits

Application

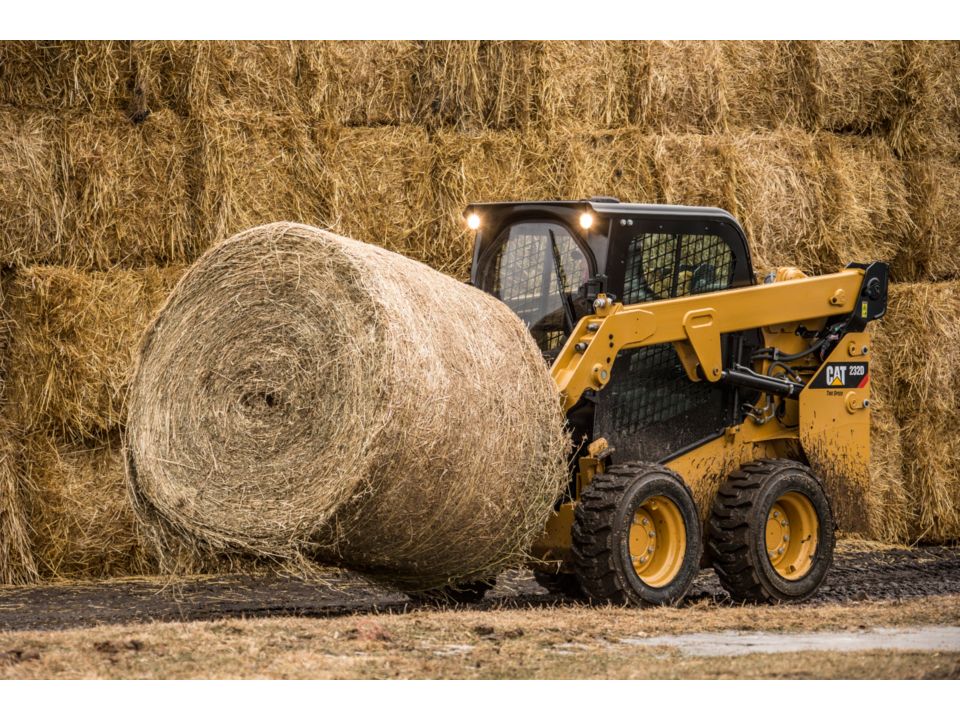

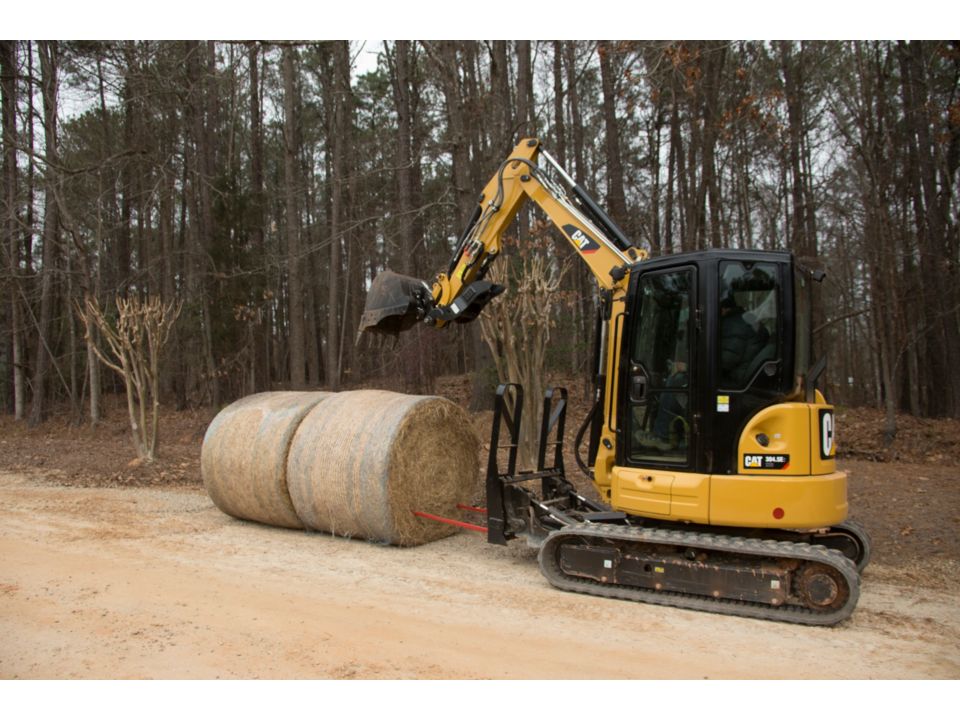

Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.

Two Length Options

Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.

Stabilizer Spears

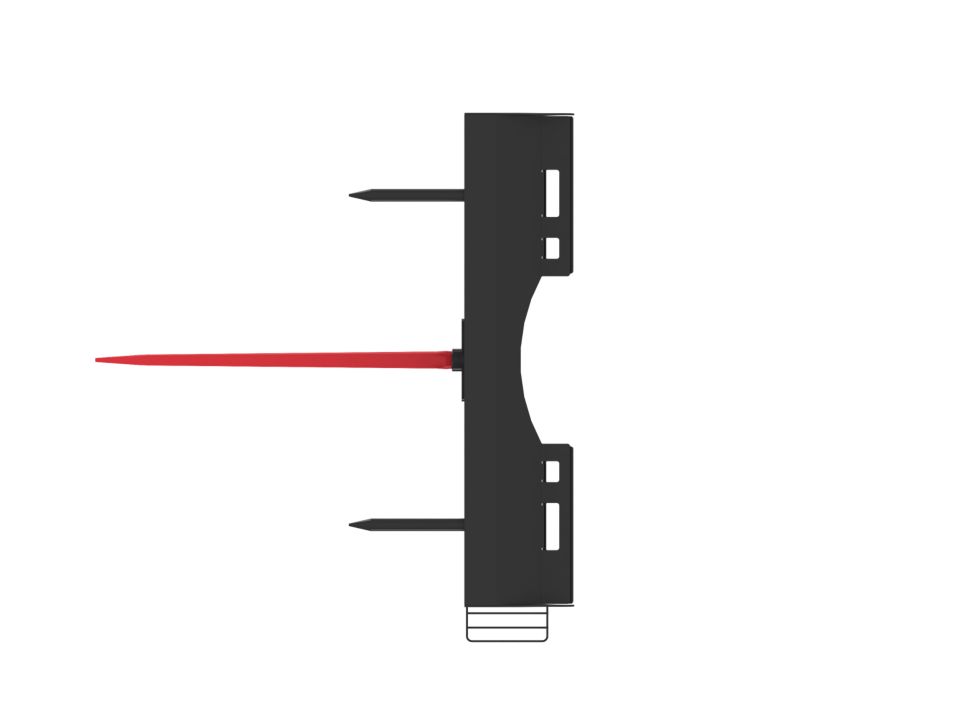

Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.

Conical Tapered Tines

A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
