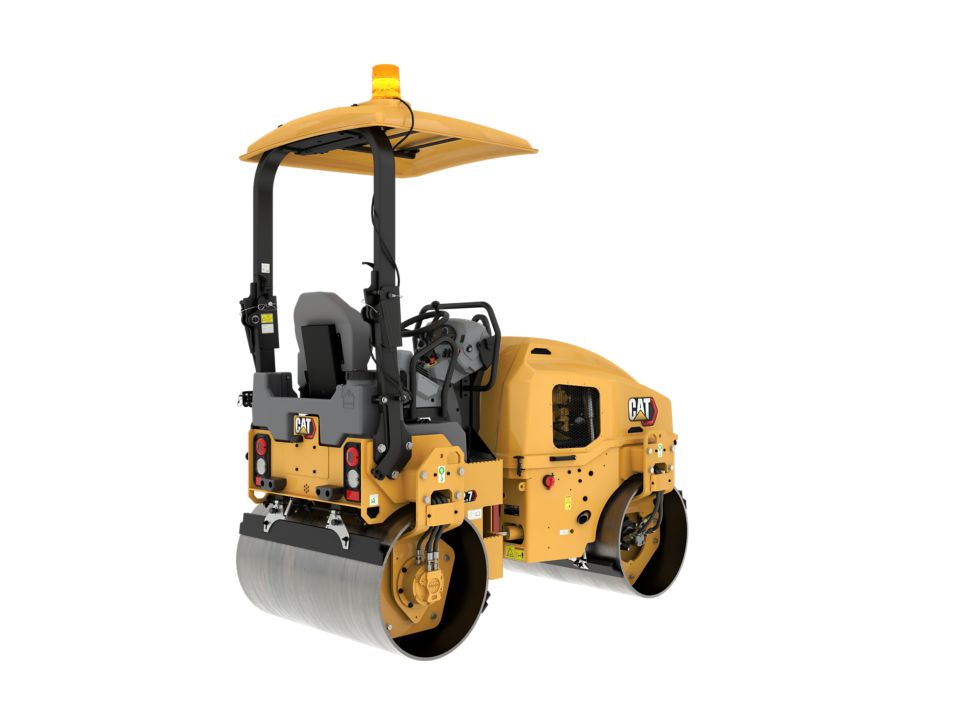

CB2.7
Tandem Vibratory Rollers
CB2.7
Tandem Vibratory Rollers
Book a Demo
Explore my deals
-
Compaction Width47.2 in 1200 mm
-
Drum Diameter28.3 in 720 mm
-
Overall Width51.7 in 1312 mm
-
Height - ROPS70.8 in 1799 mm
-
Overall Length99.2 in 2520 mm
-
Drum Width47.2 in 1200 mm
-
Wheel Base70.9 in 1800 mm
-
Engine Power (1)48.2 hp 36 kW
-
Engine ModelC1.7T
-
Turning Radius - Outside Drum Edge3740 mm 147.2 in
-
Drum Offset2 in 50 mm
-
Travel Speed - Maximum7.5 mile/h 12 km/h
-
Static Linear Load70.6 lb/in 12.6 kg/cm
-
Turning Radius - Inside Drum Edge100 in 2540 mm
-
Curb Clearance17.8 in 453 mm
-
Ground Clearance11.2 in 285 mm
-
Fuel Tank Capacity14.37 gal (US) 55 l
-
Water Spray Tank Capacity52.8 gal (US) 200 l
-
Frequency64/53 Hz (3840/3180 vpm)
-
Frequency3840 V/mm 64 Hz
-
Centrifugal Force - Maximum7929 lb 35 kN
-
Nominal Amplitude - High0.02 in 0.52 mm
-
Standard Operating Weight with ROPS5936 lb 2698 kg
-
Maximum Weight at Front Drum2861 lb 1301 kg
-
Maximum Operating Weight with ROPS5936 lb 2698 kg
-
Maximum Weight at Rear Drum1398 lb 3075 kg
-
Static Linear Load60.6 lb/in 13 kg/cm
Simple to Operate
- Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
- Variable water spray system to extend time between water fills
- Optional sliding operator seat and dual propel levers for reducing
Proven Productivity
- Large 720 mm (28 in) drum diameters for smooth mat finish
- 14 mm (0.55 in) thick drum shells for longer durability
- Dual vibratory frequencies and ballast options to maximize compactive effort
- C1.7T engine with 36 kW (48.2 hp) (gross)
Technology Ready
- Product Link™ for remote monitoring of machine location and status
- Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
Superior Safety
- High visability 75 mm (3 in) orange seatbelt to make job site safety visible
- Seat with operator presence sensor to prevent unintended operation while out of the seat
- Slip resistant steps and platform for improved operator safety
- Optional rotating amber beacon
Easy to Service
- Cat controls with ET capability for easy troubleshooting
- Reduced maintenance tasks for quick servicing
- 500 hour oil change interval to reduce maintenance time and costs
- Uptime kits and customer value agreements available to ensure maximum uptime
- LED lighting for durable and reliable performance
- External fuel fill for easy access
OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
