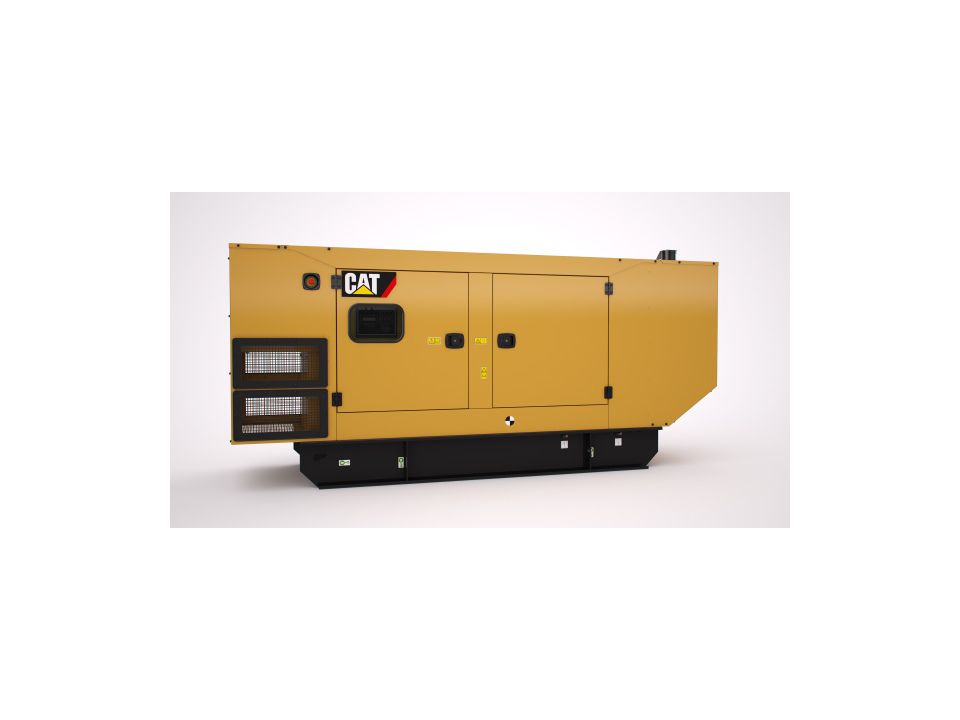

C9 230-275 kVA ACERT
Specifications
Weights and Dimensions
-
Weight2447 kg
-
Height1779mm
-
Length3988 mm
-
Width1208 mm
Benefits
Robust/Highly Corrosion Resistant Construction
- Factory installed on integral fuel tank base
- Environmentally friendly, polyester powder baked paint
- All-round overhanging base to protect enclosure
- Compression door latches giving solid door seal
- Zinc-plated or black coated stainless steel fasteners
- Internally mounted critical exhaust silencing system
Excellent Access
- Large cable entry area for installation ease
- Accommodates side mounted breaker and control panel
- Vertically hinged doorson both sides
- Removable ducts providing maintenance access with enclosure in place
- LLube oil and coolant drains piped to base frame side rail, on exterior
- Radiator fill cover
Security And Safety
- Lockable access doors which give full access to control panel and breaker
- Cooling fan and battery charging alternator fully guarded
- Fuel fill, oil fill and battery can only be reached via lockable access
- Externally mounted emergency stop button
- Designed for spreader-bar lifting to ensure safety
- Control panel viewing window
- Stub-up area is rodent proof
Options
- Cat® yellow or white pain
