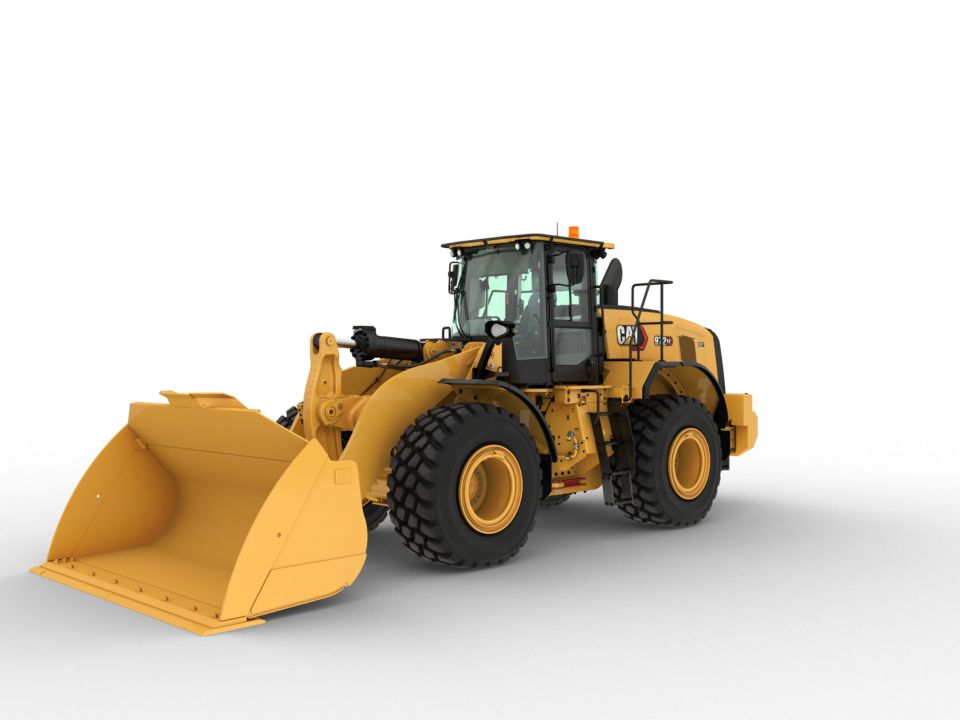

972 XE
972 XE
Cat® Medium Wheel Loaders are designed to handle a variety of jobs on your worksite from material handling and truck loading, to general construction, to stockpiling. With a spacious cab and low effort controls, operators will be in a comfortable and productive working environment. The reliability, durability and versatility built in result in front loaders that are better built to meet your needs.
Book a Demo
Explore my deals
Specifications
Air Conditioning System
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).
Bucket Capacities
-
Bucket Range2.8-14.0 m³ 3.75-18.25 yd³
Dimensions
-
NoteAll dimensions are approximate and based on machine equipped with 5.4 m3 (7.1 yd3) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.
Dimensions - High Lift
-
Centerline of Rear Axle to Edge of Counterweight8.1 ft 2458 mm
-
Centerline of Rear Axle to Hitch5.1 ft 1775 mm
-
Ground Clearance1.4 ft 424 mm
-
Height - Top of Exhaust Pipe11.8 ft 3531 mm
-
Height - Top of Hood9.5 ft 2850 mm
-
Height - Top of ROPS11.1 ft 3593 mm
-
Hinge Pin Height at Carry2.6 ft 782 mm
-
Hinge Pin Height at Maximum Lift15.9 ft 4804 mm
-
Lift Arm Clearance at Maximum Lift13.8 ft 4183 mm
-
Overall Length - Without Bucket26.6 ft 8069 mm
-
Tread Width7.3 ft 2230 mm
-
Wheel Base11.8 ft 3550 mm
-
Width over Tires (Loaded)9.11 ft 3012 mm
-
Rack Back at Ground37 degrees
-
Rack Back - Maximum Lift71 degrees
-
Rack Back - Carry Height49 degrees
Dimensions - Standard Lift
-
Centerline of Rear Axle to Hitch5.1 ft 1775 mm
-
Ground Clearance420 mm 1.4 ft
-
Height - Top of Exhaust Pipe3527 mm 11.7 ft
-
Height - Top of Hood2846 mm 9.4 ft
-
Height - Top of ROPS3589 mm 11 ft
-
Hinge Pin Height at Carry2.2 ft 682 mm
-
Hinge Pin Height at Maximum Lift4464 mm 14.7 ft
-
Lift Arm Clearance at Maximum Lift3843 mm 12.7 ft
-
Overall Length - Without Bucket7731 mm 25.5 ft
-
Tread Width7.3 ft 2230 mm
-
Wheel Base3550 mm 11.8 ft
-
Width over Tires (Loaded)9.11 ft 3012 mm
-
Rack Back - Carry Height49 degrees
-
Rack Back at Ground39 degrees
-
Centerline of Rear Axle to Edge of Counterweight8 ft 2458 mm
-
Rack Back - Maximum Lift56 degrees
Engine
-
Engine Power @ 1,600 rpm - ISO 14396:2002339 hp 253 kW
-
Gross Power @ 1,600 rpm - SAE J1995:2014343 hp 256 kW
-
Engine ModelCat C9.3B
-
Net Power @ 1,600 rpm - ISO 9249:2007, SAE J1349:2011316 hp 236 kW
-
Note (1)Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
-
Note (2)The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
-
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:20111287 ft-lb 1745 N·m
-
Displacement9.3 L
-
Engine Torque @ 1,200 rpm – ISO 14396:20021375 lb/ft 1864 N·m
-
Note (3)Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
-
Gross Torque @ 1,200 rpm – SAE J1995:20141388 lb/ft 1882 N·m
Hydraulic System
-
Implement System - Maximum Operating Pressure4496 psi 31000 kPa
-
Implement System - Maximum Pump Output at 2,250 rpm99 gal/min 373 l/min
-
Hydraulic Cycle Time - Total10.7 seconds
Operating Specifications
-
Breakout Force44072 lb 196 kN
-
Note (1)For a machine configuration as defined under Weight.
-
Note (2)Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
-
Static Tipping Load - Full 40° Turn - No Tire Deflection17505 kg 35582 lb
-
Static Tipping Load - Full 40° Turn - With Tire Deflection35919 lb 16297 kg
Service Refill Capacities
-
Cooling System17.4 gal (US) 66 l
-
Crankcase6.1 gal (US) 23 l
-
DEF Tank6.9 gal (US) 26 l
-
Differential - Final Drives - Front15.1 gal (US) 57 l
-
Differential - Final Drives - Rear15.1 gal (US) 57 l
-
Fuel Tank80.1 gal (US) 303 l
-
Hydraulic Tank30.1 gal (US) 114 l
-
Transmission15.5 gal (US) 58.5 l
Sound
-
Note (1)** For machines in European Union countries and in countries that adopt the EU Directives.
-
Note (2)***European Union Directive 2000/14/EC as amended by 2005/88/EC.
-
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level*108
-
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)69 dB(A) 69 dB(A)
-
With Cooling Fan Speed at Maximum Speed - Exterior Sound Power Level (ISO 6395:2008)109 dB(A) 109 dB(A)
-
With Cooling Fan Speed at Maximum Speed - Exterior Sound Pressure Level (SAE J88:2013)76
-
With Cooling Fan Speed at Maximum Speed - Operator Sound Pressure Level (ISO 6396:2008)70 dB(A) 70 dB(A)
-
With Cooling Fan Speed at Maximum Value - NoteDistance of 15 m (49.2 ft), moving forward in second gear ratio.
Transmission
-
Forward - 14.1 mile/h 6.7 km/h
-
Forward - 28.4 mile/h 13.4 km/h
-
Forward - 315 mile/h 24.1 km/h
-
Forward - 424.5 mile/h 39.5 km/h
-
NoteMaximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius.
-
Reverse - 14.5 mile/h 7.3 km/h
-
Reverse - 29.2 mile/h 14.8 km/h
-
Reverse - 316.5 mile/h 26.6 km/h
-
Reverse - 424.5 mile/h 39.5 km/h
Weights
-
Operating Weight54858 lb 24890 kg
-
NoteWeight based on a machine configuration with Bridgestone 26.5R25 VJTL3 radial tires, full fluids, operator, standard counterweight, ride control,cold start, roading fenders, Product Link, front manual differential/openrear axles, power train guard, secondary steering, sound suppression,and a 4.8 m³ (6.25 yd³) general purpose bucket with BOCE.
Benefits
Superior Fuel Efficiency
- Up to 35% better fuel efficiency compared to previous Cat model.
- Deep system integration of the Cat continuously variable transmission, engine, hydraulic, and cooling systems results in significantly increased performance and fuel efficiency.
- Eliminating the torque converter allows the capability to control engine rpm and machine speed independently, resulting in efficient digging, fine control, and easy operation.
- Lower rated engine speed reduces component wear and operating noise.
- Power dense engine burns less fuel by providing power and torque when needed.
Achieve Greater Productivity
- Continuously variable transmission delivers smooth, fast acceleration and speed on grade.
- Machine maneuvering on grade is made easy with speed-hold and anti-rollback.
- Integrated continuously variable transmission provides maximum, steady power at optimal speeds.
- Advanced rimpull control for best loading efficiency in the pile and tire wear reduction.
- New Autodig with Auto Set Tires for consistent high bucket fill factors.
- Application Profiles optimize machine settings for different applications at one push of a button.
- Job Aids help operators improve and optimize their operating skills.
- Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
- Automatic engine idle shutdown system significantly reduces idle time, overall operating hours, and fuel consumption.
- Dual ride control accumulator system enables a wide payload range and better ride quality.
- Standard manual front differential provides additional traction when needed. Automatic front and rear locks are available as an option.
- Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
- With Fusion™ Quick Coupler, buckets can be changed without leaving the cab, allowing the machine to quickly move from task to task.
**Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.
Smart Machine for Efficient Operation
- Standard Cat technologies to monitor, manage, and enhance your jobsite operations.
– Product Link™ wirelessly connects the machine to the office, giving you access to production and essential health information needed to make timely, fact-based decisions to help you better run your business.
– New Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.
– Onboard Job Aids and Operator Controls Help to ease operation.
- Optional Cat Advanced Payload with Assist:
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
- Optional Cat Productivity subscription provides detailed and comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
Proven Reliability
- Cat C9.3B engine offers high power density with a combination of proven electronics, fuel, and air systems.
- Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
- Features an electric fuel priming pump, fuel-water separator, and secondary filtration system.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
Safety Features
- Rear-vision camera enhances visibility behind the machine, helping you work safely and confidently.
- Optional multiview (360°) vision system helps the operator monitor the surroundings of the machine at all times.
- Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
- Cab access with wide door, optional remote door opening, and stair-like steps add solid stability.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
- Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.
Reduced Maintenance Time & Costs
- Extended fluid and filter change intervals reduce maintenance costs by up to 25%.*
- Convenient access to hydraulic and electrical service centers for easy and safe servicing.
- Remote Troubleshoot can connect the machine to the dealer service department to help diagnose problems quickly so you can get back to work.
- Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
- The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and allows you to request service from your local Cat dealer.
- Integrated Autolube extends component and service life.
- One-piece tilting hood makes engine compartment access fast and easy.
*Parts and fluids only
Durability
- Heavy-duty axles designed to handle extreme applications.
- Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.
Work in Comfort in the All New Cab
- Next-generation, easily adjustable seat and suspension for improved operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).
- Increased legroom and adjustable seat controls for increased comfort and efficiency.
- Automatic air conditioning system keeps the cab cool as desired.
- New in-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
- Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
- The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
- The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
Purpose-built Specialty Configurations
- Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:
Equipment Info
Operator Environment
Cab, pressurized, sound suppression
ON-BOARD TECHNOLOGIES
Cat Payload scale
POWER TRAIN
Cat C9.3B engine
HYDRAULICS
Implement system, load sensing with electro-hydraulic variable displacement piston pump
ELECTRICAL
Starting and charging system, 24V
MONITORING SYSTEM
Front dash with analog gauges, LCD display, and warning lights
LINKAGE
Standard lift, Z-bar
