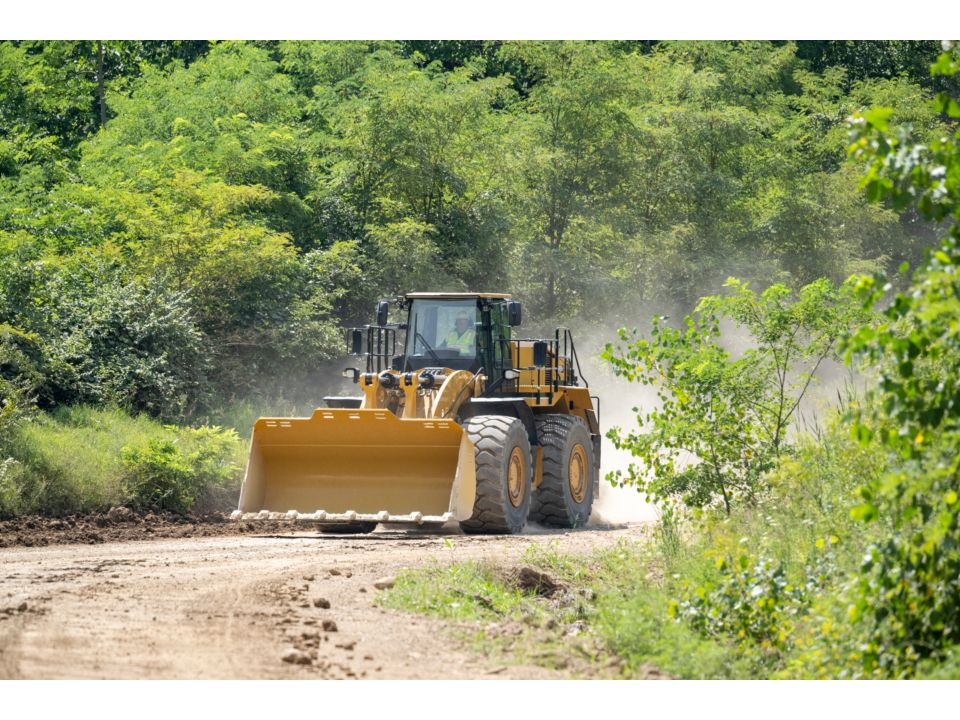

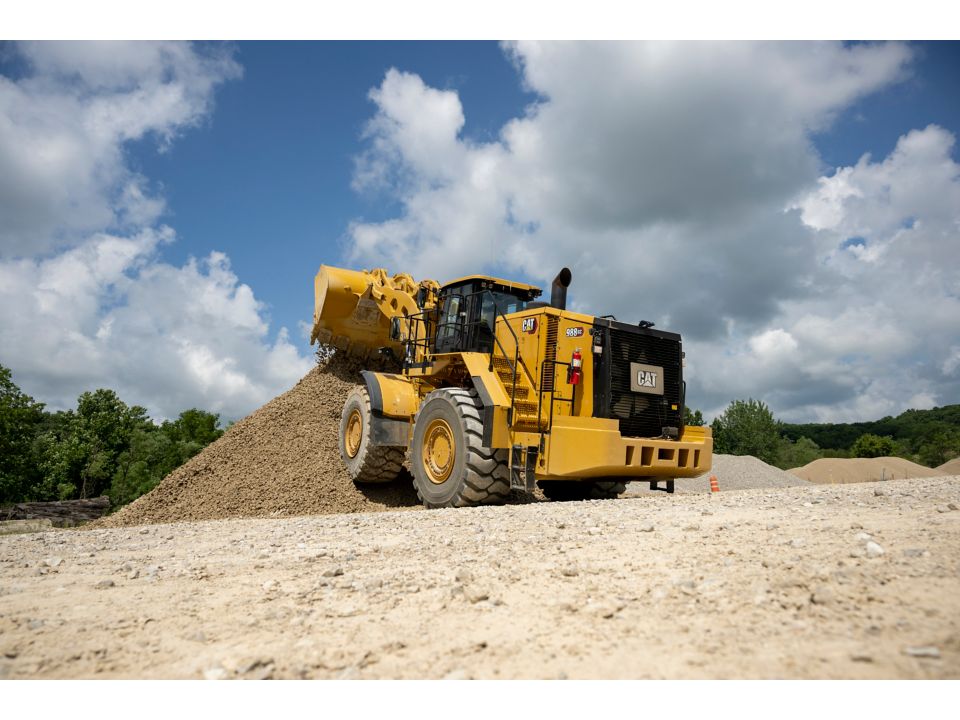

988 GC

Cat® Large Wheel Loaders set the standard for optimized productivity, minimizing downtime, enhancing operator comfort, and protecting people on your jobsite through key safety features.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"70"}

Axles

Front

Fixed
{"Name":"Front","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"80"}
Rear

Trunnion
{"Name":"Rear","SpecificationId":null,"TextValue":"Trunnion","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"81"}
Oscillation Angle

+/-12.5°
{"Name":"Oscillation Angle","SpecificationId":null,"TextValue":"+/-12.5°","EnglishUnit":"gal (US)","EnglishValue":"141","MetricUnit":"l","MetricValue":"535","Type":"text","SpecificationGroup":"Axles","SortOrder":"82"}

Brakes

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":"gal (US)","EnglishValue":"27","MetricUnit":"l","MetricValue":"101","Type":"text","SpecificationGroup":"Brakes","SortOrder":"90"}

Dimensions (Approximate) - High Lift

Ground to Top of ROPS

13.5 ft 4100 mm
{"Name":"Ground to Top of ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"140"}
Ground to Top of Exhaust Stacks

13.3 ft 4060 mm
{"Name":"Ground to Top of Exhaust Stacks","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"141"}
Ground to Top of Hood

10.7 ft 3270 mm
{"Name":"Ground to Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3270","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"142"}
Ground to Fuel Tank Clearance

2.2 ft 686 mm
{"Name":"Ground to Fuel Tank Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.2","MetricUnit":"mm","MetricValue":"686","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"143"}
Rear Axle - Centerline to Bumper

10.3 ft 3132 mm
{"Name":"Rear Axle - Centerline to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3132","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"144"}
Front Axle Centerline to Bucket Tip

16.7 ft 5100 mm
{"Name":"Front Axle Centerline to Bucket Tip","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"16.7","MetricUnit":"mm","MetricValue":"5100","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"145"}
Wheel Base

12.5 ft 3810 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"146"}
Maximum Overall Length

39.5 ft 12042 mm
{"Name":"Maximum Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"39.5","MetricUnit":"mm","MetricValue":"12042","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"147"}
Ground to Lower Hitch Clearance

1.5 ft 459 mm
{"Name":"Ground to Lower Hitch Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.5","MetricUnit":"mm","MetricValue":"459","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"148"}
Ground to Center of Front Axle

3.2 ft 978 mm
{"Name":"Ground to Center of Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"978","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"149"}
Clearance at Maximum Lift (45° Dump)

12 ft 3732 mm
{"Name":"Clearance at Maximum Lift (45° Dump)","SpecificationId":null,"TextValue":"Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.","EnglishUnit":"ft","EnglishValue":"12","MetricUnit":"mm","MetricValue":"3732","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"150"}
B-Pin Height - Maximum Lift

18.7 ft 5755 mm
{"Name":"B-Pin Height - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"18.7","MetricUnit":"mm","MetricValue":"5755","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"151"}
Maximum Overall Height - Bucket Raised

25 ft 7582 mm
{"Name":"Maximum Overall Height - Bucket Raised","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"25","MetricUnit":"mm","MetricValue":"7582","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"152"}
Reach at Maximum Lift (45° Dump)

7.7 ft 2342 mm
{"Name":"Reach at Maximum Lift (45° Dump)","SpecificationId":null,"TextValue":"Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.","EnglishUnit":"ft","EnglishValue":"7.7","MetricUnit":"mm","MetricValue":"2342","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"153"}
Note

Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift","SortOrder":"154"}

Engine

Engine Model

Cat® C15
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C15","EnglishUnit":"hp","EnglishValue":"449","MetricUnit":"kW","MetricValue":"335","Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Rated Speed

2000 rpm
{"Name":"Rated Speed","SpecificationId":null,"TextValue":"2000 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}
Peak Power Speed

1600 rpm
{"Name":"Peak Power Speed","SpecificationId":null,"TextValue":"1600 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"6"}
Gross Power - SAE J1995:2014

456 hp 340 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":"1600 rpm","EnglishUnit":"hp","EnglishValue":"456","MetricUnit":"kW","MetricValue":"340","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Net Power - SAE J1349:2011

448 hp 334 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"448","MetricUnit":"kW","MetricValue":"334","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Bore

5.4 in 137 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.4","MetricUnit":"mm","MetricValue":"137","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Stroke

6.75 in 171.5 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":"U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014","EnglishUnit":"in","EnglishValue":"6.75","MetricUnit":"mm","MetricValue":"171.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Displacement

927 in³ 15.2 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"927","MetricUnit":"l","MetricValue":"15.2","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Peak Torque (1,200 rpm) - SAE J1995:2014

1778 lbf·ft 2411 N·m
{"Name":"Peak Torque (1,200 rpm) - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1778","MetricUnit":"N·m","MetricValue":"2411","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"12"}
Torque Rise

16%
{"Name":"Torque Rise","SpecificationId":null,"TextValue":"16%","EnglishUnit":"ft·lbf","EnglishValue":"1778","MetricUnit":"N·m","MetricValue":"2411","Type":"text","SpecificationGroup":"Engine","SortOrder":"13"}
Note (1)

Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.","EnglishUnit":"ft·lbf","EnglishValue":"1778","MetricUnit":"N·m","MetricValue":"2411","Type":"text","SpecificationGroup":"Engine","SortOrder":"14"}
Note (2)

Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"15"}
Note (3)

Net power at the flywheel when the fan is at maximum speed is 304 kW / 408 hp per SAE reference conditions.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Net power at the flywheel when the fan is at maximum speed is 304 kW / 408 hp per SAE reference conditions.","EnglishUnit":"lb","EnglishValue":"112426","MetricUnit":"kg","MetricValue":"50996","Type":"text","SpecificationGroup":"Engine","SortOrder":"16"}

Hydraulic Cycle Times

Rack Back

3.8 s 3.8 s
{"Name":"Rack Back","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"3.8","MetricUnit":"s","MetricValue":"3.8","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"50"}
Raise

7.5 s 7.5 s
{"Name":"Raise","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"7.5","MetricUnit":"s","MetricValue":"7.5","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"51"}
Dump

3 s 3 s
{"Name":"Dump","SpecificationId":null,"TextValue":"Pilot, load sensing","EnglishUnit":"s","EnglishValue":"3","MetricUnit":"s","MetricValue":"3","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"52"}
Lower Float Down

4.6 s 4.6 s
{"Name":"Lower Float Down","SpecificationId":null,"TextValue":"Piston, variable displacement","EnglishUnit":"s","EnglishValue":"4.6","MetricUnit":"s","MetricValue":"4.6","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"53"}
Total Hydraulic Cycle Time - Empty Bucket

18.9 s 18.9 s
{"Name":"Total Hydraulic Cycle Time - Empty Bucket","SpecificationId":null,"TextValue":"Pilot, load sensing","EnglishUnit":"s","EnglishValue":"18.9","MetricUnit":"s","MetricValue":"18.9","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"54"}

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit

EH - Load Sense
{"Name":"Lift/Tilt System - Circuit","SpecificationId":null,"TextValue":"EH - Load Sense","EnglishUnit":"psi","EnglishValue":"4598","MetricUnit":"kPa","MetricValue":"31700","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"40"}
Lift/Tilt System - Pump

Variable displacement piston
{"Name":"Lift/Tilt System - Pump","SpecificationId":null,"TextValue":"Variable displacement piston","EnglishUnit":"gal/min","EnglishValue":"159","MetricUnit":"l/min","MetricValue":"600","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"41"}
Maximum Flow at 2,165 rpm

159 gal/min 600 l/min
{"Name":"Maximum Flow at 2,165 rpm","SpecificationId":null,"TextValue":"170 mm x 722 mm (6.7 in x 28.4 in)","EnglishUnit":"gal/min","EnglishValue":"159","MetricUnit":"l/min","MetricValue":"600","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"42"}
Relief Valve Setting - Lift/Tilt

4598 psi 31700 kPa
{"Name":"Relief Valve Setting - Lift/Tilt","SpecificationId":null,"TextValue":"190 mm x 1216 mm (7.5 in x 48 in)","EnglishUnit":"psi","EnglishValue":"4598","MetricUnit":"kPa","MetricValue":"31700","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"43"}
Cylinders, Double Acting - Lift, Bore and Stroke

190 mm x 1216 mm (7.5 in x 48 in)
{"Name":"Cylinders, Double Acting - Lift, Bore and Stroke","SpecificationId":null,"TextValue":"190 mm x 1216 mm (7.5 in x 48 in)","EnglishUnit":"in","EnglishValue":"27","MetricUnit":"mm","MetricValue":"685","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"44"}
Cylinders, Double Acting - Tilt, Bore and Stroke

170 mm x 722 mm (6.7 in x 28.4 in)
{"Name":"Cylinders, Double Acting - Tilt, Bore and Stroke","SpecificationId":null,"TextValue":"170 mm x 722 mm (6.7 in x 28.4 in)","EnglishUnit":"s","EnglishValue":"3.8","MetricUnit":"s","MetricValue":"3.8","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"45"}
Pilot System

Variable displacement piston
{"Name":"Pilot System","SpecificationId":null,"TextValue":"Variable displacement piston","EnglishUnit":"psi","EnglishValue":"500","MetricUnit":"kPa","MetricValue":"3450","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"46"}
Relief Valve Setting

500 psi 3450 kPa
{"Name":"Relief Valve Setting","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"500","MetricUnit":"kPa","MetricValue":"3450","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"47"}

Hydraulic System - Steering

Steering System - Circuit

Pilot, load sensing
{"Name":"Steering System - Circuit","SpecificationId":null,"TextValue":"Pilot, load sensing","EnglishUnit":"psi","EnglishValue":"4000","MetricUnit":"kPa","MetricValue":"27600","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"60"}
Steering System - Pump

Piston, variable displacement
{"Name":"Steering System - Pump","SpecificationId":null,"TextValue":"Piston, variable displacement","EnglishUnit":"gal/min","EnglishValue":"52","MetricUnit":"l/min","MetricValue":"200","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"61"}
Maximum Flow at 2,165 rpm

52 gal/min 200 l/min
{"Name":"Maximum Flow at 2,165 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"52","MetricUnit":"l/min","MetricValue":"200","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"62"}
Relief Valve Setting - Steering

4000 psi 27600 kPa
{"Name":"Relief Valve Setting - Steering","SpecificationId":null,"TextValue":"70°","EnglishUnit":"psi","EnglishValue":"4000","MetricUnit":"kPa","MetricValue":"27600","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"63"}
Total Steering Angle

70°
{"Name":"Total Steering Angle","SpecificationId":null,"TextValue":"70°","EnglishUnit":"s","EnglishValue":"3","MetricUnit":"s","MetricValue":"3","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"64"}
Steering Cycle Times - High Idle

3 s 3 s
{"Name":"Steering Cycle Times - High Idle","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":"s","EnglishValue":"3","MetricUnit":"s","MetricValue":"3","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"65"}
Steering Cycle Times - Low Idle

5.2 s 5.2 s
{"Name":"Steering Cycle Times - Low Idle","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).","EnglishUnit":"s","EnglishValue":"5.2","MetricUnit":"s","MetricValue":"5.2","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"66"}

Operating Specifications

Operating Weight

112426 lb 50996 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":"6.4-7.6 m3 (8.3-10 yd3)","EnglishUnit":"lb","EnglishValue":"112426","MetricUnit":"kg","MetricValue":"50996","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"2"}
Bucket Capacity Range

6.4-7.6 m3 (8.3-10 yd3)
{"Name":"Bucket Capacity Range","SpecificationId":null,"TextValue":"6.4-7.6 m3 (8.3-10 yd3)","EnglishUnit":"ton (US)","EnglishValue":"12.5","MetricUnit":"t","MetricValue":"11.3","Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"3"}
Rated Payload - Quarry Face

12.5 ton (US) 11.3 t
{"Name":"Rated Payload - Quarry Face","SpecificationId":null,"TextValue":"772/773/775","EnglishUnit":"ton (US)","EnglishValue":"12.5","MetricUnit":"t","MetricValue":"11.3","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"21"}
Cat Truck Match - High Lift

772/773/775
{"Name":"Cat Truck Match - High Lift","SpecificationId":null,"TextValue":"772/773/775","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"21"}

Operator's Cab

ROPS/FOPS

Rollover Protective Structure/Falling Objects Protective Structure (ROPS/FOPS) meet ISO 3471:2008 and ISO 3449:2005 Level II standards
{"Name":"ROPS/FOPS","SpecificationId":null,"TextValue":"Rollover Protective Structure/Falling Objects Protective Structure (ROPS/FOPS) meet ISO 3471:2008 and ISO 3449:2005 Level II standards","EnglishUnit":"dB(A)","EnglishValue":"73","MetricUnit":"dB(A)","MetricValue":"73","Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"100"}

Service Refill Capacities

Fuel Tank

141 gal (US) 535 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"141","MetricUnit":"l","MetricValue":"535","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"130"}
Cooling System

27 gal (US) 101 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"27","MetricUnit":"l","MetricValue":"101","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"131"}
Engine Crankcase

9 gal (US) 34 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"132"}
Diesel Exhaust Fluid Tank

5.5 gal (US) 21 l
{"Name":"Diesel Exhaust Fluid Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5.5","MetricUnit":"l","MetricValue":"21","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"133"}
Transmission

20 gal (US) 75 l
{"Name":"Transmission","SpecificationId":null,"TextValue":"Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.","EnglishUnit":"gal (US)","EnglishValue":"20","MetricUnit":"l","MetricValue":"75","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"134"}
Differential - Final Drives - Front

49 gal (US) 186 l
{"Name":"Differential - Final Drives - Front","SpecificationId":null,"TextValue":"6.4-7.6 m3 (8.3-10 yd3)","EnglishUnit":"gal (US)","EnglishValue":"49","MetricUnit":"l","MetricValue":"186","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"135"}
Differential - Final Drives - Rear

45 gal (US) 170 l
{"Name":"Differential - Final Drives - Rear","SpecificationId":null,"TextValue":"Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: ? 20% biodiesel FAME (fatty acid methyl ester) *** ? 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).","EnglishUnit":"gal (US)","EnglishValue":"45","MetricUnit":"l","MetricValue":"170","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"136"}
Hydraulic System Factory Fill

94 gal (US) 355 l
{"Name":"Hydraulic System Factory Fill","SpecificationId":null,"TextValue":"Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: - 20% biodiesel FAME (fatty acid methyl ester) *** - 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).","EnglishUnit":"gal (US)","EnglishValue":"94","MetricUnit":"l","MetricValue":"355","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"137"}
Note

Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: - 20% biodiesel FAME (fatty acid methyl ester) *** - 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
{"Name":"Note","SpecificationId":null,"TextValue":"Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: - 20% biodiesel FAME (fatty acid methyl ester) *** - 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).","EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"text","SpecificationGroup":"Service Refill Capacities","SortOrder":"138"}

Sound Performance - Tier 3 / Stage IIIA

Operator Sound Pressure Level (ISO 6396:2008)

74 dB(A) 74 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"74","MetricUnit":"dB(A)","MetricValue":"74","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"120"}
Machine Sound Power Level (ISO 6395:2008)

113 dB(A) 113 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"113","MetricUnit":"dB(A)","MetricValue":"113","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"121"}
Operator Sound Pressure Level (ISO 6396:2008)*

73 dB(A) 73 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)*","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"73","MetricUnit":"dB(A)","MetricValue":"73","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"122"}
Machine Sound Power Level (ISO 6395:2008)**

110 dB(A) 110 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)**","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"123"}
Note (1)

* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
{"Name":"Note (1)","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3132","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"124"}
Note (2)

** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.","EnglishUnit":"ft","EnglishValue":"15.7","MetricUnit":"mm","MetricValue":"4773","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"125"}
Note (3)

The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3810","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"126"}
Note (4)

The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"39.5","MetricUnit":"mm","MetricValue":"12042","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"127"}
Note (5)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"gal (US)","EnglishValue":"141","MetricUnit":"l","MetricValue":"535","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"128"}

Sound Performance - Tier 4 Final / Stage V

Operator Sound Pressure Level (ISO 6396:2008)

73 dB(A) 73 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"73","MetricUnit":"dB(A)","MetricValue":"73","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"110"}
Machine Sound Power Level (ISO 6395:2008)

113 dB(A) 113 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"113","MetricUnit":"dB(A)","MetricValue":"113","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"111"}
Operator Sound Pressure Level (ISO 6396:2008)*

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)*","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"112"}
Machine Sound Power Level (ISO 6395:2008)**

110 dB(A) 110 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)**","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"113"}
Note (1)

* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
{"Name":"Note (1)","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"114"}
Note (2)

** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"115"}
Note (3)

The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"116"}
Note (4)

The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"117"}
Note (5)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"dB(A)","EnglishValue":"74","MetricUnit":"dB(A)","MetricValue":"74","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"118"}

Transmission

Transmission Type

Cat planetary power shift
{"Name":"Transmission Type","SpecificationId":null,"TextValue":"Cat planetary power shift","EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.3","Type":"text","SpecificationGroup":"Transmission","SortOrder":"30"}
Forward - 1

5 mile/h 7.3 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"31"}
Forward - 2

8 mile/h 12.2 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"32"}
Reverse - 1

5 mile/h 7.6 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"33"}
Reverse - 2

8 mile/h 13.6 km/h
{"Name":"Reverse - 2","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"34"}
Direct Drive - Forward 1

Lock-up disabled
{"Name":"Direct Drive - Forward 1","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12.7","Type":"text","SpecificationGroup":"Transmission","SortOrder":"35"}
Direct Drive - Forward 2

8 mile/h 12.7 km/h
{"Name":"Direct Drive - Forward 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12.7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"36"}
Direct Drive - Forward 3

14 mile/h 22 km/h
{"Name":"Direct Drive - Forward 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14","MetricUnit":"km/h","MetricValue":"22","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"37"}
Direct Drive - Forward 4

24 mile/h 39 km/h
{"Name":"Direct Drive - Forward 4","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"24","MetricUnit":"km/h","MetricValue":"39","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"38"}
Direct Drive - Reverse 1

Lock-up disabled
{"Name":"Direct Drive - Reverse 1","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"14.1","Type":"text","SpecificationGroup":"Transmission","SortOrder":"39"}
Direct Drive - Reverse 2

9 mile/h 14.1 km/h
{"Name":"Direct Drive - Reverse 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"14.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"40"}
Direct Drive - Reverse 3

16 mile/h 25 km/h
{"Name":"Direct Drive - Reverse 3","SpecificationId":null,"TextValue":"EH - Load Sense","EnglishUnit":"mile/h","EnglishValue":"16","MetricUnit":"km/h","MetricValue":"25","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"41"}
Direct Drive - Reverse 4

25.4 mile/h 40.8 km/h
{"Name":"Direct Drive - Reverse 4","SpecificationId":null,"TextValue":"Travel speeds based on 35/65-R33 tires.","EnglishUnit":"mile/h","EnglishValue":"25.4","MetricUnit":"km/h","MetricValue":"40.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"42"}
Note

Travel speeds based on 35/65-R33 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Travel speeds based on 35/65-R33 tires.","EnglishUnit":"gal/min","EnglishValue":"159","MetricUnit":"l/min","MetricValue":"600","Type":"text","SpecificationGroup":"Transmission","SortOrder":"43"}

Benefits

Cat C15 engine is built and tested to meet your most demanding applications.
Cat torque converter with lock-up clutch eliminates torque converter losses and lowers system heat.
Maximum responsiveness with Steering and Transmission Integrated Control (STIC™).
Moves more material more efficiently with improved power and control.
Transmission neutralizer pedal helps extend service brake life and allows full power during stationary loading.
Mechanically Actuated Electronic Unit Injection (MEUI™) fuel system and Advanced Diesel Engine Management (ADEM™) A5 electronic control module manage fuel delivery for optimum performance and quick engine response.

World-class transmission for long life and consistent, smooth shifting; specifically designed for mining applications.
Advanced Productivity Electronic Control Shifting (APECS) transmission controls for greater momentum on grades.
Positive Flow Control (PFC) hydraulic system helps increase efficiency, bucket feel, and responsiveness with consistent performance.
Advanced filtration system for extended performance and reliability of the hydraulic system.
Impeller Clutch Torque Converter (ICTC) helps minimize tire spin by allowing torque to adjust to underfoot conditions.
Advanced filtration system for extended performance and reliability of the hydraulic system.

Optimum 50-ton truck match loader.
Dump clearance designed for efficient truck loading up to 775.
Improved visibility over the top of the linkage.
Rated payload aligned with 988.
Convenient, responsive electro-hydraulic controls help increase operator productivity.
Integrated steering and transmission controls.

Up to 5% less fuel consumption than the 988K.
Flow sharing hydraulics for full flow at reduced engine rpm.
Fully integrated electronic engine controls make your fuel go farther.
Engine Idle Shutdown for less fuel used while idling.

Cat Technologies developed to monitor, manage, and enhance your jobsite operations.
Cat Payload ready provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
Optional Cat Detect enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the jobsite.
Product Link™ wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business. Gain valuable insight into how your machine or fleet is performing.
Optional Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
Standard work tool recognition provides awareness of bucket install.

*Not legal for trade.

Achieve precise positioning for easy loading in tight areas with 43 degrees of steering articulation.
Precise machine control by load-sensing hydraulic steering system.
Standard LED lights for improved visibility.
Optional left- and right-hand stairs with 45-degree angle.
Computerized monitoring system with warning indicators.
Standard rear Cat Vision enhances visibility behind the machine, helping you work safely and confidently.
Pressurized cabin with filtered air and reduced sound levels.

Up to 25% lower maintenance costs than the 988K.
Grouped service points provide easy access to critical daily service checks.
Electro-hydraulic controls.
Swing-out engine compartment service doors.
Reduced waste with maintenance-free batteries.
Ecology drains to help prevent spills and allow for easy service.
Vehicle Information Management System (VIMS™) notifications to help resolve problems before failure.
Ground level access to transmission control valves.

World-class operator comfort and ergonomics.
Comfort Series III seats with extra thick, contoured cushions help provide total comfort throughout the workday.
Easy-to-reach levers and seat-mounted implement pod to help reduce fatigue.
Ergonomic switch placement and displays with large, backlit switches and LED indicators.
Two-position rocker switch activates the electro hydraulic parking brake.
Reduced vibrations from isolated cab mounts and seat air suspension.
Automatic cab temperature controls.
Up to 47% quieter STIC steering significantly reduces operator sound levels.

Sustainability

The Cat® C15 engine is available in configurations that meet U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards or Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
The 988 GC emits up to 5% less CO2/hr than the 988K.
Cat U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels
Cat engines meeting Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA, are compatible with diesel fuel blended with the following lower-carbon intensity fuels up to: 100% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids
Recommendations” (SEBU6250) for details.
Engine Idle Management System and Auto Engine Idle Shutdown reduces idle RPM and maximize fuel efficiency.
Load sensing hydraulics produce flow and pressure on-demand and only in amounts necessary to perform the needed functions.
Cat Payload technology maximizes loading efficiency, helping operators of every skill level work more accurately to reduce load time, fuel costs and greenhouse gas emissions.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Optional Cat clean emissions module includes Diesel Particulate Filter (DPF), Diesel Oxidation Catalyst (DOC), and Selective Catalytic Reduction (SCR) technologies to reduce the engine’s emissions.

*All comparisons to 988K. Productivity, fuel and CO2 emissions vary by application. CO2 emissions calculations based on a reference work cycle using 2.2 U.S. gallons per hour of #2 U.S. diesel fuel. Applies IPCC2006 methodology using U.S. EPA Emissions Hub emission factors. Includes DEF (diesel exhaust fluid) related CO2. Fuel measurements are at 15°C. Estimated average fuel consumption improvements are based on tests or Product Link™? data where available. Productivity improvements are based on test data.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, back-up

OPERATOR ENVIRONMENT

Cab precleaner

POWERTRAIN

Brakes, oil-cooled, multi-disc, service/secondary

ADDITIONAL EQUIPMENT

Automatic bucket lift kickout/positioner

Product Brochures

Product Brochure #1

Product Brochure #2
