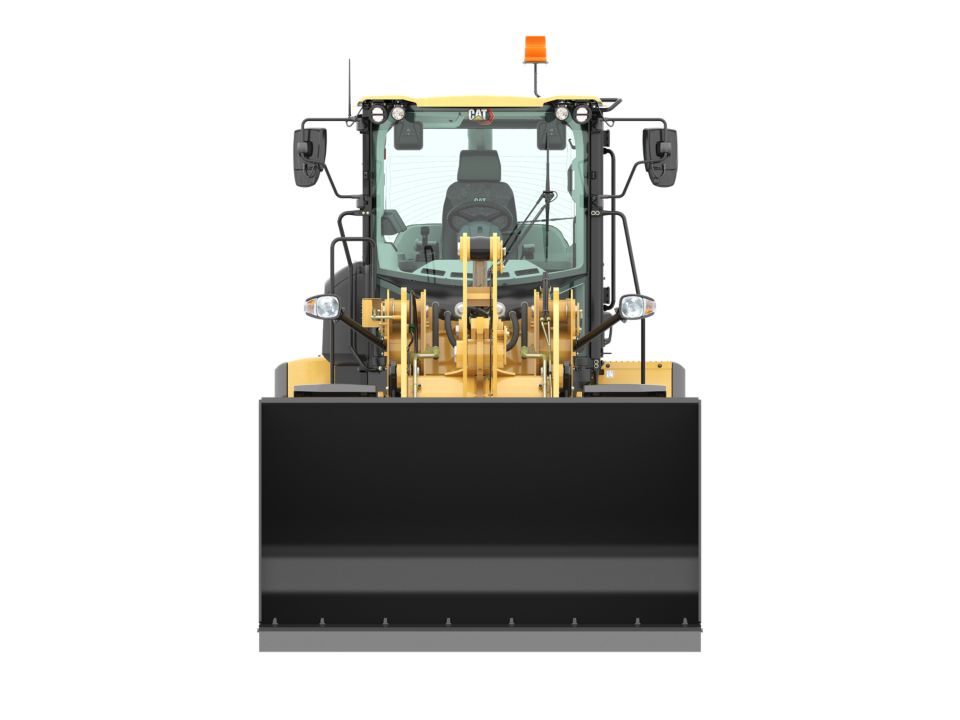

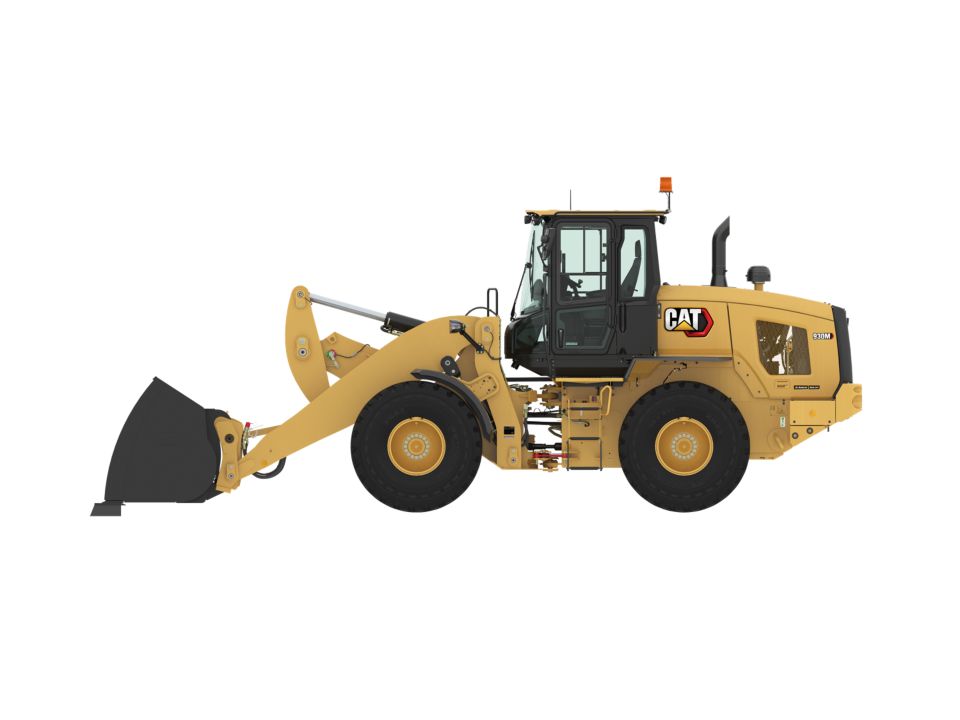

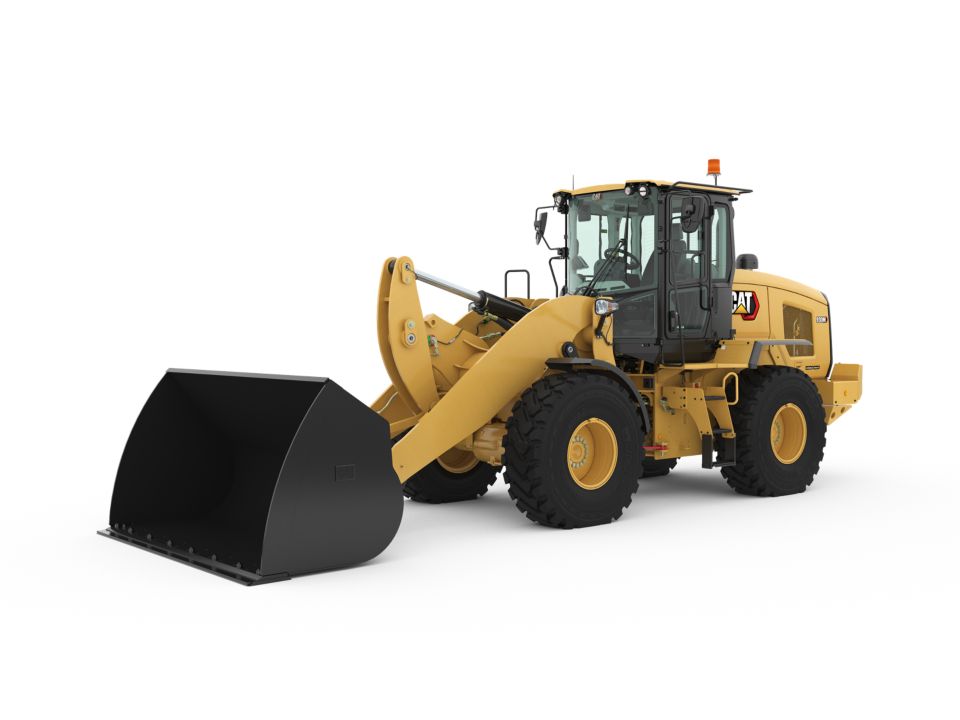

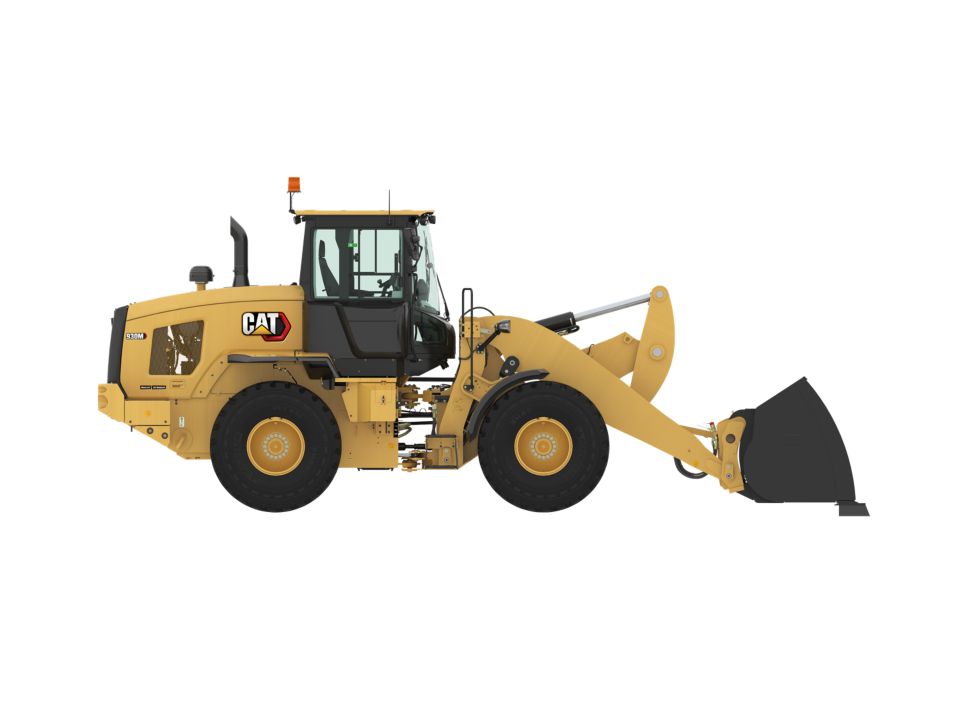

930M Ag Handler

Cat® Small Wheel Loaders provide superior performance and versatility to help you get more done. Built to the same tough standards as the larger Cat Wheel Loaders, these machines are ideal for a wide range of jobs.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"99"}

Axles

Rear

Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)
{"Name":"Rear","SpecificationId":null,"TextValue":"Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"99"}
Front

Fixed; Locking differential (standard)
{"Name":"Front","SpecificationId":null,"TextValue":"Fixed; Locking differential (standard)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"99"}

Buckets

Bucket Capacities

2.1-5.0 m³ (2.7-6.5 yd³)
{"Name":"Bucket Capacities","SpecificationId":null,"TextValue":"2.1-5.0 m³ (2.7-6.5 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Buckets","SortOrder":"3"}
Bucket Capacities - Light Material

3.1-5.0 m³ (4.0-6.5 yd³)
{"Name":"Bucket Capacities - Light Material","SpecificationId":null,"TextValue":"3.1-5.0 m³ (4.0-6.5 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Buckets","SortOrder":"99"}

Cab

ROPS

ISO 3471:2008
{"Name":"ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"72"}
FOPS

ISO 3449:2005 Level II
{"Name":"FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"73"}
Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)*

101 dB(A) 101 dB(A)
{"Name":"Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)*","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"101","MetricUnit":"dB(A)","MetricValue":"101","Type":"measurement","SpecificationGroup":"Cab","SortOrder":"99"}
Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)*

68 dB(A) 68 dB(A)
{"Name":"Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)*","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"68","MetricUnit":"dB(A)","MetricValue":"68","Type":"measurement","SpecificationGroup":"Cab","SortOrder":"99"}
Note (1)

*The measurements were conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*The measurements were conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"99"}

Dimensions with Bucket - High Lift

Length - Rear Axle to Bumper

6.5 ft 1993 mm
{"Name":"Length - Rear Axle to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"1993","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Departure Angle

33 ° 33 °
{"Name":"Departure Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"33","MetricUnit":"°","MetricValue":"33","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Height - Overall**

18.7 ft 5698 mm
{"Name":"Height - Overall**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"18.7","MetricUnit":"mm","MetricValue":"5698","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Reach - Bucket at 45°*

4.4 ft 1339 mm
{"Name":"Reach - Bucket at 45°*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.4","MetricUnit":"mm","MetricValue":"1339","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Dump Angle at Full Lift

48 ° 48 °
{"Name":"Dump Angle at Full Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"48","MetricUnit":"°","MetricValue":"48","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Width - Bucket

8.4 ft 2550 mm
{"Name":"Width - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.4","MetricUnit":"mm","MetricValue":"2550","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Length - Wheel Base

9.8 ft 3000 mm
{"Name":"Length - Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.8","MetricUnit":"mm","MetricValue":"3000","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Width - Tread Center

6.3 ft 1930 mm
{"Name":"Width - Tread Center","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.3","MetricUnit":"mm","MetricValue":"1930","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Length - Hitch to Front Axle

4.9 ft 1500 mm
{"Name":"Length - Hitch to Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.9","MetricUnit":"mm","MetricValue":"1500","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Height - Ground to Axle Center**

2.25 ft 685 mm
{"Name":"Height - Ground to Axle Center**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.25","MetricUnit":"mm","MetricValue":"685","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Note (1)

*Vary with bucket.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Vary with bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Clearance - Bucket at 45°*

10.7 ft 3272 mm
{"Name":"Clearance - Bucket at 45°*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3272","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Height - Bucket Pin**

14.4 ft 4400 mm
{"Name":"Height - Bucket Pin**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14.4","MetricUnit":"mm","MetricValue":"4400","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Height - Ground to Beacon**

12.2 ft 3707 mm
{"Name":"Height - Ground to Beacon**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.2","MetricUnit":"mm","MetricValue":"3707","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Carry Height - Bucket Pin

1.9 ft 582 mm
{"Name":"Carry Height - Bucket Pin","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.9","MetricUnit":"mm","MetricValue":"582","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Clearance - Load over Height**

11.6 ft 3550 mm
{"Name":"Clearance - Load over Height**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11.6","MetricUnit":"mm","MetricValue":"3550","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Turning Radius - Outside of Tires

17.7 ft 5402 mm
{"Name":"Turning Radius - Outside of Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"17.7","MetricUnit":"mm","MetricValue":"5402","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Turning Radius - Over Bucket

20.6 ft 6272 mm
{"Name":"Turning Radius - Over Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"20.6","MetricUnit":"mm","MetricValue":"6272","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Rack Angle at Full Lift

51 ° 51 °
{"Name":"Rack Angle at Full Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"51","MetricUnit":"°","MetricValue":"51","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Rack Angle at Carry

47 ° 47 °
{"Name":"Rack Angle at Carry","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"47","MetricUnit":"°","MetricValue":"47","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Length - Overall*

27 ft 8235 mm
{"Name":"Length - Overall*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"27","MetricUnit":"mm","MetricValue":"8235","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Note (2)

**Vary with tire.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Vary with tire.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Height - Ground to Cab**

10.9 ft 3340 mm
{"Name":"Height - Ground to Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.9","MetricUnit":"mm","MetricValue":"3340","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Turning Radius - Inside of Tires

9.4 ft 2851 mm
{"Name":"Turning Radius - Inside of Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.4","MetricUnit":"mm","MetricValue":"2851","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Clearance - Level Bucket**

13.4 ft 4073 mm
{"Name":"Clearance - Level Bucket**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.4","MetricUnit":"mm","MetricValue":"4073","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Width - Over Tires

8.3 ft 2540 mm
{"Name":"Width - Over Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.3","MetricUnit":"mm","MetricValue":"2540","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Note (3)

Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Dig Depth**

5.3 in 135 mm
{"Name":"Dig Depth**","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.3","MetricUnit":"mm","MetricValue":"135","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Articulation Angle

40 ° 40 °
{"Name":"Articulation Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"40","MetricUnit":"°","MetricValue":"40","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Operating Weight

31441 lb 14262 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"31441","MetricUnit":"kg","MetricValue":"14262","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}
Height - Ground Clearance**

1.3 ft 397 mm
{"Name":"Height - Ground Clearance**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.3","MetricUnit":"mm","MetricValue":"397","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - High Lift","SortOrder":"99"}

Dimensions with Bucket - Standard Lift

Height - Ground Clearance**

1.3 ft 397 mm
{"Name":"Height - Ground Clearance**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.3","MetricUnit":"mm","MetricValue":"397","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Rack Angle at Carry

43 ° 43 °
{"Name":"Rack Angle at Carry","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"43","MetricUnit":"°","MetricValue":"43","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Departure Angle

33 ° 33 °
{"Name":"Departure Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"33","MetricUnit":"°","MetricValue":"33","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Length - Wheel Base

9.8 ft 3000 mm
{"Name":"Length - Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.8","MetricUnit":"mm","MetricValue":"3000","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Length - Rear Axle to Bumper

6.5 ft 1993 mm
{"Name":"Length - Rear Axle to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"1993","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Turning Radius - Over Bucket

19.5 ft 5952 mm
{"Name":"Turning Radius - Over Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"19.5","MetricUnit":"mm","MetricValue":"5952","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Carry Height - Bucket Pin

1.3 ft 390 mm
{"Name":"Carry Height - Bucket Pin","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.3","MetricUnit":"mm","MetricValue":"390","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Width - Over Tires

8.3 ft 2540 mm
{"Name":"Width - Over Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.3","MetricUnit":"mm","MetricValue":"2540","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Note (2)

**Vary with tire.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Vary with tire.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Dig Depth**

3.9 in 100 mm
{"Name":"Dig Depth**","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.9","MetricUnit":"mm","MetricValue":"100","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Turning Radius - Outside of Tires

17.7 ft 5402 mm
{"Name":"Turning Radius - Outside of Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"17.7","MetricUnit":"mm","MetricValue":"5402","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Clearance - Level Bucket**

11.75 ft 3580 mm
{"Name":"Clearance - Level Bucket**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11.75","MetricUnit":"mm","MetricValue":"3580","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Clearance - Bucket at 45°*

9.1 ft 2779 mm
{"Name":"Clearance - Bucket at 45°*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.1","MetricUnit":"mm","MetricValue":"2779","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Rack Angle at Full Lift

54 ° 54 °
{"Name":"Rack Angle at Full Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"54","MetricUnit":"°","MetricValue":"54","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Height - Overall**

17.1 ft 5205 mm
{"Name":"Height - Overall**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"17.1","MetricUnit":"mm","MetricValue":"5205","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Width - Bucket

8.4 ft 2550 mm
{"Name":"Width - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.4","MetricUnit":"mm","MetricValue":"2550","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Height - Ground to Axle Center**

2.25 ft 685 mm
{"Name":"Height - Ground to Axle Center**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.25","MetricUnit":"mm","MetricValue":"685","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Height - Bucket Pin**

12.8 ft 3907 mm
{"Name":"Height - Bucket Pin**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.8","MetricUnit":"mm","MetricValue":"3907","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Operating Weight

31125 lb 14118 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"31125","MetricUnit":"kg","MetricValue":"14118","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Width - Tread Center

6.3 ft 1930 mm
{"Name":"Width - Tread Center","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.3","MetricUnit":"mm","MetricValue":"1930","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Turning Radius - Inside of Tires

9.4 ft 2851 mm
{"Name":"Turning Radius - Inside of Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.4","MetricUnit":"mm","MetricValue":"2851","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Reach - Bucket at 45°*

3.6 ft 1102 mm
{"Name":"Reach - Bucket at 45°*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.6","MetricUnit":"mm","MetricValue":"1102","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Length - Overall*

24.9 ft 7593 mm
{"Name":"Length - Overall*","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"24.9","MetricUnit":"mm","MetricValue":"7593","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Clearance - Load over Height**

10.9 ft 3331 mm
{"Name":"Clearance - Load over Height**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.9","MetricUnit":"mm","MetricValue":"3331","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Length - Hitch to Front Axle

4.9 ft 1500 mm
{"Name":"Length - Hitch to Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.9","MetricUnit":"mm","MetricValue":"1500","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Height - Ground to Beacon**

12.2 ft 3707 mm
{"Name":"Height - Ground to Beacon**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.2","MetricUnit":"mm","MetricValue":"3707","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Articulation Angle

40 ° 40 °
{"Name":"Articulation Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"40","MetricUnit":"°","MetricValue":"40","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Height - Ground to Cab**

10.9 ft 3340 mm
{"Name":"Height - Ground to Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.9","MetricUnit":"mm","MetricValue":"3340","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Note (3)

Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Note (1)

*Vary with bucket.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Vary with bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}
Dump Angle at Full Lift

48 ° 48 °
{"Name":"Dump Angle at Full Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"48","MetricUnit":"°","MetricValue":"48","Type":"measurement","SpecificationGroup":"Dimensions with Bucket - Standard Lift","SortOrder":"99"}

Engine

Maximum Gross Power

168 hp 125 kW
{"Name":"Maximum Gross Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"168","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)

601 ft·lbf 815 N·m
{"Name":"Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"601","MetricUnit":"N·m","MetricValue":"815","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Stroke - Performance Power Mode: Range 1-4

5.3 in 135 mm
{"Name":"Stroke - Performance Power Mode: Range 1-4","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.3","MetricUnit":"mm","MetricValue":"135","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)

1800 r/min 1800 r/min
{"Name":"Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1800","MetricUnit":"r/min","MetricValue":"1800","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4)

797 N·m 588 ft·lbf
{"Name":"Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"N·m","EnglishValue":"797","MetricUnit":"ft·lbf","MetricValue":"588","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement (Performance Power Mode: Speed Range 1-4)

428 in³ 7.01 l
{"Name":"Displacement (Performance Power Mode: Speed Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"428","MetricUnit":"l","MetricValue":"7.01","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Emissions

Engine meets U.S. EPA Tier 4 Final emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Engine meets U.S. EPA Tier 4 Final emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model

Cat® C7.1
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C7.1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Note (4)

No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Rated Gross Power - ISO 14396

168 hp 125 kW
{"Name":"Maximum Rated Gross Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"168","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)

170 hp 127 kW
{"Name":"Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"170","MetricUnit":"kW","MetricValue":"127","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note (2)

**Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Note (3)

Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)

168 hp 125 kW
{"Name":"Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"168","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note (1)

*The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Bore (Standard Power Mode: Range 1-4)

4.1 in 105 mm
{"Name":"Bore (Standard Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.1","MetricUnit":"mm","MetricValue":"105","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)

156 hp 116 kW
{"Name":"Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"156","MetricUnit":"kW","MetricValue":"116","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Stroke (Standard Power Mode: Range 1-3**)

5.3 in 135 mm
{"Name":"Stroke (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.3","MetricUnit":"mm","MetricValue":"135","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)

156 hp 116 kW
{"Name":"Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"156","MetricUnit":"kW","MetricValue":"116","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3**)

1600 r/min 1600 r/min
{"Name":"Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1600","MetricUnit":"r/min","MetricValue":"1600","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)

166 hp 166 hp
{"Name":"Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"166","MetricUnit":"hp","MetricValue":"166","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)

164 hp 122 kW
{"Name":"Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"164","MetricUnit":"kW","MetricValue":"122","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3**)

158 hp 158 hp
{"Name":"Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"158","MetricUnit":"hp","MetricValue":"158","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Bore (Standard Power Mode: Range 1-3**)

4.1 in 105 mm
{"Name":"Bore (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.1","MetricUnit":"mm","MetricValue":"105","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)

587 ft·lbf 796 N·m
{"Name":"Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"587","MetricUnit":"N·m","MetricValue":"796","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3**)

795 N·m 586 ft·lbf
{"Name":"Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"N·m","EnglishValue":"795","MetricUnit":"ft·lbf","MetricValue":"586","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3**)

776 N·m 572 ft·lbf
{"Name":"Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"N·m","EnglishValue":"776","MetricUnit":"ft·lbf","MetricValue":"572","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)

163 hp 122 kW
{"Name":"Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"163","MetricUnit":"kW","MetricValue":"122","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement (Standard Power Mode: Range 1-3**)

428 in³ 7.01 l
{"Name":"Displacement (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"428","MetricUnit":"l","MetricValue":"7.01","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3**)

160 hp 119 kW
{"Name":"Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"160","MetricUnit":"kW","MetricValue":"119","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3**)

162 hp 162 hp
{"Name":"Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"162","MetricUnit":"hp","MetricValue":"162","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3**)

573 ft·lbf 777 N·m
{"Name":"Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3**)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"573","MetricUnit":"N·m","MetricValue":"777","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Rated Gross Power - ISO 14396 (metric)

170 mhp 170 mhp
{"Name":"Maximum Rated Gross Power - ISO 14396 (metric)","SpecificationId":null,"TextValue":null,"EnglishUnit":"mhp","EnglishValue":"170","MetricUnit":"mhp","MetricValue":"170","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Loader Hydraulic System

Relief Pressure - Tilt Cylinder

4351 psi 30000 kPa
{"Name":"Relief Pressure - Tilt Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4351","MetricUnit":"kPa","MetricValue":"30000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,600 rpm - Standard: Total Cycle Time

10.1 s 10.1 s
{"Name":"Cycle Times - 1,600 rpm - Standard: Total Cycle Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"10.1","MetricUnit":"s","MetricValue":"10.1","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Flow - Implement Pump

50 gal/min 190 l/min
{"Name":"Maximum Flow - Implement Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"50","MetricUnit":"l/min","MetricValue":"190","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Flow - Implement Pump - 4th Function Maximum Flow*

42 gal/min 160 l/min
{"Name":"Maximum Flow - Implement Pump - 4th Function Maximum Flow*","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"42","MetricUnit":"l/min","MetricValue":"160","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Note (2)

Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,800 rpm - Performance (HP+): Dump (at Maximum Lift Height)

1.5 s 1.5 s
{"Name":"Cycle Times - 1,800 rpm - Performance (HP+): Dump (at Maximum Lift Height)","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"1.5","MetricUnit":"s","MetricValue":"1.5","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Note

*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display.
{"Name":"Note","SpecificationId":null,"TextValue":"*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,800 rpm - Performance (HP+): Total Cycle Time

9.3 s 9.3 s
{"Name":"Cycle Times - 1,800 rpm - Performance (HP+): Total Cycle Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"9.3","MetricUnit":"s","MetricValue":"9.3","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,600 rpm - Standard: Float Down (Maximum Lift to Ground Level)

2.7 s 2.7 s
{"Name":"Cycle Times - 1,600 rpm - Standard: Float Down (Maximum Lift to Ground Level)","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"2.7","MetricUnit":"s","MetricValue":"2.7","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,800 rpm - Performance (HP+): Raise (Ground Level to Maximum Lift)

5.1 s 5.1 s
{"Name":"Cycle Times - 1,800 rpm - Performance (HP+): Raise (Ground Level to Maximum Lift)","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"5.1","MetricUnit":"s","MetricValue":"5.1","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,800 rpm - Performance (HP+): Float Down (Maximum Lift to Ground Level)

2.7 s 2.7 s
{"Name":"Cycle Times - 1,800 rpm - Performance (HP+): Float Down (Maximum Lift to Ground Level)","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"2.7","MetricUnit":"s","MetricValue":"2.7","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure

4061 psi 28000 kPa
{"Name":"Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,600 rpm - Standard: Dump (at Maximum Lift Height)

1.7 s 1.7 s
{"Name":"Cycle Times - 1,600 rpm - Standard: Dump (at Maximum Lift Height)","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"1.7","MetricUnit":"s","MetricValue":"1.7","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Working Pressure - Implement Pump

4061 psi 28000 kPa
{"Name":"Maximum Working Pressure - Implement Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure

4351 psi 30000 kPa
{"Name":"Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4351","MetricUnit":"kPa","MetricValue":"30000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Note (1)

Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - 1,600 rpm - Standard: Raise (Ground Level to Maximum Lift)

5.7 s 5.7 s
{"Name":"Cycle Times - 1,600 rpm - Standard: Raise (Ground Level to Maximum Lift)","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"5.7","MetricUnit":"s","MetricValue":"5.7","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*

50 gal/min 190 l/min
{"Name":"Maximum Flow - Implement Pump - 3rd Function Maximum Flow*","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"50","MetricUnit":"l/min","MetricValue":"190","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Lift Cylinder: Standard Lift Linkage - Bore Diameter

4.3 in 110 mm
{"Name":"Lift Cylinder: Standard Lift Linkage - Bore Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.3","MetricUnit":"mm","MetricValue":"110","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Tilt Cylinder: Standard Lift Linkage - Stroke

21.9 in 555 mm
{"Name":"Tilt Cylinder: Standard Lift Linkage - Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21.9","MetricUnit":"mm","MetricValue":"555","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Tilt Cylinder: Standard Lift Linkage - Rod Diameter

2.8 in 70 mm
{"Name":"Tilt Cylinder: Standard Lift Linkage - Rod Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"70","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Lift Cylinder: Standard Lift Linkage - Rod Diameter

2.4 in 60 mm
{"Name":"Lift Cylinder: Standard Lift Linkage - Rod Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.4","MetricUnit":"mm","MetricValue":"60","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Tilt Cylinder: Standard Lift Linkage - Bore Diameter

5.1 in 130 mm
{"Name":"Tilt Cylinder: Standard Lift Linkage - Bore Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.1","MetricUnit":"mm","MetricValue":"130","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Lift Cylinder: Standard Lift Linkage - Stroke

28.7 in 728 mm
{"Name":"Lift Cylinder: Standard Lift Linkage - Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28.7","MetricUnit":"mm","MetricValue":"728","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}

Operating Specifications

Full Turn Tip Load

19424 lb 8811 kg
{"Name":"Full Turn Tip Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"19424","MetricUnit":"kg","MetricValue":"8811","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}

Power Train

Note

*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph).
{"Name":"Note","SpecificationId":null,"TextValue":"*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle

Oscillating
{"Name":"Rear Axle","SpecificationId":null,"TextValue":"Oscillating","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Note (2)

Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Front Axle

Fixed
{"Name":"Front Axle","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Front Axle - Traction Aid*

Locking differential standard
{"Name":"Front Axle - Traction Aid*","SpecificationId":null,"TextValue":"Locking differential standard","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25

± 10.5 degrees
{"Name":"Rear Axle - Oscillation Angle by Tire Size - 20.5 R25","SpecificationId":null,"TextValue":"± 10.5 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Brakes - Service

Inboard wet disc
{"Name":"Brakes - Service","SpecificationId":null,"TextValue":"Inboard wet disc","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle - Traction Aid

Limited slip differential optional
{"Name":"Rear Axle - Traction Aid","SpecificationId":null,"TextValue":"Limited slip differential optional","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Brakes - Parking

Spring applied hydraulically released
{"Name":"Brakes - Parking","SpecificationId":null,"TextValue":"Spring applied hydraulically released","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle - Oscillation Angle by Tire Size - 750/65, 620/65

± 7 degrees
{"Name":"Rear Axle - Oscillation Angle by Tire Size - 750/65, 620/65","SpecificationId":null,"TextValue":"± 7 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}

Service Refill Capacities

Transmission - Gear Box

2.2 gal (US) 8.5 l
{"Name":"Transmission - Gear Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.2","MetricUnit":"l","MetricValue":"8.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System

7.9 gal (US) 30 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"7.9","MetricUnit":"l","MetricValue":"30","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Diesel Exhaust Fluid (DEF) Tank

5 gal (US) 19 l
{"Name":"Diesel Exhaust Fluid (DEF) Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

51.5 gal (US) 195 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"51.5","MetricUnit":"l","MetricValue":"195","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Axles - Rear

6.6 gal (US) 25 l
{"Name":"Axles - Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.6","MetricUnit":"l","MetricValue":"25","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic System - Including Tank

43.6 gal (US) 165 l
{"Name":"Hydraulic System - Including Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"43.6","MetricUnit":"l","MetricValue":"165","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Engine Crankcase

5.3 gal (US) 20 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5.3","MetricUnit":"l","MetricValue":"20","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Axles - Front

6.9 gal (US) 26 l
{"Name":"Axles - Front","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

23.8 gal (US) 90 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"23.8","MetricUnit":"l","MetricValue":"90","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Steering

Note (2)

Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left

3.5 turns 3.5 turns
{"Name":"Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"turns","EnglishValue":"3.5","MetricUnit":"turns","MetricValue":"3.5","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Maximum Flow - Steering Pump

34 gal/min 130 l/min
{"Name":"Maximum Flow - Steering Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"34","MetricUnit":"l/min","MetricValue":"130","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cylinder, Double Acting - Bore Diameter

2.8 in 70 mm
{"Name":"Steering Cylinder, Double Acting - Bore Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"70","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cylinder, Double Acting - Stroke

17.2 in 438 mm
{"Name":"Steering Cylinder, Double Acting - Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.2","MetricUnit":"mm","MetricValue":"438","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Note (1)

Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Maximum Working Pressure - Steering Pump

3500 psi 24130 kPa
{"Name":"Maximum Working Pressure - Steering Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3500","MetricUnit":"kPa","MetricValue":"24130","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited

2.8 s 2.8 s
{"Name":"Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"2.8","MetricUnit":"s","MetricValue":"2.8","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Articulation Angle - Each Direction

40°
{"Name":"Steering Articulation Angle - Each Direction","SpecificationId":null,"TextValue":"40°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed

2.4 s 2.4 s
{"Name":"Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"2.4","MetricUnit":"s","MetricValue":"2.4","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cylinder, Double Acting - Rod Diameter

1.6 in 40 mm
{"Name":"Steering Cylinder, Double Acting - Rod Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.6","MetricUnit":"mm","MetricValue":"40","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}

Sustainability

Recyclability

94%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"94%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Tires

Standard Size

20.5 R25, radial (L-3)
{"Name":"Standard Size","SpecificationId":null,"TextValue":"20.5 R25, radial (L-3)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"99"}
Note (2)

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"99"}
Note (1)

Other tire choices are available. Contact your Cat dealer for details.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Other tire choices are available. Contact your Cat dealer for details.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"99"}
Other Choices Include

20.5 R25, Radial (L-2); 620/75 R26 MegaX, 750/65 R26 MegaX
{"Name":"Other Choices Include","SpecificationId":null,"TextValue":"20.5 R25, Radial (L-2); 620/75 R26 MegaX, 750/65 R26 MegaX","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"99"}

Transmission

Forward - Range 2

8 mile/h 13 km/h
{"Name":"Forward - Range 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - Range 1*

1-13 km/h (0.6-8 mph)
{"Name":"Forward - Range 1*","SpecificationId":null,"TextValue":"1-13 km/h (0.6-8 mph)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - Range 4

25 mile/h 40 km/h
{"Name":"Reverse - Range 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"40","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - Range 2

8 mile/h 13 km/h
{"Name":"Reverse - Range 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Note

Creeper control allows maximum speed range adjustability in the forward direction from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Maximum reverse speed will be maintained at 13 km/h (8 mph) in Range 1 for a quick reverse.
{"Name":"Note","SpecificationId":null,"TextValue":"Creeper control allows maximum speed range adjustability in the forward direction from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Maximum reverse speed will be maintained at 13 km/h (8 mph) in Range 1 for a quick reverse.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - Range 3

17 mile/h 27 km/h
{"Name":"Forward - Range 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - Range 4

25 mile/h 40 km/h
{"Name":"Forward - Range 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"40","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - Range 3

17 mile/h 27 km/h
{"Name":"Reverse - Range 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - Range 1*

8 mile/h 13 km/h
{"Name":"Reverse - Range 1*","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}

Weights

Operating Weight

31382 lb 14235 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"31382","MetricUnit":"kg","MetricValue":"14235","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Benefits

Efficiently Powerful

Experience hybrid-like fuel efficiency with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed of just 1,600 rpm in Standard Mode. Power when you need it with Caterpillar's exclusive Power-by-Range technology that increases power in Range 4 for improved speed on grade. For your toughest and most demanding farm applications a new Performance Mode will allow you to boost the power and hydraulic speed in all Ranges to get the job done even quicker. Meets U.S. EPA Tier 4 Final emission standards with a Cat® C7.1 engine that is designed to manage itself so you can concentrate on your work.

Work Made Easy

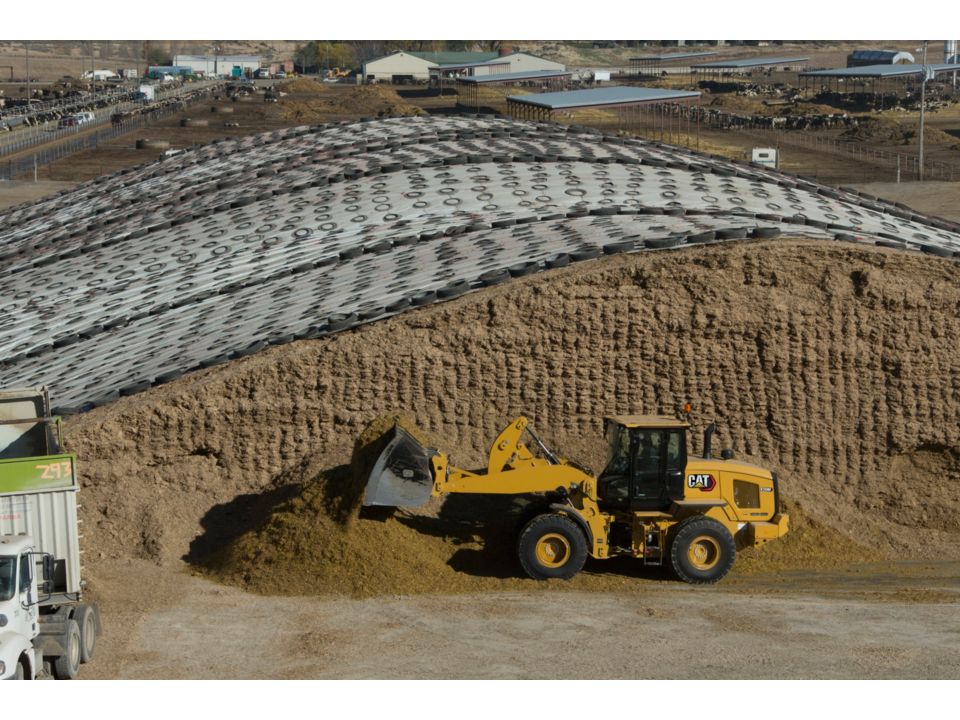

Move more with Caterpillar's patented quick loading Performance Series buckets and High Lift optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to safely and confidently handle loads from bales to silage with precise control. Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer and drive without compromise. A 20% boost in hydraulic speeds on the Ag Handler helps you finish the day on time.

Enjoy All Day Comfort

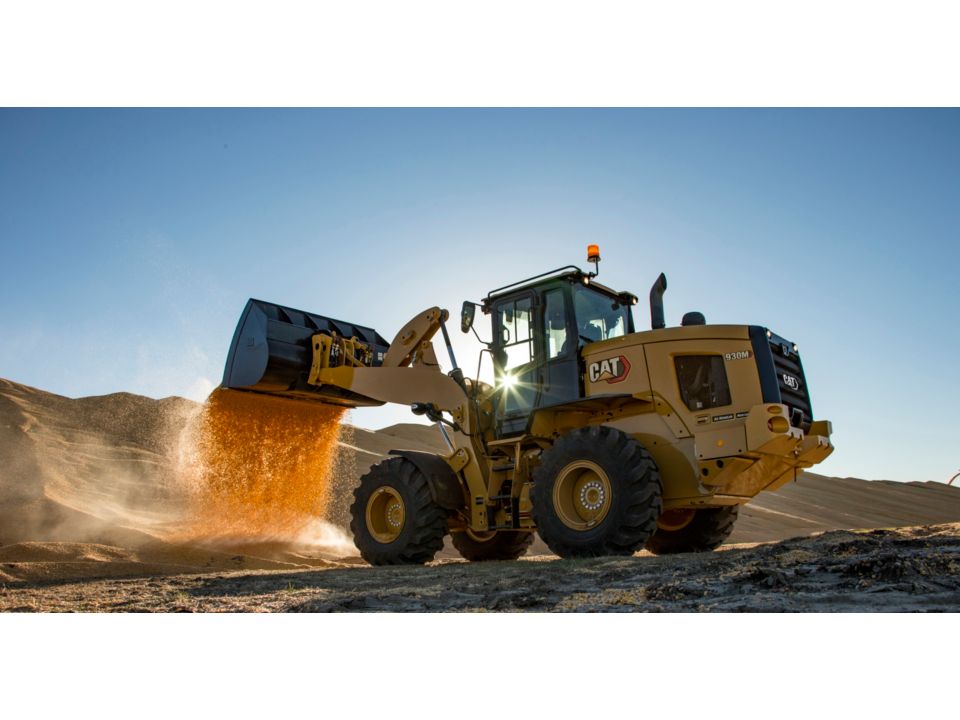

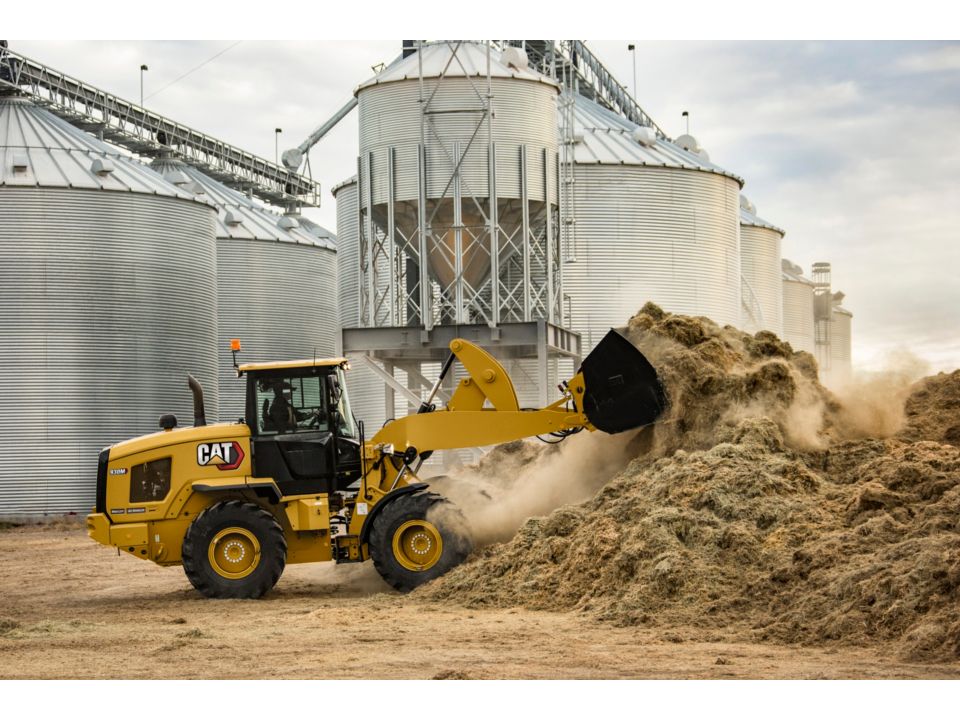

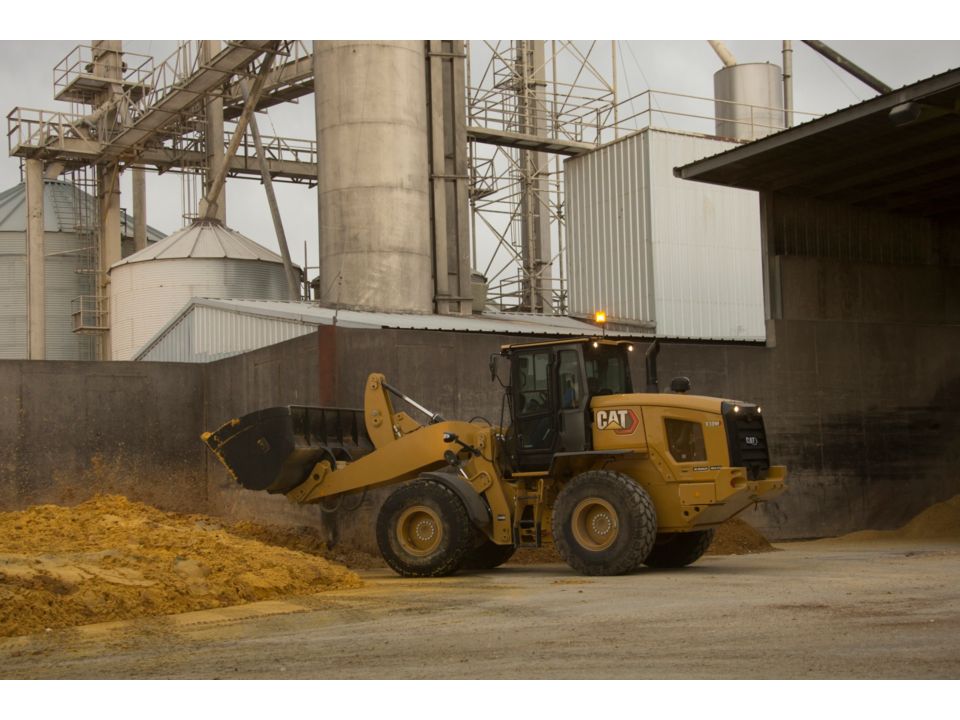

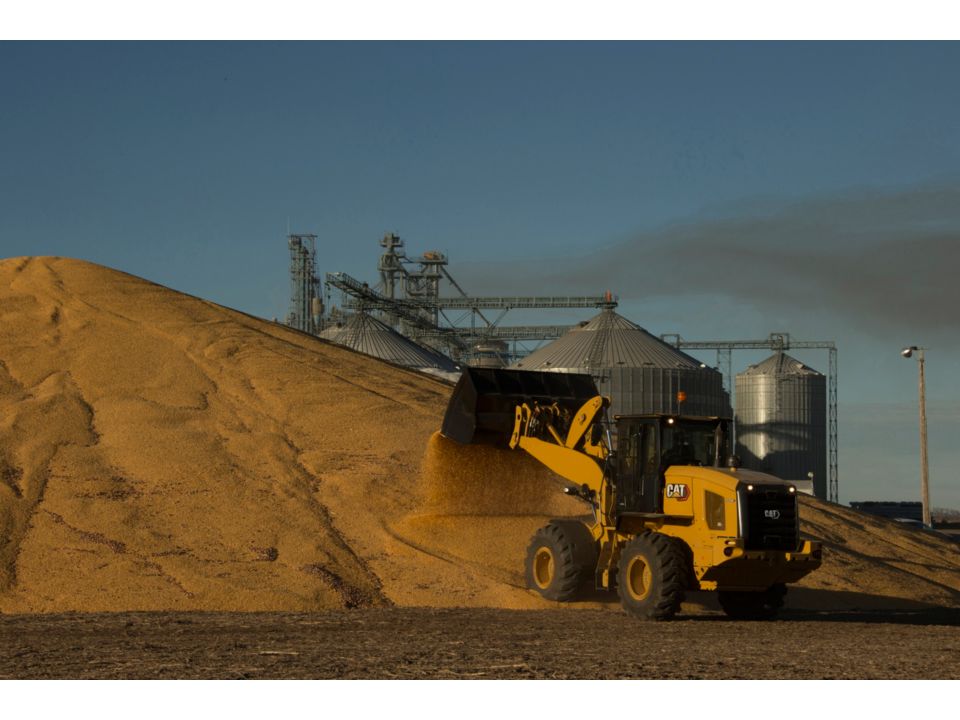

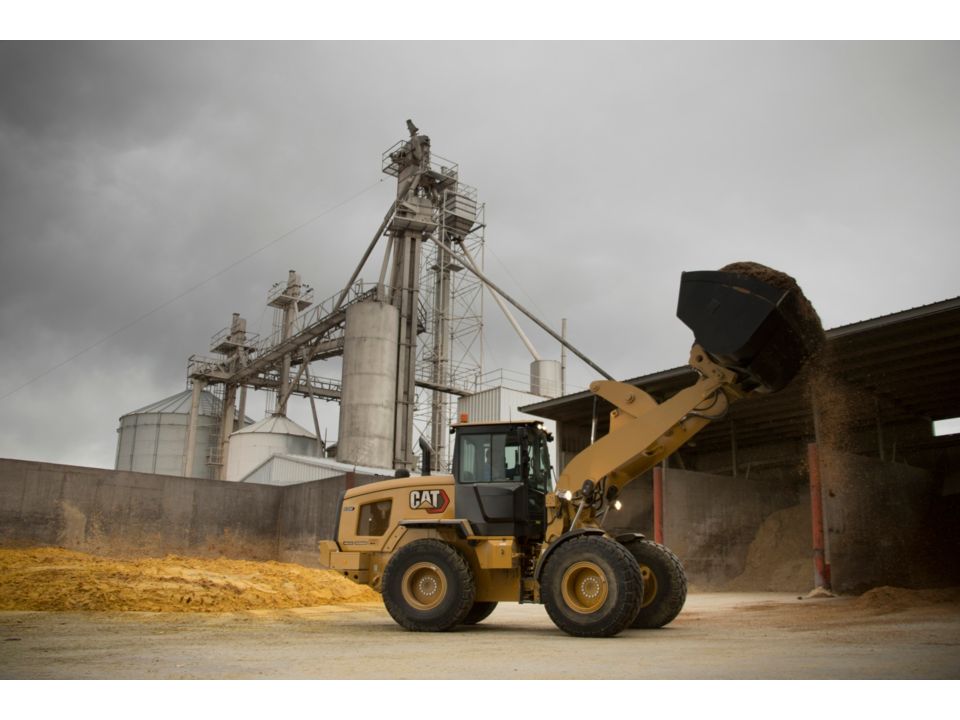

Have a seat in the 930M Ag Handler and enjoy automatic temperature control, class leading sound levels, excellent all around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar's exclusive hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on the farm.

Customize Your Experience

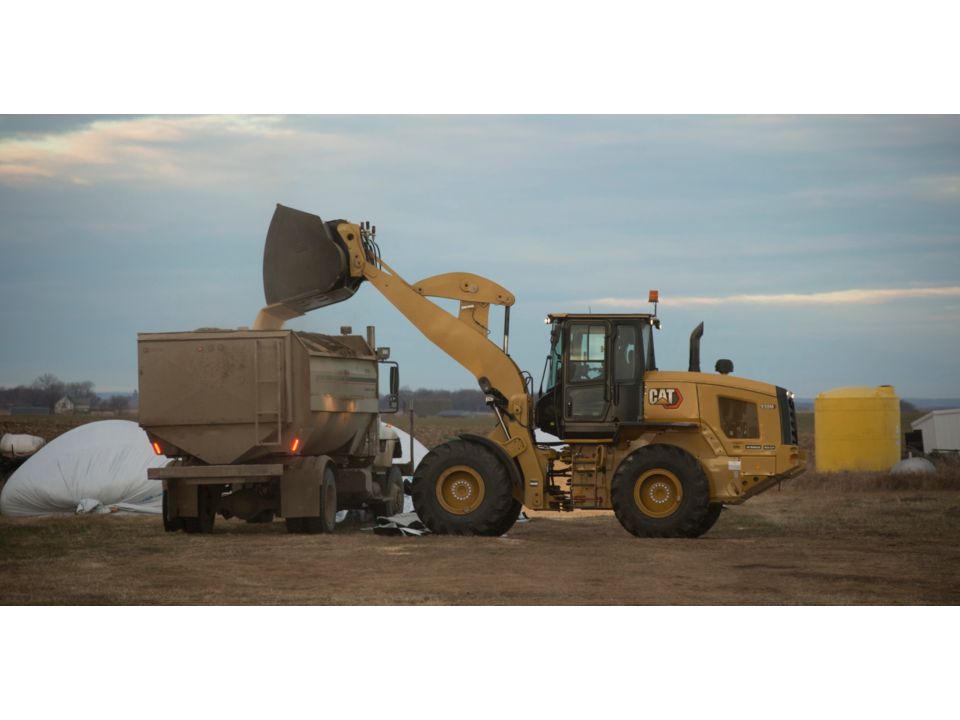

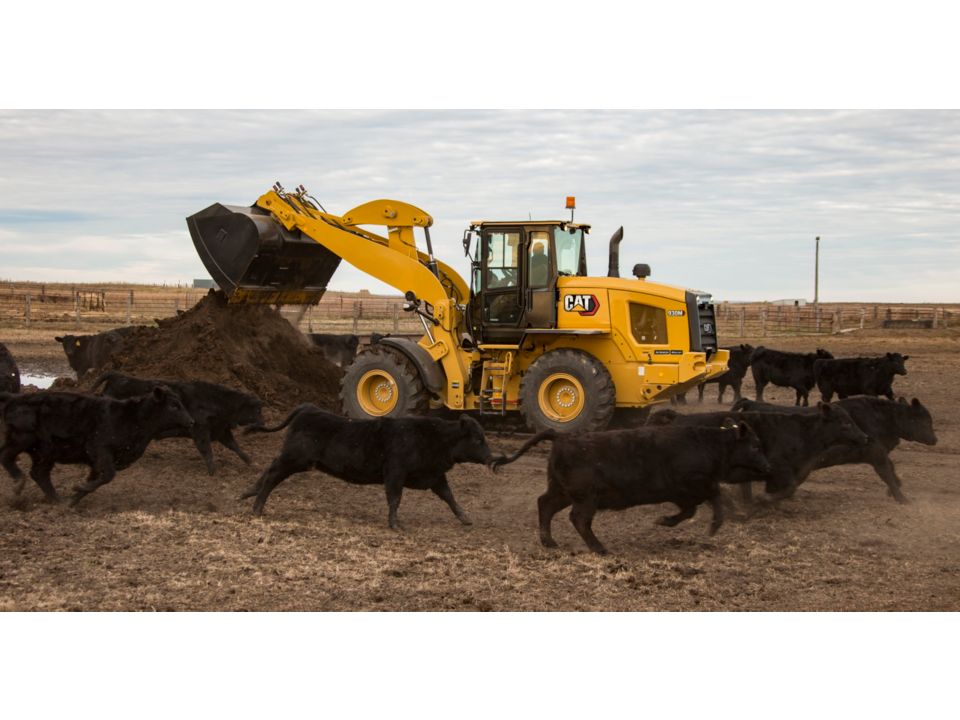

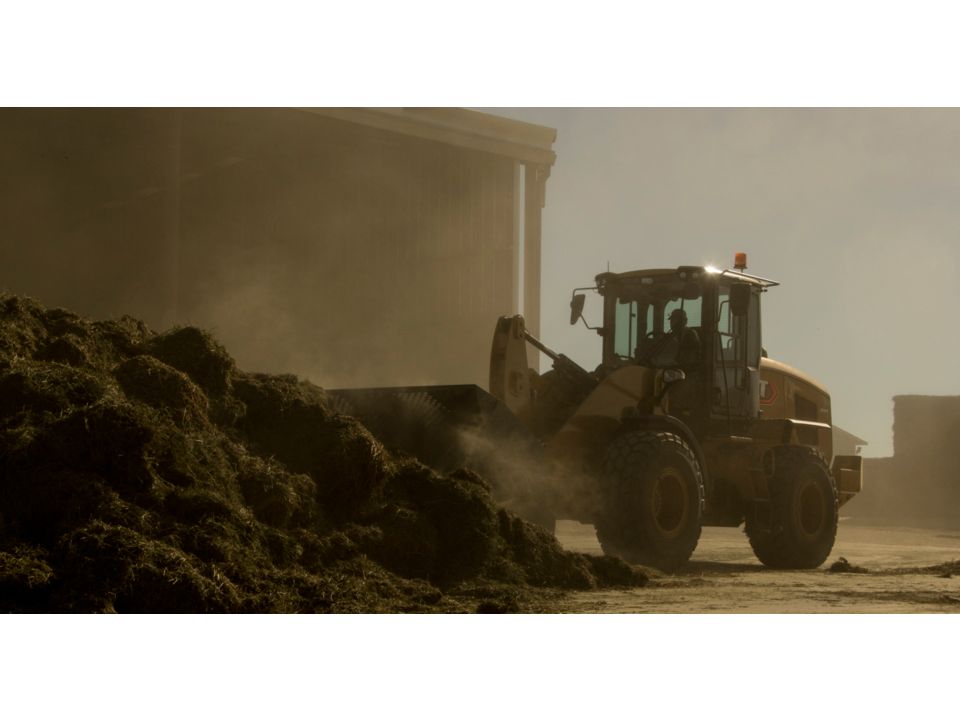

Fine tune machine performance with adjustments at your fingertips through the soft touch buttons and optional secondary touch screen display. Quickly set auxiliary flow to optimize grapple or silage defacer speed, enable auto reversing fan to breathe clean in dusty environments, toggle over to fine mode for improved control when bale stacking, program linkage kick-out positions for easy feed wagon loading, adjust wheel torque to match underfoot conditions when cleaning corrals and customize ride control activation speed for a smooth loaded carry run. The 930M Ag Handler is ready for the challenge on your farm!

Sustainability

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
Variable Displacement Pumps match power to load as application requirements change.

Equipment Info

POWER TRAIN

Auto idle shut down feature

HYDRAULICS

Automatic lift lower and tilt kickouts, adjustable in-cab

ELECTRICAL

Alternator, 115 amp, heavy duty

OPERATOR ENVIRONMENT

Cab, pressurized

OTHER STANDARD EQUIPMENT

Cat optimized Z-bar linkage with parallel lift

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3

Product Brochure #4
