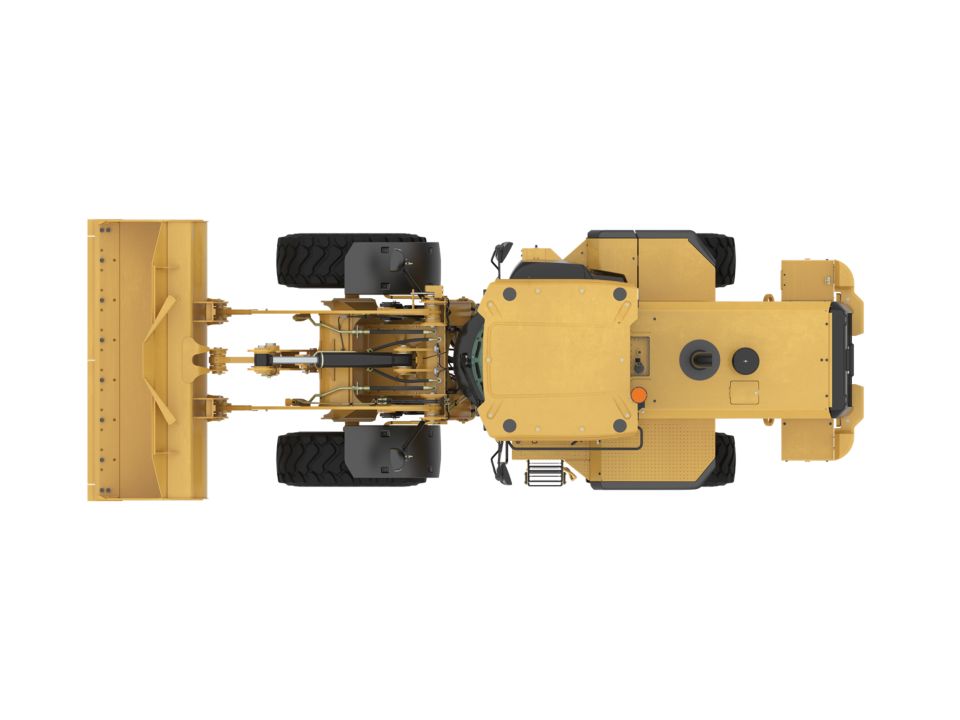

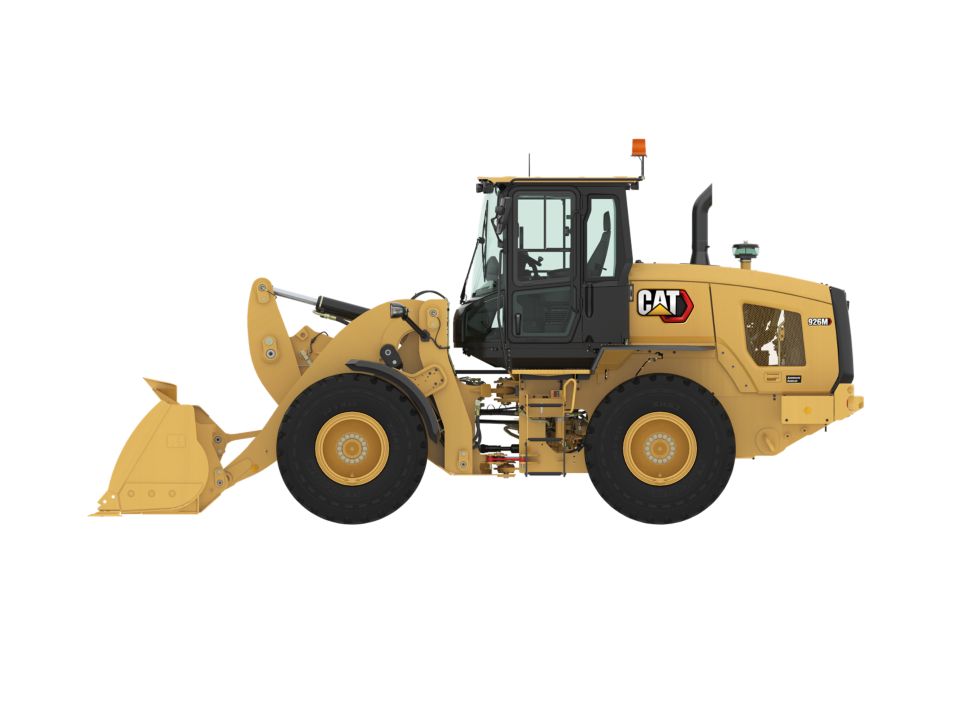

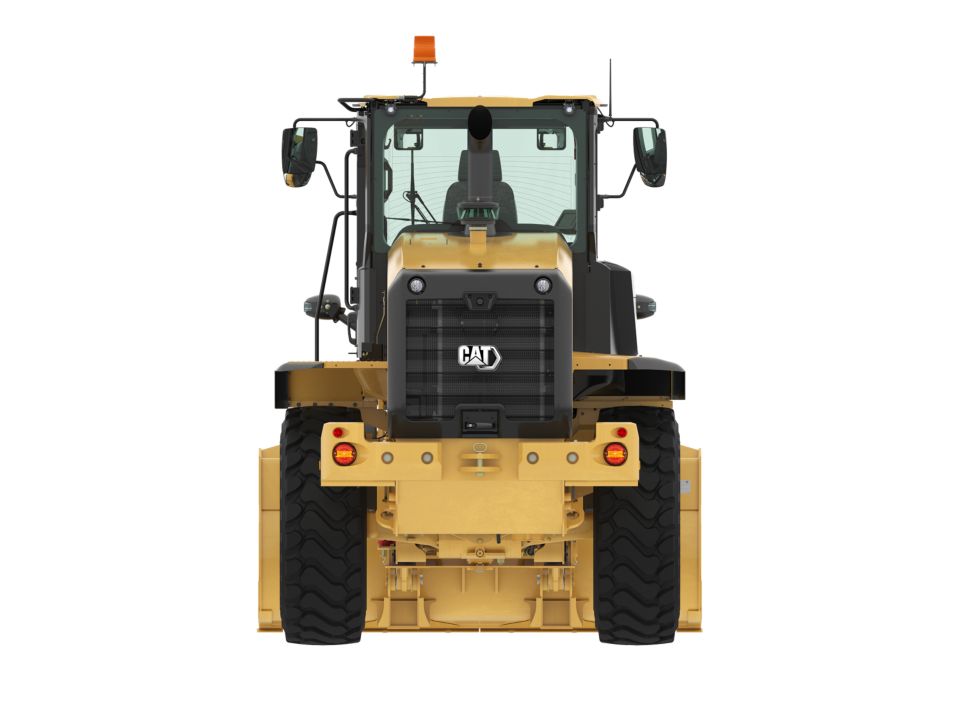

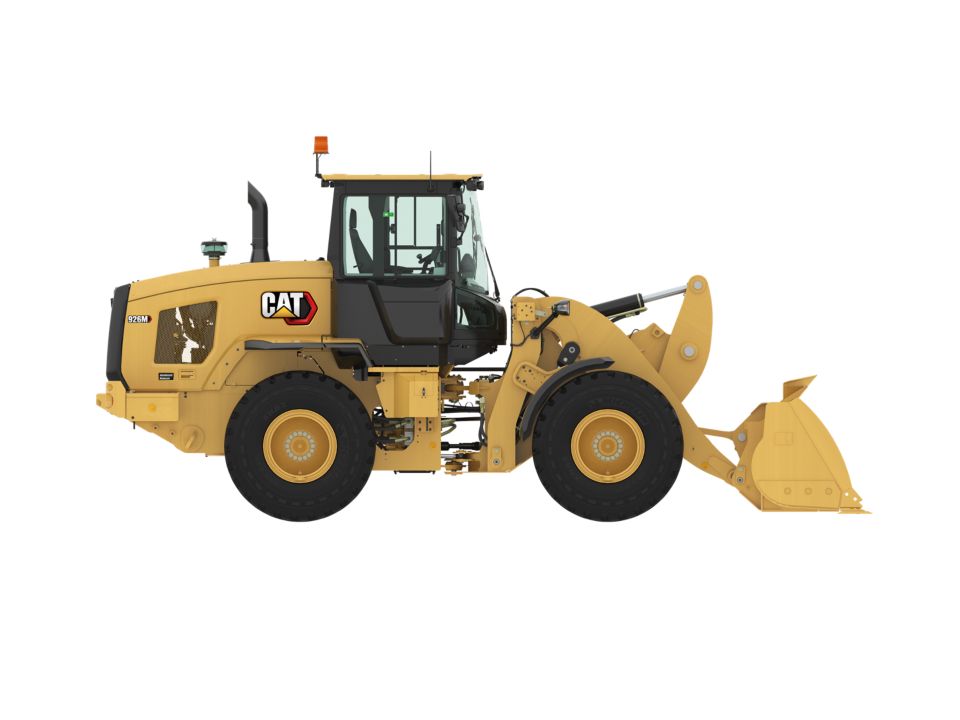

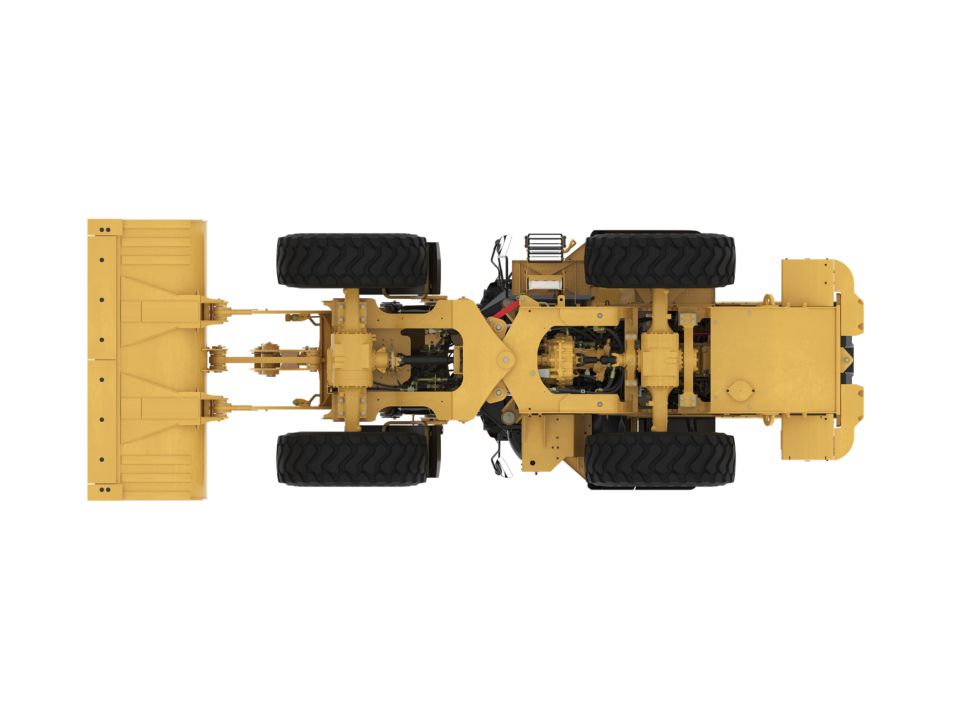

926M Aggregate Handler

Cat® Small Wheel Loaders provide superior performance and versatility to help you get more done. Built to the same tough standards as the larger Cat Wheel Loaders, these machines are ideal for a wide range of jobs.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430. The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430. The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.","EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"99"}

Buckets

Bucket Capacities

2.5-5.0 m3 (3.3-6.5 yd3)
{"Name":"Bucket Capacities","SpecificationId":null,"TextValue":"2.5-5.0 m3 (3.3-6.5 yd3)","EnglishUnit":"gal (US)","EnglishValue":"42.3","MetricUnit":"l","MetricValue":"160","Type":"text","SpecificationGroup":"Buckets","SortOrder":"3"}

Cab

ROPS

ISO 3471:2008
{"Name":"ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"text","SpecificationGroup":"Cab","SortOrder":"72"}
FOPS

ISO 3449:2005 LEVEL II
{"Name":"FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 LEVEL II","EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"40","Type":"text","SpecificationGroup":"Cab","SortOrder":"99"}
Note (1)

* Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"* Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.","EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"text","SpecificationGroup":"Cab","SortOrder":"99"}
Declared Sound Levels

Declared Sound Levels – Operator Sound Pressure Level (ISO 6396:2008): 68 dB(A)* – Exterior Sound Power Level (ISO 6395:2008): 101 dB(A)*
{"Name":"Declared Sound Levels","SpecificationId":null,"TextValue":"Declared Sound Levels – Operator Sound Pressure Level (ISO 6396:2008): 68 dB(A)* – Exterior Sound Power Level (ISO 6395:2008): 101 dB(A)*","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"99"}

Engine

Maximum Gross Power

168 hp 125 kW
{"Name":"Maximum Gross Power","SpecificationId":null,"TextValue":"Cat® C7.1","EnglishUnit":"hp","EnglishValue":"168","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Bore

4 in 105 mm
{"Name":"Bore","SpecificationId":null,"TextValue":"2.5-5.0 m³ (3.3-6.5 yd³)","EnglishUnit":"in","EnglishValue":"4","MetricUnit":"mm","MetricValue":"105","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"13"}
Stroke

5 in 135 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5","MetricUnit":"mm","MetricValue":"135","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"14"}
Displacement

427 in³ 7.01 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"427","MetricUnit":"l","MetricValue":"7.01","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"15"}
Emissions

The Cat C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 4 Final emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"The Cat C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 4 Final emission standards.","EnglishUnit":"HP","EnglishValue":"149","MetricUnit":"kW","MetricValue":"111","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Rated Gross Power - ISO 14396

168 hp 125 kW
{"Name":"Maximum Rated Gross Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"168","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)

586 ft·lbf 795 N·m
{"Name":"Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":"The Cat C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 4 Final emission standards.","EnglishUnit":"ft·lbf","EnglishValue":"586","MetricUnit":"N·m","MetricValue":"795","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note (2)

Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.","EnglishUnit":"in","EnglishValue":"17.2","MetricUnit":"mm","MetricValue":"438","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)

1800 r/min 1800 r/min
{"Name":"Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"2.5-5.0 m³ (3.3-6.5 yd³)","EnglishUnit":"r/min","EnglishValue":"1800","MetricUnit":"r/min","MetricValue":"1800","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)

168 hp 125 kW
{"Name":"Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"3.0-5.0 m³ (3.9-6.5 yd³)","EnglishUnit":"hp","EnglishValue":"168","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)

573 ft·lbf 777 N·m
{"Name":"Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"573","MetricUnit":"N·m","MetricValue":"777","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note (3)

No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.","EnglishUnit":"in","EnglishValue":"4","MetricUnit":"mm","MetricValue":"105","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)

160 hp 119 kW
{"Name":"Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"160","MetricUnit":"kW","MetricValue":"119","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)

1600 r/min 1600 r/min
{"Name":"Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1600","MetricUnit":"r/min","MetricValue":"1600","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model

Cat® C7.1
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C7.1","EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)

601 ft·lbf 815 N·m
{"Name":"Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":"ft·lbf","EnglishValue":"601","MetricUnit":"N·m","MetricValue":"815","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)

588 ft·lbf 797 N·m
{"Name":"Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.","EnglishUnit":"ft·lbf","EnglishValue":"588","MetricUnit":"N·m","MetricValue":"797","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note (1)

*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.","EnglishUnit":"ft·lbf","EnglishValue":"511","MetricUnit":"N·m","MetricValue":"694","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (metric) (Performance Power Mode: Range 1-4)

170 hp 125 kW
{"Name":"Maximum Gross Power - ISO 14396 (metric) (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"9.6/10.5 seconds","EnglishUnit":"hp","EnglishValue":"170","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)

166 hp 122 kW
{"Name":"Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"166","MetricUnit":"kW","MetricValue":"122","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)

164 hp 122 kW
{"Name":"Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"164","MetricUnit":"kW","MetricValue":"122","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)

163 hp 122 kW
{"Name":"Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"Limited slip differential","EnglishUnit":"hp","EnglishValue":"163","MetricUnit":"kW","MetricValue":"122","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)

587 ft·lbf 796 N·m
{"Name":"Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.","EnglishUnit":"ft·lbf","EnglishValue":"587","MetricUnit":"N·m","MetricValue":"796","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3*)

162 hp 119 kW
{"Name":"Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":"Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.","EnglishUnit":"hp","EnglishValue":"162","MetricUnit":"kW","MetricValue":"119","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Rated Gross Power - ISO 14396 (metric)

170 hp 125 kW
{"Name":"Maximum Rated Gross Power - ISO 14396 (metric)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"170","MetricUnit":"kW","MetricValue":"125","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)

156 hp 116 kW
{"Name":"Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":"*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 926M.","EnglishUnit":"hp","EnglishValue":"156","MetricUnit":"kW","MetricValue":"116","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power (Standard Power Mode: Range 1-3*)

1600 r/min 1600 r/min
{"Name":"Net Power (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1600","MetricUnit":"r/min","MetricValue":"1600","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power (Performance Power Mode: Range 1-4)

1800 r/min 1800 r/min
{"Name":"Net Power (Performance Power Mode: Range 1-4)","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":"r/min","EnglishValue":"1800","MetricUnit":"r/min","MetricValue":"1800","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)

156 hp 116 kW
{"Name":"Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"156","MetricUnit":"kW","MetricValue":"116","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3*)

572 ft·lbf 776 N·m
{"Name":"Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":"Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.","EnglishUnit":"ft·lbf","EnglishValue":"572","MetricUnit":"N·m","MetricValue":"776","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)

158 hp 116 kW
{"Name":"Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"158","MetricUnit":"kW","MetricValue":"116","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Loader Hydraulic System

Relief Pressure - Tilt Cylinder

4061 psi 28000 kPa
{"Name":"Relief Pressure - Tilt Cylinder","SpecificationId":null,"TextValue":"± 10.5 degrees","EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Tilt Cylinder, Double Acting - Stroke

20.3 in 516 mm
{"Name":"Tilt Cylinder, Double Acting - Stroke","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":"in","EnglishValue":"20.3","MetricUnit":"mm","MetricValue":"516","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Flow - Implement Pump

40 gal/min 150 l/min
{"Name":"Maximum Flow - Implement Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"40","MetricUnit":"l/min","MetricValue":"150","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Working Pressure - Implement Pump

3771 psi 26000 kPa
{"Name":"Maximum Working Pressure - Implement Pump","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":"psi","EnglishValue":"3771","MetricUnit":"kPa","MetricValue":"26000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time

9.6/10.5 seconds
{"Name":"Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time","SpecificationId":null,"TextValue":"9.6/10.5 seconds","EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"40","Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Tilt Cylinder, Double Acting - Bore Diameter

5.5 in 140 mm
{"Name":"Tilt Cylinder, Double Acting - Bore Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.5","MetricUnit":"mm","MetricValue":"140","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Tilt Cylinder, Double Acting - Rod Diameter

3 in 75 mm
{"Name":"Tilt Cylinder, Double Acting - Rod Diameter","SpecificationId":null,"TextValue":"± 13.5 degrees","EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"75","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Lift Cylinder, Double Acting - Rod Diameter

2.4 in 60 mm
{"Name":"Lift Cylinder, Double Acting - Rod Diameter","SpecificationId":null,"TextValue":"Offset rims available to meet European roading requirements.","EnglishUnit":"in","EnglishValue":"2.4","MetricUnit":"mm","MetricValue":"60","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Lift Cylinder, Double Acting - Bore Diameter

4.3 in 110 mm
{"Name":"Lift Cylinder, Double Acting - Bore Diameter","SpecificationId":null,"TextValue":"1.5/1.7 seconds","EnglishUnit":"in","EnglishValue":"4.3","MetricUnit":"mm","MetricValue":"110","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Flow - Implement Pump - 4th Function Maximum Flow*

40 gal/min 150 l/min
{"Name":"Maximum Flow - Implement Pump - 4th Function Maximum Flow*","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":"gal/min","EnglishValue":"40","MetricUnit":"l/min","MetricValue":"150","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure

4061 psi 28000 kPa
{"Name":"Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure

3771 psi 26000 kPa
{"Name":"Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure","SpecificationId":null,"TextValue":"* Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.","EnglishUnit":"psi","EnglishValue":"3771","MetricUnit":"kPa","MetricValue":"26000","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Lift Cylinder, Double Acting - Stroke

28.7 in 728 mm
{"Name":"Lift Cylinder, Double Acting - Stroke","SpecificationId":null,"TextValue":"1.5/1.7 seconds","EnglishUnit":"in","EnglishValue":"28.7","MetricUnit":"mm","MetricValue":"728","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height)

1.5/1.7 seconds
{"Name":"Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height)","SpecificationId":null,"TextValue":"1.5/1.7 seconds","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift)

5.5/6.2 seconds
{"Name":"Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift)","SpecificationId":null,"TextValue":"5.5/6.2 seconds","EnglishUnit":"gal (US)","EnglishValue":"2.2","MetricUnit":"l","MetricValue":"8.5","Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Note (2)

Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Note (1)

Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Note (3)

* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.","EnglishUnit":"gal/min","EnglishValue":"40","MetricUnit":"l/min","MetricValue":"150","Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level)

2.6/2.6 seconds
{"Name":"Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level)","SpecificationId":null,"TextValue":"2.6/2.6 seconds","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*

40 gal/min 150 l/min
{"Name":"Maximum Flow - Implement Pump - 3rd Function Maximum Flow*","SpecificationId":null,"TextValue":"8148 kg (17,962 lb)~","EnglishUnit":"gal/min","EnglishValue":"40","MetricUnit":"l/min","MetricValue":"150","Type":"measurement","SpecificationGroup":"Loader Hydraulic System","SortOrder":"99"}

Operating Specifications

Note (1)

**Aggregate Handler machine equipped with full counterweight and optional guards.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"**Aggregate Handler machine equipped with full counterweight and optional guards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Full Turn Tip Load (2)

8148 kg (17,962 lb)~
{"Name":"Full Turn Tip Load (2)","SpecificationId":null,"TextValue":"8148 kg (17,962 lb)~","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Full Turn Tip Load (1)

8047 kg (17,740 lb)**
{"Name":"Full Turn Tip Load (1)","SpecificationId":null,"TextValue":"8047 kg (17,740 lb)**","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Note (2)

~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}

Power Train

Rear Axle - Traction Aid - Optional

Limited slip differential
{"Name":"Rear Axle - Traction Aid - Optional","SpecificationId":null,"TextValue":"Limited slip differential","EnglishUnit":"gal (US)","EnglishValue":"51.5","MetricUnit":"l","MetricValue":"195","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Note (3)

*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 926M.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 926M.","EnglishUnit":"s","EnglishValue":"2.4","MetricUnit":"s","MetricValue":"2.4","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Front Axle

Fixed
{"Name":"Front Axle","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":"in","EnglishValue":"28.7","MetricUnit":"mm","MetricValue":"728","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle - Oscillation Angle by Tire Size - 17.5 R25

± 13.5 degrees
{"Name":"Rear Axle - Oscillation Angle by Tire Size - 17.5 R25","SpecificationId":null,"TextValue":"± 13.5 degrees","EnglishUnit":"in","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"70","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Note (2)

Offset rims available to meet European roading requirements.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Offset rims available to meet European roading requirements.","EnglishUnit":"s","EnglishValue":"2.8","MetricUnit":"s","MetricValue":"2.8","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Front Axle - Traction Aid*

Locking differential (standard)
{"Name":"Front Axle - Traction Aid*","SpecificationId":null,"TextValue":"Locking differential (standard)","EnglishUnit":"ft·lbf","EnglishValue":"27747","MetricUnit":"N·m","MetricValue":"37620","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65

± 10.5 degrees
{"Name":"Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65","SpecificationId":null,"TextValue":"± 10.5 degrees","EnglishUnit":"in","EnglishValue":"1.6","MetricUnit":"mm","MetricValue":"40","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Note (1)

Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.","EnglishUnit":"gal (US)","EnglishValue":"6.6","MetricUnit":"l","MetricValue":"25","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Brakes - Service

Inboard wet disc
{"Name":"Brakes - Service","SpecificationId":null,"TextValue":"Inboard wet disc","EnglishUnit":"in","EnglishValue":"28.7","MetricUnit":"mm","MetricValue":"728","Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Rear Axle

Oscillating
{"Name":"Rear Axle","SpecificationId":null,"TextValue":"Oscillating","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}
Brakes - Parking

Spring applied hydraulically released
{"Name":"Brakes - Parking","SpecificationId":null,"TextValue":"Spring applied hydraulically released","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Power Train","SortOrder":"99"}

Service Refill Capacities

Diesel Exhaust Fluid (DEF) Tank

5 gal (US) 19 l
{"Name":"Diesel Exhaust Fluid (DEF) Tank","SpecificationId":null,"TextValue":"Offset rims available to meet European roading requirements.","EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Engine Crankcase

5.3 gal (US) 20 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":"Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.","EnglishUnit":"gal (US)","EnglishValue":"5.3","MetricUnit":"l","MetricValue":"20","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

23.8 gal (US) 90 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":"*Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed. – The Blue Angel environmental label is an optional attachment for Europe only.","EnglishUnit":"gal (US)","EnglishValue":"23.8","MetricUnit":"l","MetricValue":"90","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic System - Including Tank

42.3 gal (US) 160 l
{"Name":"Hydraulic System - Including Tank","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":"gal (US)","EnglishValue":"42.3","MetricUnit":"l","MetricValue":"160","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System

7.9 gal (US) 30 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":"± 13.5 degrees","EnglishUnit":"gal (US)","EnglishValue":"7.9","MetricUnit":"l","MetricValue":"30","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Rear Axles

6.6 gal (US) 25 l
{"Name":"Rear Axles","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.6","MetricUnit":"l","MetricValue":"25","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

51.5 gal (US) 195 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":"Inboard wet disc","EnglishUnit":"gal (US)","EnglishValue":"51.5","MetricUnit":"l","MetricValue":"195","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Front Axles

6.9 gal (US) 26 l
{"Name":"Front Axles","SpecificationId":null,"TextValue":"5.5/6.2 seconds","EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission - Gear Box

2.2 gal (US) 8.5 l
{"Name":"Transmission - Gear Box","SpecificationId":null,"TextValue":"Oscillating","EnglishUnit":"gal (US)","EnglishValue":"2.2","MetricUnit":"l","MetricValue":"8.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Steering

Steering Cylinder, Double Acting - Stroke

17.2 in 438 mm
{"Name":"Steering Cylinder, Double Acting - Stroke","SpecificationId":null,"TextValue":"Locking differential (standard)","EnglishUnit":"in","EnglishValue":"17.2","MetricUnit":"mm","MetricValue":"438","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Note (1)

Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.","EnglishUnit":"gal (US)","EnglishValue":"5.5","MetricUnit":"l","MetricValue":"21","Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Maximum Working Pressure - Steering Pump

3500 psi 24130 kPa
{"Name":"Maximum Working Pressure - Steering Pump","SpecificationId":null,"TextValue":"1-13 km/h (0.6-8 mph)","EnglishUnit":"psi","EnglishValue":"3500","MetricUnit":"kPa","MetricValue":"24130","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Maximum Flow - Steering Pump

34 gal/min 130 l/min
{"Name":"Maximum Flow - Steering Pump","SpecificationId":null,"TextValue":"5.5/6.2 seconds","EnglishUnit":"gal/min","EnglishValue":"34","MetricUnit":"l/min","MetricValue":"130","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cylinder, Double Acting - Bore Diameter

2.8 in 70 mm
{"Name":"Steering Cylinder, Double Acting - Bore Diameter","SpecificationId":null,"TextValue":"Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.","EnglishUnit":"in","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"70","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed

2.4 s 2.4 s
{"Name":"Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed","SpecificationId":null,"TextValue":"ISO 3449:2005 LEVEL II","EnglishUnit":"s","EnglishValue":"2.4","MetricUnit":"s","MetricValue":"2.4","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cylinder, Double Acting - Rod Diameter

1.6 in 40 mm
{"Name":"Steering Cylinder, Double Acting - Rod Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.6","MetricUnit":"mm","MetricValue":"40","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Note (2)

Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited

2.8 s 2.8 s
{"Name":"Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430. The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.","EnglishUnit":"s","EnglishValue":"2.8","MetricUnit":"s","MetricValue":"2.8","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}

Sustainability

Recyclability

94%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"94%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Transmission

Forward and Reverse - Range 2

8 mile/h 13 km/h
{"Name":"Forward and Reverse - Range 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward and Reverse - Range 3

17 mile/h 27 km/h
{"Name":"Forward and Reverse - Range 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward and Reverse - Range 1*

1-13 km/h (0.6-8 mph)
{"Name":"Forward and Reverse - Range 1*","SpecificationId":null,"TextValue":"1-13 km/h (0.6-8 mph)","EnglishUnit":"gal (US)","EnglishValue":"2.2","MetricUnit":"l","MetricValue":"8.5","Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward and Reverse - Range 4

25 mile/h 40 km/h
{"Name":"Forward and Reverse - Range 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"40","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Note

* Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).
{"Name":"Note","SpecificationId":null,"TextValue":"* Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}

Weights

Operating Weight

28577 lb 12963 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":"1-13 km/h (0.6-8 mph)","EnglishUnit":"lb","EnglishValue":"28577","MetricUnit":"kg","MetricValue":"12963","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Note (2)

~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"~Aggregate Handler equipped with full counterweight, optional guards, roading fenders, and cold start package.","EnglishUnit":"gal (US)","EnglishValue":"7.9","MetricUnit":"l","MetricValue":"30","Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Operating Weight (2)

12 963 kg (28,577 lb)~
{"Name":"Operating Weight (2)","SpecificationId":null,"TextValue":"12 963 kg (28,577 lb)~","EnglishUnit":"psi","EnglishValue":"3500","MetricUnit":"kPa","MetricValue":"24130","Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Operating Weight (1)

12 891 kg (28,418 lb)**
{"Name":"Operating Weight (1)","SpecificationId":null,"TextValue":"12 891 kg (28,418 lb)**","EnglishUnit":"in","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"70","Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (1)

**Aggregate Handler machine equipped with full counterweight and optional guards.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"**Aggregate Handler machine equipped with full counterweight and optional guards.","EnglishUnit":"s","EnglishValue":"2.4","MetricUnit":"s","MetricValue":"2.4","Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

Application Specific Configuration

INCREASED PAYLOAD
Additional counterweight improves stability without reducing ground clearance or departure angle to maximize performance.

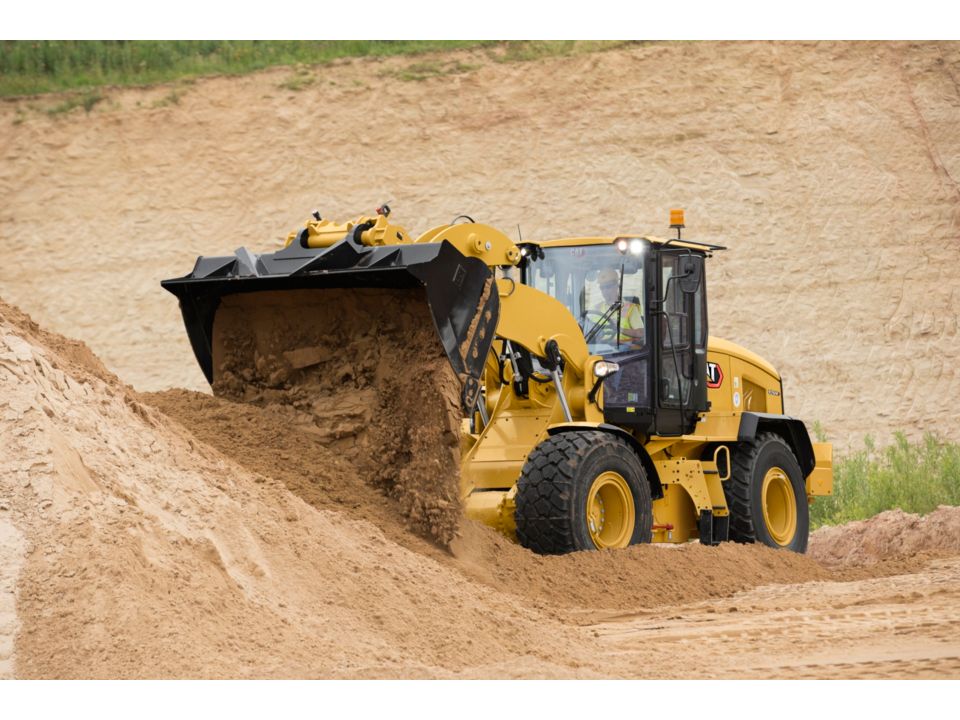

LONG LIFE SAND AND GRAVEL BUCKETS
Performance Series Buckets deliver higher fill factors and better material retention for significant productivity and fuel efficiency improvements. The buckets feature a long floor, open throat, curved side bars and additional serviceable wear plates including corner guards.

PROTECT YOUR POWER TRAIN

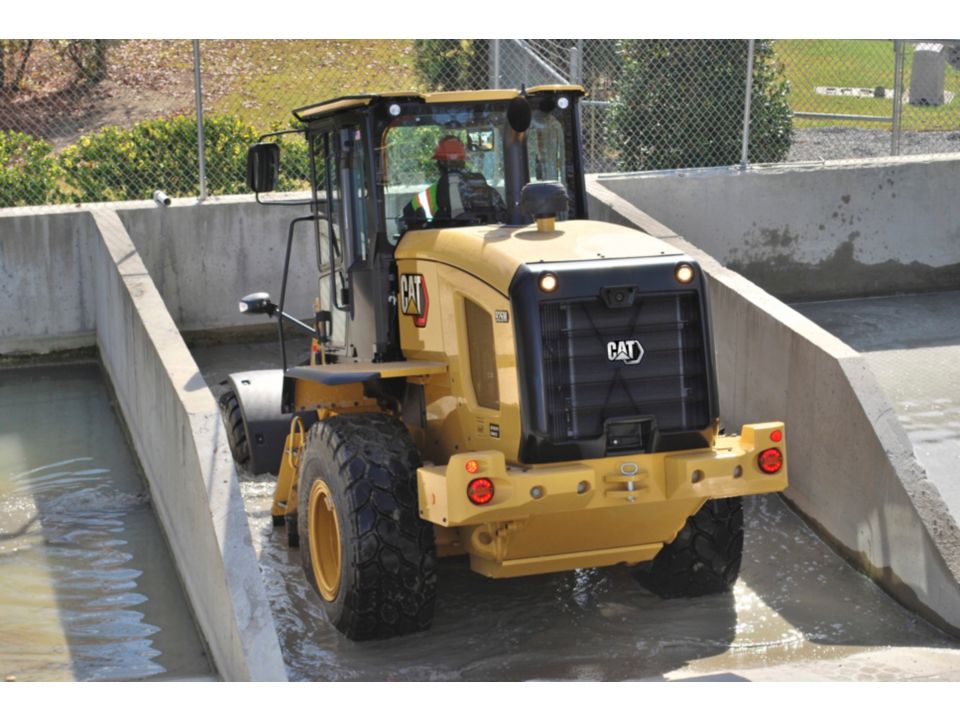

Increase your fording depths with optional elevated breathers. Remote mounted high on the machine for the front and rear axles and hydrostatic gear box. Allows settling pond clean out without contamination.

Efficiently Powerful

The Cat® C7.1 engine provides cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar's exclusive Intelligent Power Management system monitors operator input and power availability to keep the machine working at peak efficiency and provide the operator with greater customization to suit their application.

A choice of Power Modes allows you to choose between maximum fuel efficiency or boosted power along with hydraulic speed.

STANDARD POWER MODE

Saves fuel and reduces cab sound levels
Biggest gains are seen during load and carry, snow removal and roading applications

PERFORMANCE POWER MODE

Enabled at the push of a button (HP+), boosts engine power by up to 10% and engine speed by over 12%
Increases hydraulic cycle times and productivity

Lock up and go with fully locking front differential axle that can be engaged on the move at full torque. Maximize your traction with optional Limited Slip Differential on the rear axle to keep you climbing.

Enjoy All Day Comfort

A spacious, quiet and comfortable operator environment helps keep you relaxed and productive throughout the day. Experience superior all around visibility with single piece front windshield, redesigned linkage and clean hydraulic lines routing. Seat-mounted controls featuring low effort joystick for lift and tilt functions along with integrated Forward/Neutral/Reverse switch, differential lock trigger and optional third and fourth auxiliary functions.

Automatic climate control with heated rear glass and external mirrors
Information at a glance with large primary LCD display
Heated and cooled seat option
Optional Ride Control
Exclusive electro-hydraulic cylinder snubbing
An extra eye on the job site with optional integrated rear object detection and optional* rearview camera

*Standard in Europe.

Customize Your Experience

The M Series Aggregate Handler will remember you and your personal settings with unique operator codes to make this machine truly yours and keep it secure.

Work as one with your machine by customizing your controls.

Select your Power Train Mode
Reduce tire wear using Rimpull
Fine tune ground speed with Creeper Control
Adjustable Electo-Hydraulic Controls
Set Directional Shift Response based on job application

Service

Get up and running quickly with ground level, daily service access and optional engine compartment lighting. Three large service doors can be opened and closed in any order to give full access to filters and service points. Extended service intervals on hydraulic and power train filters reduce service time and maximize uptime. Additional service features include:

Product Link™ PRO standard with optional subscription to VisionLink®.
Maintenance reminders through secondary display at scheduled intervals.
Fit for Life Diesel Particulate Filter that is designed to exceed the engine overhaul life.
Quick fuel filter service with Caterpillar's exclusive electric fuel priming pump.
Jump start studs as standard equipment.
Extended cleanouts with single plane cooling system and wide spaced 6 fans per inch coolers as standard.
Integrated Autolube (optional) with adjustable greasing frequency.

Customer Support

With renowned Cat dealer support, rely on your Cat dealer to help you every step of the way with new or used machine sales, rental or rebuild options to meet your business needs.

Maximize your machine uptime with unsurpassed worldwide parts availability, trained technicians and customer support agreements.

Let us earn your business. Experience an M Series Small Wheel Loader and join the Caterpillar family.

Sustainability

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
Variable Displacement Pumps match power to load as application requirements change.

Equipment Info

POWER TRAIN

Axle Duo-Cone™ seal guards

HYDRAULICS

Automatic lift lower and tilt kickouts, adjustable in-cab

ELECTRICAL

Alternator, 115 amp, heavy duty

OPERATOR ENVIRONMENT

75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator

OTHER STANDARD EQUIPMENT

Large-access enclosure doors with adjustable close/open force

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3
