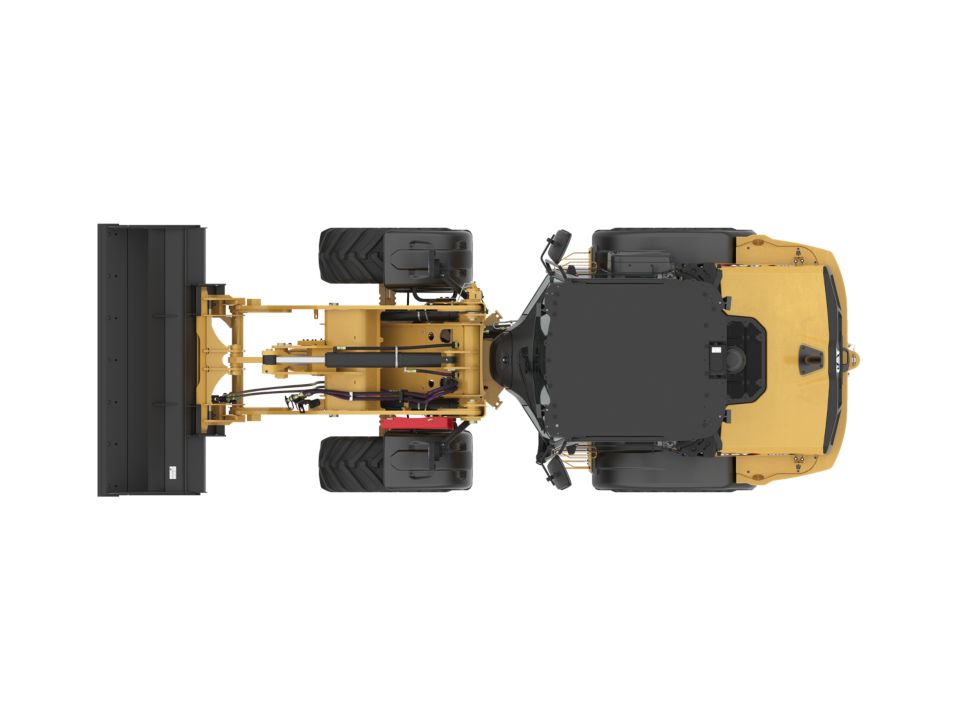

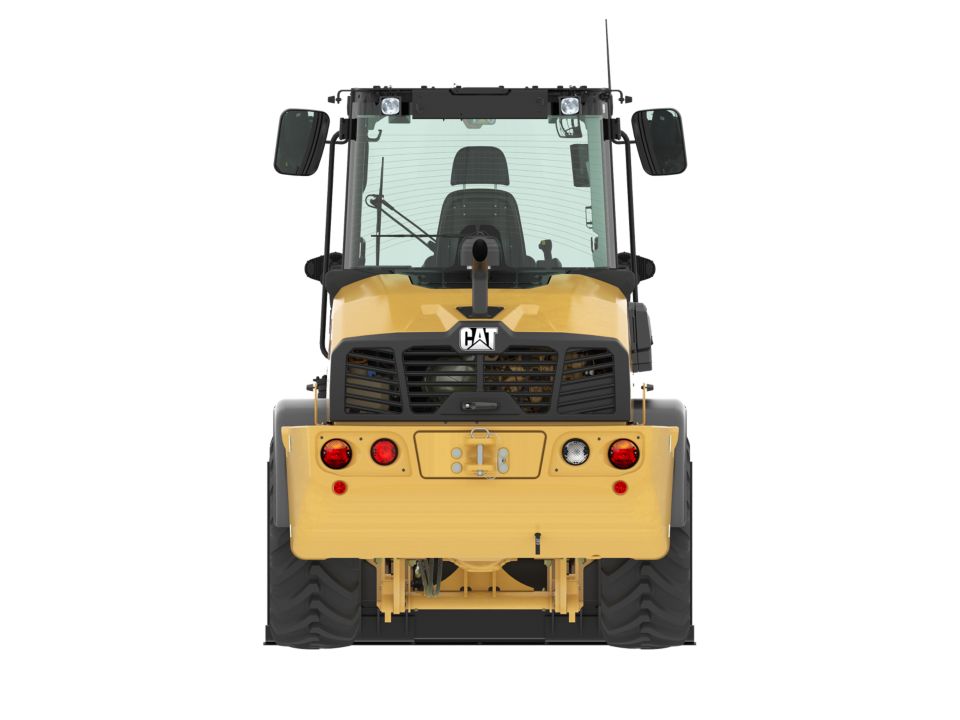

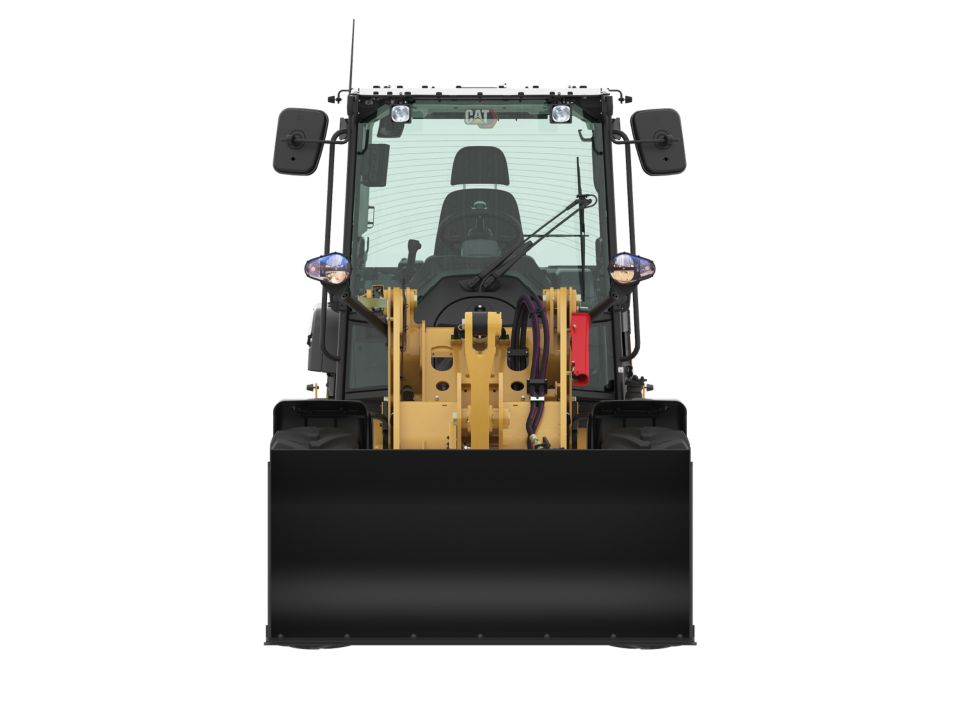

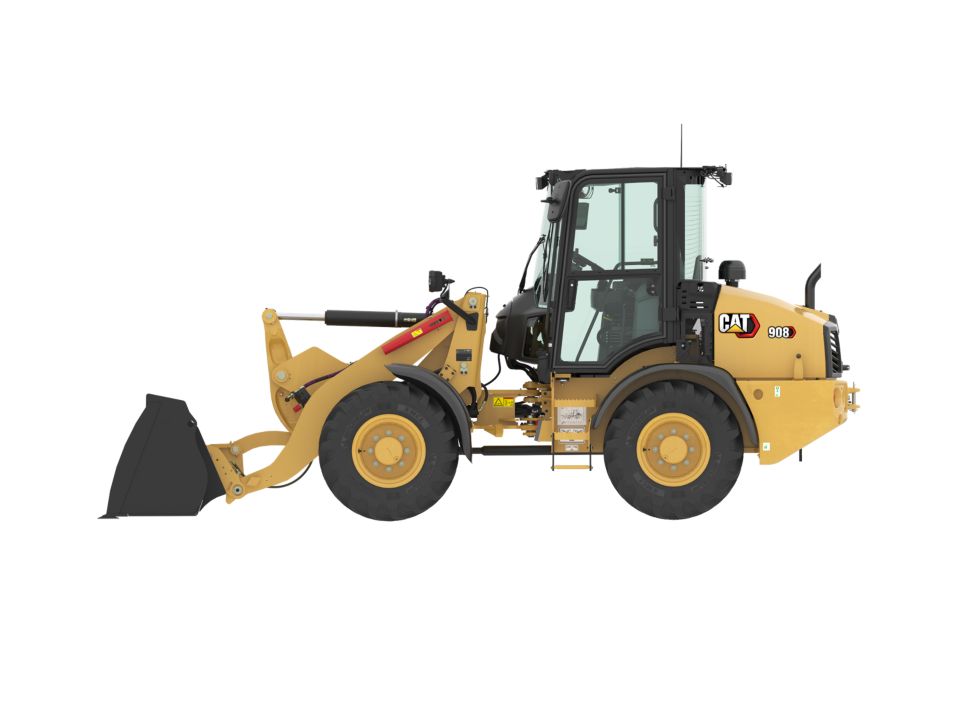

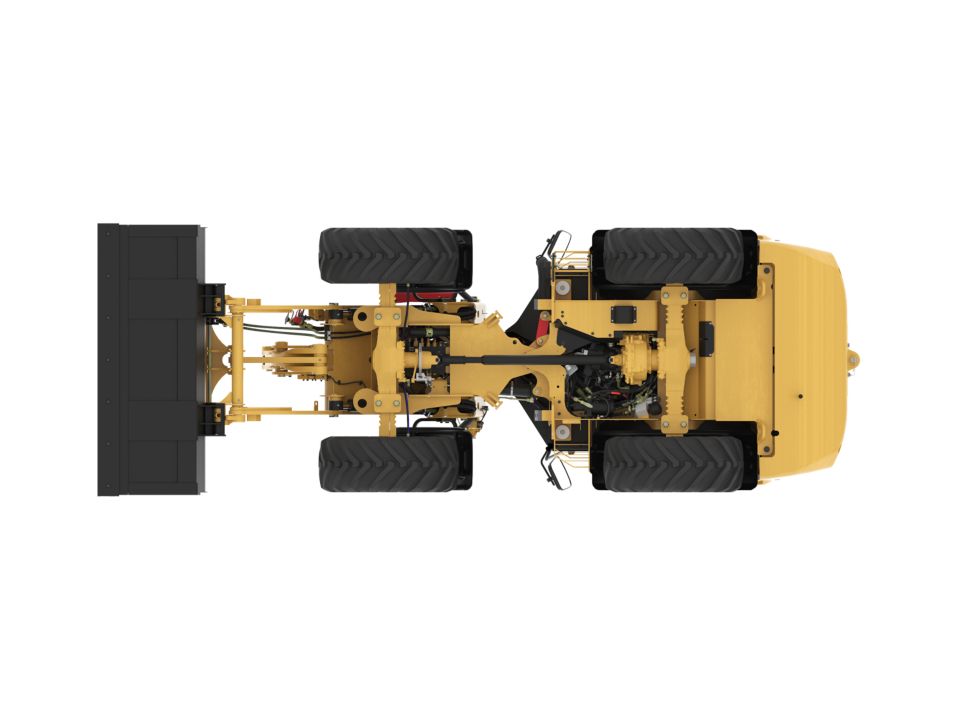

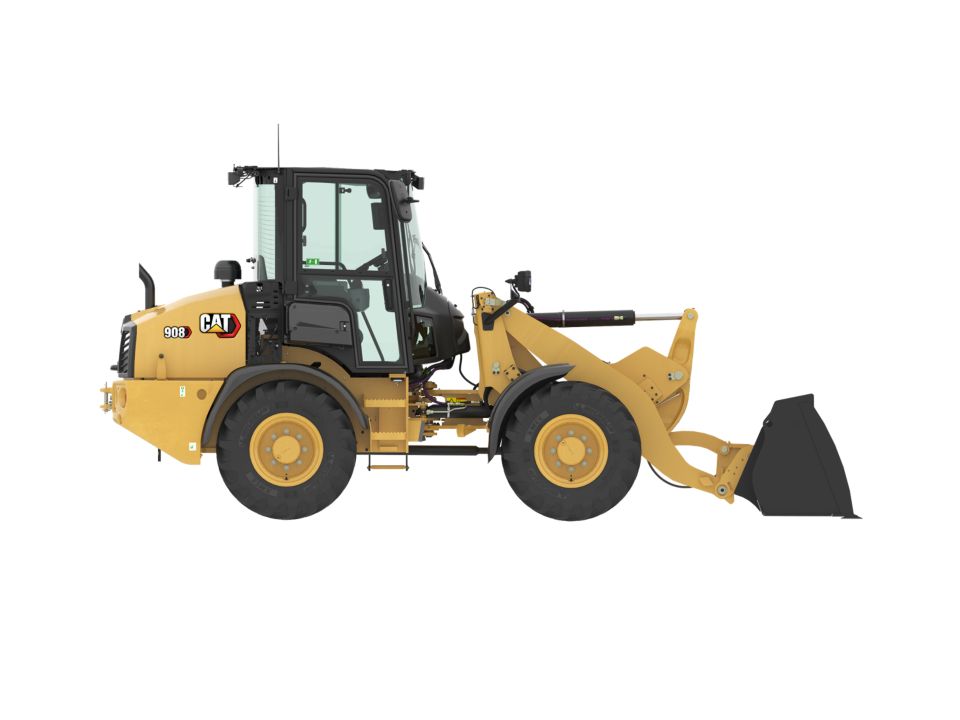

908
908
Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.
Book a Demo
Explore my deals
Specifications
Axles
-
FrontFixed (standard), Locking Differential (optional)
-
RearFixed (standard), Locking Differential (optional)
-
NoteOscillation of ±11 degrees via hitch between front and rear frames.
Buckets
-
Bucket Capacities0.75-1.55 m³ (1.0-2.0 yd³)
-
Bucket Capacities - General Purpose0.80-1.35 m³ (1.0-1.7 yd³)
-
Multi-Purpose0.75-1.1 m³ (1.0-1.4 yd³)
-
Bucket Capacities - Light Material1.25-1.55 m³ (1.6-2.0 yd³)
-
NoteBucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
-
Note (1)Bucket capacities stated include BOCE, in line with ISO 7546.
Cab
-
ROPSISO 3471:2008
-
FOPSISO 3449:2005 Level II
-
Note (1)Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Dimensions - High Lift - With HPL-V Coupler - Approximate#
-
Height: Ground to Cab**8.75 ft 2670 mm
-
Height: Ground to Beacon**9.33 ft 2849 mm
-
Height: Ground Axle Center**1.67 ft 519 mm
-
Height: Ground Clearance**1 ft 320 mm
-
Length: Overall*19.67 ft 6000 mm
-
Length: Rear Axle to Bumper4.5 ft 1391 mm
-
Length: Hitch to Front Axle3.5 ft 1085 mm
-
Length: Wheel Base7.08 ft 2170 mm
-
Clearance: Bucket at 45° *10.92 ft 3338 mm
-
Clearance: Load over Height**10.75 ft 3282 mm
-
Clearance: Level Bucket**12.08 ft 3693 mm
-
Height: Bucket Pin**12.75 ft 3898 mm
-
Height: Overall**15.67 ft 4769 mm
-
Reach: Bucket at 45° *3.25 ft 990 mm
-
Carry Height: Bucket Pin1.17 ft 367 mm
-
Dig Depth**0.33 ft 109 mm
-
Width: Bucket6.75 ft 2045 mm
-
Width: Tread Center5.08 ft 1570 mm
-
Turning Radius: Over Bucket15.83 ft 4825 mm
-
Width: Over Tires6.67 ft 2021 mm
-
Turning Radius: Outside of Tires13.17 ft 4005 mm
-
Turning Radius: Inside of Tires6.5 ft 1981 mm
-
Rack Angle at Full Lift69°
-
Dump Angle at Full Lift40°
-
Rack Angle at Carry48°
-
Departure Angle - Degrees30°
-
Articulation Angle - Degrees39°
-
Operating Weight: Bucket?^14848 lb 6735 kg
-
Tipping Load - Straight - ISO 14397-1?†9187 lb 4167 kg
-
Tipping Load - Full Turn - ISO 14397-1?†7645 lb 3468 kg
-
Operating Weight: Carriage and Tines?^^14542 lb 6596 kg
-
Tipping Load - Straight?†9187 lb 4167 kg
-
80% of Tip: Firm and Level EN474-3?††4706 lb 2135 kg
-
Note (1)*Vary with bucket
-
Note (2)**Vary with tire
-
Note (3)^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
-
Note (4)^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
-
Note (5)†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
-
Note (6)††Full compliance to EN474-3 and SAE J1197.
-
Note (7)#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
-
Note (8)Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
-
Note (9)Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Dimensions - High Lift - With SSL Coupler - Approximate
-
Height: Ground to Cab**8.75 ft 2670 mm
-
Height: Ground to Beacon**9.33 ft 2849 mm
-
Height: Ground Axle Center**1.67 ft 519 mm
-
Height: Ground Clearance**1 ft 320 mm
-
Length: Overall*20.17 ft 6157 mm
-
Length: Rear Axle to Bumper4.5 ft 1391 mm
-
Length: Hitch to Front Axle3.5 ft 1085 mm
-
Length: Wheel Base7.08 ft 2170 mm
-
Clearance: Bucket at 45° *10.42 ft 3181 mm
-
Clearance: Load over Height**10.75 ft 3282 mm
-
Clearance: Level Bucket**12.08 ft 3684 mm
-
Height: Bucket Pin**12.75 ft 3898 mm
-
Height: Overall**15.92 ft 4859 mm
-
Reach: Bucket at 45° *3.42 ft 1048 mm
-
Carry Height: Bucket Pin1.25 ft 388 mm
-
Dig Depth**0.42 ft 117 mm
-
Width: Bucket6.75 ft 2045 mm
-
Width: Tread Center5.08 ft 1570 mm
-
Turning Radius: Over Bucket16.17 ft 4919 mm
-
Width: Over Tires6.67 ft 2021 mm
-
Turning Radius: Outside of Tires13.17 ft 4005 mm
-
Turning Radius: Inside of Tires6.5 ft 1981 mm
-
Rack Angle at Full Lift66°
-
Dump Angle at Full Lift40°
-
Rack Angle at Carry42°
-
Departure Angle - Degrees30°
-
Articulation Angle - Degrees39°
-
Operating Weight: Bucket?^15070 lb 6836 kg
-
Tipping Load - Straight - ISO 14397-1?†8385 lb 3803 kg
-
Tipping Load - Full Turn - ISO 14397-1?†6943 lb 3149 kg
-
Operating Weight: Carriage and Tines?^^14714 lb 6674 kg
-
Tipping Load - Straight?†8385 lb 3803 kg
-
80% of Tip: Firm and Level EN474-3?††4375 lb 1984 kg
-
Note (1)*Vary with bucket
-
Note (2)**Vary with tire
-
Note (3)^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
-
Note (4)^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
-
Note (5)†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
-
Note (6)††Full compliance to EN474-3 and SAE J1197.
-
Note (7)#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
-
Note (8)Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
-
Note (9)Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Dimensions - With HPL-V Coupler - Approximate#
-
Height: Ground to Cab**8.75 ft 2670 mm
-
Height: Ground to Beacon**9.33 ft 2849 mm
-
Height: Ground Axle Center**1.67 ft 519 mm
-
Height: Ground Clearance**1 ft 320 mm
-
Length: Overall*18.17 ft 5544 mm
-
Length: Rear Axle to Bumper4.5 ft 1391 mm
-
Length: Hitch to Front Axle3.5 ft 1085 mm
-
Length: Wheel Base7.08 ft 2170 mm
-
Clearance: Bucket at 45° *8.58 ft 2623 mm
-
Clearance: Load over Height**9.75 ft 2960 mm
-
Clearance: Level Bucket**10.5 ft 3206 mm
-
Height: Bucket Pin**11.17 ft 3412 mm
-
Height: Overall**14.17 ft 4313 mm
-
Reach: Bucket at 45° *2.33 ft 706 mm
-
Carry Height: Bucket Pin1.17 ft 367 mm
-
Dig Depth**0.33 ft 109 mm
-
Width: Bucket6.75 ft 2080 mm
-
Width: Tread Center5.08 ft 1570 mm
-
Turning Radius: Over Bucket14.75 ft 4493 mm
-
Width: Over Tires6.67 ft 2021 mm
-
Turning Radius: Outside of Tires13.17 ft 4005 mm
-
Turning Radius: Inside of Tires6.5 ft 1981 mm
-
Rack Angle at Full Lift53°
-
Dump Angle at Full Lift45°
-
Rack Angle at Carry51°
-
Departure Angle - Degrees30°
-
Articulation Angle - Degrees39°
-
Operating Weight: Bucket?^14633 lb 6637 kg
-
Tipping Load - Straight - ISO 14397-1?†10626 lb 4820 kg
-
Tipping Load - Full Turn - ISO 14397-1?†8895 lb 4035 kg
-
Operating Weight: Carriage and Tines?^^14252 lb 6467 kg
-
Tipping Load - Straight?†10626 lb 3297 kg
-
80% of Tip: Firm and Level EN474-3?††5815 lb 2638 kg
-
Note (1)*Vary with bucket
-
Note (2)**Vary with tire
-
Note (3)^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
-
Note (4)^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
-
Note (5)†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
-
Note (6)††Full compliance to EN474-3 and SAE J1197.
-
Note (7)#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
-
Note (8)Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
-
Note (9)Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Dimensions - With SSL Coupler - Approximate
-
Height - Ground to Cab8.75 ft 2670 mm
-
Height: Ground to Beacon**9.33 ft 2849 mm
-
Height: Ground Axle Center**1.67 ft 519 mm
-
Height - Ground Clearance1 ft 320 mm
-
Length - Overall with Bucket18.67 ft 5707 mm
-
Length: Rear Axle to Bumper4.5 ft 1391 mm
-
Length: Hitch to Front Axle3.5 ft 1085 mm
-
Length - Wheel Base7.08 ft 2170 mm
-
Clearance - Bucket at 45°8.25 ft 2511 mm
-
Clearance: Load over Height**9.75 ft 2960 mm
-
Clearance - Level Bucket10.5 ft 3197 mm
-
Height - Bucket Pin11.17 ft 3412 mm
-
Height: Overall**14.42 ft 4403 mm
-
Reach - Bucket at 45°2.67 ft 811 mm
-
Carry Height: Bucket Pin1.25 ft 388 mm
-
Dig Depth0.45 ft 117 mm
-
Width - Bucket6.75 ft 2080 mm
-
Width - Tread Center5.08 ft 1570 mm
-
Turning Radius - Over Bucket15.08 ft 4607 mm
-
Width - Over Tires6.67 ft 2021 mm
-
Turning Radius: Outside of Tires13.17 ft 4005 mm
-
Turning Radius - Inside Tire6.67 ft 2033 mm
-
Rack Angle at Full Lift50°
-
Dump Angle at Full Lift48°
-
Rack Angle at Carry54°
-
Departure Angle - Degrees30°
-
Articulation Angle - Degrees39°
-
Operating Weight: Bucket?^14752 lb 6691 kg
-
Tipping Load – Straight – ISO 14397-1?†9581 lb 4347 kg
-
Tipping Load – Full Turn – ISO 14397-1?†8141 lb 3693 kg
-
Operating Weight: Carriage and Tines?^^14391 lb 6530 kg
-
Tipping Load - Straight?†9753 lb 4424 kg
-
80% of Tip: Firm and Level EN474-3?††5438 lb 2468 kg
-
Note (1)*Vary with bucket
-
Note (2)**Vary with tire
-
Note (3)^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
-
Note (4)^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
-
Note (5)†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
-
Note (6)††Full compliance to EN474-3 and SAE J1197.
-
Note (7)#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
-
Note (8)Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
-
Note (9)Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
-
Tipping Load - Full Turn - ISO 14397-1†6800 lb 3085 kg
-
Length: Front Axle to Front of Coupler4.75 ft 1436 mm
Engine
-
Maximum Gross Power74.7 hp 55.7 kW
-
Engine ModelCat C2.8*
-
Maximum Engine Speed2550 rpm
-
Maximum Gross Power - Rated Engine Speed2400 r/min 2400 r/min
-
Maximum Gross Power - SAE J199574.7 hp 55.7 kW
-
Maximum Gross Power - ISO 1439674.3 hp 55.4 kW
-
Maximum Gross Power - ISO 14396 (metric)75.3 mhp 75.3 mhp
-
Rated Net Power - Rated Engine Speed2400 r/min 2400 r/min
-
Rated Net Power - SAE J134972.7 hp 54.2 kW
-
Rated Net Power - ISO 924972.1 hp 53.8 kW
-
Rated Net Power - 2,400 rpm - ISO 9249 (metric)73.1 mhp 73.1 mhp
-
Maximum Gross Torque - SAE J1995222 lb/ft 300 N·m
-
Maximum Gross Torque - ISO 14396221 lb/ft 300 N·m
-
Maximum Net Torque - SAE J1349218 lb/ft 296 N·m
-
Maximum Net Torque - ISO 9249217 lb/ft 295 N·m
-
Displacement171 in³ 2.8 l
-
Bore3.54 in 90 mm
-
Stroke4.33 in 110 mm
-
NoteAdvertised power is tested per the specified standard in effect at the time of manufacture
-
Note (1)Net power advertised is the power available at the flywheel.
-
Note (2)*Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995).
-
Note (3)#Maximum gross and net torque measured at 1,600 rpm.
Loader Hydraulic System
-
Main Relief - 1st Auxiliary (3rd slice)3408 psi 23500 kPa
-
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*24 gal/min 90 l/min
-
Main Relief - 1st Auxiliary (3rd slice) - High Flow*33 gal/min 125 l/min
-
Main Relief - 2nd Auxiliary (4th slice)3408 psi 23500 kPa
-
Main Relief - 2nd Auxiliary (4th slice) - Flow12 gal/min 45 l/min
-
Hydraulic Cycle Time - Rackback2.5 s 2.5 s
-
Hydraulic Cycle Time - Lift5.8 s 5.8 s
-
Hydraulic Cycle Time - Dump1.8 s 1.8 s
-
Hydraulic Cycle Time - Float Down3.6 s 3.6 s
-
Note* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.
Service Refill Capacities
-
Fuel Tank24 Gal 90 l
-
Cooling System3.2 Gal 12 l
-
Engine Crankcase2.3 Gal 8.8 l
-
Axles - Front Center Differential2.3 Gal 8.8 l
-
Axles - Rear Center Differential2.3 Gal 8.8 l
-
Hydraulic System - Including Tank18.6 Gal 70.5 l
-
Hydraulic Tank11.8 Gal 44.6 l
-
Transmission0.6 Gal 2.4 l
-
NoteNo Diesel Exhaust Fluid (DEF) fluid needed on this size engine.
Steering
-
Steering Articulation Angle - Each Direction39 ° 39 °
-
Maximum Flow - Steering Pump12.3 gal/min 46.7 l/min
-
Maximum Working Pressure - Steering Pump3336 psi 23000 kPa
-
Steering Cycle Times – (full left to full right) – at High Idle2.8 s 2.8 s
-
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left3.25 turns or 4.00 turns
Sustainability
-
Recyclability93%
Tires
-
Tire Size - Standard*405/70 R20 SPT9
-
Tire Size - Optional405/70 R20 Powerloads
-
Tire Size - Optional (1)400/70 R20 XMCL/Bibload
-
Tire Size - Optional (2)360/80 R20 TRI 2
-
Tire Size - Optional (3)40X14-20 TL, SM/TR
-
Note*This tire has been used for all dimension, stability and performance data.
-
Note (1)Other tire choices are available. Contact your Cat dealer for details.
-
Note (2)Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Transmission
-
Forward and Reverse - Speed Range Creep#6 mile/h 10 km/h
-
Forward and Reverse - Speed Range 1*6 mile/h 10 km/h
-
Forward and Reverse - Speed Range 2** - High Speed10.5 mile/h 17 km/h
-
Forward and Reverse - Speed Range 2** - Standard12 mile/h 20 km/h
-
Forward and Reverse - Speed Range 3***25 mile/h 40 km/h
-
Note#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
-
Note (1)*Creep function not available in this gear or above.
-
Note (2)**Max speed dependent on model and configuration (standard vs. high speed transmission).
-
Note (3)***Reverse is 30 km/h (19 mph).
Weights
-
Operating Weight14617 lb 6632 kg
Benefits
CONFIGURED FOR SUCCESS
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has ahigh torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
ENJOY ALL DAY COMFORT
- All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
- Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.
EFFICIENTLY POWERFUL
- Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.
WORK MADE EASY
- All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.
CUSTOMIZE YOUR EXPERIENCE
- Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
- Machine security is enhanced with a standard keycode or optional Bluetooth® technology.
PURPOSE BUILT SPECIALTY MODELS
- Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
- The 908 is availble with the following specific handler arrangements: Ag Handler and Waste Handler
AFTERMARKET AND SERVICES
- Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
- Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
- Integrated Technology available to reduce service costs and maintenance.
SUSTAINABILITY
- The Cat® C2.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
- Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
- Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
- Efficient HVAC regulates temperature control. No need to leave the machine running to cool the cab.
- Shift on the go transmission, means no need to stop so you keep your momentum.
Equipment Info
POWER TRAIN
Emissions compliant, two options (Dependent on regional regulations.)
– U.S. EPA Tier 4 Final and EU Stage V
– U.S. EPA Tier 3 and EU Stage IIIA equivalent
– U.S. EPA Tier 4 Final and EU Stage V
– U.S. EPA Tier 3 and EU Stage IIIA equivalent
HYDRAULICS
Hydraulic pilot shut off switch, in cab
ELECTRICAL
Alternator, 100 amp sealed
OPERATOR ENVIRONMENT
ROPS/FOPS certified canopy/cab
– 12V power outlets, interior/exterior
– Pedals, raised, foot, brake/inching, accelerator
– Lever, parking brake
– Cup holders (2)
– CB radio clip, phone holder
– Door release, internal (left and right)
– Hook, large, coat and hard hat
– Floormat, heavy duty, easy clean
– Mirrors, (2) external breakaway, (1) internal
– Operator station on isolation mounts
– Steering wheel, spinner knob, horn in center
– Seat belt, orange, retractable, 51 mm (2 in)
– Storage, personal (trays [3], seat pocket)
– Steering column, tilt adjusted
– Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
– Quick coupler switch, in cab
– 12V power outlets, interior/exterior
– Pedals, raised, foot, brake/inching, accelerator
– Lever, parking brake
– Cup holders (2)
– CB radio clip, phone holder
– Door release, internal (left and right)
– Hook, large, coat and hard hat
– Floormat, heavy duty, easy clean
– Mirrors, (2) external breakaway, (1) internal
– Operator station on isolation mounts
– Steering wheel, spinner knob, horn in center
– Seat belt, orange, retractable, 51 mm (2 in)
– Storage, personal (trays [3], seat pocket)
– Steering column, tilt adjusted
– Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
– Quick coupler switch, in cab
OTHER
Fenders, front and rear
Product Brochures
