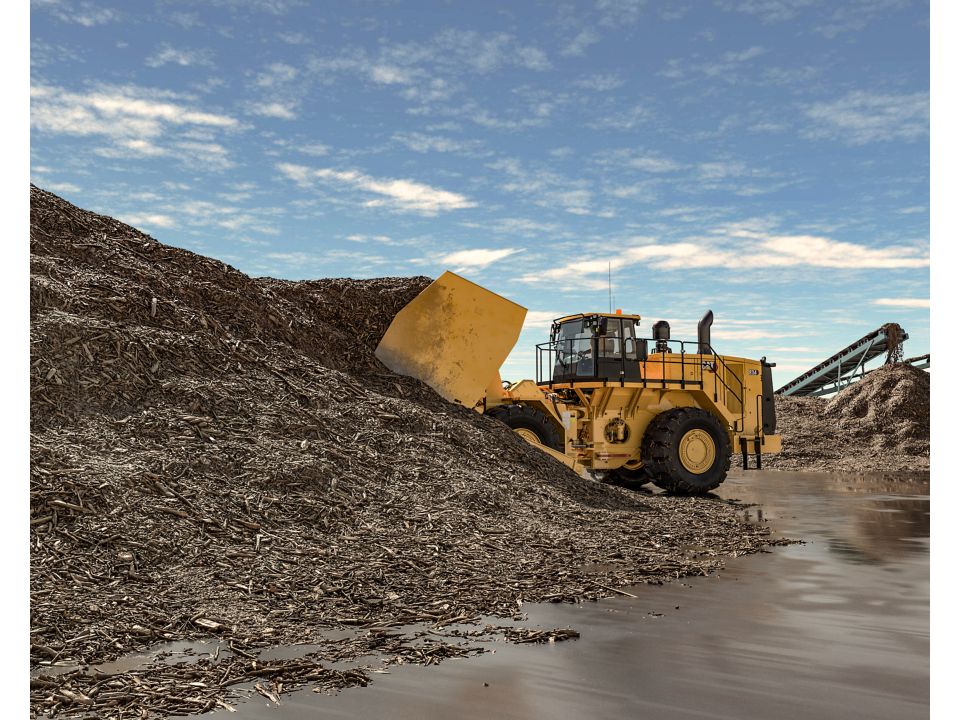

Cat Dozers 834 | Mining

Cat Wheel Dozers offer high production capabilities, along with mobility and versatility. These outstanding utility machines are engineered for demanding work and are an excellent choice for applications including surface mining, cleanup, stock piles, road maintenance, reclamation and jobs where travel is required between multiple sites. The Cat Wheel Dozers line will keep your material moving with reliability, efficiency and low operating costs.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.","EnglishUnit":"gal (US)","EnglishValue":"8.7","MetricUnit":"l","MetricValue":"33","Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"70"}

Axles

Front

Fixed
{"Name":"Front","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":"gal (US)","EnglishValue":"209.5","MetricUnit":"l","MetricValue":"793","Type":"text","SpecificationGroup":"Axles","SortOrder":"81"}
Rear

Trunnion
{"Name":"Rear","SpecificationId":null,"TextValue":"Trunnion","EnglishUnit":"gal (US)","EnglishValue":"37","MetricUnit":"l","MetricValue":"140","Type":"text","SpecificationGroup":"Axles","SortOrder":"82"}
Oscillation Angle

±13°
{"Name":"Oscillation Angle","SpecificationId":null,"TextValue":"±13°","EnglishUnit":"dB(A)","EnglishValue":"71","MetricUnit":"dB(A)","MetricValue":"71","Type":"text","SpecificationGroup":"Axles","SortOrder":"83"}

Brakes

Brakes

ISO 3450: 2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450: 2011","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"text","SpecificationGroup":"Brakes","SortOrder":"90"}

Dimensions

Height - Top of Exhaust Stack

15.9 ft 4835 mm
{"Name":"Height - Top of Exhaust Stack","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.9","MetricUnit":"mm","MetricValue":"4835","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"110"}
Height - Top of Air Cleaner

12.8 ft 3895 mm
{"Name":"Height - Top of Air Cleaner","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.8","MetricUnit":"mm","MetricValue":"3895","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"111"}
Height - Top of Hood

10.9 ft 3334 mm
{"Name":"Height - Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.9","MetricUnit":"mm","MetricValue":"3334","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"112"}
Ground Clearance - Bumper

3.1 ft 933 mm
{"Name":"Ground Clearance - Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.1","MetricUnit":"mm","MetricValue":"933","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"113"}
Centerline of Rear Axle to Edge of Bumper

10.5 ft 3187 mm
{"Name":"Centerline of Rear Axle to Edge of Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.5","MetricUnit":"mm","MetricValue":"3187","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"114"}
Wheel Base

14.9 ft 4550 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14.9","MetricUnit":"mm","MetricValue":"4550","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"115"}
Length - Front of Tire

28.4 ft 8715 mm
{"Name":"Length - Front of Tire","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"28.4","MetricUnit":"mm","MetricValue":"8715","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"116"}
Length - Straight Blade on Ground

32.6 ft 9927 mm
{"Name":"Length - Straight Blade on Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32.6","MetricUnit":"mm","MetricValue":"9927","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"117"}
Centerline of Front Axle to Hitch

7.5 ft 2275 mm
{"Name":"Centerline of Front Axle to Hitch","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"7.5","MetricUnit":"mm","MetricValue":"2275","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"118"}
Length - Universal Blade on Ground

34.4 ft 10470 mm
{"Name":"Length - Universal Blade on Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"34.4","MetricUnit":"mm","MetricValue":"10470","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"118"}
Ground Clearance

1.7 ft 531 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":"7,9-22,2 m3 (10,3-29,0 yd.3)","EnglishUnit":"ft","EnglishValue":"1.7","MetricUnit":"mm","MetricValue":"531","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"119"}
Height - Top of Cab

13.7 ft 4184 mm
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":"7,9-22,2 m3 (10,3-29,0 yd.3)","EnglishUnit":"ft","EnglishValue":"13.7","MetricUnit":"mm","MetricValue":"4184","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"120"}

Engine

Engine Model

Cat® C18
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C18 ","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Rated Speed

1900 r/min 1900 r/min
{"Name":"Rated Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1900","MetricUnit":"r/min","MetricValue":"1900","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"2"}
Peak Power Speed

1500 r/min 1500 r/min
{"Name":"Peak Power Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1500","MetricUnit":"r/min","MetricValue":"1500","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"3"}
Gross Power - SAE J1995:2014

562 hp 419 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"562","MetricUnit":"kW","MetricValue":"419","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
Net Power - SAE J1349:2011

496 hp 370 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"496","MetricUnit":"kW","MetricValue":"370","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Bore

5.7 in 145 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.7","MetricUnit":"mm","MetricValue":"145","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Stroke

7.2 in 183 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.2","MetricUnit":"mm","MetricValue":"183","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Displacement

1105 in³ 18.1 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"1105","MetricUnit":"l","MetricValue":"18.1","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Peak Torque - 1,300 rpm

2092 lb/ft 2836 N·m
{"Name":"Peak Torque - 1,300 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"2092","MetricUnit":"N·m","MetricValue":"2836","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Torque Rise

52 % 52 %
{"Name":"Torque Rise","SpecificationId":null,"TextValue":null,"EnglishUnit":"%","EnglishValue":"52","MetricUnit":"%","MetricValue":"52","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Emissions

U.S. EPA Tier 4 Final and EU Stage V emission standards or equivalent to U.S. EPA Tier 3 and U.S. EPA Tier 2.
{"Name":"Emissions","SpecificationId":null,"TextValue":"U.S. EPA Tier 4 Final and EU Stage V emission standards or equivalent to U.S. EPA Tier 3 and U.S. EPA Tier 2.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit

Pilot operated LS valve with EH
{"Name":"Lift/Tilt System - Circuit","SpecificationId":null,"TextValue":"Pilot operated LS valve with EH","EnglishUnit":"gal/min","EnglishValue":"153","MetricUnit":"l/min","MetricValue":"582","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"40"}
Lift/Tilt System

Variable displacement piston
{"Name":"Lift/Tilt System","SpecificationId":null,"TextValue":"Variable displacement piston","EnglishUnit":"gal/min","EnglishValue":"153","MetricUnit":"l/min","MetricValue":"582","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"41"}
Maximum Flow at 1,900 rpm

153 gal/min 582 l/min
{"Name":"Maximum Flow at 1,900 rpm","SpecificationId":null,"TextValue":"139.75 mm × 1021 mm (5.5 in × 40.2 in)","EnglishUnit":"gal/min","EnglishValue":"153","MetricUnit":"l/min","MetricValue":"582","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"42"}
Relief Valve Setting - Lift/Tilt

4641 psi 32000 kPa
{"Name":"Relief Valve Setting - Lift/Tilt","SpecificationId":null,"TextValue":"139.75 mm × 1021 mm (5.5 in × 40.2 in)","EnglishUnit":"psi","EnglishValue":"4641","MetricUnit":"kPa","MetricValue":"32000","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"43"}
Cylinders, Double Acting - Lift, Bore and Stroke

139.75 mm × 1021 mm (5.5 in × 40.2 in)
{"Name":"Cylinders, Double Acting - Lift, Bore and Stroke","SpecificationId":null,"TextValue":"139.75 mm × 1021 mm (5.5 in × 40.2 in)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"44"}
Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke

140 mm × 230 mm (5.5 in × 9.1 in)
{"Name":"Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke","SpecificationId":null,"TextValue":"140 mm × 230 mm (5.5 in × 9.1 in)","EnglishUnit":"gal/min","EnglishValue":"13.7","MetricUnit":"l/min","MetricValue":"52","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"45"}
Pilot System

Variable displacement piston
{"Name":"Pilot System","SpecificationId":null,"TextValue":"Variable displacement piston","EnglishUnit":"gal/min","EnglishValue":"13.7","MetricUnit":"l/min","MetricValue":"52","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"46"}
Pilot Maximum Flow

13.7 gal/min 52 l/min
{"Name":"Pilot Maximum Flow","SpecificationId":null,"TextValue":"ISO 3450: 2011","EnglishUnit":"gal/min","EnglishValue":"13.7","MetricUnit":"l/min","MetricValue":"52","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"47"}
Pilot Relief Valve Setting

580 psi 4000 kPa
{"Name":"Pilot Relief Valve Setting","SpecificationId":null,"TextValue":"Pilot, load sensing","EnglishUnit":"psi","EnglishValue":"580","MetricUnit":"kPa","MetricValue":"4000","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"48"}

Hydraulic System - Steering

Steering System - Circuit

Pilot, load sensing
{"Name":"Steering System - Circuit","SpecificationId":null,"TextValue":"Pilot, load sensing","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"50"}
Steering System - Pump

Piston, variable displacement
{"Name":"Steering System - Pump","SpecificationId":null,"TextValue":"Piston, variable displacement","EnglishUnit":"gal/min","EnglishValue":"65.8","MetricUnit":"l/min","MetricValue":"250","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"51"}
Maximum Flow

65.8 gal/min 250 l/min
{"Name":"Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"65.8","MetricUnit":"l/min","MetricValue":"250","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"52"}
Relief Valve Setting - Steering

3495 psi 24100 kPa
{"Name":"Relief Valve Setting - Steering","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3495","MetricUnit":"kPa","MetricValue":"24100","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"53"}
Total Steering Angle

86 ° 86 °
{"Name":"Total Steering Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"86","MetricUnit":"°","MetricValue":"86","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"54"}
Steering Cycle Times - High Idle

3.1 s 3.1 s
{"Name":"Steering Cycle Times - High Idle","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":"s","EnglishValue":"3.1","MetricUnit":"s","MetricValue":"3.1","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"55"}
Steering Cycle Times - Low Idle

5.7 s 5.7 s
{"Name":"Steering Cycle Times - Low Idle","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"5.7","MetricUnit":"s","MetricValue":"5.7","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"56"}

Operating Specifications

Operating Weight

105271 lb 47750 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":"7.9 – 22.2 m3 (10.3 – 29.0 yd3)","EnglishUnit":"lb","EnglishValue":"105271","MetricUnit":"kg","MetricValue":"47750","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"20"}
Blade Capacities

7.9 – 22.2 m3 (10.3 – 29.0 yd3)
{"Name":"Blade Capacities","SpecificationId":null,"TextValue":"7.9 – 22.2 m3 (10.3 – 29.0 yd3)","EnglishUnit":"lb","EnglishValue":"112428","MetricUnit":"kg","MetricValue":"51103","Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"21"}
Coal Scoop Operating Weight

112428 lb 51103 kg
{"Name":"Coal Scoop Operating Weight","SpecificationId":null,"TextValue":"Cat planetary power shift","EnglishUnit":"lb","EnglishValue":"112428","MetricUnit":"kg","MetricValue":"51103","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"22"}
Chip Scoop Operating Weight

112838 lb 112838 kg
{"Name":"Chip Scoop Operating Weight","SpecificationId":null,"TextValue":"Cat planetary power shift","EnglishUnit":"lb","EnglishValue":"112838","MetricUnit":"kg","MetricValue":"112838","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"23"}

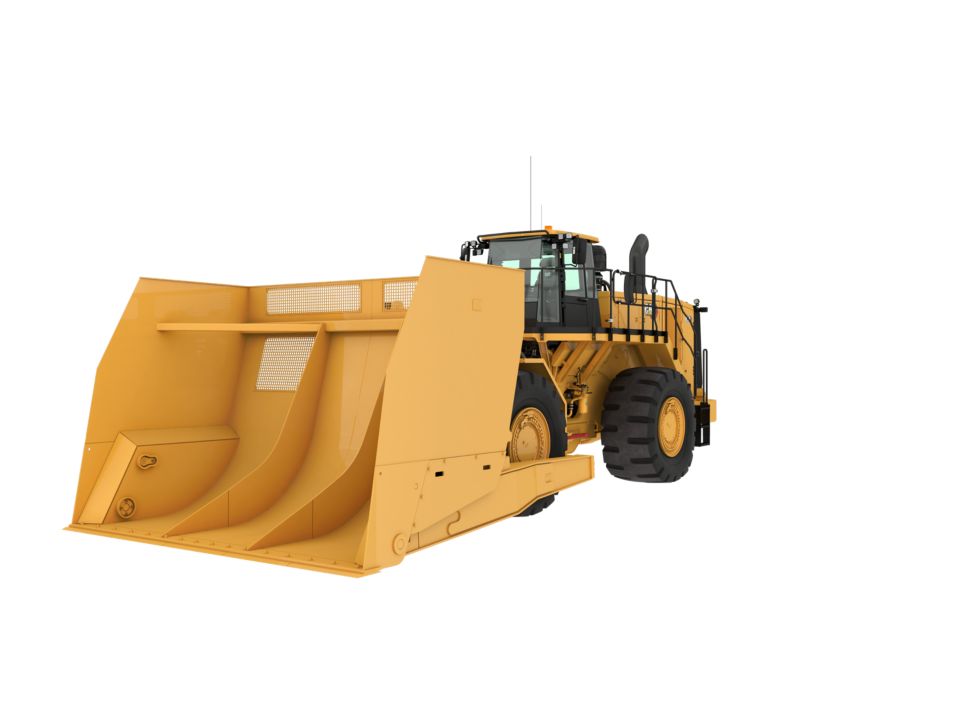

Scoops

Chip Scoop Carry Capacity

35 yd³ 26.8 m³
{"Name":"Chip Scoop Carry Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"35","MetricUnit":"m³","MetricValue":"26.8","Type":"measurement","SpecificationGroup":"Scoops","SortOrder":"120"}
Chip Scoop Doze Capacity

70 yd³ 53.3 m³
{"Name":"Chip Scoop Doze Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"70","MetricUnit":"m³","MetricValue":"53.3","Type":"measurement","SpecificationGroup":"Scoops","SortOrder":"121"}
Coal Scoop Carry Capacity

30 yd³ 22.9 m³
{"Name":"Coal Scoop Carry Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"30","MetricUnit":"m³","MetricValue":"22.9","Type":"measurement","SpecificationGroup":"Scoops","SortOrder":"122"}
Coal Scoop Doze Capacity

60 yd³ 45.9 m³
{"Name":"Coal Scoop Doze Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"60","MetricUnit":"m³","MetricValue":"45.9","Type":"measurement","SpecificationGroup":"Scoops","SortOrder":"123"}

Service Refill Capacities

Fuel Tank

209.5 gal (US) 793 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":"Trunnion","EnglishUnit":"gal (US)","EnglishValue":"209.5","MetricUnit":"l","MetricValue":"793","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"60"}
Cooling System

31.7 gal (US) 120 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":"±13°","EnglishUnit":"gal (US)","EnglishValue":"31.7","MetricUnit":"l","MetricValue":"120","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"61"}
Crankcase

15.9 gal (US) 60 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"15.9","MetricUnit":"l","MetricValue":"60","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"62"}
Diesel Exhaust Fluid Tank

8.7 gal (US) 33 l
{"Name":"Diesel Exhaust Fluid Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8.7","MetricUnit":"l","MetricValue":"33","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"63"}
Transmission

31.7 gal (US) 120 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"31.7","MetricUnit":"l","MetricValue":"120","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"64"}
Hydraulic System Factory Fill

63.4 gal (US) 240 l
{"Name":"Hydraulic System Factory Fill","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"63.4","MetricUnit":"l","MetricValue":"240","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"64"}
Differential - Final Drives - Front

49.1 gal (US) 186 l
{"Name":"Differential - Final Drives - Front","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"49.1","MetricUnit":"l","MetricValue":"186","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"65"}
Differential - Final Drives - Rear

49.1 gal (US) 186 l
{"Name":"Differential - Final Drives - Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"49.1","MetricUnit":"l","MetricValue":"186","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"66"}
Hydraulic System - Tank Only

37 gal (US) 140 l
{"Name":"Hydraulic System - Tank Only","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.","EnglishUnit":"gal (US)","EnglishValue":"37","MetricUnit":"l","MetricValue":"140","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"67"}

Sound Performance - Tier 4 Final/EU Stage V - Standard

Operator Sound Level (ISO 6396)

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Level (ISO 6396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final/EU Stage V - Standard","SortOrder":"100"}
Machine Sound Level (ISO 6395)

113 dB(A) 113 dB(A)
{"Name":"Machine Sound Level (ISO 6395)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"113","MetricUnit":"dB(A)","MetricValue":"113","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final/EU Stage V - Standard","SortOrder":"101"}

Sound Performance - Tier 4 Final/EU Stage V - Suppression

Operator Sound Level (ISO 6396)

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Level (ISO 6396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final/EU Stage V - Suppression","SortOrder":"102"}
Machine Sound Level (ISO 6395)

109 dB(A) 109 dB(A)
{"Name":"Machine Sound Level (ISO 6395)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"109","MetricUnit":"dB(A)","MetricValue":"109","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final/EU Stage V - Suppression","SortOrder":"103"}

Transmission

Transmission Type

Cat planetary power shift
{"Name":"Transmission Type","SpecificationId":null,"TextValue":"Cat planetary power shift","EnglishUnit":"mT/hr","EnglishValue":"4.2","MetricUnit":"km/h","MetricValue":"6.8","Type":"text","SpecificationGroup":"Transmission","SortOrder":"22"}
Forward - 1

4.2 mile/h 6.8 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"4.2","MetricUnit":"km/h","MetricValue":"6.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"23"}
Forward - 2

7.2 mile/h 11.6 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.2","MetricUnit":"km/h","MetricValue":"11.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"24"}
Forward - 3

12.6 mile/h 20.3 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12.6","MetricUnit":"km/h","MetricValue":"20.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"25"}
Forward - 4

22 mile/h 35.4 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"22","MetricUnit":"km/h","MetricValue":"35.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"26"}
Reverse - 1

4.2 mile/h 6.8 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"4.2","MetricUnit":"km/h","MetricValue":"6.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"27"}
Reverse - 2

7.6 mile/h 12.2 km/h
{"Name":"Reverse - 2","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"7.6","MetricUnit":"km/h","MetricValue":"12.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"28"}
Reverse - 3

13.3 mile/h 21.4 km/h
{"Name":"Reverse - 3","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"13.3","MetricUnit":"km/h","MetricValue":"21.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"29"}
Direct Drive - Forward 1

Lock-up disabled
{"Name":"Direct Drive - Forward 1","SpecificationId":null,"TextValue":"Lock-up disabled","EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"text","SpecificationGroup":"Transmission","SortOrder":"30"}
Direct Drive - Forward 2

7.7 mile/h 12.4 km/h
{"Name":"Direct Drive - Forward 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"31"}
Direct Drive - Forward 3

13.7 mile/h 22.1 km/h
{"Name":"Direct Drive - Forward 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"13.7","MetricUnit":"km/h","MetricValue":"22.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"32"}
Direct Drive - Forward 4

23.9 mile/h 38.5 km/h
{"Name":"Direct Drive - Forward 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"23.9","MetricUnit":"km/h","MetricValue":"38.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"33"}
Direct Drive - Reverse 1

4.5 mile/h 7.2 km/h
{"Name":"Direct Drive - Reverse 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"4.5","MetricUnit":"km/h","MetricValue":"7.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"34"}
Direct Drive - Reverse 2

8.1 mile/h 13 km/h
{"Name":"Direct Drive - Reverse 2","SpecificationId":null,"TextValue":"Pilot operated LS valve with EH","EnglishUnit":"mile/h","EnglishValue":"8.1","MetricUnit":"km/h","MetricValue":"13","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"35"}
Direct Drive - Reverse 3

14.3 mile/h 23 km/h
{"Name":"Direct Drive - Reverse 3","SpecificationId":null,"TextValue":"Pilot operated LS valve with EH","EnglishUnit":"mile/h","EnglishValue":"14.3","MetricUnit":"km/h","MetricValue":"23","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"36"}

Benefits

Unmatched Durability

The full box-section rear frame resists torsional shock and twisting forces.
Heavy-duty steering cylinder mounts efficiently transmit steering loads into the frame.
Optimized axle mounting results in increased structural integrity.
Achieve longer component life with increased size of upper hitch pin, frame plate, and bearing.
Solid through-width push beams transfer and absorb stresses through a larger portion of the frame.
Features fully enclosed hydraulic wet disc brakes for improved performance.
Robust structures withstand the toughest conditions and multiple lifecycles to improve your bottom line.
In corner dozing, stresses are transferred and absorbed through a larger portion of the frame.

Optimum Efficiency

The Cat C18 engine is designed for maximum fuel efficiency in the most demanding applications.
Experience reliable efficiency with complete control over injection timing, duration, and pressure with Mechanically Actuated Electronic Unit Injection (MEUI™).
Best-in-class Cat planetary powershift transmission features consistent, smooth shifting and efficiency through integrated electronic controls.
Extended engine life and improved fuel efficiency with reduced rated speed.
Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS) provide precise rimpull control.
Load sensing hydraulic steering system enables precise machine control for easier loading.
Lock-up torque converter with advanced control of lock-up speed.
On demand cooling fan protects investment and lengthens lifecycle.
Fully integrated electronic engine controls provide quick response.

Increased Safety

Optional Cat Detect with Object Detection System (rearview camera and radar) or standard Vision (rearview camera) increase operator awareness around the machine.
Cab-mounted LED strobes provide warning for others near the machine.
Optional HID or LED lights provide excellent workspace visibility.
Optional heated mirrors ensure enhanced visibility for safe operation.

Innovative Technology

Integrated technologies allow you to monitor, manage, and enhance your jobsite operations.
Product Link™ remote monitoring provides valuable insight into machine or fleet performance through the VisionLink® interface, so you can make decisions that boost jobsite efficiency and lower operating costs.
Vital Information Management System (VIMS™) 3G touchscreen monitor gives access to a wide range of sensor information and enhanced machine data to resolve problems before machine failure.
Optional Cat Detect technologies enhance awareness of the environment around the machine for increased safety.

Enhanced Operator Comfort

Steering and Transmission Integrated Control System (STIC™) combines directional selection, gear selection, and steering into a single lever, maximizing responsiveness and control, while reducing operator fatigue.
Operators can easily enter and exit the cab with fold-up STIC steer/ armrest, reduced access stairway angles, and standard stairway lighting.
Experience reduced vibrations with isolated cab mounts and seatmounted implement and steering controls.
Reduced interior sound levels keep operators comfortable throughout their entire shift.

Improved Sustainability

The engine is available in configurations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards, or equivalent to U.S. EPA Tier 3 or U.S. EPA Tier 2.
Automatic Engine Idle Shutdown conserves fuel when machine is not in use.
Generate less waste with maintenance-free batteries.
Maximize machine life and lower operating costs with Caterpillar Reman and Certified Rebuild programs, which utilize reused or remanufactured components for 40 to 70% cost savings.
Retrofit packages from Caterpillar deliver new features to older machines to get the most from your investment.

Simplified Maintenance

Machine features ground level or platform access to easily reach daily service points.
Swing-out doors on either side of the engine compartment provide easy access to critical daily service checks.
Ecology drains prevent spills and allow for easier service.
Intuitive design includes ground level access to transmission control valves for safe and convenient service.

Available in two scoop arrangements – wood chip and coal.
Cat wood chip and coal scoops have the unique capability of maximizing your production by both dozing and carrying a load with each pass.
A purpose built hydraulic system, optimized for use with this work tool, maximizes machine productivity and efficiency.
Dual lift cylinders provide hydraulic lift capacity matched to the demands of the application.
Can be equipped with optional ground level accessible swing-out reversing fan for quick inspection and easy cleanout.
Equipped with underhood ventilation system which creates a neutral pressure environment to prevent wood chip ingestion from hood openings while providing fresh air to the alternator, electronics, and turbo.
Extended top guard for increased capacity for wood chip scoops.
Higher ground pressure decreases risk of fires and maximizes use of storage space.
Less damage to coal or wood chips due to rubber tires.
High ground speed provides ability to manage multiple piles.
Scoop design allows load and carry function for mixing.
Lift and tip-out design makes stockpiling operations easy.
Scoop tilt control is standard to maximize worksite efficiency.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, back-up

OPERATOR ENVIRONMENT

Air conditioner

POWER TRAIN

Brakes, oil-cooled, multi-disc, service/secondary

OTHER STANDARD EQUIPMENT

Doors, service access (locking)

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3
