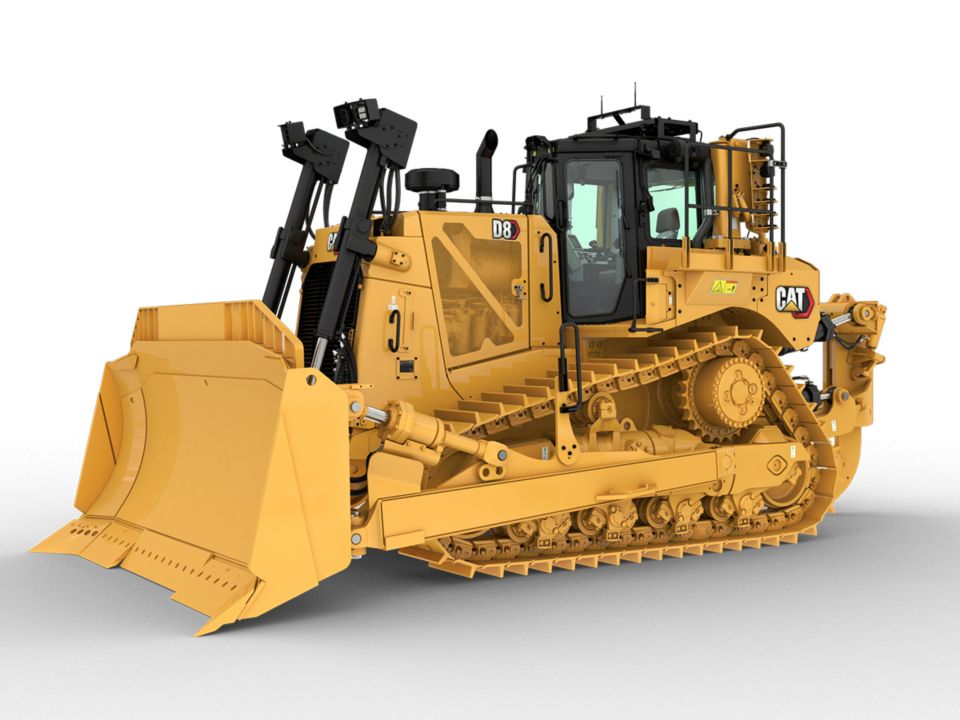

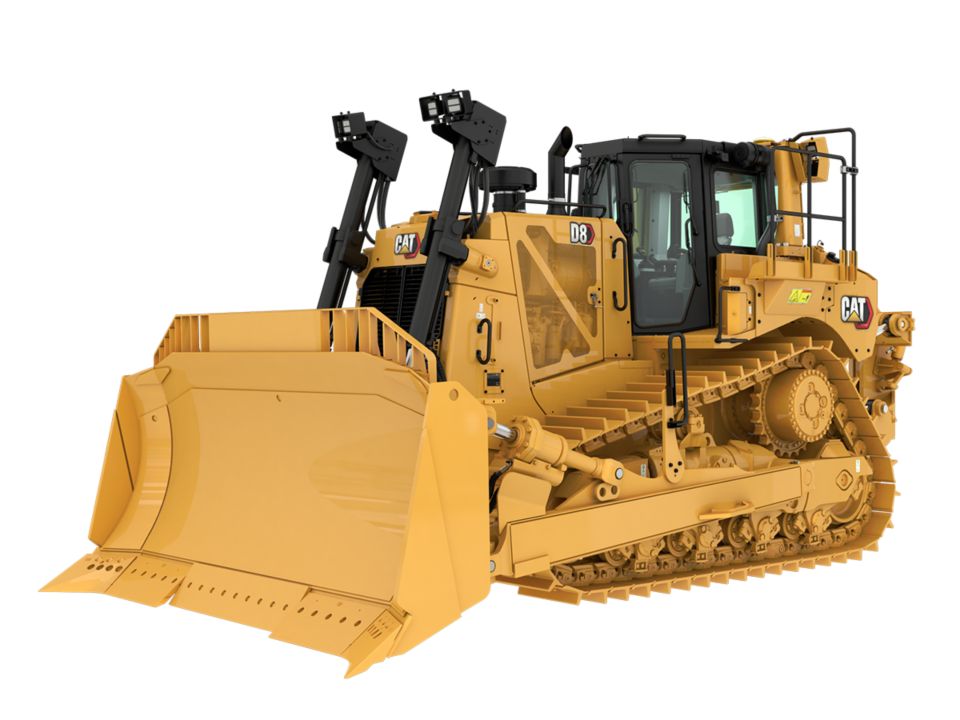

D8
D8

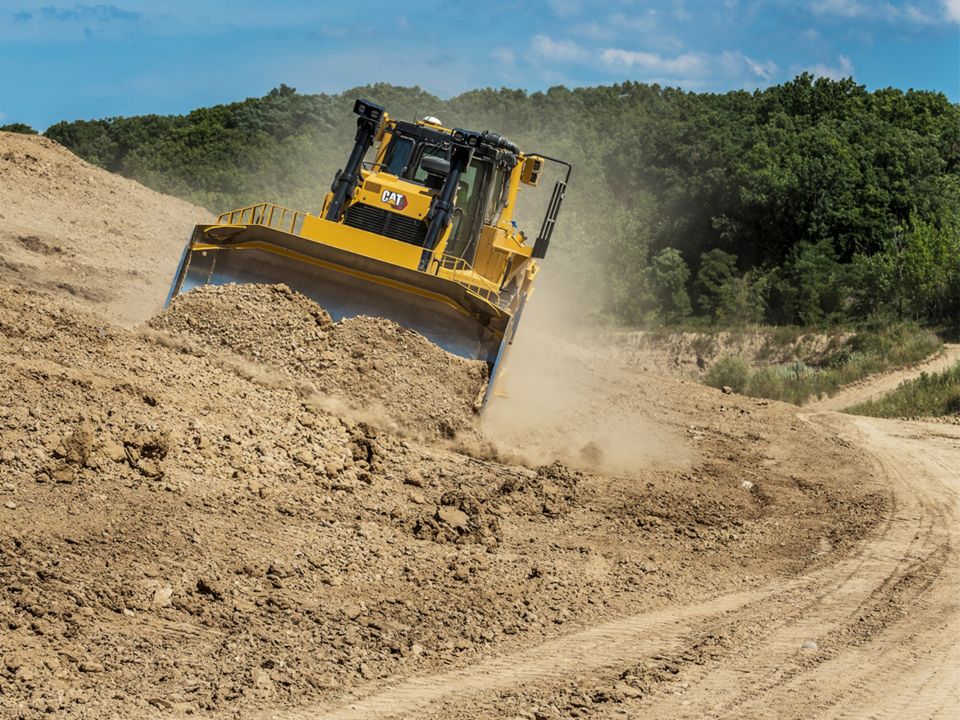

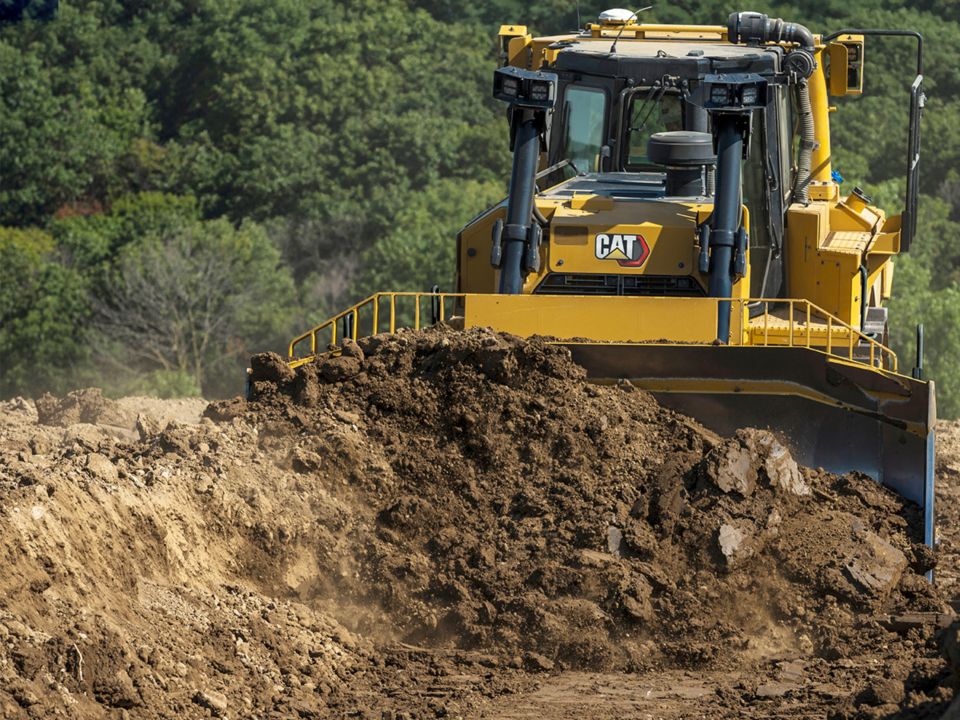

Cat bulldozers are designed for versatility and productivity to help you move more material in less time. Fuel efficiency and features to make service and maintenance easier help you reduce your overall dozer owning and operating costs. Plus, factory integrated GRADE technology features help you get quality work done even faster, from first pass to finish grade, while relying less on operator input.
Book a Demo
Explore my deals
Specifications
Air Conditioning System
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.
Engine
-
Engine ModelCat C15
-
Power - Net354 HP 264 kW
-
Net Power - ISO 9249/SAE J1349354 HP 264 kW
-
Net Power - ISO 9249 (DIN)359 mhp 359 mhp
-
EmissionsU.S. EPA Tier 4 Final/EU Stage V/Korea Stage V
-
Note (1)Net power at 1,900 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
-
Note (2)Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
-
Note (3)Machine Build Number 21B
LGP
-
Operating Weight84906 lb 38513 kg
-
Ground Pressure8 psi 55.3 kPa
-
Width of Standard Shoe38 in 965 mm
-
BladeSemi-Universal (SU)
-
Blade Capacity12.9 yd³ 9.9 m³
LGP Waste Handler
-
Operating Weight93672 lb 42489 kg
-
Ground Pressure8.8 psi 61 kPa
-
Width of Standard Shoe38 in 965 mm
-
BladeSemi-Universal (SU) Landfill
-
Blade Capacity27.9 yd³ 21.2 m³
Service Refill Capacities
-
Fuel Tank165 gal (US) 627 l
-
DEF Tank6 gal (US) 24 l
Standard SU
-
Operating Weight88698 lb 40233 kg
-
Ground Pressure13 psi 91 kPa
-
Width of Standard Shoe24 in 610 mm
-
BladeSemi-Universal (SU)
-
Blade Capacity13 yd³ 10 m³
Sustainability
-
Recyclability98%
Transmission
-
Power TrainFully Automatic 4-Speed Powershift
Waste Handler
-
Operating Weight88206 lb 40010 kg
-
Ground Pressure13 psi 91 kPa
-
Width of Standard Shoe24 in 610 mm
-
BladeSemi-Universal (SU) Landfill
-
Blade Capacity21 yd³ 28 m³
Weights
-
Operating Weight87600 lb 39750 kg
Benefits
MOVE MORE WITH LESS FUEL

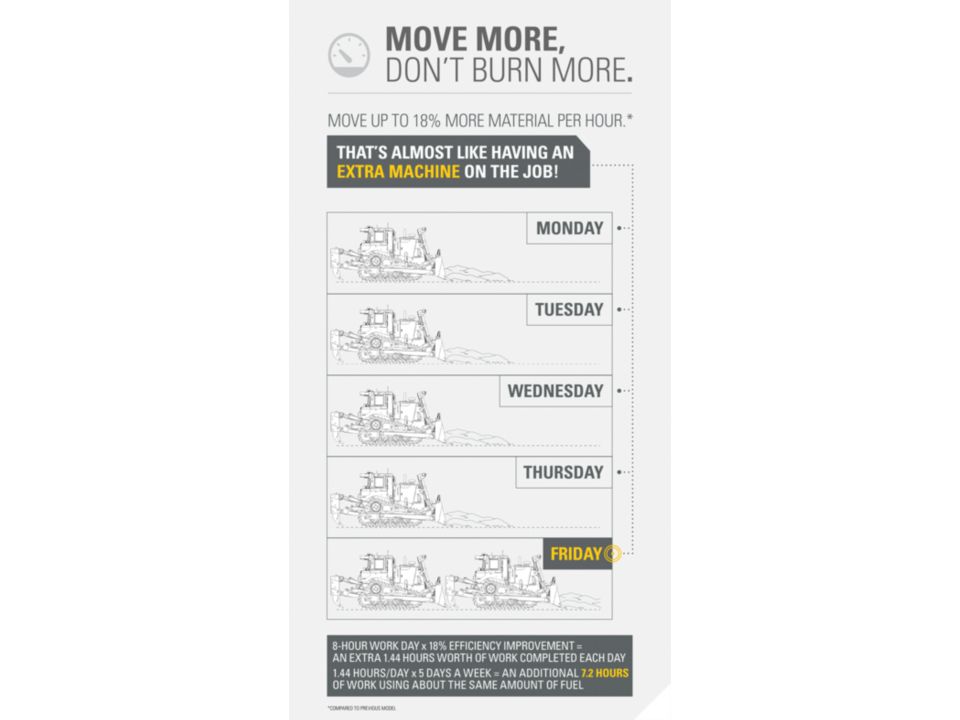

- Move up to 18% more material per hour without burning more fuel in most applications.
- Save up to 11% fuel in lighter applications.
- Fully automatic 4-speed powershift transmission optimizes the dozer for maximum productivity and efficiency.
- 19% larger standard Semi-Universal (SU) blade moves more material per pass.
- Transmission puts up to 13% more drawbar power to the ground.
- 10% increase in steering torque, fully automatic transmission and differential steering combine to provide best-in-class steering performance under load.

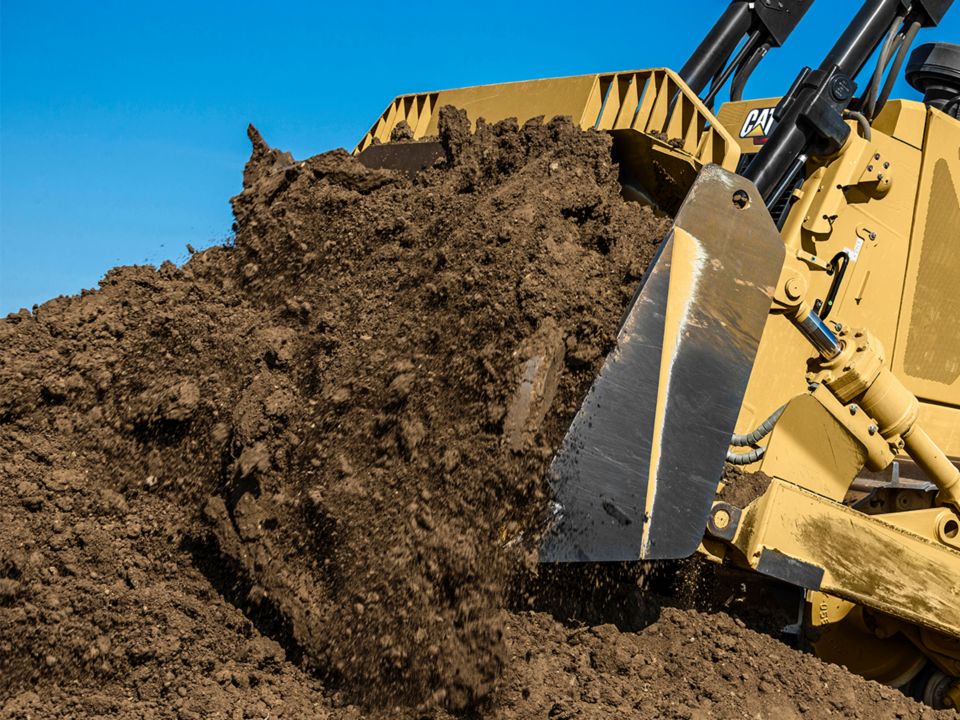

- Optional FirstCut™ cutting edges increase blade payload by up to 35% compared to standard cutting edges.
EASY TO OPERATE
- Fully automatic 4-speed transmission - just select desired ground speed and the tractor will automatically manage settings for maximum efficiency and power based on load.
- No need to upshift/downshift - saves effort for experienced operators and helps newer operators maximize productivity more quickly.
- Added gear between first and second ensures seamless lock-up clutch engagement for exceptionally smooth shifting.
- All speed and turning input is packaged in a single hand control for easy operation - thumb wheel puts easy on-the-fly ground speed changes at your fingertips.

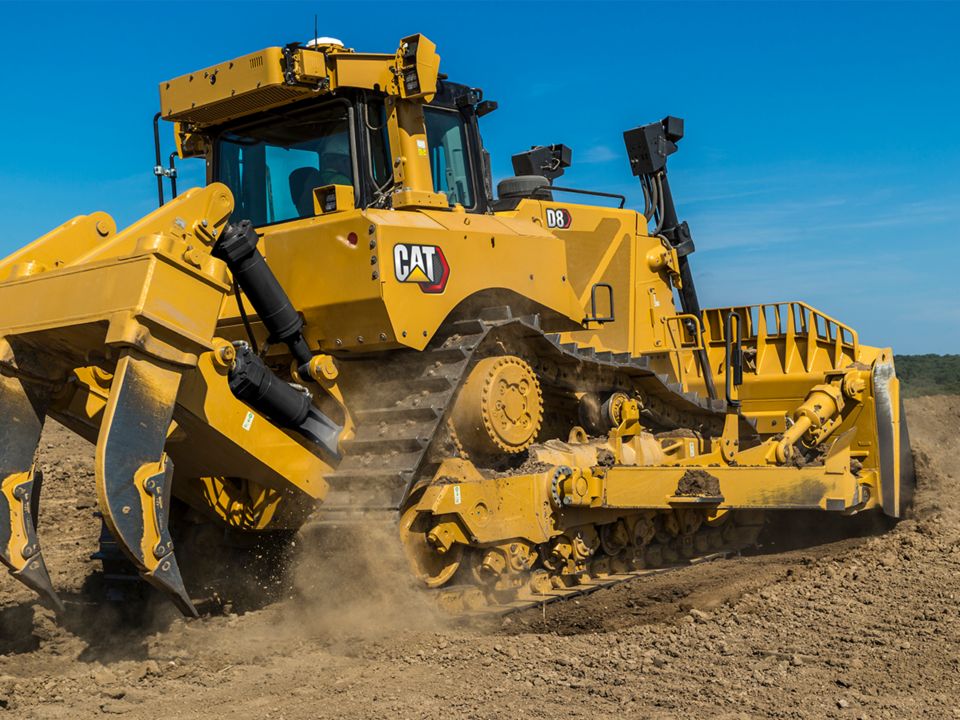

- Automatic Ripper Control and new rip-to-depth feature help reduce operator fatigue and machine wear and tear.
- Engine Idle Shutdown Timer shuts the machine down after a pre-set idling period to save fuel and reduce unnecessary idling time.
- Emissions reduction technology is designed to work automatically in the background while you work.
TECHNOLOGY THAT GETS WORK DONE
- Hit target grade faster and more accurately with Cat Grade technologies. Finish jobs in fewer passes, and with less operator effort, saving you time and helping you increase profit.
- Cat Grade with Slope Assist™ automatically maintains pre-established blade position without a GPS signal. (Single Tilt machines only).
- Cat Grade with 3D option is factory-integrated grade control that helps you improve grading efficiency, accuracy and productivity. Automates blade movements in both fine grading and production dozing applications, reducing operator inputs by as much as 80%. Antennas on top of the cab eliminate blade masts and cables. Reduces need for grade checkers and staking, enhances safety and reduces labor costs.
- Standard Slope Indicate displays machine cross-slope and fore/aft orientation right on the main display.
- Gain even more productivity and reduce operator inputs with Auto Blade Assist, AutoCarry™ and Automatic Ripper Control.
- Factory ARO Option provides optimal mounting locations, brackets, and hardware to simplify installation of an aftermarket grade control system.
- All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica.
- Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
Product Link™ collects machine data that can be viewed online through web and mobile applications. - Access information anytime, anywhere with VisionLink® – and use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your job site.
LOWER MAINTENANCE COSTS
- High quality cartridge fuel filters are purpose-built to help keep your fuel system clean and extend injector life.

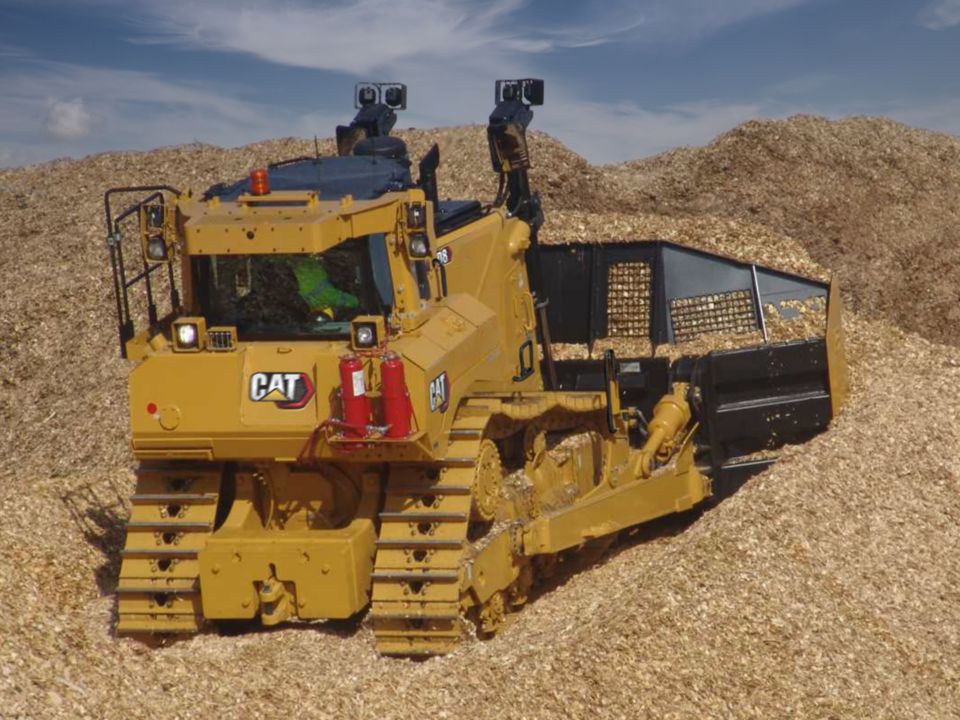

- High debris engine filter (optional) has a pleated design for less plugging - especially ideal for waste, wood chip, other fine debris applications.
- Exclusive Cat hydraulic and power train oil filters offer extended service intervals to save you time and money.
- Reduce cost, add versatility with rear implement valves that accommodate either a ripper or hydraulic winch with no changes and no trade-off in performance.
- Programmable, automatic reversing fan is now standard for greater machine value at no added cost.
- Larger one-piece oil pan doubles engine oil service interval to 500 hours saving you time and parts cost.
- Features like grouped service points, ground level service center and modular transmission help make your daily maintenance and service tasks more convenient.
- Remote Flash allows for select software updates to be made remotely via Product Link on eligible machine models, saving you time and service call expense.
BUILT FOR LONG TERM PRODUCTION
- Robust structures provide the added durability to handle the increased weight and productivity.
- Caterpillar exclusive Elevated Sprocket undercarriage gives you an added edge in machine balance, component Long Term Value and Durability and ease of service.
- Heavy Duty Extended Life undercarriage, HDXL with DuraLink™, is designed to help reduce your operating costs with heavier bushings for up to 25% more wear life, especially in high abrasion conditions.
- Special machine arrangements are equipped from the factory for performance and longer life in harsh applications like landfill, transfer station and stock pile applications.
- Major structures and components are built to be rebuilt, reducing waste, driving down lifetime operating cost, and extending the profitability cycle over more machine life.
BUILT-IN SAFETY FEATURES
- Rear vision camera and cylinder mounted mirrors are available to enhance visibility around the machine.
- Powered Bottom Guard option enhances safety during clean-out.
- Convenient steps, handles and guardrail help you get on and off the tractor with greater ease.
- Ground level access to lighting switch.
- Seat belt indicator enhances safety by reminding you to buckle up with a light/alarm.
- Electronic fluid level verification at startup saves you time and reduces trips up and down from the cab inspect compartments.
- Standard Operator Presence detection system allows the machine to idle when the operator is not seated, but locks out the power train and front implements to avoid unintentional movement.
WASTE HANDLING PERFORMANCE
- Build or close cells, push trash or spread cover – Cat Waste Handlers are designed and built from the frame up to take on the challenges of land?ll work.
- Specialized guarding, striker bars and seals help protect against impact and airborne debris.
- Bottom and Final Drive guarding helps prevent damage from wrapping debris.
- Faster cleanout and enhanced safety with optional Powered Bottom Guards.
- High debris cooling system with automatic reversing fan.
- Insulated Clean Emissions Module and thermal shields provide the highest level of protection.
- Specialized air handling features help deliver cleaner air to the machine and to the cab.
- Land?ll blades and center-hole track shoes help optimize your waste handler for the job.
- Lights are mounted up and away from main debris area for protection, while still shining plenty of light on the work area.
TAKE COMMAND
- Cat Command for Dozing offers remote control operation for enhanced safety and greater productivity.
- Command uses line-of-sight (LOS) control with an over-the-shoulder console, or a non-line-of-sight (NLOS) option using the Cat Command Station to run the machine remotely.
SUSTAINABILITY
- Optimize machine performance for greatest productivity, while helping improve fuel efficiency and reduce greenhouse gas emissions with a fully automatic 4-speed transmission with lock-up clutch.
- The Cat® C15 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Korea Tier 5 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Cat® Grade with Slope Assist™ helps you avoid costly rework and wasteful fuel burn and greenhouse gas emissions by automating your blade position without a GPS signal.
- Cat® Grade with 3D automates blade movements using a GPS signal helping you follow a grade design, reducing fuel burn and greenhouse gas emissions by improving efficiency and accuracy.
- AutoCarry™ automates blade lift to reduce track slip for maximum efficiency on each pass to help lower fuel burn and greenhouse gas emissions.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Equipment Info
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details.
Other Standard Equipment
Engine compartment service light
Starters, Batteries, And Alternators
Alternators: 150 Amp, Basic or Ducted
Undercarriage
Positive Pin Retention Track (44 Section, sealed and lubricated, single grouser shoes)
Power Train
C15 Diesel Engine, Electronic Unit Injection (EUI), Aftertreatment to meet U.S. EPA Tier 4 Final/Korea Stage V emission standards
Operator Environment
Access/egress lighting with shutdown timer
Cat Technology
Grade control ready
Power Train, Engine, Brakes
Brakes, Basic or Extreme Service
Bottom Guards
Standard
Electrical
Back-up alarm
Final Drives
Final drives: LGP or Guarded
Hydraulics
Dozer tilt and fan hydraulics: Single Tilt or Dual Tilt
