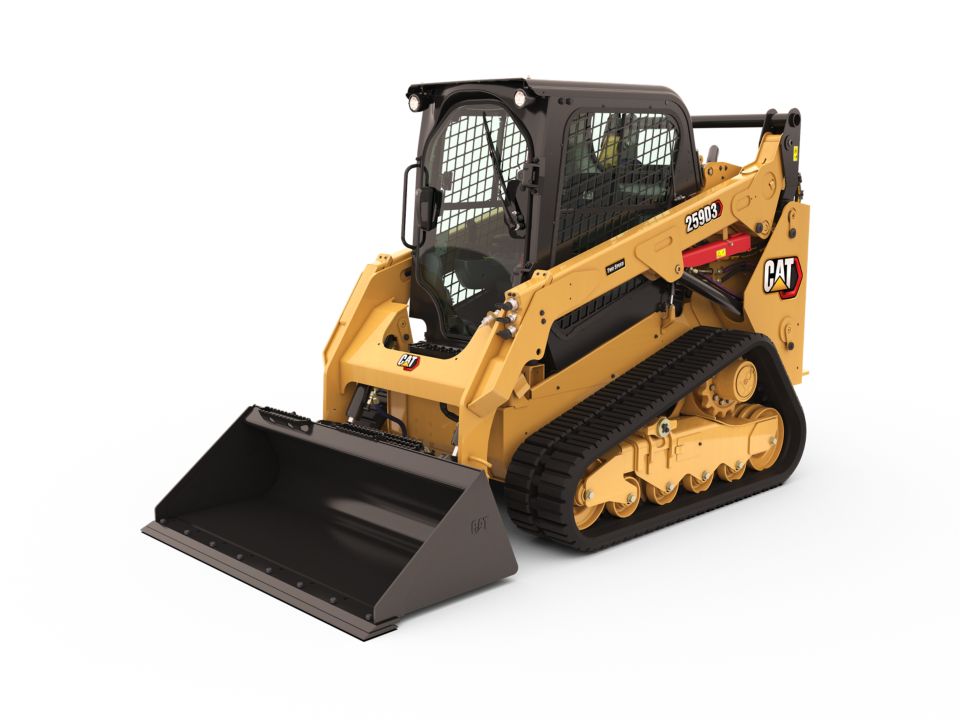

259D3
259D3
Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.
Book a Demo
Explore my deals
Specifications
Air Conditioning System (if equipped)
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Cab
-
ROPSISO 3471:2008
-
FOPSISO 3449:2005 Level I
Dimensions
-
Length - Track on Ground59 in 1499 mm
-
Overall Length - Track78.7 in 1999 mm
-
Height - Top of Cab83.1 in 2111 mm
-
Ground Clearance8.9 in 226 mm
-
Departure Angle35°
-
Maximum Dump Angle52°
-
Bucket Pin Height - Carry Position7.8 in 198 mm
-
Vehicle Width (400 mm/15.7 in tracks)69 in 1755 mm
-
Turning Radius from Center - Coupler54.8 in 1392 mm
-
Bucket Pin Reach - Maximum Lift9.4 in 238 mm
-
Vehicle Width (320 mm/12.6 in tracks)66 in 1676 mm
-
Maximum Reach - With Arms Parallel to Ground51.4 in 1305 mm
-
Maximum Overall Height154.1 in 3915 mm
-
Turning Radius from Center - Bucket86 in 2184 mm
-
Bucket Pin Height - Maximum Lift121 in 3075 mm
-
Length - Without Bucket108.9 in 2767 mm
-
Rack Back Angle - Maximum Height87°
-
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
-
Turning Radius from Center - Machine Rear61.5 in 1561 mm
-
Length - With Bucket on Ground137.3 in 3486 mm
-
Clearance at Maximum Lift and Dump89.9 in 2283 mm
-
Reach - Maximum Lift/Dump23.9 in 608 mm
Engine
-
Gross Power - SAE J199574.3 hp 55.4 kW
-
Displacement203 in³ 3.3 l
-
Net Power73.2 hp 54.6 kW
-
Bore3.7 in 94 mm
-
Engine ModelCat C3.3B DIT (turbo)
-
Gross Power74.3 hp 55.4 kW
-
Net Power - SAE 134973.2 hp 54.6 kW
-
Stroke4.7 in 120 mm
-
Peak Torque - 1,500 rpm - SAE J1995195 ft·lbf 265 N·m
-
Net Power - ISO 924973.9 hp 55.1 kW
Hydraulic System
-
Hydraulic Flow - High Flow - Loader Hydraulic Pressure3335 psi 23000 kPa
-
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)58 hp 43 kW
-
Hydraulic Flow - Standard - Loader Hydraulic Pressure3335 psi 23000 kPa
-
Hydraulic Flow - Standard - Loader Hydraulic Flow20 gal/min 76 l/min
-
Hydraulic Flow - Standard - Hydraulic Power (Calculated)39 hp 29 kW
-
Hydraulic Flow - High Flow - Loader Hydraulic Flow30 gal/min 112 l/min
Noise Level
-
Note (3)***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
-
Outside Cab***103 dB(A) 103 dB(A)
-
Inside Cab**83 dB(A) 83 dB(A)
-
Note (2)**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
-
Note (1)Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Operating Specifications
-
Rated Operating Capacities - 35% Tipping Load2010 lb 915 kg
-
Tipping Load5745 lb 2610 kg
-
Breakout Force - Tilt Cylinder4965 lb 2252 kg
-
Ground Contact Area - With 320 mm/12.6 in Track1483 in² 0.96 m²
-
Ground Pressure - With 320 mm/12.6 in Track6.1 psi 41.8 kPa
-
Rated Operating Capacities - 50% Tipping Load2870 lb 1305 kg
-
Ground Contact Area - With 400 mm/15.7 in Track1848 in² 1.19 m²
-
Rated Operating Capacity with Optional Counterweight3060 lb 1390 kg
-
Ground Pressure - With 400 mm/15.7 in Track4.9 psi 34 kPa
-
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Power Train
-
Travel Speed - Forward or Reverse - One Speed5.9 mile/h 9.5 km/h
-
Travel Speed - Forward or Reverse - Two Speed8.5 mile/h 13.7 km/h
Service Refill Capacities
-
Hydraulic System13.2 gal (US) 50 l
-
Fuel Tank24.8 gal (US) 94 l
-
Engine Crankcase3 gal (US) 11 l
-
Hydraulic Tank10.3 gal (US) 39 l
-
Cooling System3.7 gal (US) 14 l
Weights
-
Operating Weight8987 lb 4076 kg
-
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Benefits
Quiet and Comfortable
The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.
Maximum Performance
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Making Your Job Easier
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
A Smooth Ride
A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.
Optimized Machine Capability
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
Sustainability
- The Cat® C3.3B engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 7% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
- Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
- Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.
Equipment Info
ELECTRICAL
12 volt Electrical System
OPERATOR ENVIRONMENT
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response, and Creep Control
POWER TRAIN
Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
OTHER
Engine Enclosure, Lockable
MANDATORY EQUIPMENT
Hydraulics, Standard or High Flow
