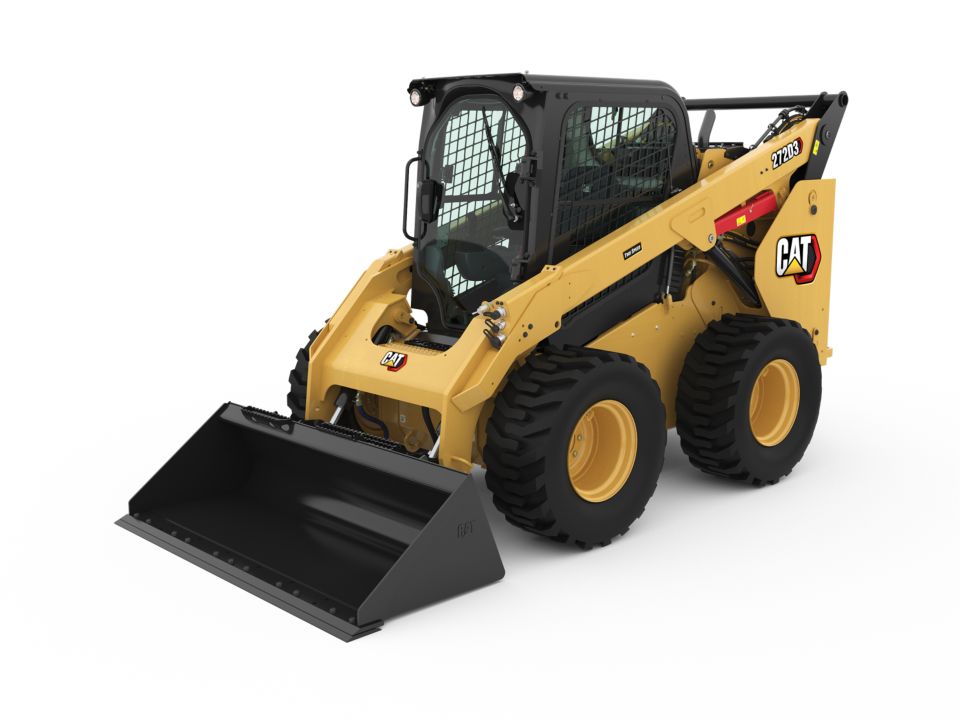

272D3

Built for tough work, the Cat® Skid Steer Loaders incorporate big iron features. These machines deliver reliability, durability, and efficient operation, even in the toughest working conditions.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System (if equipped)

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System (if equipped)","SortOrder":"99"}

Cab

ROPS

ISO 3471:2008
{"Name":"ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"45"}
FOPS

ISO 3449:2005 Level I
{"Name":"FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level I","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"46"}

Dimensions

Wheel Base

54.6 in 1386 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"54.6","MetricUnit":"mm","MetricValue":"1386","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"19"}
Height - Top of Cab

82.4 in 2094 mm
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"82.4","MetricUnit":"mm","MetricValue":"2094","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"22"}
Vehicle Width over Tires

72 in 1829 mm
{"Name":"Vehicle Width over Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72","MetricUnit":"mm","MetricValue":"1829","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"23"}
Ground Clearance

8.9 in 226 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8.9","MetricUnit":"mm","MetricValue":"226","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"29"}
Departure Angle

27°
{"Name":"Departure Angle","SpecificationId":null,"TextValue":"27°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"30"}
Maximum Dump Angle

51°
{"Name":"Maximum Dump Angle","SpecificationId":null,"TextValue":"51°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"32"}
Bucket Pin Reach - Maximum Lift

14.7 in 374 mm
{"Name":"Bucket Pin Reach - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.7","MetricUnit":"mm","MetricValue":"374","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Bucket Pin Height - Maximum Lift

127.1 in 3229 mm
{"Name":"Bucket Pin Height - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"127.1","MetricUnit":"mm","MetricValue":"3229","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Turning Radius from Center - Machine Rear

74.7 in 1899 mm
{"Name":"Turning Radius from Center - Machine Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.7","MetricUnit":"mm","MetricValue":"1899","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Reach - Maximum Lift/Dump

30.3 in 769 mm
{"Name":"Reach - Maximum Lift/Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30.3","MetricUnit":"mm","MetricValue":"769","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Bumper Overhang - Behind Rear Axle

46.2 in 1175 mm
{"Name":"Bumper Overhang - Behind Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"46.2","MetricUnit":"mm","MetricValue":"1175","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Length - Without Bucket

127.6 in 3242 mm
{"Name":"Length - Without Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"127.6","MetricUnit":"mm","MetricValue":"3242","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Overall Height

160.1 in 4067 mm
{"Name":"Maximum Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"160.1","MetricUnit":"mm","MetricValue":"4067","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Turning Radius from Center - Coupler

58.3 in 1482 mm
{"Name":"Turning Radius from Center - Coupler","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"58.3","MetricUnit":"mm","MetricValue":"1482","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Reach - With Arms Parallel to Ground

50.5 in 1282 mm
{"Name":"Maximum Reach - With Arms Parallel to Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"50.5","MetricUnit":"mm","MetricValue":"1282","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Clearance at Maximum Lift and Dump

96 in 2438 mm
{"Name":"Clearance at Maximum Lift and Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96","MetricUnit":"mm","MetricValue":"2438","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Length - With Bucket on Ground

155.7 in 3954 mm
{"Name":"Length - With Bucket on Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"155.7","MetricUnit":"mm","MetricValue":"3954","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Bucket Pin Height - Carry Position

7.8 in 198 mm
{"Name":"Bucket Pin Height - Carry Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.8","MetricUnit":"mm","MetricValue":"198","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Turning Radius from Center - Bucket (racked)

89.8 in 2280 mm
{"Name":"Turning Radius from Center - Bucket (racked)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"89.8","MetricUnit":"mm","MetricValue":"2280","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Rack Back Angle - Maximum Height

84°
{"Name":"Rack Back Angle - Maximum Height","SpecificationId":null,"TextValue":"84°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"99"}
Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"99"}
Roll Back Angle

28°
{"Name":"Roll Back Angle","SpecificationId":null,"TextValue":"28°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"99"}

Engine

Gross Power - SAE J1995:2014

98 hp 73 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"98","MetricUnit":"kW","MetricValue":"73","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Net Power - SAE 1349

95 hp 71 kW
{"Name":"Net Power - SAE 1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"95","MetricUnit":"kW","MetricValue":"71","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Displacement

232 in³ 3.8 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"232","MetricUnit":"l","MetricValue":"3.8","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Stroke

4.7 in 120 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.7","MetricUnit":"mm","MetricValue":"120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"12"}
Bore

3.9 in 100 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.9","MetricUnit":"mm","MetricValue":"100","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"13"}
Peak Torque - 1,500 rpm - SAE J1995

246 ft·lbf 334 N·m
{"Name":"Peak Torque - 1,500 rpm - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"246","MetricUnit":"N·m","MetricValue":"334","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model

Cat C3.8 DIT (turbo)
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat C3.8 DIT (turbo)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - ISO 9249

96 hp 71 kW
{"Name":"Net Power - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"96","MetricUnit":"kW","MetricValue":"71","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Flywheel Power

95 hp 71 kW
{"Name":"Net Flywheel Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"95","MetricUnit":"kW","MetricValue":"71","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Hydraulic Flow - Standard - Loader Hydraulic Flow

23 gal/min 86 l/min
{"Name":"Hydraulic Flow - Standard - Loader Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"23","MetricUnit":"l/min","MetricValue":"86","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)

76 hp 57 kW
{"Name":"Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"76","MetricUnit":"kW","MetricValue":"57","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - Standard - Hydraulic Power (Calculated)

44 hp 33 kW
{"Name":"Hydraulic Flow - Standard - Hydraulic Power (Calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"44","MetricUnit":"kW","MetricValue":"33","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow

32 gal/min 121 l/min
{"Name":"Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"32","MetricUnit":"l/min","MetricValue":"121","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - Standard - Loader Hydraulic Pressure

3335 psi 23000 kPa
{"Name":"Hydraulic Flow - Standard - Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3335","MetricUnit":"kPa","MetricValue":"23000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure

4061 psi 28000 kPa
{"Name":"Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Noise Level

Outside Cab**

102 dB(A)
{"Name":"Outside Cab**","SpecificationId":null,"TextValue":"102 dB(A)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Note (2)

*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Note (1)

Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Inside Cab*

83 dB(A)
{"Name":"Inside Cab*","SpecificationId":null,"TextValue":"83 dB(A)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Note (3)

**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}

Operating Specifications

Rated Operating Capacity

3450 lb 1570 kg
{"Name":"Rated Operating Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3450","MetricUnit":"kg","MetricValue":"1570","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"2"}
Tipping Load

6900 lb 3135 kg
{"Name":"Tipping Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6900","MetricUnit":"kg","MetricValue":"3135","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"15"}
Breakout Force - Tilt Cylinder

7443 lb 3376 kg
{"Name":"Breakout Force - Tilt Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7443","MetricUnit":"kg","MetricValue":"3376","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"16"}
Breakout Force - Lift Cylinder

6074 lb 2755 kg
{"Name":"Breakout Force - Lift Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6074","MetricUnit":"kg","MetricValue":"2755","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"17"}
Rated Operating Capacity with Optional Counterweight

3690 lb 1675 kg
{"Name":"Rated Operating Capacity with Optional Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3690","MetricUnit":"kg","MetricValue":"1675","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}

Power Train

Travel Speed - Forward or Reverse - One Speed

6.6 mile/h 10.6 km/h
{"Name":"Travel Speed - Forward or Reverse - One Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.6","MetricUnit":"km/h","MetricValue":"10.6","Type":"measurement","SpecificationGroup":"Power Train","SortOrder":"99"}
Travel Speed - Forward or Reverse - Two Speed Option

9.4 mile/h 15.1 km/h
{"Name":"Travel Speed - Forward or Reverse - Two Speed Option","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9.4","MetricUnit":"km/h","MetricValue":"15.1","Type":"measurement","SpecificationGroup":"Power Train","SortOrder":"99"}

Service Refill Capacities

Cooling System

4.1 gal (US) 16 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.1","MetricUnit":"l","MetricValue":"16","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"52"}
Engine Crankcase

3.5 gal (US) 13 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"3.5","MetricUnit":"l","MetricValue":"13","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"53"}
Fuel Tank

31.7 gal (US) 120 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"31.7","MetricUnit":"l","MetricValue":"120","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"54"}
Hydraulic System

14.5 gal (US) 55 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14.5","MetricUnit":"l","MetricValue":"55","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"55"}
Hydraulic Tank

10.3 gal (US) 39 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"10.3","MetricUnit":"l","MetricValue":"39","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"56"}
Chain Box - Each Side

2.7 gal (US) 10.2 l
{"Name":"Chain Box - Each Side","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.7","MetricUnit":"l","MetricValue":"10.2","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Diesel Exhaust Fluid (DEF) Tank

5 gal (US) 19 l
{"Name":"Diesel Exhaust Fluid (DEF) Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Weights

Operating Weight

9133 lb 4143 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9133","MetricUnit":"kg","MetricValue":"4143","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"3"}
Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, standard flow hydraulics, 850 CCA battery, 1883 mm (74 in) low profile bucket, no optional counterweights, Cat PC 12 × 16.5 tires and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

A Smooth Ride

A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. (Photo shown may vary from machine referenced.)

Sustainability

The Cat® C3.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 7% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Equipment Info

ELECTRICAL

12 volt Electrical System

OPERATOR ENVIRONMENT

Gauges: Fuel Level, DEF Level, Hour Meter

POWER TRAIN

Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards

OTHER

Engine Enclosure, Lockable

MANDATORY EQUIPMENT

Hydraulics, Standard or High Flow XPS
