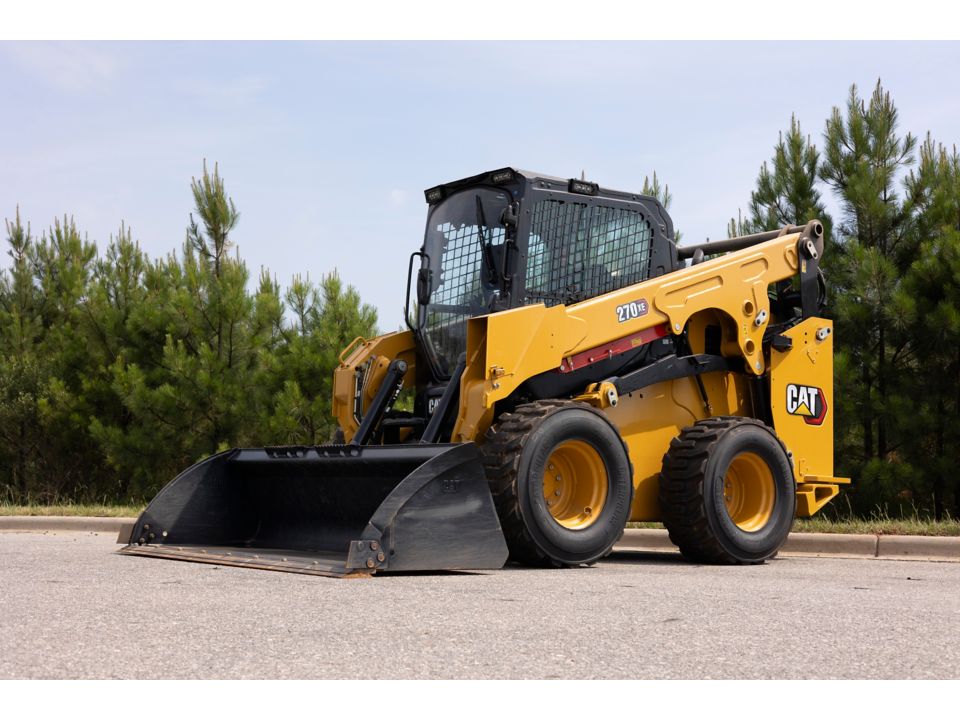

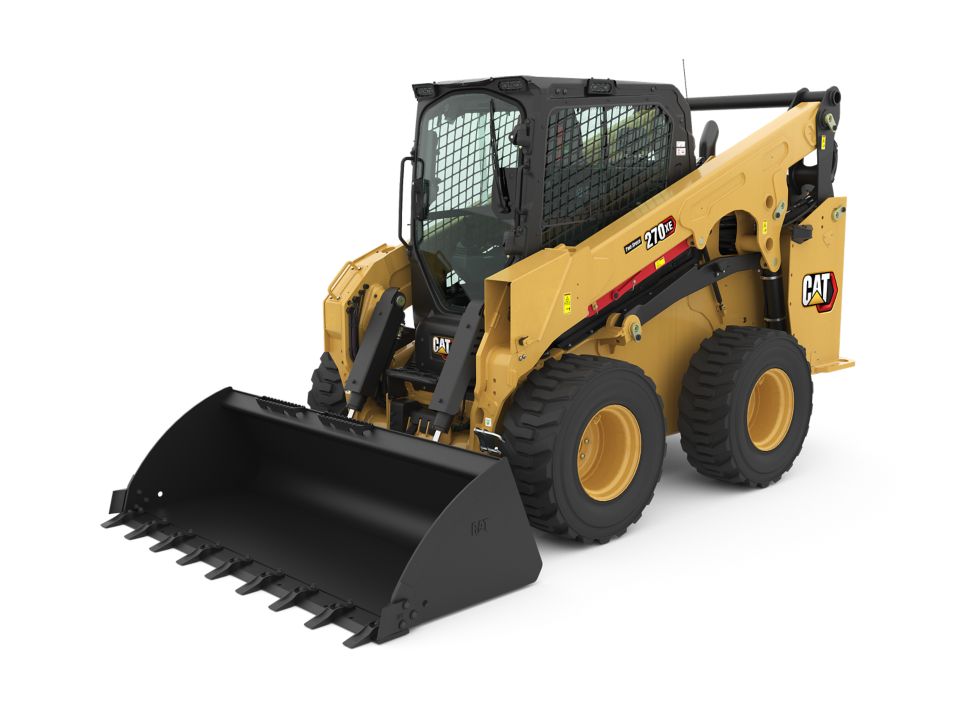

270 XE

Built for tough work, the Cat® Skid Steer Loaders incorporate big iron features. These machines deliver reliability, durability, and efficient operation, even in the toughest working conditions.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System (if equipped)

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System (if equipped)","SortOrder":"99"}

Cab

ROPS

ISO 3471:2008
{"Name":"ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"45"}
FOPS

ISO 3449:2005 Level I
{"Name":"FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level I","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"46"}
FOPS Level II

ISO 3449:2005 (Optional)
{"Name":"FOPS Level II","SpecificationId":null,"TextValue":"ISO 3449:2005 (Optional)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"47"}

Dimensions

Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"15"}
Wheel Base

54.6 in 1386 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"54.6","MetricUnit":"mm","MetricValue":"1386","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"19"}
Height - Top of Cab

87.5 in 2222 mm
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"87.5","MetricUnit":"mm","MetricValue":"2222","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"22"}
Vehicle Width over Tires

72 in 1830 mm
{"Name":"Vehicle Width over Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72","MetricUnit":"mm","MetricValue":"1830","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"23"}
Ground Clearance

9.4 in 238 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.4","MetricUnit":"mm","MetricValue":"238","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"29"}
Departure Angle

24.4°
{"Name":"Departure Angle","SpecificationId":null,"TextValue":"24.4°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"30"}
Maximum Dump Angle

43.5°
{"Name":"Maximum Dump Angle","SpecificationId":null,"TextValue":"43.5°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"32"}
Roll Back Angle

28°
{"Name":"Roll Back Angle","SpecificationId":null,"TextValue":"28°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"99"}
Reach - Maximum Lift/Dump

29.5 in 749 mm
{"Name":"Reach - Maximum Lift/Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.5","MetricUnit":"mm","MetricValue":"749","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Turning Radius from Center - Coupler

57.9 in 1471 mm
{"Name":"Turning Radius from Center - Coupler","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"57.9","MetricUnit":"mm","MetricValue":"1471","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Turning Radius from Center - Machine Rear

74.7 in 1897 mm
{"Name":"Turning Radius from Center - Machine Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.7","MetricUnit":"mm","MetricValue":"1897","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Bucket Pin Height - Maximum Lift

135.4 in 3440 mm
{"Name":"Bucket Pin Height - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"135.4","MetricUnit":"mm","MetricValue":"3440","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Turning Radius from Center - Bucket

89.1 in 2262 mm
{"Name":"Turning Radius from Center - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"89.1","MetricUnit":"mm","MetricValue":"2262","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Length - Without Bucket

128.7 in 3270 mm
{"Name":"Length - Without Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"128.7","MetricUnit":"mm","MetricValue":"3270","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Reach - With Arms Parallel to Ground

46.5 in 1182 mm
{"Name":"Maximum Reach - With Arms Parallel to Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"46.5","MetricUnit":"mm","MetricValue":"1182","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Clearance at Maximum Lift and Dump

106.9 in 2716 mm
{"Name":"Clearance at Maximum Lift and Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"106.9","MetricUnit":"mm","MetricValue":"2716","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Length - With Bucket on Ground

153.9 in 3908 mm
{"Name":"Length - With Bucket on Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153.9","MetricUnit":"mm","MetricValue":"3908","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Overall Height

165.9 in 4214 mm
{"Name":"Maximum Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"165.9","MetricUnit":"mm","MetricValue":"4214","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Bucket Pin Reach - Maximum Lift

11.1 in 283 mm
{"Name":"Bucket Pin Reach - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"283","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Rack Back Angle - Maximum Height

88°
{"Name":"Rack Back Angle - Maximum Height","SpecificationId":null,"TextValue":"88°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"99"}
Bucket Pin Height - Carry Position

9.3 in 235 mm
{"Name":"Bucket Pin Height - Carry Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.3","MetricUnit":"mm","MetricValue":"235","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}

Engine

Gross Power - SAE J1995:2014

121 hp 91 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"121","MetricUnit":"kW","MetricValue":"91","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Net Power - SAE 1349

121 hp 90 kW
{"Name":"Net Power - SAE 1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"121","MetricUnit":"kW","MetricValue":"90","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Net Power - ISO 9249

120 hp 89 kW
{"Name":"Net Power - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"120","MetricUnit":"kW","MetricValue":"89","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Displacement

221 in³ 3.6 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"221","MetricUnit":"l","MetricValue":"3.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Stroke

4.7 in 120 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.7","MetricUnit":"mm","MetricValue":"120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"12"}
Bore

3.9 in 98 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.9","MetricUnit":"mm","MetricValue":"98","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"13"}
Engine Model

Cat C3.6TA (turbocharged, aftercooled)
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat C3.6TA (turbocharged, aftercooled)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Torque - 1,600 rpm - SAE J1995

406 lb/ft 551 N·m
{"Name":"Peak Torque - 1,600 rpm - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"406","MetricUnit":"N·m","MetricValue":"551","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Power - ISO 14396

134 hp 100 kW
{"Name":"Engine Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"134","MetricUnit":"kW","MetricValue":"100","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note

Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
{"Name":"Note","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Hydraulic Flow - Standard - Loader Hydraulic Pressure

3500 psi 24130 kPa
{"Name":"Hydraulic Flow - Standard - Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3500","MetricUnit":"kPa","MetricValue":"24130","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure

4496 psi 31000 kW
{"Name":"Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4496","MetricUnit":"kW","MetricValue":"31000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow

34 gpm 129 L/min
{"Name":"Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"34","MetricUnit":"L/min","MetricValue":"129","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - Standard - Hydraulic Power (Calculated)

46.4 hp 34.6 kW
{"Name":"Hydraulic Flow - Standard - Hydraulic Power (Calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"46.4","MetricUnit":"kW","MetricValue":"34.6","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - XE - Hydraulic Power (calculated)

103.9 hp 77.5 kW
{"Name":"Hydraulic Flow - XE - Hydraulic Power (calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"103.9","MetricUnit":"kW","MetricValue":"77.5","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - Standard - Loader Hydraulic Flow

23 gpm 86 L/min
{"Name":"Hydraulic Flow - Standard - Loader Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"23","MetricUnit":"L/min","MetricValue":"86","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)

80.7 hp 60.2 kW
{"Name":"Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"80.7","MetricUnit":"kW","MetricValue":"60.2","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*

40 gpm 150 L/min
{"Name":"Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"40","MetricUnit":"L/min","MetricValue":"150","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure

4061 psi 28000 kPa
{"Name":"Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4061","MetricUnit":"kPa","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Noise Level

Outside Cab**

101 dB(A)
{"Name":"Outside Cab**","SpecificationId":null,"TextValue":"101 dB(A)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Note (1)

Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Note (3)

**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Inside Cab*

83 dB(A)
{"Name":"Inside Cab*","SpecificationId":null,"TextValue":"83 dB(A)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}
Note (2)

*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Noise Level","SortOrder":"99"}

Operating Specifications

Rated Operating Capacity

4015 lb 1821 kg
{"Name":"Rated Operating Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4015","MetricUnit":"kg","MetricValue":"1821","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"2"}
Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"8"}
Tipping Load

8029 lb 3642 kg
{"Name":"Tipping Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"8029","MetricUnit":"kg","MetricValue":"3642","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"15"}
Breakout Force - Tilt Cylinder

8267 lb 3750 kg
{"Name":"Breakout Force - Tilt Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"8267","MetricUnit":"kg","MetricValue":"3750","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"16"}
Rated Operating Capacity with Optional Counterweight

4372 lb 1983 kg
{"Name":"Rated Operating Capacity with Optional Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4372","MetricUnit":"kg","MetricValue":"1983","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Breakout Force - Lift Cylinder

6349 lb 2880 kg
{"Name":"Breakout Force - Lift Cylinder","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6349","MetricUnit":"kg","MetricValue":"2880","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}

Power Train

Travel Speed - Forward or Reverse - Two Speed Option

10.6 mile/h 17 km/h
{"Name":"Travel Speed - Forward or Reverse - Two Speed Option","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.6","MetricUnit":"km/h","MetricValue":"17","Type":"measurement","SpecificationGroup":"Power Train","SortOrder":"99"}
Travel Speed - Forward or Reverse - One Speed

7.3 mile/h 11.7 km/h
{"Name":"Travel Speed - Forward or Reverse - One Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.3","MetricUnit":"km/h","MetricValue":"11.7","Type":"measurement","SpecificationGroup":"Power Train","SortOrder":"99"}

Service Refill Capacities

Cooling System

4.6 gal (US) 17.5 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.6","MetricUnit":"l","MetricValue":"17.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"52"}
Engine Crankcase

2.4 gal (US) 9 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.4","MetricUnit":"l","MetricValue":"9","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"53"}
Fuel Tank

34.5 gal (US) 130.7 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"34.5","MetricUnit":"l","MetricValue":"130.7","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"54"}
Hydraulic System

10.8 gal (US) 41 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"10.8","MetricUnit":"l","MetricValue":"41","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"55"}
Hydraulic Tank

6.9 gal (US) 26 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"56"}
Diesel Exhaust Fluid (DEF) Tank

2.9 gal (US) 11 l
{"Name":"Diesel Exhaust Fluid (DEF) Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.9","MetricUnit":"l","MetricValue":"11","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Sustainability

Recyclability

93%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"93%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Weights

Operating Weight

10847 lb 4920 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"10847","MetricUnit":"kg","MetricValue":"4920","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"3"}
Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
{"Name":"Note","SpecificationId":null,"TextValue":"Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"7"}

Benefits

High Performance Power Train

High performance power train delivers maximum performance and production capability as well as standard two speed travel.

Redesigned Operator Station

Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 270 XE provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

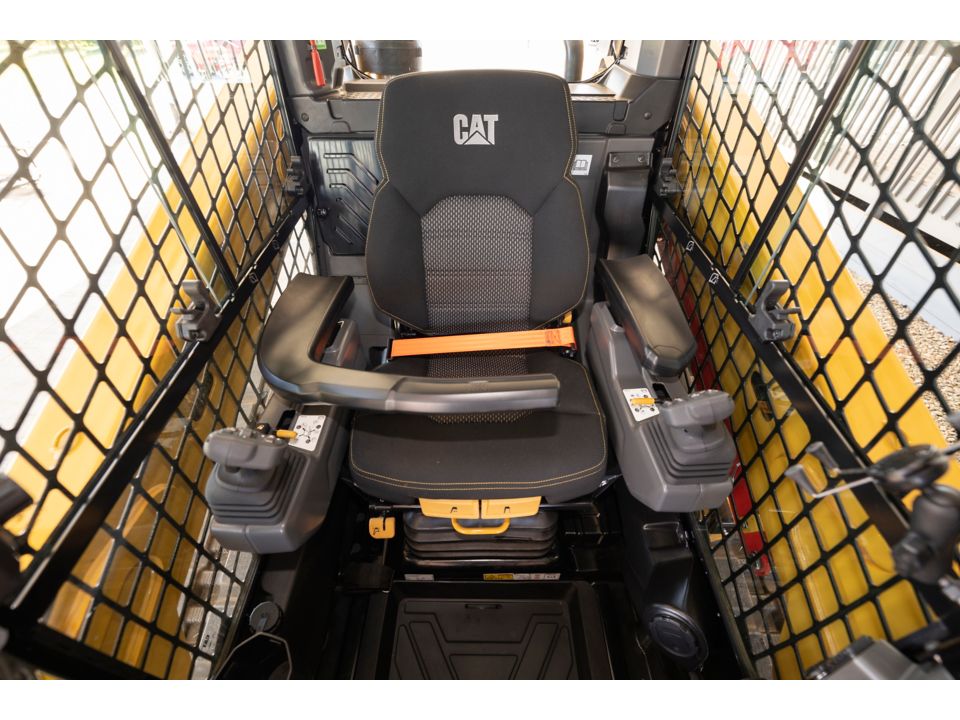

Ventilated and Heated High-Back Air Ride Seat

Available ventilated and heated high-back air ride seat and seat-mounted adjustable joystick controls deliver superior operator comfort.

XE Hydraulic System

The XE Hydraulic System provides the highest flow and highest pressure in the Cat Skid Steer Loader line-up to deliver industry leading hydraulic horsepower to efficiently run even the most power hungry attachments.

High Horsepower, High Torque Engine

Electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range and provides high torque for increased working performance, no matter the application. The engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Ride Control

Speed sensitive ride control option improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.

Advanced Touchscreen Monitor

The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

Advanced Joysticks

The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.

Ground-Level Access

Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

Cat Attachments

The broad range of performance matched Cat Attachments makes the Cat Skid Steer Loader the most versatile machine on the job site.

Equipment Info

ELECTRICAL

Battery disconnect with lockout feature

RADIO

Radio, none – for open canopy machines and countries not certified for Bluetooth® technology

PRODUCT LINK™

Product Link Basic series PL243

COOLING FAN

On-demand, variable speed hydraulic cooling fan

GUARDING AND SEALING PACKAGES

HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)

OPERATOR ENVIRONMENT

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.

HYDRAULICS

Selectable control pattern – ISO or H

POWER TRAIN

Cat C2.8T turbocharged diesel engine, Meeting U.S. EPA Tier 4 Final and EU Stage V emission standards

OTHER

Auxiliary Hydraulics, Continuous Flow

MANDATORY EQUIPMENT

Quick Coupler: Mechanical or Hydraulic

PERFORMANCE PACKAGES

Performance Package HP5: XE Hydraulics

COMFORT PACKAGES

Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)

TECHNOLOGY PACKAGES

T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
