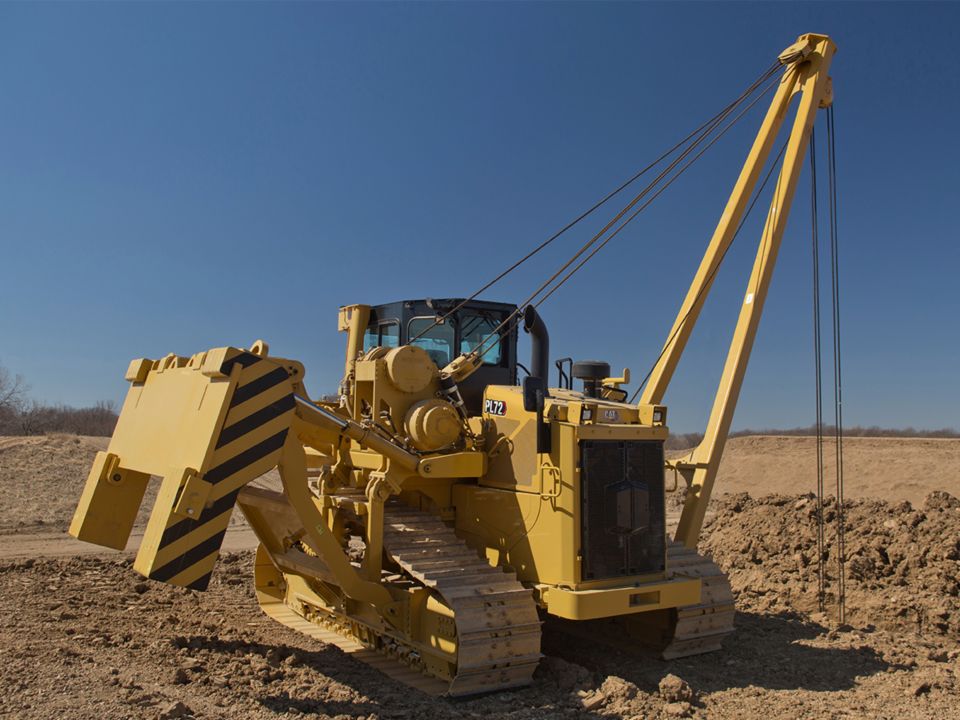

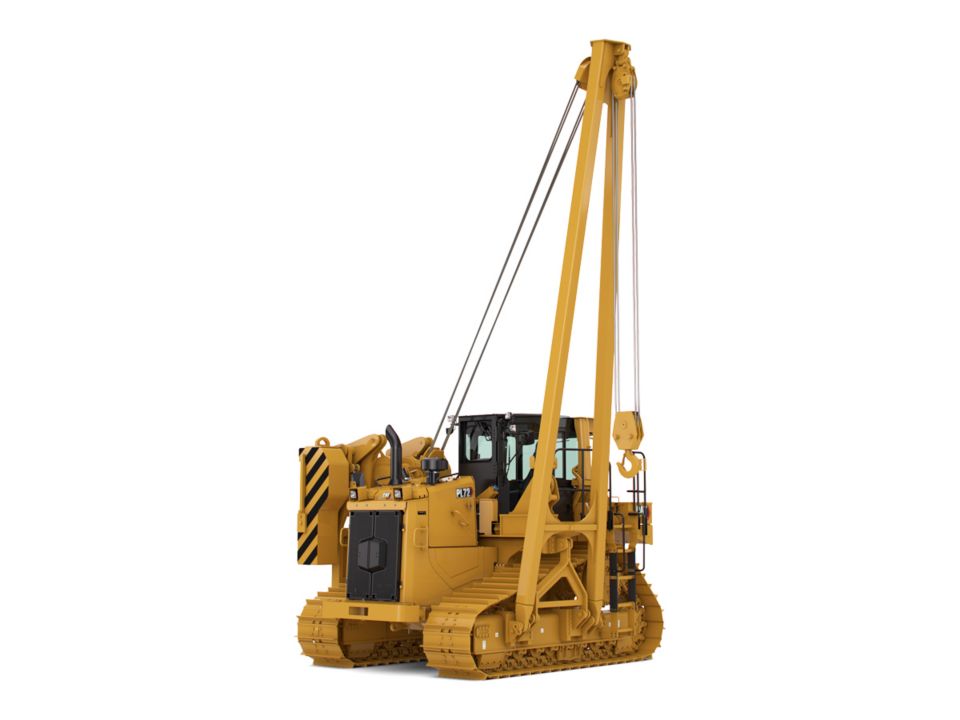

The full line of purpose-built Cat pipe layers is designed for performance, safety and serviceability. The experienced support of the Cat dealer network means your key pipe line equipment is available when and where you need it.
Book a Demo
Explore my deals
Specifications
Air Conditioning System
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.
Components
-
6.1 m (20 ft) Boom2004 lb 909 kg
-
7.3 m (24 ft) Boom2562 lb 1162 kg
Dimensions (Approximate)
-
Width - Tractor - Standard Shoes10 ft 3.05 m
-
Width - Tractor - Counterweight Extended17.65 ft 5.38 m
-
Width - Tractor - Counterweight Retracted12.04 ft 3.67 m
-
Width - Tractor - Counterweight/Boom Removed11.88 ft 3.62 m
-
Track Gauge7.51 ft 2.29 m
-
Length - Track on Ground12.17 ft 3.71 m
-
Machine Height - Top of Counterweight8.53 ft 2.6 m
-
Height - Machine - Cab and ROPS11.25 ft 3.43 m
-
Boom Height (at SAE 1.22 m [4 ft] Overhang) 6.1 m (20 ft) Boom22.24 ft 6.78 m
-
Boom Height (at SAE 1.22 m [4 ft] Overhang) 7.3 m (24 ft) Boom26.28 ft 8.01 m
Engine
-
Engine ModelCat C9.3
-
Flywheel Power211 hp 158 kW
-
Net Power - Rated - ISO 9249/SAE J1349211 hp 158 kW
-
Net Power - Rated - ISO 9249/SAE J1349 (DIN)214 mhp 214 mhp
-
EmissionsU.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA
-
Fuel Tank109.6 gal (US) 415 l
-
DEF Tank(1)4.5 gal (US) 17.1 l
-
Note (1)Rated speed 2,000 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
-
Note (2)All non-road Tier 4 Interim and Final, Stage IIIB, Stage IV, Stage V, Japan 2014 and Korea Tier 4 Final diesel engines are required to use only ultra-low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
-
Note (3)Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Undercarriage
-
Track Gauge90 in 2286 mm
-
Track on Ground10.7 ft 3270 mm
-
Ground Contact Area (ISO 16754)8406 in² 5.42 m²
-
Ground Pressure (ISO 16754)8.2 psi 56.6 kPa
-
Shoe Width30 in 760 mm
Weights
-
Lift Capacity90000 lb 40823 kg
-
Operating Weight68945 lb 31278 kg
-
Shipping Weight59846 lb 27145 kg
Benefits
Built to Perform
- Integrated powertrain with differential steering and updated hydraulic system work together to provide power and improved machine maneuverability for any pipelayer application.
- Electro-hydraulics offer greater response and precise control to variable speed motors of the heavy duty winches for greater machine productivity.
- Differential steering maintains full power to both tracks for best-in class turning even with a loaded boom, increasing maneuverability in tight locations.
- Improved machine center of gravity for better slope capabilities.
Because Uptime Counts
- Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.
- Full left-side engine serviceability, including fill tube, dipstick, air cleaner, fuel filters, oil filter and coolant level check allows for quick and efficient routine service.
- High speed oil change is standard and makes servicing even faster.
- Hydraulic and powertrain filters and fuel tank drain are located at rear of machine and are conveniently serviceable from ground level.
- Pressure taps are placed within hydraulic system to allow for quick monitoring.
- Major components like the engine, transmission, and final drives are modular for quicker removal during service, saving cost and downtime.
Designed for Operators

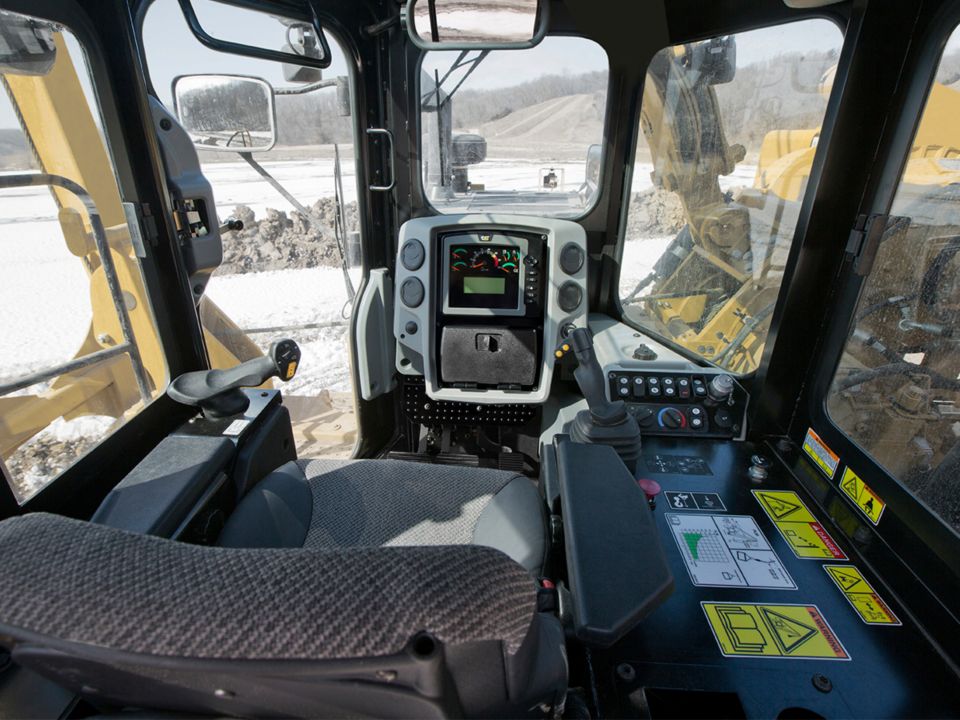

- Implement joystick places all pipelayer implement controls and functionality in one hand.
- Low-effort, ergonomically designed and positioned control handle allows simultaneous, precise positioning of load line, boom, and extendible counterweight.
- Dual brake pedal controls provide enhanced maneuverability and steering control.
- Planetary differential steering contributes to superior maneuverability in tight areas of operation as well as enhanced slope capability.
Work in Comfort

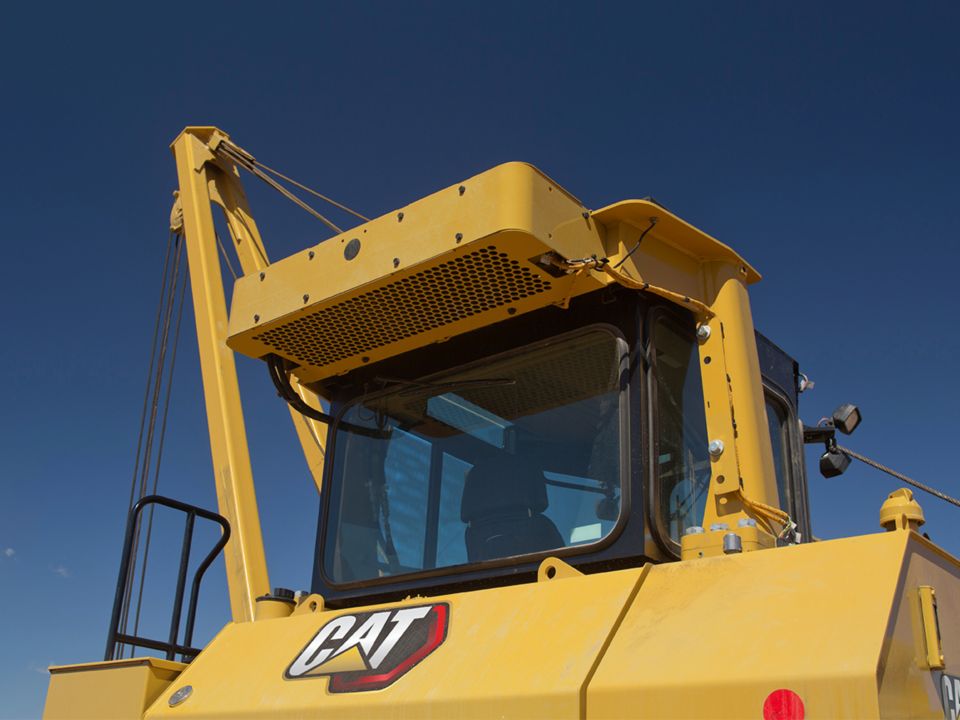

- Quieter, pressurized cab with heated/ventilated seat option improves operator comfort and productivity.
- Ergonomically designed seat is positioned for greater visibility to work area and convenient access to machine control lever, switches and pedals.
Built-In Safety Features
- Load Moment Indicator (LMI) is standard.

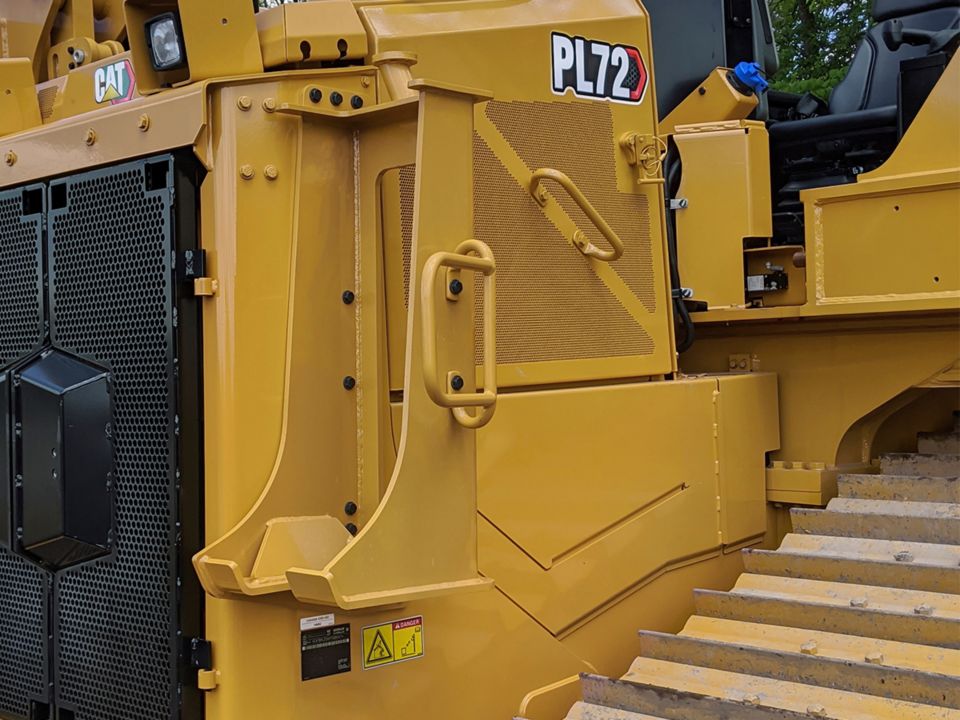

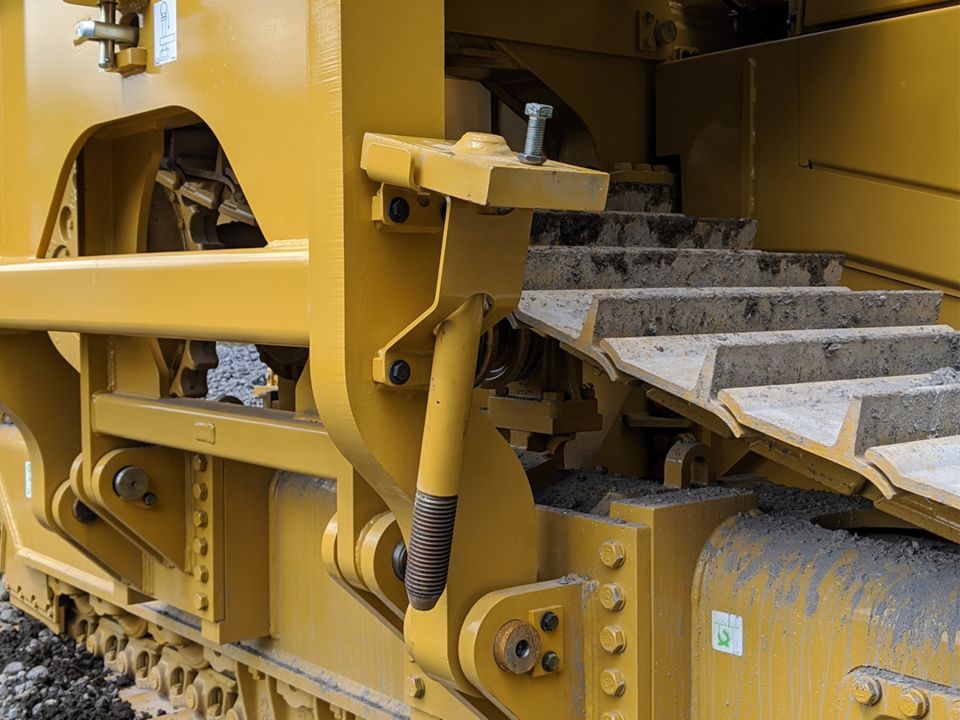

- Convenient steps, handles and guardrail provide safe access/egress.

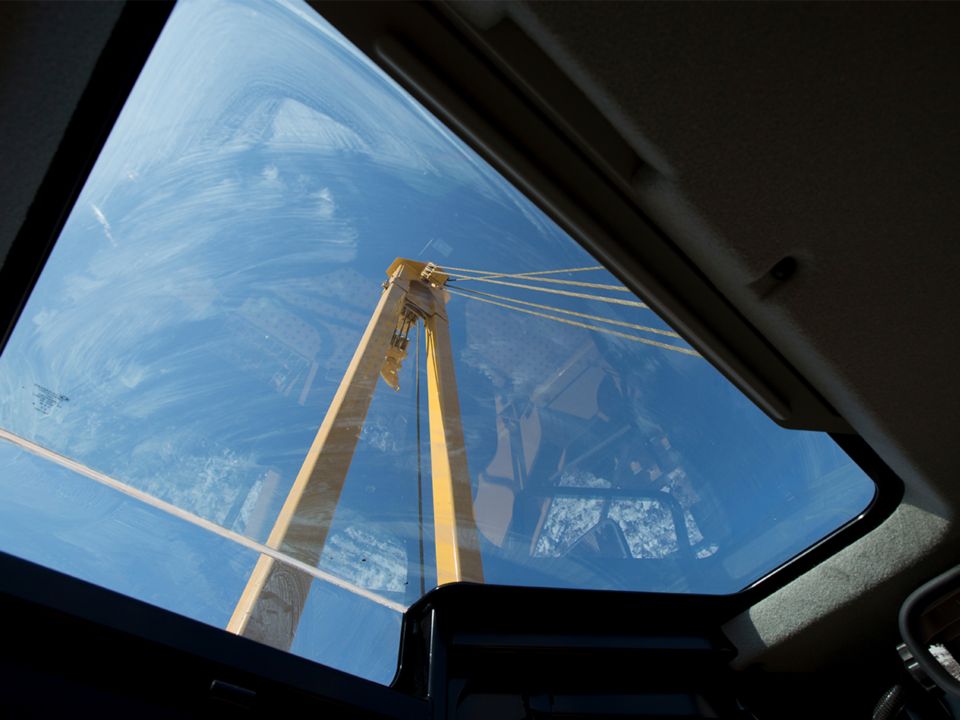

- Enlarged roof top window with retractable shade, additional mirrors, and angled door improves visibility to the trench, boom and blocks.
- Standard operator presence detection system allows machine to idle when operator is not seated, but locks out power train to avoid unintentional movement.
- Rear vision camera is standard, and two additional cameras can be added as an option to further enhance visibility around the machine.
Equipment Info
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
Cat C9.3 diesel engine: Electronic Unit Injection (EUI) Aftertreatment Meets Tier 4 Final/ Stage V or Tier 3/Stage IIIA equivalent emission standards, depending on region of sale.
OPERATOR ENVIRONMENT
Rear Vision Camera
PIPELAYING EQUIPMENT
Block and hook with latch
ELECTRICAL
Alarm, backup
UNDERCARRIAGE
Carrier roller
OTHER STANDARD EQUIPMENT
Bumper, front with towing device
Product Brochures
