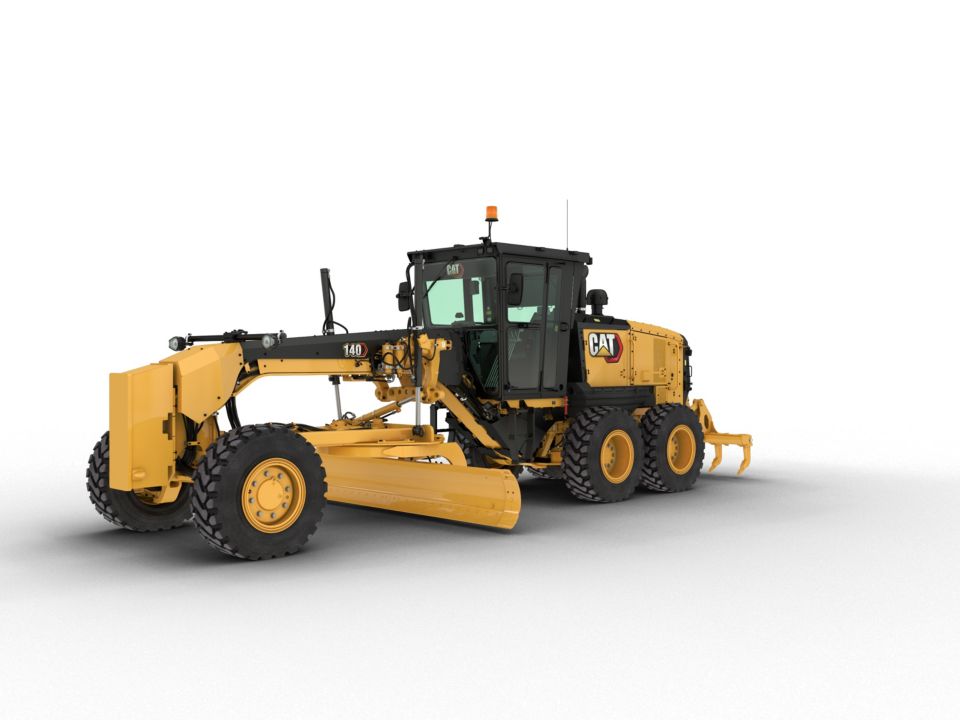

140 / 140 AWD LVR

Cat® Motor Graders for Road Construction, Site Prep, and Material Moving Jobsites - Cat® Motor Graders are built to deliver precision and performance on road construction, road maintenance, site preparation, and material moving projects. Backed by decades of Caterpillar design expertise, these machines offer exceptional grading accuracy and durability in a range of applications—from highway building and urban infrastructure to large-scale mining and heavy-duty earthmoving. Available in multiple sizes to match your specific jobsite needs, Cat Motor Graders feature advanced technology to boost operator productivity and grading efficiency. Enhance machine performance with Cat® Motor Grader attachments designed to dig, spread, plow, and precisely meet grade specifications across varying terrain and material types.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.","EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"152","Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"99"}

Blade Range

Maximum Lift Above Ground

18.9 in 480 mm
{"Name":"Maximum Lift Above Ground","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18.9","MetricUnit":"mm","MetricValue":"480","Type":"measurement","SpecificationGroup":"Blade Range","SortOrder":"99"}
Maximum Depth of Cut

28.9 in 735 mm
{"Name":"Maximum Depth of Cut","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28.9","MetricUnit":"mm","MetricValue":"735","Type":"measurement","SpecificationGroup":"Blade Range","SortOrder":"99"}

Dimensions

Basic Blade Width

140 in 3556 mm
{"Name":"Basic Blade Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"140","MetricUnit":"mm","MetricValue":"3556","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Length of Machine*

397.6 in 10100 mm
{"Name":"Length of Machine*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"397.6","MetricUnit":"mm","MetricValue":"10100","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Width

97.6 in 2480 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"97.6","MetricUnit":"mm","MetricValue":"2480","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Note

*Typically equipped with push block and ripper.
{"Name":"Note","SpecificationId":null,"TextValue":"*Typically equipped with push block and ripper.","EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"152","Type":"text","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Height

132 in 3354 mm
{"Name":"Maximum Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"132","MetricUnit":"mm","MetricValue":"3354","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}

Engine

Net Power - EEC 80/1269

250 hp 186 kW
{"Name":"Net Power - EEC 80/1269","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"250","MetricUnit":"kW","MetricValue":"186","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Net Power - ISO 9249/SAE J1349

250 hp 186 kW
{"Name":"Net Power - ISO 9249/SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"250","MetricUnit":"kW","MetricValue":"186","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Standard Capability

109 °F 43 °C
{"Name":"Standard Capability","SpecificationId":null,"TextValue":"*Typically equipped with push block and ripper.","EnglishUnit":"°F","EnglishValue":"109","MetricUnit":"°C","MetricValue":"43","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine RPM

2,000
{"Name":"Engine RPM","SpecificationId":null,"TextValue":"2,000","EnglishUnit":"in","EnglishValue":"397.6","MetricUnit":"mm","MetricValue":"10100","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model

Cat C9.3
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat C9.3","EnglishUnit":"in","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"166","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Bore

4.5 in 115 mm
{"Name":"Bore","SpecificationId":null,"TextValue":"*Typically equipped with push block and ripper.","EnglishUnit":"in","EnglishValue":"4.5","MetricUnit":"mm","MetricValue":"115","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Emissions

U.S. EPA Tier 4 Final/EU Stage V
{"Name":"Emissions","SpecificationId":null,"TextValue":"U.S. EPA Tier 4 Final/EU Stage V","EnglishUnit":"in³","EnglishValue":"567.5","MetricUnit":"l","MetricValue":"9.3","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement

567.5 in³ 9.3 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"567.5","MetricUnit":"l","MetricValue":"9.3","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Stroke

5.9 in 149 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":"6","EnglishUnit":"in","EnglishValue":"5.9","MetricUnit":"mm","MetricValue":"149","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Number of Cylinders

6
{"Name":"Number of Cylinders","SpecificationId":null,"TextValue":"6","EnglishUnit":"in","EnglishValue":"28.9","MetricUnit":"mm","MetricValue":"735","Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Torque Rise - ISO 9294

44%
{"Name":"Torque Rise - ISO 9294","SpecificationId":null,"TextValue":"44%","EnglishUnit":"lb","EnglishValue":"42325","MetricUnit":"kg","MetricValue":"19198","Type":"text","SpecificationGroup":"Engine","SortOrder":"1000"}

Machine Weight

Note

*Typically equipped with push block and ripper.
{"Name":"Note","SpecificationId":null,"TextValue":"*Typically equipped with push block and ripper.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Machine Weight","SortOrder":"99"}
All-Wheel Drive (AWD) Weight

44613 lb 20236 kg
{"Name":"All-Wheel Drive (AWD) Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"44613","MetricUnit":"kg","MetricValue":"20236","Type":"measurement","SpecificationGroup":"Machine Weight","SortOrder":"99"}

Moldboard

Blade Width

12 ft 3.7 m
{"Name":"Blade Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12","MetricUnit":"m","MetricValue":"3.7","Type":"measurement","SpecificationGroup":"Moldboard","SortOrder":"3"}
Cutting Edge

6 in 152 mm
{"Name":"Cutting Edge","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"152","Type":"measurement","SpecificationGroup":"Moldboard","SortOrder":"99"}
Arc Radius

16.3 in 413 mm
{"Name":"Arc Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16.3","MetricUnit":"mm","MetricValue":"413","Type":"measurement","SpecificationGroup":"Moldboard","SortOrder":"99"}
Throat Clearance

6.5 in 166 mm
{"Name":"Throat Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"166","Type":"measurement","SpecificationGroup":"Moldboard","SortOrder":"99"}
End Bit

6 in 152 mm
{"Name":"End Bit","SpecificationId":null,"TextValue":"U.S. EPA Tier 4 Final/EU Stage V","EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"152","Type":"measurement","SpecificationGroup":"Moldboard","SortOrder":"99"}

Service Refill

Hydraulic System

14.5 gal (US) 55 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14.5","MetricUnit":"l","MetricValue":"55","Type":"measurement","SpecificationGroup":"Service Refill","SortOrder":"99"}
Engine Crankcase

7.9 gal (US) 30 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"7.9","MetricUnit":"l","MetricValue":"30","Type":"measurement","SpecificationGroup":"Service Refill","SortOrder":"99"}
Circle Drive

1.8 gal (US) 7 l
{"Name":"Circle Drive","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.8","MetricUnit":"l","MetricValue":"7","Type":"measurement","SpecificationGroup":"Service Refill","SortOrder":"99"}
Fuel Tank

100 gal (US) 378 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":"Cat C9.3","EnglishUnit":"gal (US)","EnglishValue":"100","MetricUnit":"l","MetricValue":"378","Type":"measurement","SpecificationGroup":"Service Refill","SortOrder":"99"}
Front Wheel Spindle Bearing - Each

0.13 gal (US) 0.5 l
{"Name":"Front Wheel Spindle Bearing - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.13","MetricUnit":"l","MetricValue":"0.5","Type":"measurement","SpecificationGroup":"Service Refill","SortOrder":"99"}

Weights

Operating Weight - Typically Equipped

44613 lb 20236 kg
{"Name":"Operating Weight - Typically Equipped","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"44613","MetricUnit":"kg","MetricValue":"20236","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Benefits

BUILT TO PERFORM

Prefer a motor grader with steering wheel and levers? The 140 uses Caterpillar’s 45 years of lever and steering wheel controls design experience to provide you with the control option you prefer.
Save up to 40 percent in material with the Cat Grade with Cross Slope feature. Monitor Cross Slope information from the machine display.
Optimized machine balance ensures maximum drawbar power to the ground.
Don’t let the snow stop you from working. The all-wheel drive (AWD) option assists with traction and maneuvering the machine.
Each machine is equipped with the Cat C9.3 engine for power and reliability.
Save up to 10 percent on fuel consumption with Eco mode.
For your fine grade applications, the hydraulic system provides multifunction capability of up to seven simultaneous functions for superior performance.
Reduce risk of impact damage with the standard circle drive slip clutch. It protects your circle drive and teeth.

INTEGRATED CAT TECHNOLOGY

Reduce your dependence on manual grade checking by using the Digital Blade Slope Meter.
Cat Grade with Cross Slope Indicate option provides a real time readout of cross slope and can be scaled to Cat Grade with Cross Slope for automatic blade movement.
Cat Grade with Cross Slope is an integrated system that enables operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.
Cat Grade Attachment Ready Option (ARO) ensures machine readiness for additional 2D/3D grade control technologies.
Stable Blade senses blade bounce before the operator to reduce manual throttle use and site rework.
VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink® so you can keep a close eye on your fleet.

WORK IN COMFORT

Adjust to your ideal comfort with the air suspension seat with multiple ergonomic adjustments.
The rear camera option enhances visibility along with a heated lens to prevent snow buildup.
The high capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
Add the communications radio mount to connect with your operators from the cab.

LOWER MAINTENANCE COSTS

Filters, such as hydraulic oil, engine air, and DEF filters, are grouped together for easy access and preventative maintenance.
The next generation filters help to reduce your fluid and filter costs.
Spend less time cleaning the cooling system with the reversing fan option, which helps to keep costs down when cleaned once per week for more uptime.
Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability.
For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy, and offers up to 45 percent reduction in maintenance cost over the standard.

SAFELY HOME EVERY DAY

Depend on your brakes with maximum stopping power on all four rear wheels.
View your work space with the rear camera option. It offers a rear view of the machine to ensure the safety of you and those around you. The dedicated display can be always on to ensure a safe work environment
In the event of an engine issue, your operators can count on the secondary steering system to stop the machine safely. It turns on automatically if the main pump pressure drops.
Ground level refueling requires no climbing on the machine to fill the fuel tank.
Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
Work past sundown using the LED light option for increased nighttime visibility.

OPTIONS TO MEET YOUR NEEDS

Ripper and Scarifier options are available.
Improve the balance of your machine with the counterweight and push block for increased performance and efficiency.

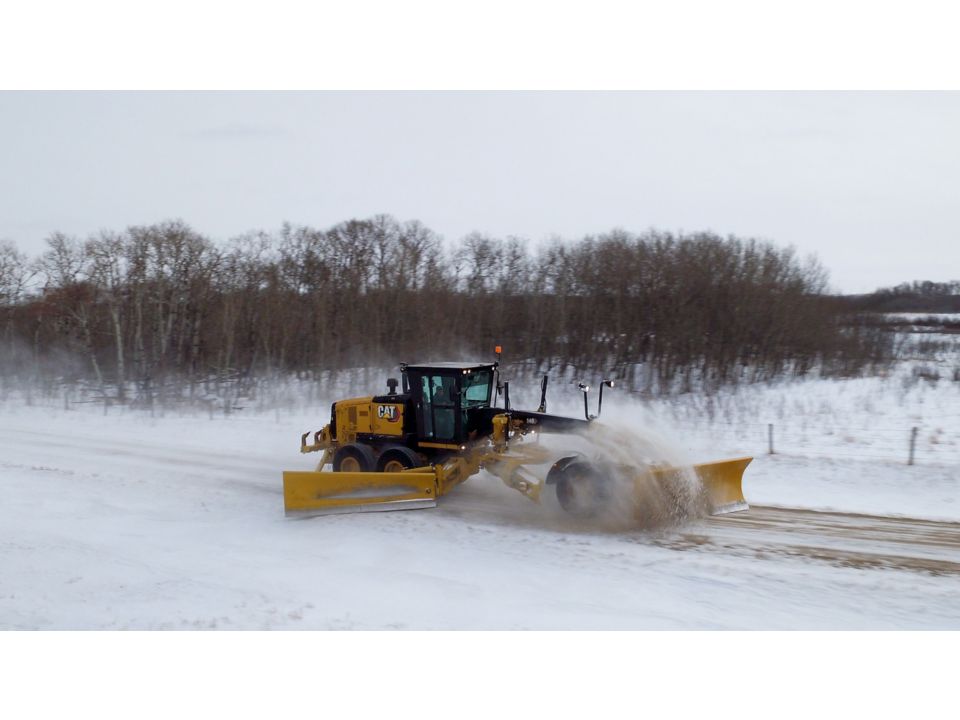

For snow applications, straight blades or v-plows added to the front lift keep roads clear.

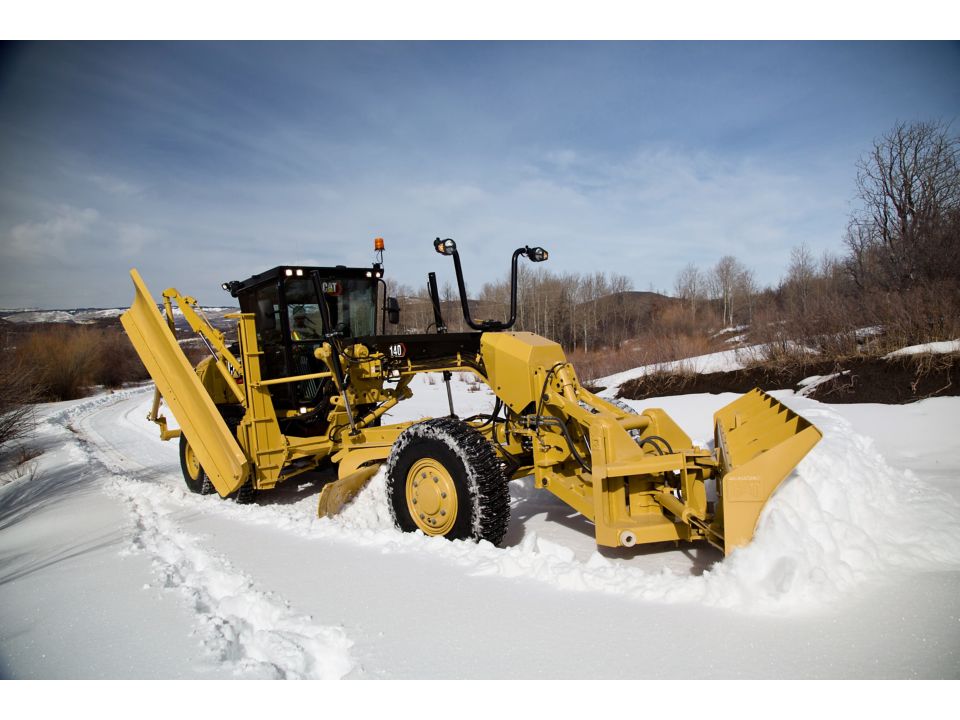

Plow through snow with the mast-type or mast-less snow wing attachment.
For more road coverage, add a moldboard extension to add 600 mm (24 in).
