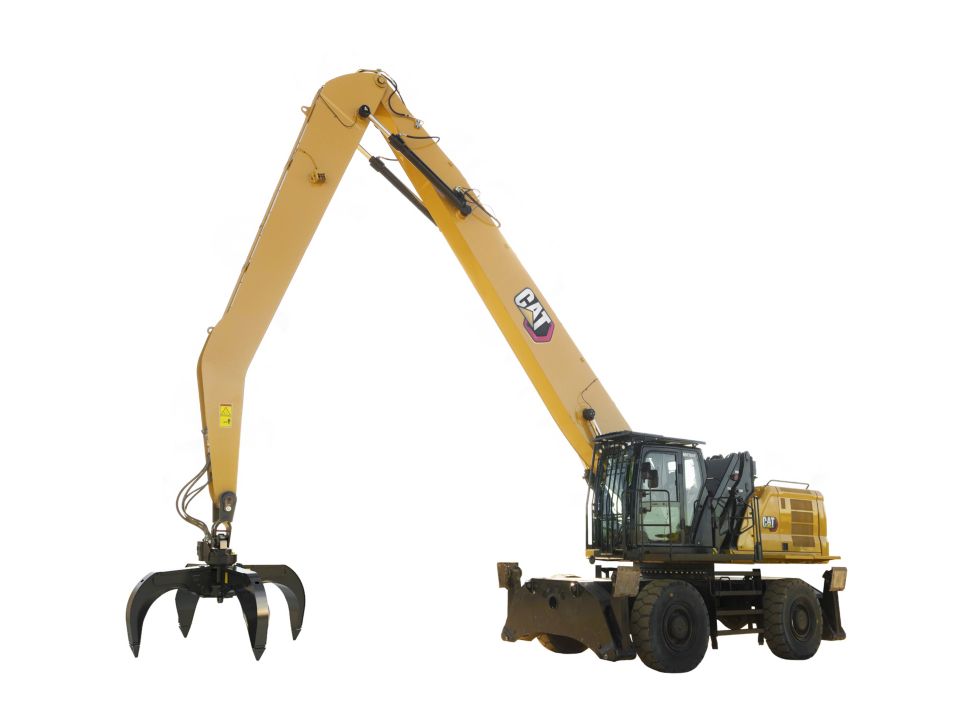

MH3040 - Tier 4 / Stage V
MH3040 - Tier 4 / Stage V

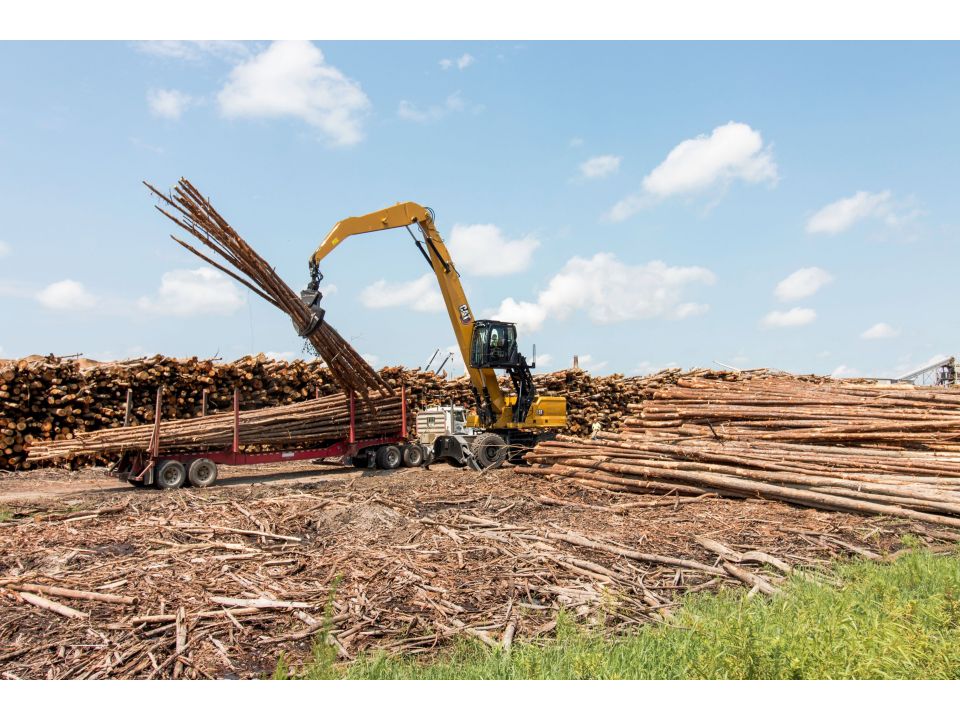

Cat material handlers. They are made for industrial, recycling, and millyard applications requiring large lifting capacities and working envelopes. Their low operating costs and high production help ensure your success.
Book a Demo
Explore my deals
Specifications
Air Conditioning System
-
Note (1)The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).
Dimensions
-
BoomMH 9.3 m (30'6")
-
StickIndustrial 7.1 m (23'3")
-
Shipping Length42 ft 12800 mm
-
Machine Length20.8 ft 6330 mm
-
Tail Swing Radius10.3 ft 3130 mm
-
Counterweight Clearance5.7 ft 1740 mm
-
Cab Height- Lowered12 ft 3660 mm
-
Cab Height-Lowered with OPG12.5 ft 3805 mm
-
Cab Height-Raised20.5 ft 6255 mm
-
Cab Height-Raised with OPG21 ft 6400 mm
-
Wheel Base10.5 ft 3210 mm
-
Shipping Width9.8 ft 3000 mm
-
Ground Clearance0.9 ft 265 mm
-
Undercarriage Length20.4 ft 6225 mm
Engine
-
Engine ModelCat C7.1
-
Net Power - ISO 9249202 hp 151 kW
-
Net Power - ISO 9249 (DIN)205 hp (metric) 205 hp (metric)
-
Engine Power - ISO 14396:2002201 hp 150 kW
-
Engine Power - ISO 14396 (DIN)204 hp (metric) 204 hp (metric)
-
Bore4 in 105 mm
-
Stroke5 in 135 mm
-
Displacement428 in³ 7 l
-
Biodiesel CapabilityUp to B20¹
-
EmissionsMeets U.S. EPA Tier 4 Final and EU Stage V emission standards.
-
Note (1)Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
-
Note (2)¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Hydraulic System
-
Maximum Pressure - Implements5076 psi 35000 kPa
-
Maximum Pressure - Swing4061 psi 28400 kPa
-
Maximum Pressure - Travel5076 psi 35000 kPa
Service Refill Capacities
-
Fuel Tank Capacity125.2 gal (US) 474 l
-
Cooling System6.6 gal (US) 25 l
-
Engine Oil6.6 gal (US) 25 l
-
Rear Axle - Housing (Differential)9 gal (US) 34.2 l
-
Final Drive2 gal (US) 7.4 l
-
Powershift Transmission0.8 gal (US) 3 l
-
Hydraulic System - Including Tank86.9 gal (US) 329 l
-
Hydraulic Tank38.8 gal (US) 147 l
-
Diesel Exhaust Fluid (DEF) Tank10.8 gal (US) 41 l
Sustainability
-
Recyclability95%
Swing Mechanism
-
Swing Speed7 r/min 7 r/min
-
Maximum Swing Torque60628 lbf·ft 82 kN·m
Transmission
-
Maximum Travel Speed11.2 mile/h 18 km/h
-
Drawbar Pull34621 lbf 154 kN
-
Maximum Gradeability44%
Weights
-
Operating Weight85310 lb 38700 kg
-
NoteOperating weight includes full fuel tank, 75 kg (165 lb) operator, grapple 2000 kg (4,410 lb) and single tires. Weight varies depending on configuration.
Working Ranges
-
Maximum Reach50.8 ft 15490 mm
-
BoomMH 9.3 m (30'6")
-
StickIndustrial 7.1 m (23'3")
-
Maximum Height57.4 ft 17510 mm
-
Maximum Dump Height17.9 ft 5445 mm
-
Maximum Depth17.3 ft 5265 mm
-
Boom Pin Height40 ft 12195 mm
Benefits
Latest Features
Machine Setup Simplification
Cat Payload*
Swing Assist
*Payload technologies are not legal for trade.
**VisionLink® subscription required.
Not all features are available in all regions. Please check with your Cat dealer for specific offering availability in your area. Build Number: 07E
- At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
- The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Cat Payload*
- Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Combine Payload with VisionLink® Productivity** to analyze jobsites and individual assets for remote management of production targets and key metrics.
Swing Assist
- Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
*Payload technologies are not legal for trade.
**VisionLink® subscription required.
Not all features are available in all regions. Please check with your Cat dealer for specific offering availability in your area. Build Number: 07E
High Performance
- The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final and EU Stage V emission standards with an aftertreatment system that requires no scheduled maintenance or downtime.
- Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
- The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
- Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
- Valve priority helps put hydraulic pressure and flow where you need it.
- Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.
Integrated Cat® Technologies
- Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
- Combine Cat Payload with VisionLink® and remotely manage your production targets.
- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
- Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
*Data field availability can vary by equipment manufacturer.
Work in Comfort
- Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
- The cab has a wide seat that adjusts for operators of all sizes.
- Get in and out of the cab easier using the tilt-up left console.
- Control the machine comfortably with easy-to-reach controls all located in front of you.
- Standard automatic climate control keeps you at the right temperature all shift long.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
- Connect to personal devices via the standard radio's USB ports and Bluetooth® technology.
- Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without taking your hands off the joysticks.
- Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
- Productivity applications are displayed in grid view to read on the go, and touchscreen navigation is programmed to ensure job performance continues without any hold-ups.
Reliable, Durable, and Versatile
- Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
- The upper frame uses specially designed mountings to support the heavy-duty cab, and the lower frame is reinforced to help enhance component durability.
- Work up to 3000 m (9,840 ft) above sea level without de-rating.
- Don't let the temperature stop you from working. The machine has a standard high-ambient temperature capability of 43°C (109°F) and cold start capability of -18°C (0°F).
- Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
- Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
- Match your machine to the application. Multiple configurations allow you to customize your machine to your needs.
- An optional 20 kW (27 hp) generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
- Expand your work capabilities with attachments for a variety of applications.
- Make operating easier with the touch of a joystick button. Additional auxiliary relays allow you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.
Maintenance
- Track your machine's filter life and maintenance intervals via the in-cab monitor.
- Scheduled Oil Sampling (S•O•SSM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
- The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
- The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
- High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
- Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.
Safety Features
- Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
- Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
- Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
- Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.
- Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
- Thick impact-resistant windshields fulfill P5A standards.
- Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
- The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
- Optional Operator Protective Guards (OPG) protect from falling and flying debris.
- In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
- Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
- Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.
Sustainability
- The Cat® C7.1 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The MH3040 emits less CO2 than the M325D L MH.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Cat Scheduled Oil Sampling (S•O•SSM) Services help reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Cat 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly jobsite fines.
- Extended maintenance intervals help reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Equipment Info
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab with rubber mounts
CAT TECHNOLOGY
VisionLink®
ELECTRICAL SYSTEM
Maintenance-free battery
ENGINE
Cat C7.1 diesel engine
HYDRAULIC SYSTEM
Boom and stick lowering control check valves
SAFETY AND SECURITY
Rear and right-hand-sideview cameras
SERVICE AND MAINTENANCE
Grouped location for engine oil and fuel filters
UNDERCARRIAGE AND STRUCTURES
All wheel drive
