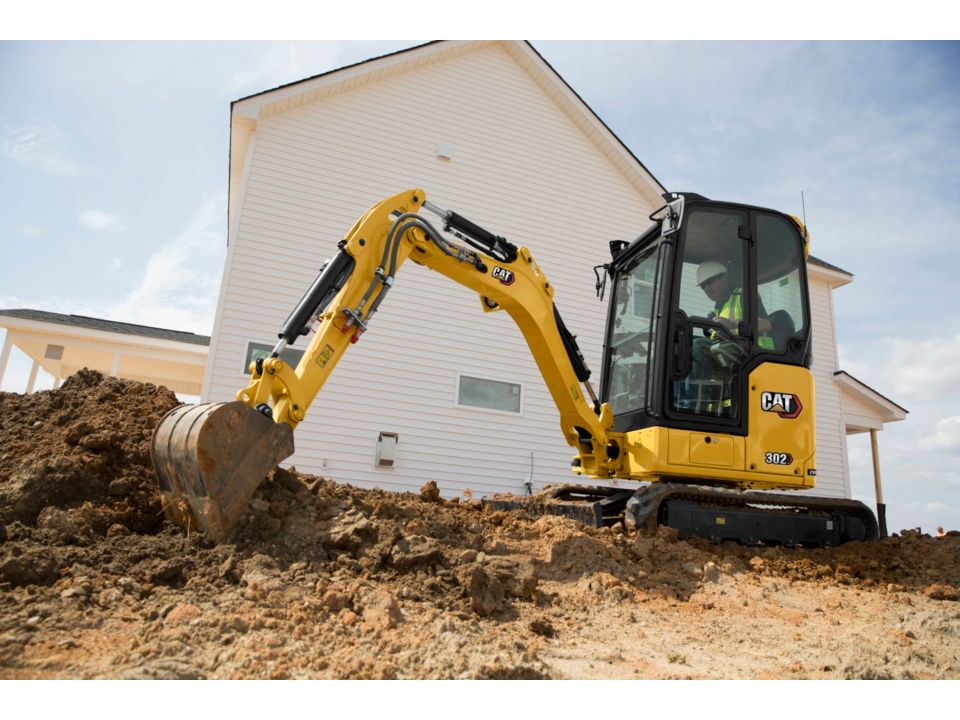

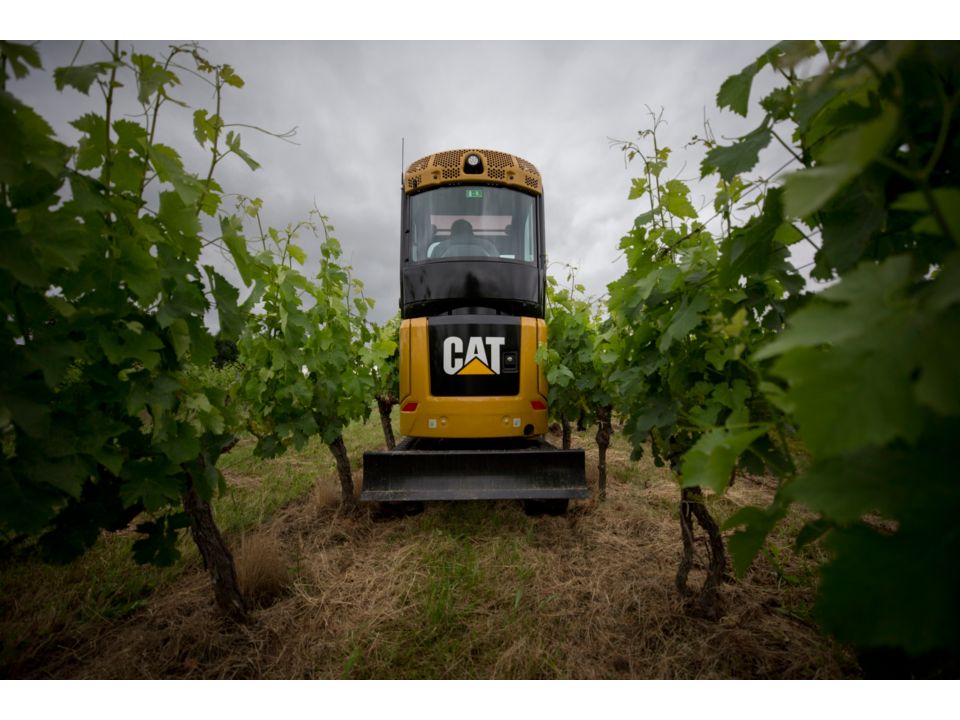

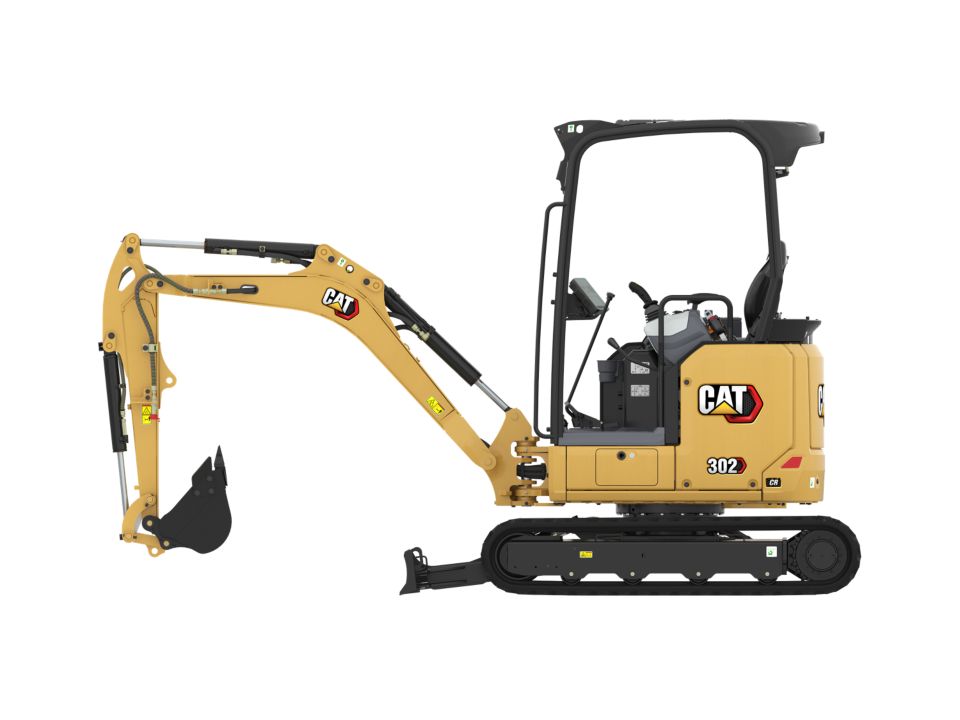

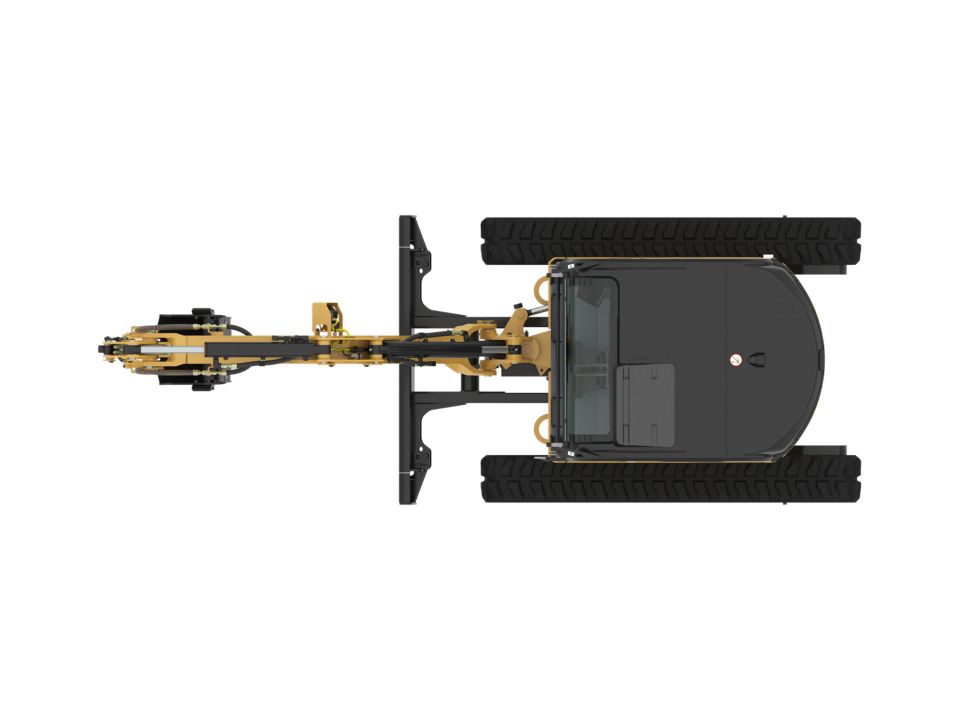

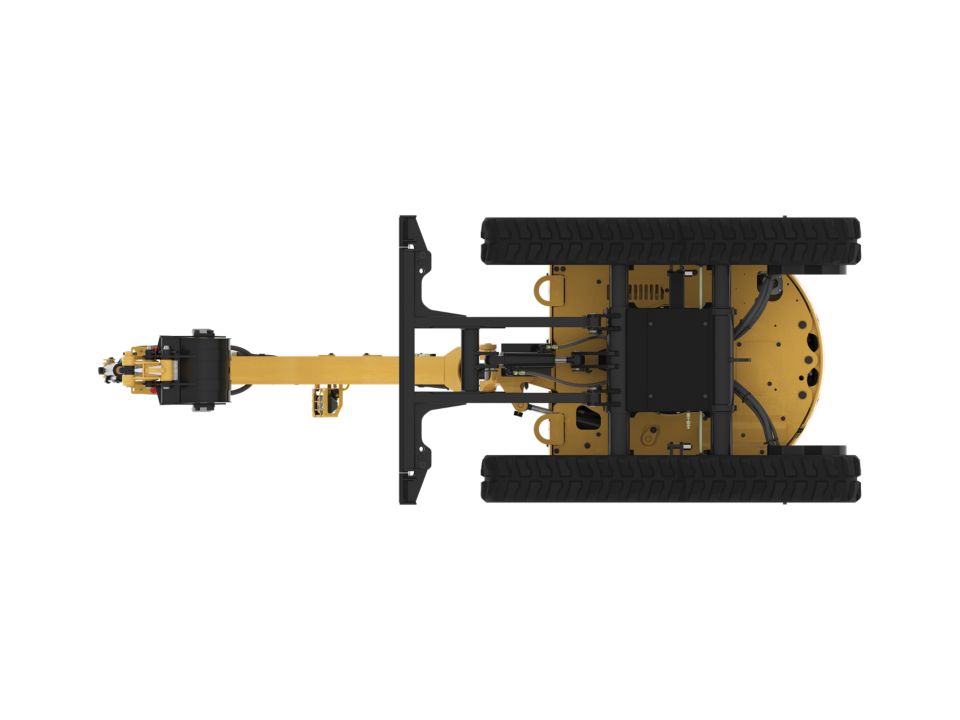

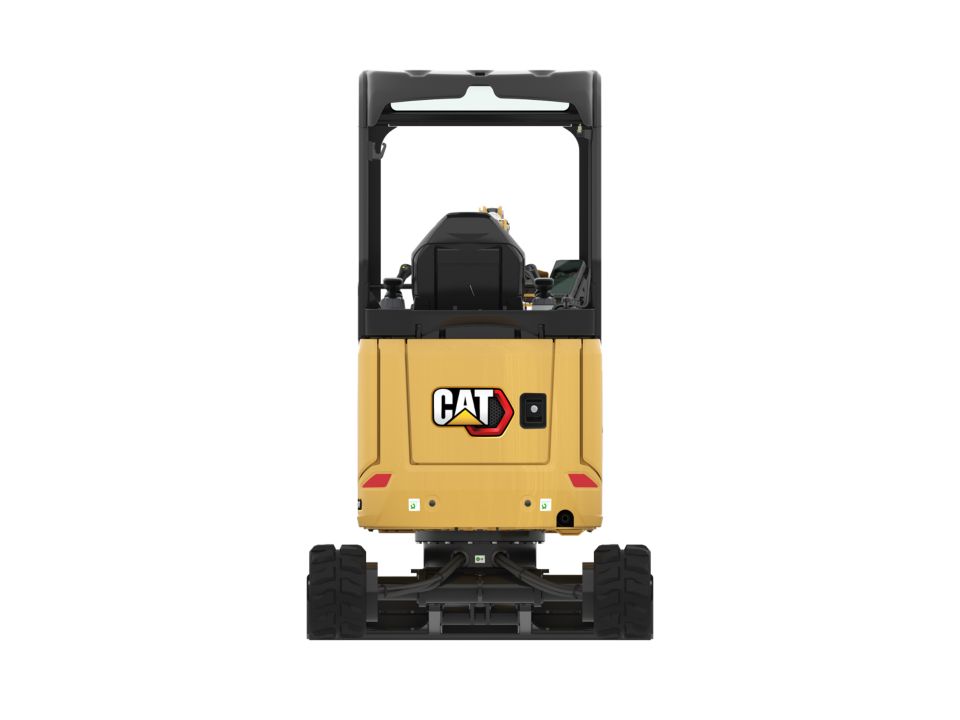

302 CR

An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Blade

Height

8.9 in 225 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8.9","MetricUnit":"mm","MetricValue":"225","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"42"}
Width*

42.9 in 1090 mm
{"Name":"Width*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"42.9","MetricUnit":"mm","MetricValue":"1090","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"99"}
Note

*Expanded – 1400 mm (55 in)
{"Name":"Note","SpecificationId":null,"TextValue":"*Expanded – 1400 mm (55 in)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Blade","SortOrder":"99"}

Certification - Cab and Canopy

Top Guard

ISO 10262:1998 (Level I)
{"Name":"Top Guard","SpecificationId":null,"TextValue":"ISO 10262:1998 (Level I)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab and Canopy","SortOrder":"99"}
Roll Over Protective Structure (ROPS)

ISO 12117-2:2008
{"Name":"Roll Over Protective Structure (ROPS)","SpecificationId":null,"TextValue":"ISO 12117-2:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab and Canopy","SortOrder":"99"}
Tip Over Protective Structure (TOPS)

ISO 12117:1997
{"Name":"Tip Over Protective Structure (TOPS)","SpecificationId":null,"TextValue":"ISO 12117:1997","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab and Canopy","SortOrder":"99"}

Dimensions - Long Stick

Dig Depth

101.2 in 2570 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"101.2","MetricUnit":"mm","MetricValue":"2570","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"3"}
Track Belt/Shoe Width

9.8 in 250 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.8","MetricUnit":"mm","MetricValue":"250","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Tail Swing

29.5 in 750 mm
{"Name":"Tail Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.5","MetricUnit":"mm","MetricValue":"750","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Dump Clearance

103.9 in 2640 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"103.9","MetricUnit":"mm","MetricValue":"2640","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Vertical Wall

76.4 in 1940 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"76.4","MetricUnit":"mm","MetricValue":"1940","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Boom In Reach

65.4 in 1660 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"65.4","MetricUnit":"mm","MetricValue":"1660","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
O/A Shipping Height

90.6 in 2300 mm
{"Name":"O/A Shipping Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"90.6","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Blade Depth

11.6 in 295 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.6","MetricUnit":"mm","MetricValue":"295","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Track Width - Retracted

42.9 in 1090 mm
{"Name":"Track Width - Retracted","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"42.9","MetricUnit":"mm","MetricValue":"1090","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Stick Length

45.7 in 1160 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"45.7","MetricUnit":"mm","MetricValue":"1160","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Boom Height - Shipping Position

40.2 in 1020 mm
{"Name":"Boom Height - Shipping Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"40.2","MetricUnit":"mm","MetricValue":"1020","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Reach

168.1 in 4270 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"168.1","MetricUnit":"mm","MetricValue":"4270","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Swing Bearing - Height

17.4 in 442 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.4","MetricUnit":"mm","MetricValue":"442","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Boom Swing - Right

50 ° 50 °
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"50","MetricUnit":"°","MetricValue":"50","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Track Width - Expanded

55.12 in 1400 mm
{"Name":"Track Width - Expanded","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.12","MetricUnit":"mm","MetricValue":"1400","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Boom Swing - Left

65 ° 65 °
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"65","MetricUnit":"°","MetricValue":"65","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Dig Height

142.5 in 3620 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"142.5","MetricUnit":"mm","MetricValue":"3620","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
O/A Undercarriage Length

72.8 in 1850 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72.8","MetricUnit":"mm","MetricValue":"1850","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Blade Height

11.2 in 285 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.2","MetricUnit":"mm","MetricValue":"285","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Reach - Ground Level

165.7 in 4210 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"165.7","MetricUnit":"mm","MetricValue":"4210","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Overall Shipping Length*

152.8 in 3880 mm
{"Name":"Overall Shipping Length*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"152.8","MetricUnit":"mm","MetricValue":"3880","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Minimum Ground Clearance Below Undercarriage

5.9 in 150 mm
{"Name":"Minimum Ground Clearance Below Undercarriage","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.9","MetricUnit":"mm","MetricValue":"150","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Note

*Overall Shipping Length depends on blade position during shipment.
{"Name":"Note","SpecificationId":null,"TextValue":"*Overall Shipping Length depends on blade position during shipment.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}

Dimensions - Standard Stick

Dig Depth

93.3 in 2370 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"93.3","MetricUnit":"mm","MetricValue":"2370","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Dig Height

139.8 in 3550 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"139.8","MetricUnit":"mm","MetricValue":"3550","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Track Belt/Shoe Width

9.8 in 250 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.8","MetricUnit":"mm","MetricValue":"250","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Tail Swing

29.5 in 750 mm
{"Name":"Tail Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.5","MetricUnit":"mm","MetricValue":"750","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom Height - Shipping Position

42.1 in 1070 mm
{"Name":"Boom Height - Shipping Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"42.1","MetricUnit":"mm","MetricValue":"1070","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
O/A Shipping Height

90.6 in 2300 mm
{"Name":"O/A Shipping Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"90.6","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Overall Shipping Length*

153.5 in 3900 mm
{"Name":"Overall Shipping Length*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153.5","MetricUnit":"mm","MetricValue":"3900","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Blade Height

11.2 in 285 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.2","MetricUnit":"mm","MetricValue":"285","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Reach

161.8 in 4110 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"161.8","MetricUnit":"mm","MetricValue":"4110","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Track Width - Expanded

55.12 in 1400 mm
{"Name":"Track Width - Expanded","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.12","MetricUnit":"mm","MetricValue":"1400","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Track Width - Retracted

42.9 in 1090 mm
{"Name":"Track Width - Retracted","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"42.9","MetricUnit":"mm","MetricValue":"1090","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom Swing - Right

50 ° 50 °
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"50","MetricUnit":"°","MetricValue":"50","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
O/A Undercarriage Length

72.8 in 1850 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72.8","MetricUnit":"mm","MetricValue":"1850","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Reach - Ground Level

159.1 in 4040 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"159.1","MetricUnit":"mm","MetricValue":"4040","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Swing Bearing - Height

17.4 in 442 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.4","MetricUnit":"mm","MetricValue":"442","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Stick Length

37.8 in 960 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"37.8","MetricUnit":"mm","MetricValue":"960","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom Swing - Left

65 ° 65 °
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"65","MetricUnit":"°","MetricValue":"65","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom In Reach

65.4 in 1660 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"65.4","MetricUnit":"mm","MetricValue":"1660","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Dump Clearance

100.8 in 2560 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100.8","MetricUnit":"mm","MetricValue":"2560","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Minimum Ground Clearance Below Undercarriage

5.9 in 150 mm
{"Name":"Minimum Ground Clearance Below Undercarriage","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.9","MetricUnit":"mm","MetricValue":"150","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Blade Depth

11.6 in 295 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.6","MetricUnit":"mm","MetricValue":"295","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Note

*Overall Shipping Length depends on blade position during shipment.
{"Name":"Note","SpecificationId":null,"TextValue":"*Overall Shipping Length depends on blade position during shipment.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Vertical Wall

72.8 in 1850 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72.8","MetricUnit":"mm","MetricValue":"1850","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}

Engine

Net Power

21 hp 15.7 kW
{"Name":"Net Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"21","MetricUnit":"kW","MetricValue":"15.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

C1.1
{"Name":"Engine Model","SpecificationId":null,"TextValue":"C1.1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Note (2)

Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Bore

3 in 77 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"77","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Stroke

3.2 in 81 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"81","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Emissions

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement

69 in³ 1.1 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"69","MetricUnit":"l","MetricValue":"1.1","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note (1)

Engine power is tested per ISO 14396:2002.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Engine power is tested per ISO 14396:2002.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Note

Net power is tested per ISO 9249:2007 and 80/1269/EEC.
{"Name":"Note","SpecificationId":null,"TextValue":"Net power is tested per ISO 9249:2007 and 80/1269/EEC.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC

21 hp 15.7 kW
{"Name":"Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"21","MetricUnit":"kW","MetricValue":"15.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Gross Power - SAE J1995:2014

21.6 hp 16.1 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"21.6","MetricUnit":"kW","MetricValue":"16.1","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Pump Flow at 2,400 rpm

17.4 gal/min 66 l/min
{"Name":"Pump Flow at 2,400 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"17.4","MetricUnit":"l/min","MetricValue":"66","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Stick - Standard

2540.3 lbf 11.3 kN
{"Name":"Digging Force - Stick - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"2540.3","MetricUnit":"kN","MetricValue":"11.3","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Auxiliary Circuit - Primary - Flow

8.7 gal/min 33 l/min
{"Name":"Auxiliary Circuit - Primary - Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"8.7","MetricUnit":"l/min","MetricValue":"33","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Bucket

4406.3 lbf 19.6 kN
{"Name":"Digging Force - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"4406.3","MetricUnit":"kN","MetricValue":"19.6","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Auxiliary Circuit - Secondary - Pressure

3553.4 psi 245 bar
{"Name":"Auxiliary Circuit - Secondary - Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553.4","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Travel

3553.4 psi 245 bar
{"Name":"Operating Pressure - Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553.4","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Equipment

3553.4 psi 245 bar
{"Name":"Operating Pressure - Equipment","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553.4","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Swing

2132.1 psi 147 bar
{"Name":"Operating Pressure - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2132.1","MetricUnit":"bar","MetricValue":"147","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Stick - Long

2203.1 lbf 9.8 kN
{"Name":"Digging Force - Stick - Long","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"2203.1","MetricUnit":"kN","MetricValue":"9.8","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Type

Load Sensing Hydraulics with Variable Displacement Piston Pump
{"Name":"Type","SpecificationId":null,"TextValue":"Load Sensing Hydraulics with Variable Displacement Piston Pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Auxiliary Circuit - Primary - Pressure

3553.4 psi 245 bar
{"Name":"Auxiliary Circuit - Primary - Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553.4","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Auxiliary Circuit - Secondary - Flow

3.7 gal/min 14 l/min
{"Name":"Auxiliary Circuit - Secondary - Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"3.7","MetricUnit":"l/min","MetricValue":"14","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Service Refill Capacities

Cooling System

1 gal (US) 3.9 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1","MetricUnit":"l","MetricValue":"3.9","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

4.8 gal (US) 18 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.8","MetricUnit":"l","MetricValue":"18","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic System

6.9 gal (US) 26 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Engine Oil

1.2 gal (US) 4.4 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.2","MetricUnit":"l","MetricValue":"4.4","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

6.9 gal (US) 26 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.9","MetricUnit":"l","MetricValue":"26","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Sound

Average Exterior Sound Pressure (ISO 6395:2008)

93 dB(A) 93 dB(A)
{"Name":"Average Exterior Sound Pressure (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"93","MetricUnit":"dB(A)","MetricValue":"93","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
Note

European Union Directive “2000/14/EC”
{"Name":"Note","SpecificationId":null,"TextValue":"European Union Directive “2000/14/EC”","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
Operator Sound Pressure (ISO 6396:2008)

73 dB(A) 73 dB(A)
{"Name":"Operator Sound Pressure (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"73","MetricUnit":"dB(A)","MetricValue":"73","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}

Sustainability

Recyclability

95%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"95%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Swing System

Machine Swing Speed

9.8 r/min 9.8 r/min
{"Name":"Machine Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"9.8","MetricUnit":"r/min","MetricValue":"9.8","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"99"}

Travel System

Travel Speed - High

2.7 mile/h 4.4 km/h
{"Name":"Travel Speed - High","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"2.7","MetricUnit":"km/h","MetricValue":"4.4","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Travel Speed - Low

1.8 mile/h 2.9 km/h
{"Name":"Travel Speed - Low","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.8","MetricUnit":"km/h","MetricValue":"2.9","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Maximum Traction Force - Low Speed

4496.2 lbf 20 kN
{"Name":"Maximum Traction Force - Low Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"4496.2","MetricUnit":"kN","MetricValue":"20","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Maximum Traction Force - High Speed

2967.5 lbf 13.2 kN
{"Name":"Maximum Traction Force - High Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"2967.5","MetricUnit":"kN","MetricValue":"13.2","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Gradeability - Maximum

30 degrees
{"Name":"Gradeability - Maximum","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Travel System","SortOrder":"99"}
Ground Pressure - Maximum Weight

3.9 psi 26.8 kPa
{"Name":"Ground Pressure - Maximum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3.9","MetricUnit":"kPa","MetricValue":"26.8","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Ground Pressure - Minimum Weight

3.4 psi 23.7 kPa
{"Name":"Ground Pressure - Minimum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3.4","MetricUnit":"kPa","MetricValue":"23.7","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}

Weight Increase from Minimum Configuration

Steel Tracks

132 lb 60 kg
{"Name":"Steel Tracks","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"132","MetricUnit":"kg","MetricValue":"60","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}
Long Stick

18 lb 8 kg
{"Name":"Long Stick","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"18","MetricUnit":"kg","MetricValue":"8","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}
Expandable Undercarriage

212 lb 96 kg
{"Name":"Expandable Undercarriage","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"212","MetricUnit":"kg","MetricValue":"96","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}

Weights

Operating Weight

4987 lb 2262 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4987","MetricUnit":"kg","MetricValue":"2262","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Maximum Operating Weight with Cab**

4987 lb 2262 kg
{"Name":"Maximum Operating Weight with Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4987","MetricUnit":"kg","MetricValue":"2262","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Minimum Operating Weight with Canopy*

4229 lb 1918 kg
{"Name":"Minimum Operating Weight with Canopy*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4229","MetricUnit":"kg","MetricValue":"1918","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Note (2)

**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Maximum Operating Weight with Canopy**

4588 lb 2081 kg
{"Name":"Maximum Operating Weight with Canopy**","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4588","MetricUnit":"kg","MetricValue":"2081","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Minimum Operating Weight with Cab*

4535 lb 2057 kW
{"Name":"Minimum Operating Weight with Cab*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4535","MetricUnit":"kW","MetricValue":"2057","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Note (1)

*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (3)

***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
EU: CE Plate Weight with Cab***

4718 lb 2140 kg
{"Name":"EU: CE Plate Weight with Cab***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4718","MetricUnit":"kg","MetricValue":"2140","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
EU: CE Plate Weight with Canopy***

4508 lb 2045 kg
{"Name":"EU: CE Plate Weight with Canopy***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4508","MetricUnit":"kg","MetricValue":"2045","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Equipment Info
