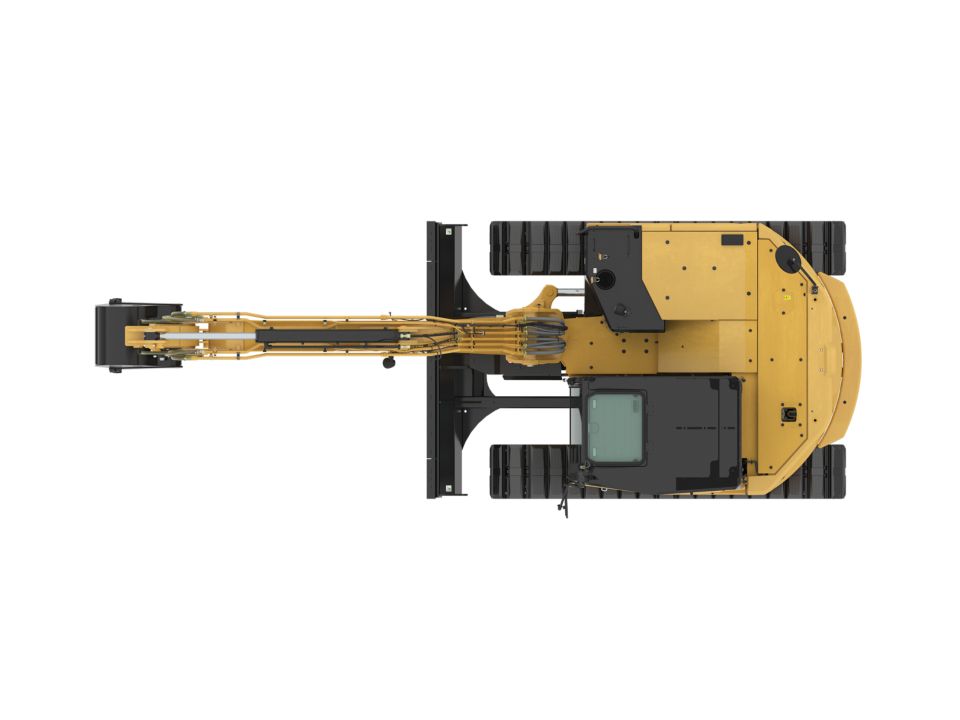

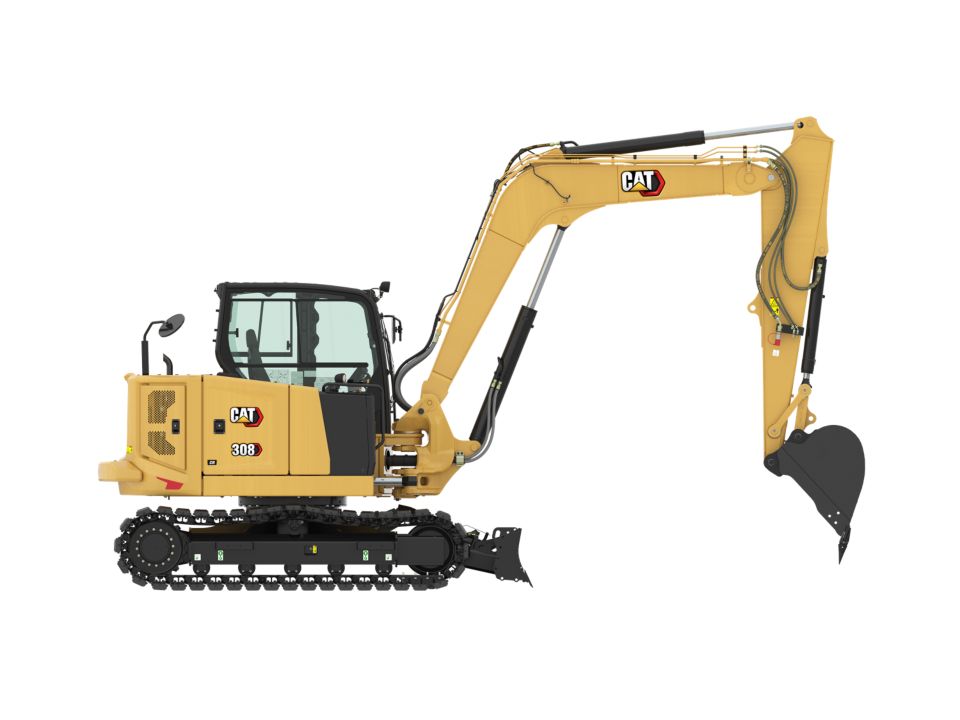

308 CR

An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"99"}

Blade

Height

17 in 431 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17","MetricUnit":"mm","MetricValue":"431","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"42"}
Width - Standard

90.6 in 2300 mm
{"Name":"Width - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"90.6","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"99"}
Width - Wide

96.5 in 2450 mm
{"Name":"Width - Wide","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96.5","MetricUnit":"mm","MetricValue":"2450","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"99"}

Certification - Cab

Top Guard

ISO 10262:1998 (Level I)
{"Name":"Top Guard","SpecificationId":null,"TextValue":"ISO 10262:1998 (Level I)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab","SortOrder":"99"}
Roll Over Protective Structure (ROPS)

ISO 12117-2:2008
{"Name":"Roll Over Protective Structure (ROPS)","SpecificationId":null,"TextValue":"ISO 12117-2:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab","SortOrder":"99"}

Dimensions - Long Stick

Dig Depth

182.8 in 4643 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"182.8","MetricUnit":"mm","MetricValue":"4643","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"3"}
Boom Swing - Left

23.8 in 604 mm
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"23.8","MetricUnit":"mm","MetricValue":"604","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Dig Height

277.1 in 7039 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"277.1","MetricUnit":"mm","MetricValue":"7039","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Blade Height

14.6 in 370 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.6","MetricUnit":"mm","MetricValue":"370","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Track Belt/Shoe Width

17.7 in 450 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.7","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Cab Height

100 in 2541 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2541","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Tail Swing with Counterweight

62.4 in 1585 mm
{"Name":"Tail Swing with Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"62.4","MetricUnit":"mm","MetricValue":"1585","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
O/A Undercarriage Length

113.4 in 2880 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"113.4","MetricUnit":"mm","MetricValue":"2880","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Dump Clearance

199.7 in 5072 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"199.7","MetricUnit":"mm","MetricValue":"5072","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Boom Swing - Right

36.8 in 935 mm
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36.8","MetricUnit":"mm","MetricValue":"935","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Blade Depth

16 in 407 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16","MetricUnit":"mm","MetricValue":"407","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Ground Clearance

13.8 in 350 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"13.8","MetricUnit":"mm","MetricValue":"350","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Stick Length

92.8 in 2358 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"92.8","MetricUnit":"mm","MetricValue":"2358","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Reach

300.7 in 7637 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"300.7","MetricUnit":"mm","MetricValue":"7637","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Maximum Reach - Ground Level

293.7 in 7460 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"293.7","MetricUnit":"mm","MetricValue":"7460","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Boom In Reach

126.6 in 3215 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"126.6","MetricUnit":"mm","MetricValue":"3215","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Swing Bearing - Height

29.7 in 756 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.7","MetricUnit":"mm","MetricValue":"756","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
O/A Track Width

90.6 in 2300 mm
{"Name":"O/A Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"90.6","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Tail Swing without Counterweight

57.1 in 1450 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"57.1","MetricUnit":"mm","MetricValue":"1450","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Vertical Wall

134 in 3404 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"134","MetricUnit":"mm","MetricValue":"3404","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Note

*Boom Height when stick is pinned in transport position with no attachments.
{"Name":"Note","SpecificationId":null,"TextValue":"*Boom Height when stick is pinned in transport position with no attachments.","EnglishUnit":"in","EnglishValue":"134","MetricUnit":"mm","MetricValue":"3404","Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Note (2)

***With blade positioned at the rear of the machine.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"***With blade positioned at the rear of the machine.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Note (1)

**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Height - Boom Transport - No Tools*

89 in 2260 mm
{"Name":"Height - Boom Transport - No Tools*","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.","EnglishUnit":"in","EnglishValue":"89","MetricUnit":"mm","MetricValue":"2260","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Height - Boom Working - With Tools**

120.1 in 3050 mm
{"Name":"Height - Boom Working - With Tools**","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"120.1","MetricUnit":"mm","MetricValue":"3050","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Overall Shipping Length - without Counterweight

6872 mm (270.6 in)***
{"Name":"Overall Shipping Length - without Counterweight","SpecificationId":null,"TextValue":"6872 mm (270.6 in)***","EnglishUnit":"in","EnglishValue":"120.1","MetricUnit":"mm","MetricValue":"3050","Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}
Overall Shipping Length - with Counterweight

6872 mm (270.6 in)***
{"Name":"Overall Shipping Length - with Counterweight","SpecificationId":null,"TextValue":"6872 mm (270.6 in)***","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"99"}

Dimensions - Standard Stick

Cab Height

100 in 2541 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2541","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Vertical Wall

117.8 in 2991 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"117.8","MetricUnit":"mm","MetricValue":"2991","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom In Reach

120.4 in 3059 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"120.4","MetricUnit":"mm","MetricValue":"3059","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Tail Swing with Counterweight

62.4 in 1585 mm
{"Name":"Tail Swing with Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"62.4","MetricUnit":"mm","MetricValue":"1585","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom Swing - Right

36.8 in 935 mm
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36.8","MetricUnit":"mm","MetricValue":"935","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Track Belt/Shoe Width

17.7 in 450 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.7","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Reach

281.1 in 7141 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"281.1","MetricUnit":"mm","MetricValue":"7141","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Stick Length

71.7 in 1820 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"71.7","MetricUnit":"mm","MetricValue":"1820","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Blade Height

14.6 in 370 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.6","MetricUnit":"mm","MetricValue":"370","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom Swing - Left

23.8 in 604 mm
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"23.8","MetricUnit":"mm","MetricValue":"604","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Blade Depth

16 in 407 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16","MetricUnit":"mm","MetricValue":"407","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
O/A Track Width

90.6 in 2300 mm
{"Name":"O/A Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"90.6","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Dig Height

265.2 in 6736 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"265.2","MetricUnit":"mm","MetricValue":"6736","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Dump Clearance

187.4 in 4760 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"187.4","MetricUnit":"mm","MetricValue":"4760","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Reach - Ground Level

273.6 in 6949 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"273.6","MetricUnit":"mm","MetricValue":"6949","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Tail Swing without Counterweight

57.1 in 1450 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"57.1","MetricUnit":"mm","MetricValue":"1450","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
O/A Undercarriage Length

113.4 in 2880 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"113.4","MetricUnit":"mm","MetricValue":"2880","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Swing Bearing - Height

29.7 in 756 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.7","MetricUnit":"mm","MetricValue":"756","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Ground Clearance

13.8 in 350 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"13.8","MetricUnit":"mm","MetricValue":"350","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Dig Depth

161.7 in 4108 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"161.7","MetricUnit":"mm","MetricValue":"4108","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Note

*Boom Height when stick is pinned in transport position with no attachments.
{"Name":"Note","SpecificationId":null,"TextValue":"*Boom Height when stick is pinned in transport position with no attachments.","EnglishUnit":"in","EnglishValue":"161.7","MetricUnit":"mm","MetricValue":"4108","Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Overall Shipping Length - with Counterweight

264 in 6706 mm
{"Name":"Overall Shipping Length - with Counterweight","SpecificationId":null,"TextValue":"*Boom Height when stick is pinned in transport position with no attachments.","EnglishUnit":"in","EnglishValue":"264","MetricUnit":"mm","MetricValue":"6706","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Note (1)

**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.","EnglishUnit":"in","EnglishValue":"264","MetricUnit":"mm","MetricValue":"6706","Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Overall Shipping Length - without Counterweight

258.8 in 6574 mm
{"Name":"Overall Shipping Length - without Counterweight","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.","EnglishUnit":"in","EnglishValue":"258.8","MetricUnit":"mm","MetricValue":"6574","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Note (2)

***With blade positioned at the rear of the machine.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"***With blade positioned at the rear of the machine.","EnglishUnit":"in","EnglishValue":"258.8","MetricUnit":"mm","MetricValue":"6574","Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Height - Boom Working - With Tools**

104.7 in 2660 mm
{"Name":"Height - Boom Working - With Tools**","SpecificationId":null,"TextValue":"***With blade positioned at the rear of the machine.","EnglishUnit":"in","EnglishValue":"104.7","MetricUnit":"mm","MetricValue":"2660","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Height - Boom Transport - No Tools*

95.7 in 2430 mm
{"Name":"Height - Boom Transport - No Tools*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"95.7","MetricUnit":"mm","MetricValue":"2430","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}

Engine

Net Power

69.5 hp 51.8 kW
{"Name":"Net Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69.5","MetricUnit":"kW","MetricValue":"51.8","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

Cat C3.3B
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat C3.3B","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Stroke

4.7 in 120 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.7","MetricUnit":"mm","MetricValue":"120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Bore

3.7 in 94 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.7","MetricUnit":"mm","MetricValue":"94","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Gross Power - SAE J1995:2014

74.3 hp 55.4 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"74.3","MetricUnit":"kW","MetricValue":"55.4","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement

203 in³ 3.33 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"203","MetricUnit":"l","MetricValue":"3.33","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269

69.5 hp 51.8 kW
{"Name":"Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69.5","MetricUnit":"kW","MetricValue":"51.8","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Digging Force - Bucket

13946 lb 62 kN
{"Name":"Digging Force - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"13946","MetricUnit":"kN","MetricValue":"62","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Travel

4134 psi 285 bar
{"Name":"Operating Pressure - Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Swing

3626 psi 250 bar
{"Name":"Operating Pressure - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3626","MetricUnit":"bar","MetricValue":"250","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Equipment

4134 psi 285 bar
{"Name":"Operating Pressure - Equipment","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Stick - Long

8032 lb 35.7 kN
{"Name":"Digging Force - Stick - Long","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"8032","MetricUnit":"kN","MetricValue":"35.7","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Type

Load Sensing Hydraulics with Variable Displacement Piston Pump
{"Name":"Type","SpecificationId":null,"TextValue":"Load Sensing Hydraulics with Variable Displacement Piston Pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Note

Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
{"Name":"Note","SpecificationId":null,"TextValue":"Flow and pressure are not combinable. Under load, as flow rises pressure goes down.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Pump Flow at 2,400 rpm

44 gal/min 167 l/min
{"Name":"Pump Flow at 2,400 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"44","MetricUnit":"l/min","MetricValue":"167","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Stick - Standard

9509 lb 42.3 kN
{"Name":"Digging Force - Stick - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9509","MetricUnit":"kN","MetricValue":"42.3","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Primary - Pressure at Pump

4134 psi 285 bar
{"Name":"Maximum Auxiliary Circuit - Primary - Pressure at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Secondary - Pressure at Pump

4134 psi 285 bar
{"Name":"Maximum Auxiliary Circuit - Secondary - Pressure at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Primary - Flow at Pump

35 gal/min 131 l/min
{"Name":"Maximum Auxiliary Circuit - Primary - Flow at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"35","MetricUnit":"l/min","MetricValue":"131","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Secondary - Flow at Pump

9 gal/min 33 l/min
{"Name":"Maximum Auxiliary Circuit - Secondary - Flow at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"9","MetricUnit":"l/min","MetricValue":"33","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Service Refill Capacities

Fuel Tank

39 gal (US) 147 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"39","MetricUnit":"l","MetricValue":"147","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic System

29 gal (US) 110 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"29","MetricUnit":"l","MetricValue":"110","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

14 gal (US) 53 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14","MetricUnit":"l","MetricValue":"53","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System

2.6 gal (US) 10 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.6","MetricUnit":"l","MetricValue":"10","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Engine Oil

3 gal (US) 11.2 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"3","MetricUnit":"l","MetricValue":"11.2","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Sound

Operator Sound Pressure (ISO 6396:2008)

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Pressure (ISO 6396:2008)","SpecificationId":null,"TextValue":"ISO 12117:1997","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
Note

European Union Directive "2000/14/EC"
{"Name":"Note","SpecificationId":null,"TextValue":"European Union Directive \"2000/14/EC\"","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
Average Exterior Sound Pressure (ISO 6395:2008)

99 dB(A) 99 dB(A)
{"Name":"Average Exterior Sound Pressure (ISO 6395:2008)","SpecificationId":null,"TextValue":"European Union Directive \"2000/14/EC\"","EnglishUnit":"dB(A)","EnglishValue":"99","MetricUnit":"dB(A)","MetricValue":"99","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}

Sustainability

Recyclability

96%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"96%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Swing System

Machine Swing Speed

10.6 r/min 10.6 r/min
{"Name":"Machine Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"10.6","MetricUnit":"r/min","MetricValue":"10.6","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"99"}
Boom Swing - Right

50 degrees
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":"50 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"99"}
Boom Swing - Left

60 degrees
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":"60 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"99"}

Travel System

Maximum Traction Force - High Speed

6250 lb 27.8 kN
{"Name":"Maximum Traction Force - High Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6250","MetricUnit":"kN","MetricValue":"27.8","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Ground Pressure - Maximum Weight

5.5 psi 37.6 kPa
{"Name":"Ground Pressure - Maximum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5.5","MetricUnit":"kPa","MetricValue":"37.6","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Ground Pressure - Minimum Weight

4.9 psi 33.8 kPa
{"Name":"Ground Pressure - Minimum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4.9","MetricUnit":"kPa","MetricValue":"33.8","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Travel Speed - High

3.2 mile/h 5.1 km/h
{"Name":"Travel Speed - High","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.2","MetricUnit":"km/h","MetricValue":"5.1","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Travel Speed - Low

1.9 mile/h 3.1 km/h
{"Name":"Travel Speed - Low","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.9","MetricUnit":"km/h","MetricValue":"3.1","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Maximum Traction Force - Low Speed

15175 lb 67.5 kN
{"Name":"Maximum Traction Force - Low Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"15175","MetricUnit":"kN","MetricValue":"67.5","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Gradeability - Maximum

30 degrees
{"Name":"Gradeability - Maximum","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Travel System","SortOrder":"99"}

Weight Increase from Minimum Configuration

Steel Tracks with Pads

752 lb 341 kg
{"Name":"Steel Tracks with Pads","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"752","MetricUnit":"kg","MetricValue":"341","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}
Counterweight

552 lb 250 kg
{"Name":"Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"552","MetricUnit":"kg","MetricValue":"250","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}
Long Stick

146 lb 66 kg
{"Name":"Long Stick","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"146","MetricUnit":"kg","MetricValue":"66","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}

Weights

Operating Weight

18493 lb 8387 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"18493","MetricUnit":"kg","MetricValue":"8387","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Note (1)

*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (2)

**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Maximum Operating Weight with Cab**

18493 lb 8387 kg
{"Name":"Maximum Operating Weight with Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"18493","MetricUnit":"kg","MetricValue":"8387","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Minimum Operating Weight with Cab*

16542 lb 7502 kg
{"Name":"Minimum Operating Weight with Cab*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"16542","MetricUnit":"kg","MetricValue":"7502","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Equipment Info
