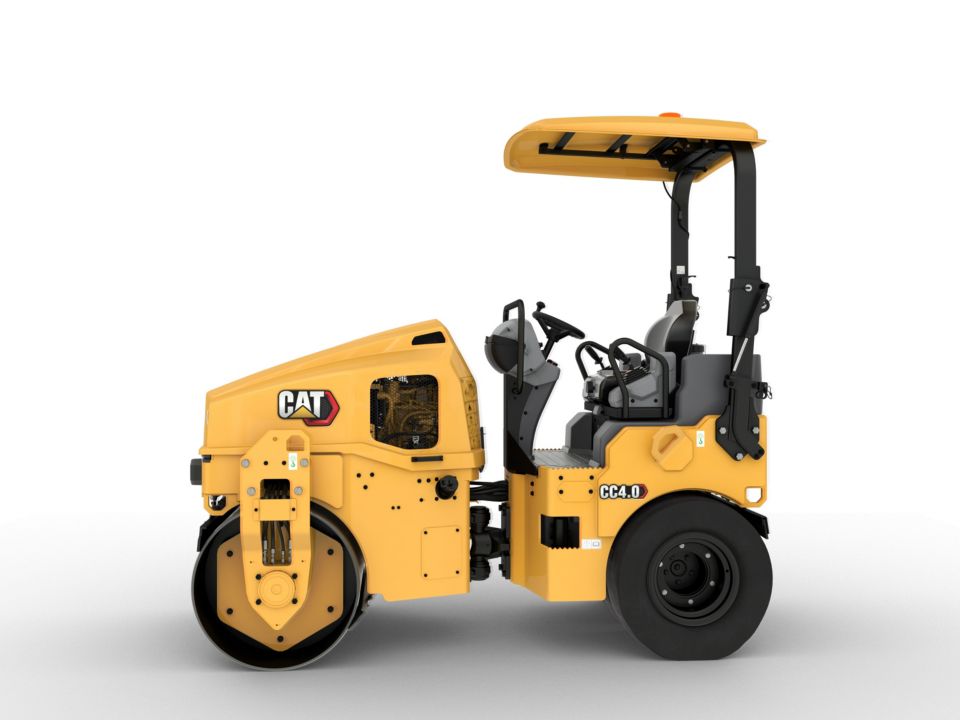

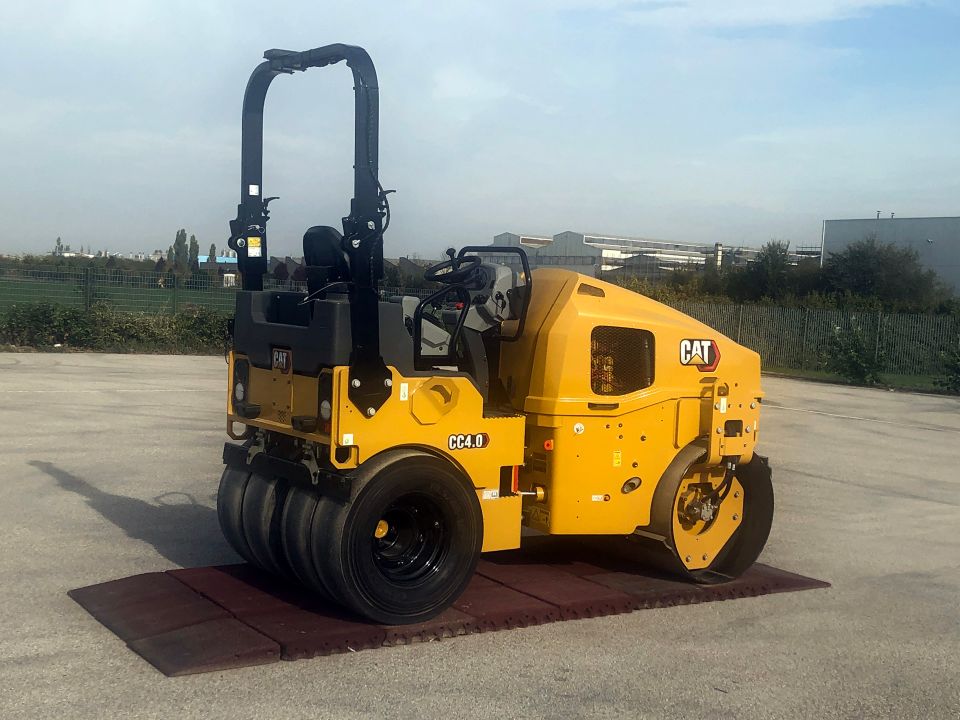

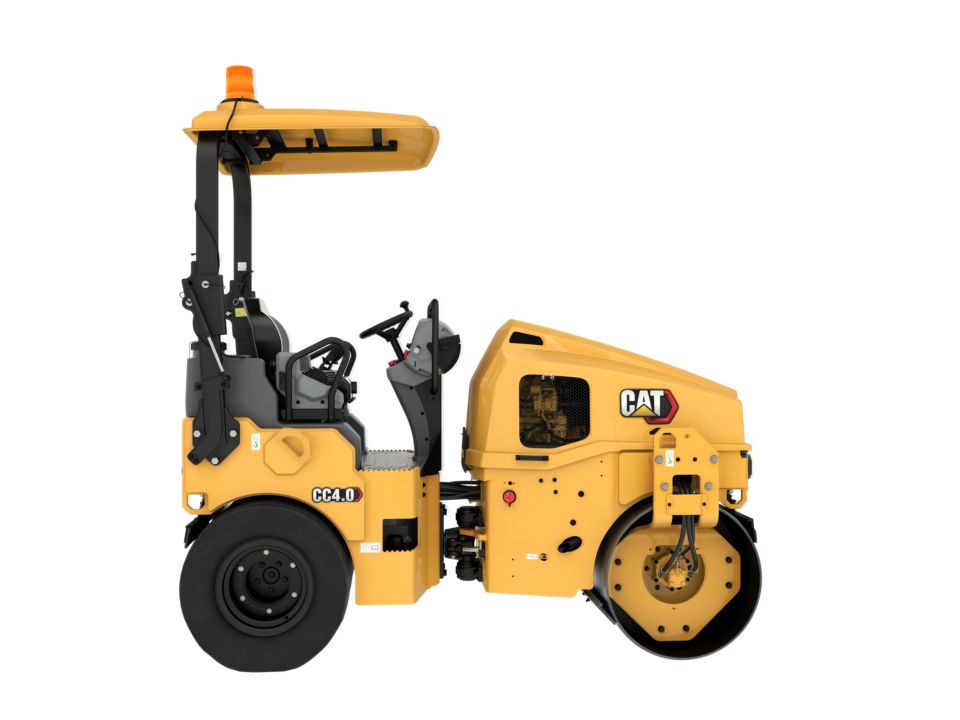

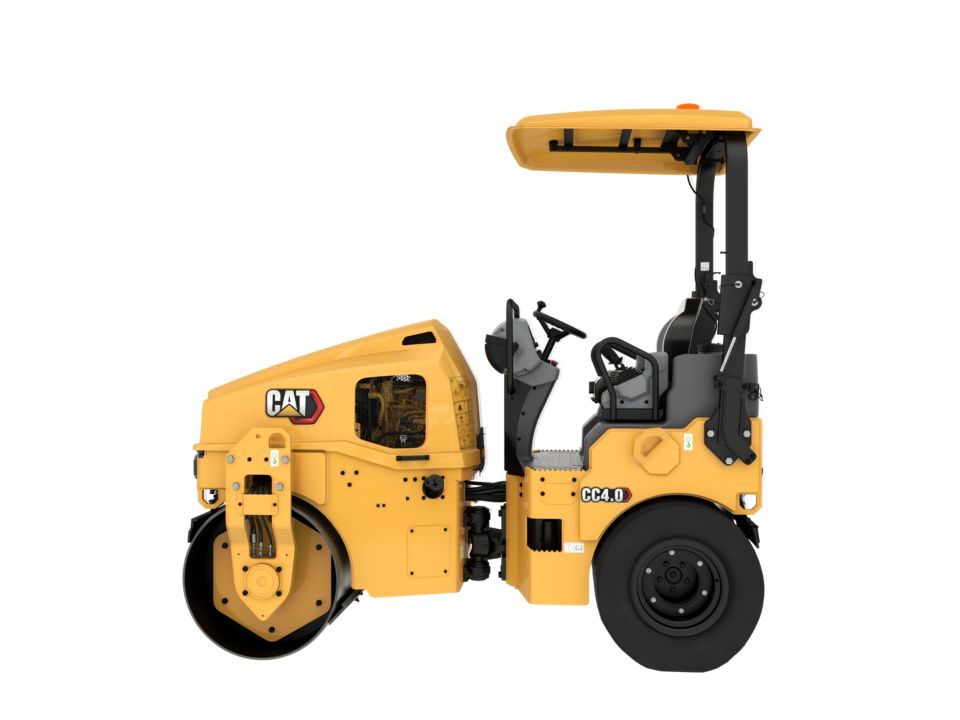

CC4.0

CC4.0

Get it dense and keep it smooth. Cat Tandem Vibratory Rollers do that and more. Caterpillar offers a vibratory system for every application. Most models have high frequency combined with low amplitude that match high paving speed on thin lifts as well as low frequency with high amplitude that match low paving speed on thick lifts of stiff material. As stand-alone units or as complements to high production tandem rollers, Cat Utility Rollers set the standards for versatility and reliability. A wide range of drum widths lets you precisely match the machine to the job requirements—whether it's a narrow shoulder, a patching project, a parking lot or a bicycle path. Vibratory systems are characterized by high frequency for fast working speed and high compaction energy for getting density in the fewest passes.

Book a Demo
Explore my deals
Specifications
Dimensions
  • Compaction Width
    51.2 in 1300 mm
    {"Name":"Compaction Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51.2","MetricUnit":"mm","MetricValue":"1300","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"2"}
  • Overall Length
    112.3 in 2853 mm
    {"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"112.3","MetricUnit":"mm","MetricValue":"2853","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"21"}
  • Overall Width
    55.1 in 1400 mm
    {"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.1","MetricUnit":"mm","MetricValue":"1400","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"22"}
  • Drum Width
    51.2 in 1300 mm
    {"Name":"Drum Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51.2","MetricUnit":"mm","MetricValue":"1300","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"24"}
  • Drum Diameter
    31.5 in 800 mm
    {"Name":"Drum Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31.5","MetricUnit":"mm","MetricValue":"800","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"26"}
  • Wheel Base
    80.7 in 2050 mm
    {"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"80.7","MetricUnit":"mm","MetricValue":"2050","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"29"}
  • Height - ROPS
    104.7 in 2660 mm
    {"Name":"Height - ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"104.7","MetricUnit":"mm","MetricValue":"2660","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"31"}
Engine
  • Engine Power (1)
    48.2 hp 36 kW
    {"Name":"Engine Power (1)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"48.2","MetricUnit":"kW","MetricValue":"36","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"3"}
  • Engine Model
    C1.7T
    {"Name":"Engine Model","SpecificationId":null,"TextValue":"C1.7T","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"34"}
Operating Specifications
  • Standard Compaction Width
    51.2 in 1300 mm
    {"Name":"Standard Compaction Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51.2","MetricUnit":"mm","MetricValue":"1300","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"21"}
  • Drum Offset
    2 in 50 mm
    {"Name":"Drum Offset","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2","MetricUnit":"mm","MetricValue":"50","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"23"}
  • Curb Clearance
    19.6 in 499 mm
    {"Name":"Curb Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"19.6","MetricUnit":"mm","MetricValue":"499","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"25"}
  • Ground Clearance
    11.2 in 284 mm
    {"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.2","MetricUnit":"mm","MetricValue":"284","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"27"}
  • Travel Speed - Maximum
    7.5 mile/h 12 km/h
    {"Name":"Travel Speed - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.5","MetricUnit":"km/h","MetricValue":"12","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"28"}
  • Turning Radius - Inside Drum Edge
    115.2 in 2926 mm
    {"Name":"Turning Radius - Inside Drum Edge","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"115.2","MetricUnit":"mm","MetricValue":"2926","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"30"}
  • Turning Radius - Outside Drum Edge
    166.4 in 4226 mm
    {"Name":"Turning Radius - Outside Drum Edge","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"166.4","MetricUnit":"mm","MetricValue":"4226","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"32"}
  • Static Linear Load
    59.8 lb/in 13.9 kg/cm
    {"Name":"Static Linear Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/in","EnglishValue":"59.8","MetricUnit":"kg/cm","MetricValue":"13.9","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"33"}
Service Refill Capacities
  • Fuel Tank Capacity
    21.43 gal (US) 81 l
    {"Name":"Fuel Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"21.43","MetricUnit":"l","MetricValue":"81","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"61"}
  • Water Spray Tank Capacity
    61 gal (US) 230 l
    {"Name":"Water Spray Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"61","MetricUnit":"l","MetricValue":"230","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"62"}
  • Tire Spray Tank Capacity
    9.2 gal (US) 34.5 l
    {"Name":"Tire Spray Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9.2","MetricUnit":"l","MetricValue":"34.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"66"}
Vibratory System
  • Frequency
    55/45 Hz (3300/2700 vpm)
    {"Name":"Frequency","SpecificationId":null,"TextValue":"55/45 Hz (3300/2700 vpm)","EnglishUnit":"hp","EnglishValue":"47.6","MetricUnit":"kW","MetricValue":"35.5","Type":"text","SpecificationGroup":"Vibratory System","SortOrder":"36"}
  • Frequency
    3300 VPM 55 Hz
    {"Name":"Frequency","SpecificationId":null,"TextValue":"55/45 Hz (3300/2700 vpm)","EnglishUnit":"VPM","EnglishValue":"3300","MetricUnit":"Hz","MetricValue":"55","Type":"measurement","SpecificationGroup":"Vibratory System","SortOrder":"51"}
  • Nominal Amplitude - High
    0.02 in 0.5 mm
    {"Name":"Nominal Amplitude - High","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.02","MetricUnit":"mm","MetricValue":"0.5","Type":"measurement","SpecificationGroup":"Vibratory System","SortOrder":"52"}
  • Centrifugal Force - Maximum
    7524 lb/ft 33.47 kN
    {"Name":"Centrifugal Force - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"7524","MetricUnit":"kN","MetricValue":"33.47","Type":"measurement","SpecificationGroup":"Vibratory System","SortOrder":"53"}
Weights
  • Standard Operating Weight with ROPS
    7889 lb 3586 kg
    {"Name":"Standard Operating Weight with ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7889","MetricUnit":"kg","MetricValue":"3586","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"1"}
  • Maximum Weight at Front Drum
    3918 lb 1781 kg
    {"Name":"Maximum Weight at Front Drum","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3918","MetricUnit":"kg","MetricValue":"1781","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"11"}
  • Maximum Weight at Rear Drum
    3971 lb 1805 kg
    {"Name":"Maximum Weight at Rear Drum","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3971","MetricUnit":"kg","MetricValue":"1805","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"12"}
  • Maximum Operating Weight with ROPS
    3936 lb 8659 kg
    {"Name":"Maximum Operating Weight with ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3936","MetricUnit":"kg","MetricValue":"8659","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"13"}
  • Static Linear Load
    76.6 lb/in 13.7 kg/cm
    {"Name":"Static Linear Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/in","EnglishValue":"76.6","MetricUnit":"kg/cm","MetricValue":"13.7","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"14"}
Benefits

Simple to Operate

• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing operator fatigue and better job surface visibility

Proven Productivity

• Large 800 mm (31.5 in) drum diameters for smooth mat finish
• 16 mm (0.6 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)

Technology Ready

• Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency

Superior Safety

• High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon

Easy to Service

• Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
Equipment Info

OPERATOR ENVIRONMENT

Adjustable Suspension Seat with Operator Presense Switch

COMPACTON SYSTEM

Folding Scrapers

POWERTRAIN

Auto Engine Off and Auto Warmup

TECHNOLOGY

Telematics

ELECTRICAL

LED Working Lights

OTHER

Vandal Protection - lockable hood, fuel fill, and controls cover
