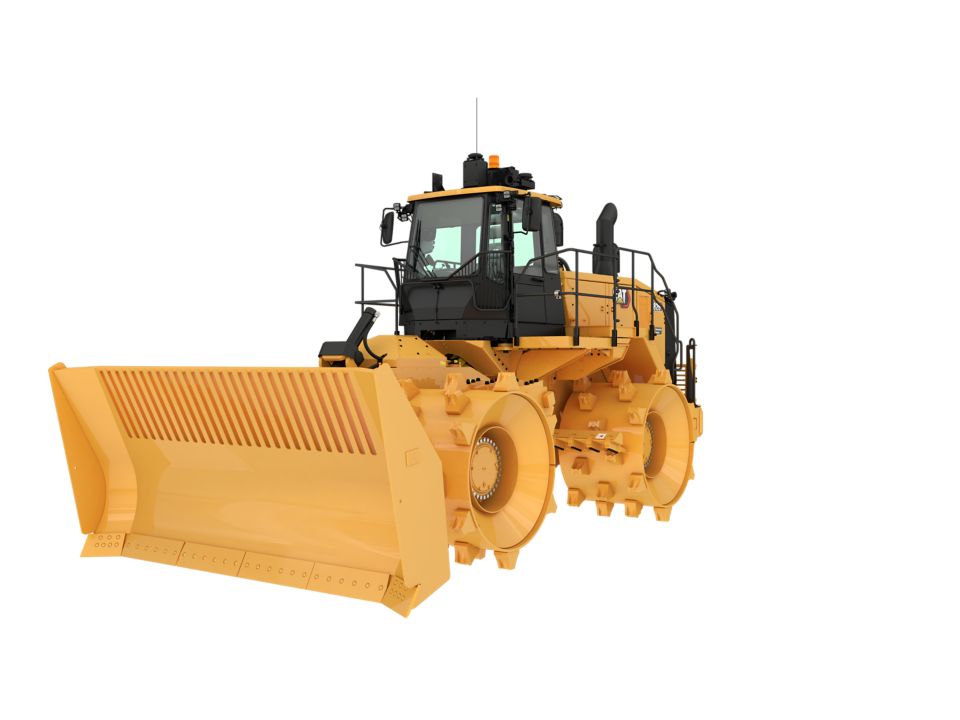

826
826
Cat landfill compactors have enhanced features with additional guarding and attention to placement of components to ensure you get the most durable landfill compactor.
Book a Demo
Explore my deals
Specifications
Axles
-
FrontPlanetary - Fixed
-
RearPlanetary - Oscillating
-
Oscillation Angle±5°
Braking System
-
Service BrakesMulti Disc Wet (Enclosed) 2 WHL
-
Parking BrakeDrum and Shoe, Spring Applied, Hydraulic Released
Dimensions (Approximate)
-
Height to Top of Air Conditioning Condenser14.99 ft 4568 mm
-
Height - Cab Roof13.75 ft 4193 mm
-
Height - Top of Beacon15.63 ft 4765 mm
-
Height - Top of Exhaust Pipe14.56 ft 4439 mm
-
Height - Top of Hood10.87 ft 3312 mm
-
Ground Clearance - Bumper3.15 ft 960 mm
-
Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard9.38 ft 2860 mm
-
Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard10.16 ft 3096 mm
-
Hitch to Centerline of Front Axle6.07 ft 1850 mm
-
Wheel Base12.14 ft 3700 mm
-
Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard28.59 ft 8715 mm
-
Ground Clearance2.11 ft 642 mm
-
Width - Over Wheels12.47 ft 3800 mm
-
Turning Radius - Inside of Wheels9.18 ft 2797 mm
Engine
-
Gross Power - SAE J1995:2014435 hp 324 kW
-
Net Power - SAE J1349:2011405 hp 302 kW
-
Net Power - ISO 9249:2007405 hp 302 kW
-
Engine Power - ISO 14396:2002426 hp 318 kW
-
Engine ModelC15 Cat®
-
EmissionsU.S. EPA Tier 4 Final/ EU Stage V/Korea Stage V and Japan 2014 or Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA
-
Rated Speed1800
-
Torque Rise33%
-
Bore5.4 in 137.2 mm
-
Stroke6.7 in 171.4 mm
-
Displacement927.6 in³ 15.2 l
-
High Idle Speed2300 r/min 2300 r/min
-
Low Idle Speed800 r/min 800 r/min
-
Maximum Altitude – Without Derating (Tier 4 Final/Stage V)9298 ft 2834 m
-
Maximum Altitude - Without Derating (Tier 3/Stage IIIA)9098 ft 2773 m
-
NoteNet power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Hydraulic System
-
Pump Flow at 1800 rpm30.9 gal/min 117 l/min
-
Main Relief Pressure3771 psi 26000 kPa
-
Maximum Supply Pressure3495 psi 24100 kPa
-
Lift SystemDouble Acting Cylinder
-
Bore4.7 in 120 mm
-
Stroke42.1 in 1070 mm
Hydraulic System - Steering
-
Steering System - CircuitPilot operated, load sensing
-
Bore4.5 in 114.3 mm
-
Stroke22.7 in 576 mm
-
Steering System - PumpPiston - Variable Displacement
-
Maximum System Flow170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm)
-
Steering Pressure Limited3481 psi 24000 kPa
-
Vehicle Articulation Angle86 ° 86 °
Operating Specifications
-
Operating Weight (Tier 4 Final/Stage V)90207 lb 40917 kg
-
Operating Weight (Tier 3/Stage IIIA equivalent)89186 lb 40454 kg
-
Maximum Operating Weight (Tier 4 Final/Stage V)92568 lb 41988 kg
-
Maximum Operating Weight (Tier 3/Stage IIIA equivalent)91549 lb 41526 kg
Semi U-Blade
-
Width – Moldboard Length14.66 ft 4462 mm
-
Width - Over End Bits14.83 ft 4522 mm
-
Height with Cutting Edge and Screen6.63 ft 2022 mm
-
Maximum Depth of Cut2.03 ft 619 mm
-
Maximum Lift above Ground3.825 ft 1165 mm
-
Capacity, Rated20.9 yd³ 16 m³
-
Overall Machine Length (includes rear radiator guard, measured to cutting edge)29.54 ft 9005 mm
Service Refill Capacities
-
Cooling System30.6 gal (US) 116 l
-
Engine Crankcase9 gal (US) 34 l
-
Transmission17.4 gal (US) 66 l
-
Fuel Tank206.6 gal (US) 782 l
-
Diesel Exhaust Fluid Tank (Tier 4 Final/Stage V)8.5 gal (US) 32 l
-
Differential - Final Drives - Front26.4 gal (US) 100 l
-
Differential - Final Drives - Rear29.1 gal (US) 110 l
-
Hydraulic Tank Only35.4 gal (US) 134 l
-
NoteCat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006.
Sound Performance - Tier 3 / Stage IIIA
-
Operator Sound Pressure Level (ISO 6396:2008)73 dB(A) 73 dB(A)
-
Machine Sound Power Level (ISO 6395:2008)113 dB(A) 113 dB(A)
-
Operator Sound Pressure Level (ISO 6396:2008)*72 dB(A) 72 dB(A)
-
Machine Sound Power Level (ISO 6395:2008)*110 dB(A) 110 dB(A)
-
Note (1)* Sound suppression equipped
-
Note (2)The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
-
Note (3)The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
-
Note (4)Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 4 Final / Stage V
-
Operator Sound Pressure Level (ISO 6396:2008)73 dB(A) 73 dB(A)
-
Machine Sound Power Level (ISO 6395:2008)113 dB(A) 113 dB(A)
-
Operator Sound Pressure Level (ISO 6396:2008)*72 dB(A) 72 dB(A)
-
Machine Sound Power Level (ISO 6395:2008)*110 dB(A) 110 dB(A)
-
Note (1)* Sound suppression equipped
-
Note (2)The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
-
Note (3)The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
-
Note (4)Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Straight Blade
-
Width – Moldboard Length14.16 ft 4311 mm
-
Width - Over End Bits14.75 ft 4502 mm
-
Height with Cutting Edge and Screen6.23 ft 1900 mm
-
Maximum Depth of Cut1.5 ft 461 mm
-
Maximum Lift above Ground4.19 ft 1277 mm
-
Capacity, Rated16.1 yd³ 12.3 m³
-
Overall Machine Length (includes rear radiator guard, measured to cutting edge)28.59 ft 8715 mm
Transmission
-
Transmission TypePlanetary - Powershift - ECPC
-
Direct Drive - Forward 14.2 mile/h 6.8 km/h
-
Direct Drive - Forward 27.5 mile/h 12.1 km/h
-
Direct Drive - Reverse 14.3 mile/h 7.8 km/h
-
Direct Drive - Reverse 28.6 mile/h 13.8 km/h
U-Blade
-
Width – Moldboard Length14.25 ft 4331 mm
-
Width - Over End Bits14.41 ft 4398 mm
-
Height with Cutting Edge and Screen6.62 ft 2019 mm
-
Maximum Depth of Cut2.03 mm 619 mm
-
Maximum Lift above Ground3.79 ft 1156 mm
-
Capacity, Rated22.9 yd³ 17.5 m³
-
Overall Machine Length (includes rear radiator guard, measured to cutting edge)30.7 ft 9357 mm
Wheels
-
Combination Tips (Weight Group)21125 lb 9582 kg
-
Plus Tips - Weight (Group)22002 lb 9980 kg
-
Paddle Tips - Weight (Group)20540 lb 9317 kg
-
Diamond Tips Weight (Group)23997 lb 10885 kg
-
Outside Diameter77.6 in 1971 mm
-
Outside Diameter - Diamond78.1 in 1983 mm
-
Drum Diameter63.4 in 1610 mm
-
Drum Width47.2 in 1200 mm
-
Feet Per Row6
-
Feet Per Wheel30
-
ReplaceableWeld On
-
Width Over Drums3800 mm 149.6 in
-
Tip Height179 mm 7 in
-
Tip Height - Diamond7.25 in 179 mm
Benefits
- Flip-up armrest for easy ingress/egress.
- Keep your operators informed about machine conditions and operation with Vital Information Management System (VIMS™) 3G machine monitoring system.
- Enhanced visibility with standard rearview camera.
- Preferred temperature settings maintained with automatic climate control.
- Cat Premium Plus seat with standard features, including leather finish, forced air heating and cooling, two-way thigh adjustment, power lumbar and back bolster adjustment, and dynamic end dampening to provide total comfort throughout the workday.
- Low spectator sound levels and optional low sound packages.
- Easy access in a controlled environment; electronics bay is located inside the cab.
- Focused on safety with ground level or platform access to most major components.
- Ground level: engine shutdown switch, lockable battery disconnect, and auxiliary jump start receptacle.
- Quick visual inspection and minimized fluid contamination with sight gauges for coolant, transmission, and hydraulic oil.
- Electronic air inlet restriction indicator.
- Designed for ease of service and inspection.
– Hydraulic oil cooler, fuel cooler, and roof-mounted condenser
– Centralized grease points - Operators and technicians can resolve any problems before failure using VIMS.
- Guarding around the axles mitigates risk of damaged components.
- Improved performance, long life, low emissions.
- High productivity and fuel efficient.
- Two engine options available that meet U.S. EPA Tier 4 Final and EU Stage V emission standards or emitting equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
- For the Tier 4 Final, EU Stage V option, the Cat Clean Emissions Module contains a diesel oxidation catalyst, diesel particulate filter, and Cat Regeneration System, utilizing selective catalytic reduction (SCR) technology.
- Regeneration is completely automatic and does not interrupt the machine’s work cycle.
- Experience maximum responsiveness and control with Steering and Transmission Integrated Control (STIC™) system.
- Conserve more fuel with the automatic engine and electrical system shutdown.
- Achieve greater momentum on grades and fuel savings by carrying that momentum through the shift points advanced productivity electronic control system (APECS) transmission controls.
- Operators experience less fatigue with throttle lock to maintain engine speed.
- Equipped with Cat torque converter with lock-up clutch which eliminates torque converter (TC) losses while lowering system heat and transfers more power to the ground.
- Torque converter with lock-up clutch eliminates torque converter losses while lowering system heat. Improves travel speeds and increases fuel efficiency.
- Lock-up torque converter transfers more power to the ground and optimizes fuel efficiency in all applications.
- Compact technology combines advanced compaction measurement, in-cab guidance, and reporting capabilities to help you consistently meet compaction targets fast, uniformly, and in fewer passes – saving on fuel and the cost of unnecessary rework.
- Link technology (standard) provides access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes through the online VisionLink® interface.
- Improved productivity with optional Cat Compact with Elevation Mapping.

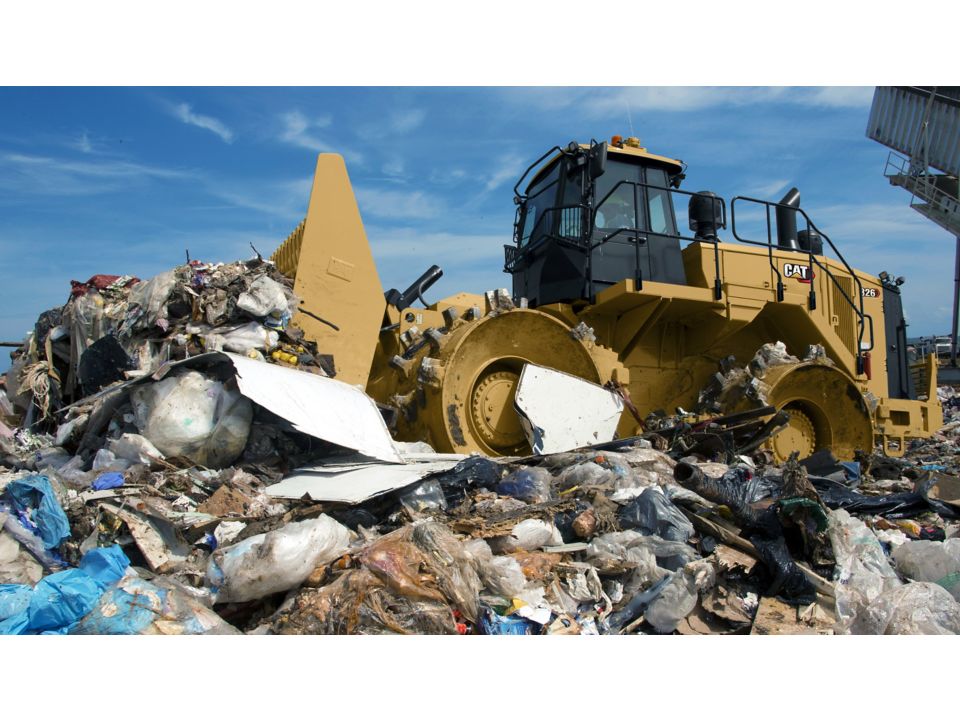

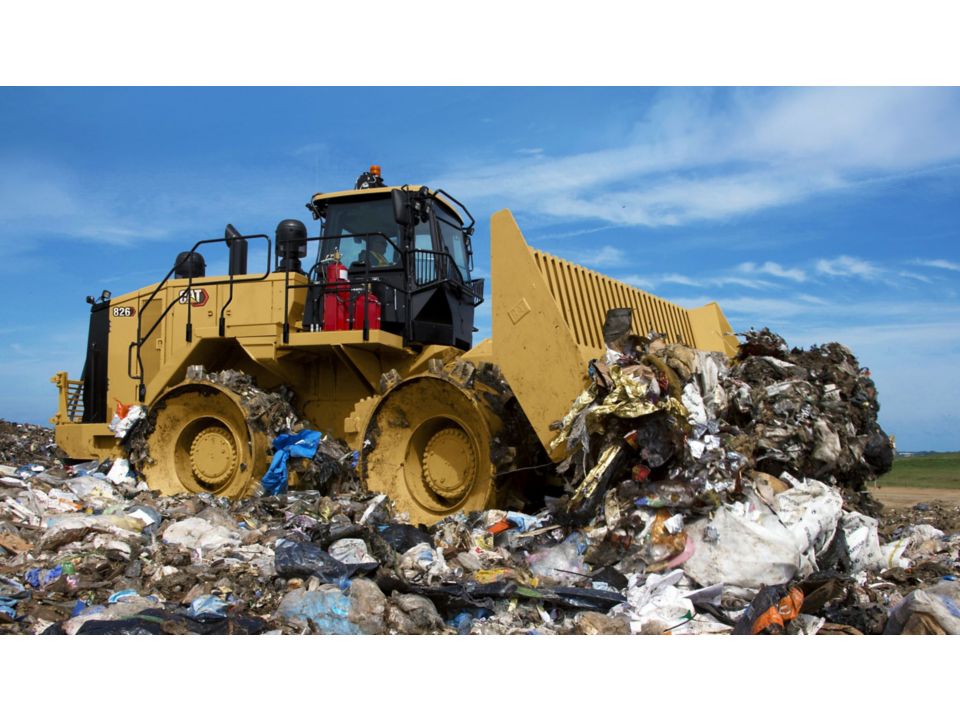

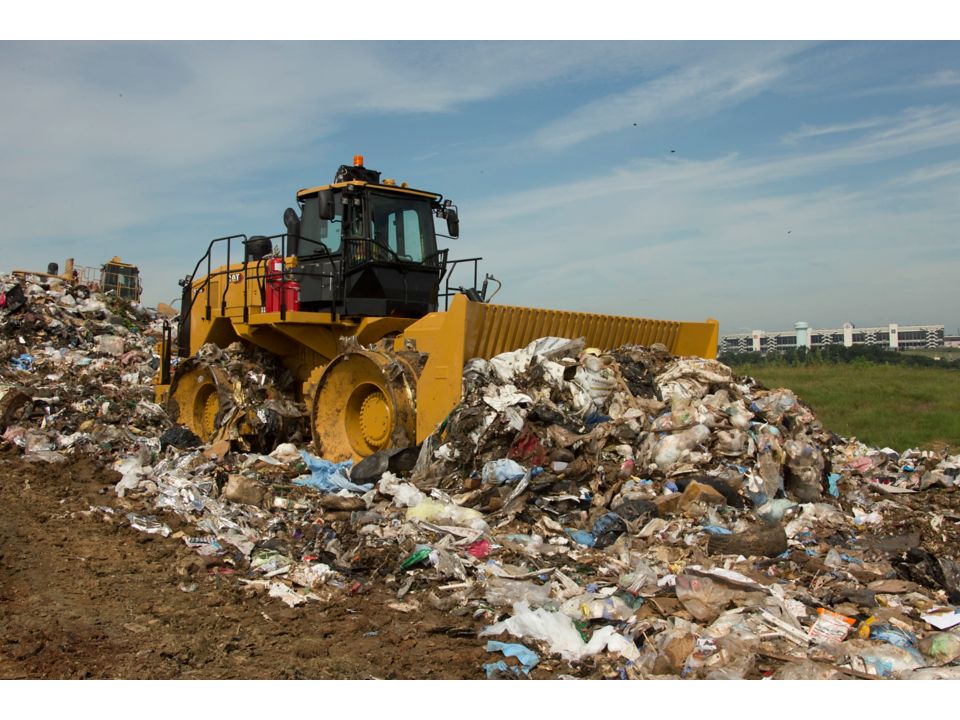

Working in the toughest application, the purpose-built 826 Landfill Compactor has specialized waste guarding to protect key components and systems from damage, debris, chemicals, premature wear, or wrapping of the material around components. This additional guarding includes:
- Engine and Powertrain Guards – Hydraulically actuated guards help prevent trash buildup and shield components.
- Front Frame Guards – Front frame guards prevent trash buildup inside the frame. This guard further protects components and hydraulic lines.
- Axle Wrapping and Seal Guarding – The guarding prevents material from wrapping and binding around the axles, as well as assists in ease of cleaning.
- Major System Guarding and Sight Gauges – Transmission oil tube is guarded to resist damage from debris. The sight gauge for the transmission is visible from ground level. The fuel tank is positioned away from the debris in the front frame and is easily accessed.
- Air Inlet Screen – The vertically corrugated, fine-mesh air inlet screen helps reduce trash from entering the radiator area and allows for debris to fall off.
- Striker Bars and Optional Cleaner Fingers – Striker bars are located in front of and behind the rear wheels and behind the front wheels. Striker bars help to keep wheels free of debris to assist the wheel step tips in maintaining good compaction. In cohesive material or severe packing conditions, optional cleaner fingers are available to further assist in keeping the wheel step tips clean.
- Extended Roof – An oversized roof extends past the cab doors and windows to minimize debris buildup.
- Under Hood Ventilation System – Creates a neutral pressure environment to prevent trash ingestion from hood openings while providing fresh air to the alternator, electronics, and turbo.
- Designed specifically to complement Cat machines.
- Improves machine performance through longer wear life and maintaining traction.
- Four wheel and tip configurations are available to meet your particular application:
- Paddle Tip – High performance and less fuel burn with more traction and less weight.
- Plus Tip – Traditional design for increased side slope stability.
- Combination Tip – Both paddle and plus tips provide the best compromise of performance and fuel economy with side slope stability.
- Diamond Tip – Longest life tip on the market with reputation of reliability that is world class in the waste tip industry.
Equipment Info
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details.
BLADES
Dozer arrangement (no blade)
WHEELS AND CLEANER BARS
Striker bars
POWERTRAIN
Single Clutch Speed Shifting (SCSS)
ELECTRICAL
Alarm, back-up
OPERATOR ENVIRONMENT
Camera, rear vision
GUARDS
Guards, axle (front and rear)
FLUIDS
Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
OTHER STANDARD EQUIPMENT
Demand fan/swing out (hydraulic reversible)
TECHNOLOGY PRODUCTS
Product Link™ – Cellular, Satellite
SPECIAL ARRANGEMENTS
Engine: – Sound suppression
