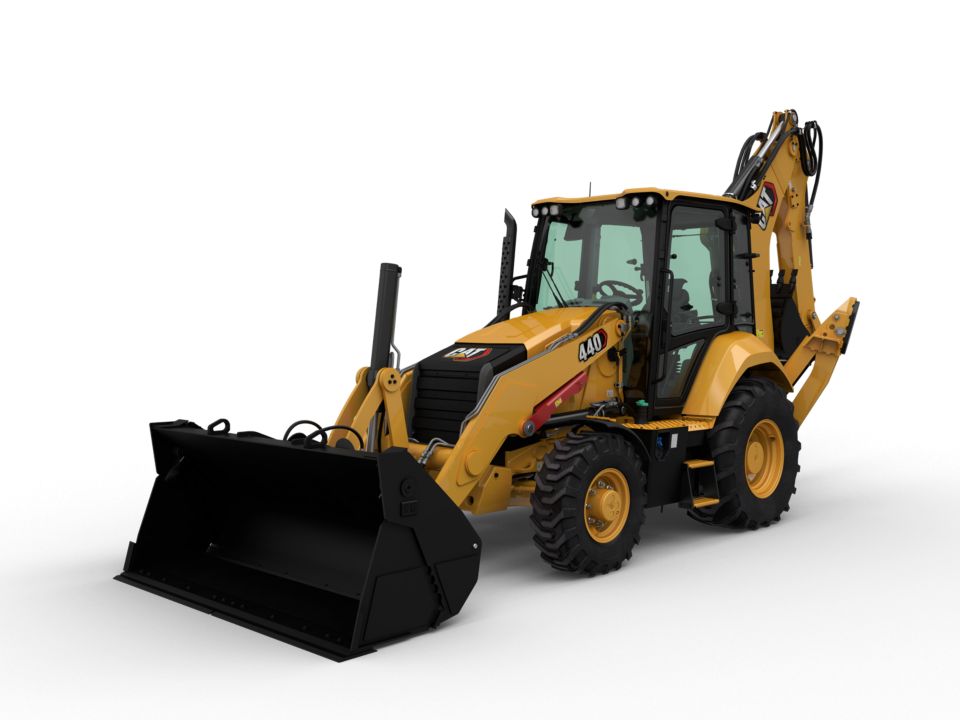

440 | Toromont Cat

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Axle Ratings

Front Axle, AWD - Static

50565 lb 22936 kg
{"Name":"Front Axle, AWD - Static","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"50565","MetricUnit":"kg","MetricValue":"22936","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Front Axle (4WD) - Dynamic

20233 lb 9186 kg
{"Name":"Front Axle (4WD) - Dynamic","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"20233","MetricUnit":"kg","MetricValue":"9186","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Rear Axle - Static

50565 lb 22936 kg
{"Name":"Rear Axle - Static","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"50565","MetricUnit":"kg","MetricValue":"22936","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Rear Axle - Dynamic

20225 lb 9174 kg
{"Name":"Rear Axle - Dynamic","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"20225","MetricUnit":"kg","MetricValue":"9174","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Front Axle, AWD - Dynamic

20225 lb 9174 kg
{"Name":"Front Axle, AWD - Dynamic","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"20225","MetricUnit":"kg","MetricValue":"9174","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Front Axle (4WD) - Static

50582 lb 22964 kg
{"Name":"Front Axle (4WD) - Static","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"50582","MetricUnit":"kg","MetricValue":"22964","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}

Backhoe

Dig Depth - Standard

15.5 ft 4718 mm
{"Name":"Dig Depth - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.5","MetricUnit":"mm","MetricValue":"4718","Type":"measurement","SpecificationGroup":"Backhoe","SortOrder":"2"}

Counterweights - Front - Minimum Recommendations

Standard Stick - GP Loader Bucket - 4WD

255 lb 116 kg
{"Name":"Standard Stick - GP Loader Bucket - 4WD","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"255","MetricUnit":"kg","MetricValue":"116","Type":"measurement","SpecificationGroup":"Counterweights - Front - Minimum Recommendations","SortOrder":"99"}
Standard Stick - MP Loader Bucket - 4WD

no counterweight
{"Name":"Standard Stick - MP Loader Bucket - 4WD","SpecificationId":null,"TextValue":"no counterweight","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Counterweights - Front - Minimum Recommendations","SortOrder":"99"}

Engine

Net Power - SAE J1349:2011

104 hp 78 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"104","MetricUnit":"kW","MetricValue":"78","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Bore

4.13 in 105 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.13","MetricUnit":"mm","MetricValue":"105","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"88"}
Stroke

5 in 127 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5","MetricUnit":"mm","MetricValue":"127","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"89"}
Displacement

268 in³ 4.4 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"268","MetricUnit":"l","MetricValue":"4.4","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"90"}
Net Peak Power - 1,800 rpm - ISO 9249

73 hp 54 kW
{"Name":"Net Peak Power - 1,800 rpm - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"73","MetricUnit":"kW","MetricValue":"54","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Ratings at 2,200 rpm - Gross Power SAE J1995

118 hp 88 kW
{"Name":"Ratings at 2,200 rpm - Gross Power SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"118","MetricUnit":"kW","MetricValue":"88","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Gross Power - SAE J1995:2014

74 hp 55 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"74","MetricUnit":"kW","MetricValue":"55","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Power Rating - ISO 9249 at 1,800 rpm

108 hp 80.7 kW
{"Name":"Net Peak Power Rating - ISO 9249 at 1,800 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"108","MetricUnit":"kW","MetricValue":"80.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Torque Rise - 1,200 rpm

88 % 88 %
{"Name":"Net Torque Rise - 1,200 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"%","EnglishValue":"88","MetricUnit":"%","MetricValue":"88","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Power - 1,800 rpm - EEC 80/1269

73 hp 54 kW
{"Name":"Net Peak Power - 1,800 rpm - EEC 80/1269","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"73","MetricUnit":"kW","MetricValue":"54","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power - 2,200 rpm - SAE J1349

68 hp 51 kW
{"Name":"Net Power - 2,200 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"68","MetricUnit":"kW","MetricValue":"51","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Gross Power - ISO 14396

74 hp 55 kW
{"Name":"Gross Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"74","MetricUnit":"kW","MetricValue":"55","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Rated Net Power - 2,200 rpm - EEC 80/1269

69 hp 51 kW
{"Name":"Rated Net Power - 2,200 rpm - EEC 80/1269","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69","MetricUnit":"kW","MetricValue":"51","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power Rating at 2,200 rpm - ISO 9249

104 hp 78 kW
{"Name":"Net Power Rating at 2,200 rpm - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"104","MetricUnit":"kW","MetricValue":"78","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model

C4.4 ACERT 87 kW (116 hp) Electronic – Turbo Intercooled
{"Name":"Engine Model","SpecificationId":null,"TextValue":"C4.4 ACERT 87 kW (116 hp) Electronic – Turbo Intercooled","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Ratings at 2,200 rpm - Gross Power ISO 14396

116 hp 87 kW
{"Name":"Ratings at 2,200 rpm - Gross Power ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"116","MetricUnit":"kW","MetricValue":"87","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Power - 1,800 rpm - SAE J1349

72 hp 54 kW
{"Name":"Net Peak Power - 1,800 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"72","MetricUnit":"kW","MetricValue":"54","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Torque Rise - 1,400 rpm - SAE J1349

360 ft·lbf 487 N·m
{"Name":"Net Torque Rise - 1,400 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"360","MetricUnit":"N·m","MetricValue":"487","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Power Rating - SAE J1349 at 2,100 rpm

108 hp 80.7 kW
{"Name":"Net Peak Power Rating - SAE J1349 at 2,100 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"108","MetricUnit":"kW","MetricValue":"80.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Rated Net Power - 2,200 rpm - ISO 9249

68 hp 51 kW
{"Name":"Rated Net Power - 2,200 rpm - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"68","MetricUnit":"kW","MetricValue":"51","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Torque Rise - 1,400 rpm

44%
{"Name":"Net Torque Rise - 1,400 rpm","SpecificationId":null,"TextValue":"44%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Power Rating Conditions - No De-Rating Required Up To

7500 ft 2286 m
{"Name":"Power Rating Conditions - No De-Rating Required Up To","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"7500","MetricUnit":"m","MetricValue":"2286","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power Rating at 2,200 rpm - SAE J1349

104 hp 78 kW
{"Name":"Net Power Rating at 2,200 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"104","MetricUnit":"kW","MetricValue":"78","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Emissions

Engine meets U.S. EPA Tier 4 Final emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Engine meets U.S. EPA Tier 4 Final emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Torque SAE J1349

307 ft·lbf 416 N·m
{"Name":"Net Peak Torque SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"307","MetricUnit":"N·m","MetricValue":"416","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note

No derating required up to 2286 m (7,500 ft).
{"Name":"Note","SpecificationId":null,"TextValue":"No derating required up to 2286 m (7,500 ft).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Pump Type

Variable Flow, Axial Piston
{"Name":"Pump Type","SpecificationId":null,"TextValue":"Variable Flow, Axial Piston","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"91"}
System Pressure - Loader

3800 psi 26200 kPa
{"Name":"System Pressure - Loader","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3800","MetricUnit":"kPa","MetricValue":"26200","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Pump Capacity at 2,200 rpm

58.1 gal/min 220 l/min
{"Name":"Pump Capacity at 2,200 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"58.1","MetricUnit":"l/min","MetricValue":"220","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
System Pressure - Hitch/Box Scraper

2973 psi 20500 kPa
{"Name":"System Pressure - Hitch/Box Scraper","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2973","MetricUnit":"kPa","MetricValue":"20500","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Type

Closed Center
{"Name":"Type","SpecificationId":null,"TextValue":"Closed Center","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
System Pressure - Backhoe

3800 psi 26200 kPa
{"Name":"System Pressure - Backhoe","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3800","MetricUnit":"kPa","MetricValue":"26200","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Loader Bucket

Dig Depth - Standard

3 in 83 mm
{"Name":"Dig Depth - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"83","Type":"measurement","SpecificationGroup":"Loader Bucket","SortOrder":"99"}

Service Refill Capacities

Hydraulic System

23.8 gal (US) 90 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"23.8","MetricUnit":"l","MetricValue":"90","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Engine Oil - With Filter

2.3 gal (US) 8.8 l
{"Name":"Engine Oil - With Filter","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.3","MetricUnit":"l","MetricValue":"8.8","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Rear Axle - Planetaries

0.4 gal (US) 1.7 l
{"Name":"Rear Axle - Planetaries","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.4","MetricUnit":"l","MetricValue":"1.7","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System with Cab Heater

6 gal (US) 22.5 l
{"Name":"Cooling System with Cab Heater","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6","MetricUnit":"l","MetricValue":"22.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic System (Minimum)

31.7 gal (US) 120 l
{"Name":"Hydraulic System (Minimum)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"31.7","MetricUnit":"l","MetricValue":"120","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission - Power Shuttle - 2WD

4 gal (US) 15 l
{"Name":"Transmission - Power Shuttle - 2WD","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4","MetricUnit":"l","MetricValue":"15","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System with Air Conditioning

4.4 gal (US) 16.5 l
{"Name":"Cooling System with Air Conditioning","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.4","MetricUnit":"l","MetricValue":"16.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

42.3 gal (US) 160 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"42.3","MetricUnit":"l","MetricValue":"160","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission (Autoshift) - AWD, Autoshift

4.8 gal (US) 18 l
{"Name":"Transmission (Autoshift) - AWD, Autoshift","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.8","MetricUnit":"l","MetricValue":"18","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Planetaries

0.2 gal (US) 0.7 l
{"Name":"Planetaries","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.2","MetricUnit":"l","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Rear Axle

4.4 gal (US) 16.5 l
{"Name":"Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.4","MetricUnit":"l","MetricValue":"16.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission - Power Shuttle - 4WD

4 gal (US) 15 l
{"Name":"Transmission - Power Shuttle - 4WD","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4","MetricUnit":"l","MetricValue":"15","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Front Axle (Center Housing)

2.9 gal (US) 11 l
{"Name":"Front Axle (Center Housing)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.9","MetricUnit":"l","MetricValue":"11","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Rear Axle (Center Housing)

4.4 gal (US) 16.5 l
{"Name":"Rear Axle (Center Housing)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.4","MetricUnit":"l","MetricValue":"16.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank (Nominal)

14.3 gal (US) 54 l
{"Name":"Hydraulic Tank (Nominal)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14.3","MetricUnit":"l","MetricValue":"54","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Front Axle (4WD) - Planetaries

0.2 gal (US) 0.7 l
{"Name":"Front Axle (4WD) - Planetaries","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.2","MetricUnit":"l","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Diesel Exhaust Fluid (DEF)

5 gal (US) 19 l
{"Name":"Diesel Exhaust Fluid (DEF)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Front Axle (4WD)

2.9 gal (US) 11 l
{"Name":"Front Axle (4WD)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.9","MetricUnit":"l","MetricValue":"11","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Note

Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
{"Name":"Note","SpecificationId":null,"TextValue":"Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

10.6 gal (US) 40 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"10.6","MetricUnit":"l","MetricValue":"40","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Steering

Rod Diameter

1.65 in 42 mm
{"Name":"Rod Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.65","MetricUnit":"mm","MetricValue":"42","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Stroke

9.29 in 236 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.29","MetricUnit":"mm","MetricValue":"236","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Turning Circle (inner wheel not braked) - Outside Front Wheels

27.33 ft 8.33 m
{"Name":"Turning Circle (inner wheel not braked) - Outside Front Wheels","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"27.33","MetricUnit":"m","MetricValue":"8.33","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Note

AWD cylinder, one (1) double-acting.
{"Name":"Note","SpecificationId":null,"TextValue":"AWD cylinder, one (1) double-acting.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Bore

3.35 in 85 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.35","MetricUnit":"mm","MetricValue":"85","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket

37.75 ft 11.5 m
{"Name":"Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"37.75","MetricUnit":"m","MetricValue":"11.5","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Power Steering

Hydrostatic HMU
{"Name":"Power Steering","SpecificationId":null,"TextValue":"Hydrostatic HMU","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Type

Front Wheel
{"Name":"Type","SpecificationId":null,"TextValue":"Front Wheel","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Axle Oscillation

11°
{"Name":"Axle Oscillation","SpecificationId":null,"TextValue":"11°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Turning Circle - (inner wheel not braked) - Outside Front Wheels

26.8 ft 8.18 m
{"Name":"Turning Circle - (inner wheel not braked) - Outside Front Wheels","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"26.8","MetricUnit":"m","MetricValue":"8.18","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket

36 ft 10.97 m
{"Name":"Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"36","MetricUnit":"m","MetricValue":"10.97","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}

Tires

Standard Configuration of Front/Rear Tires

Front: 12.5 80/16.9; Rear: 16.9-24
{"Name":"Standard Configuration of Front/Rear Tires","SpecificationId":null,"TextValue":"Front: 12.5 80/16.9; Rear: 16.9-24","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"99"}

Transmission

Autoshift Transmission - Reverse - 1st

3.7 mile/h 5.9 km/h
{"Name":"Autoshift Transmission - Reverse - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Forward 3rd

13 mile/h 20 km/h
{"Name":"Power Shuttle Transmission - Forward 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"13","MetricUnit":"km/h","MetricValue":"20","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Reverse 2nd

5.5 mile/h 8.9 km/h
{"Name":"Power Shuttle Transmission - Reverse 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.5","MetricUnit":"km/h","MetricValue":"8.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Forward - 6th

24.4 mile/h 39.2 km/h
{"Name":"Autoshift Transmission - Forward - 6th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"24.4","MetricUnit":"km/h","MetricValue":"39.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Reverse 4th

23 mile/h 36 km/h
{"Name":"Power Shuttle Transmission - Reverse 4th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"23","MetricUnit":"km/h","MetricValue":"36","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Reverse - 3rd

16.7 mile/h 26.8 km/h
{"Name":"Autoshift Transmission - Reverse - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"16.7","MetricUnit":"km/h","MetricValue":"26.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Forward 2nd

5.5 mile/h 8.9 km/h
{"Name":"Power Shuttle Transmission - Forward 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.5","MetricUnit":"km/h","MetricValue":"8.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Note

Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 500/70-24 rear tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 500/70-24 rear tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Forward - 1st

3.7 mile/h 5.9 km/h
{"Name":"Autoshift Transmission - Forward - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Forward - 3rd

7.7 mile/h 12.4 km/h
{"Name":"Autoshift Transmission - Forward - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Forward - 4th

12.2 mile/h 19.6 km/h
{"Name":"Autoshift Transmission - Forward - 4th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12.2","MetricUnit":"km/h","MetricValue":"19.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Forward 4th

23 mile/h 36 km/h
{"Name":"Power Shuttle Transmission - Forward 4th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"23","MetricUnit":"km/h","MetricValue":"36","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Reverse 1st

3.4 mile/h 5.4 km/h
{"Name":"Power Shuttle Transmission - Reverse 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.4","MetricUnit":"km/h","MetricValue":"5.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Forward - 2nd

5.9 mile/h 9.5 km/h
{"Name":"Autoshift Transmission - Forward - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.9","MetricUnit":"km/h","MetricValue":"9.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Forward 1st

3.4 mile/h 5.4 km/h
{"Name":"Power Shuttle Transmission - Forward 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.4","MetricUnit":"km/h","MetricValue":"5.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Reverse - 2nd

7.7 mile/h 12.4 km/h
{"Name":"Autoshift Transmission - Reverse - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Autoshift Transmission - Forward - 5th

16.7 mile/h 26.8 km/h
{"Name":"Autoshift Transmission - Forward - 5th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"16.7","MetricUnit":"km/h","MetricValue":"26.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shuttle Transmission - Reverse 3rd

13 mile/h 20 km/h
{"Name":"Power Shuttle Transmission - Reverse 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"13","MetricUnit":"km/h","MetricValue":"20","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}

Weights

Operating Weight - Maximum

29321 lb 13300 kg
{"Name":"Operating Weight - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"29321","MetricUnit":"kg","MetricValue":"13300","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"3"}
Cab - ROPS/FOPS

359 lb 163 kg
{"Name":"Cab - ROPS/FOPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"359","MetricUnit":"kg","MetricValue":"163","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"75"}
Air Conditioning

101 lb 46 kg
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"101","MetricUnit":"kg","MetricValue":"46","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"83"}
Operating Weight - Estimated*

21544 lb 9772 kg
{"Name":"Operating Weight - Estimated*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"21544","MetricUnit":"kg","MetricValue":"9772","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks

2018 lb 915 kg
{"Name":"MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2018","MetricUnit":"kg","MetricValue":"915","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On)

+160 kg (+353 lb)
{"Name":"Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On)","SpecificationId":null,"TextValue":"+160 kg (+353 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Cab, ROPS/FOPS

+243 kg (+536 lb)
{"Name":"Cab, ROPS/FOPS","SpecificationId":null,"TextValue":"+243 kg (+536 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On)

+214 kg (+472 lb)
{"Name":"Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On)","SpecificationId":null,"TextValue":"+214 kg (+472 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Extendible Stick

+301 kg (+664 lb)
{"Name":"Extendible Stick","SpecificationId":null,"TextValue":"+301 kg (+664 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks

3622 lb 1642 kg
{"Name":"MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3622","MetricUnit":"kg","MetricValue":"1642","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Quick Coupler

+250 kg (+551 lb)
{"Name":"Loader Quick Coupler","SpecificationId":null,"TextValue":"+250 kg (+551 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Front Counterweight - Counterweights - Option 1

255 lb 115 kg
{"Name":"Front Counterweight - Counterweights - Option 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"255","MetricUnit":"kg","MetricValue":"115","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Note (2)

GP = General Purpose
{"Name":"Note (2)","SpecificationId":null,"TextValue":"GP = General Purpose","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On)

–73 kg (–162 lb)
{"Name":"Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On)","SpecificationId":null,"TextValue":"–73 kg (–162 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (4)

HD = Heavy Duty
{"Name":"Note (4)","SpecificationId":null,"TextValue":"HD = Heavy Duty","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Front Counterweight - Counterweights - Option 2

530 lb 240 kg
{"Name":"Front Counterweight - Counterweights - Option 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"530","MetricUnit":"kg","MetricValue":"240","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Operating Weight - Maximum - ROPS Capacity

29321 lb 13300 kg
{"Name":"Operating Weight - Maximum - ROPS Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"29321","MetricUnit":"kg","MetricValue":"13300","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Counterweight

1102 lb 500 kg
{"Name":"Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1102","MetricUnit":"kg","MetricValue":"500","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Backhoe Quick Coupler

+87 kg (+192 lb)
{"Name":"Backhoe Quick Coupler","SpecificationId":null,"TextValue":"+87 kg (+192 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On)

+85 kg (+187 lb)
{"Name":"Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On)","SpecificationId":null,"TextValue":"+85 kg (+187 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On)

+290 kg (+639 lb)
{"Name":"Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On)","SpecificationId":null,"TextValue":"+290 kg (+639 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (1)

*Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24"") severe-duty backhoe bucket.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24\"\") severe-duty backhoe bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On)

+80 kg (+176 lb)
{"Name":"Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On)","SpecificationId":null,"TextValue":"+80 kg (+176 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On)

–150 kg (–331 lb)
{"Name":"Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On)","SpecificationId":null,"TextValue":"–150 kg (–331 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (5)

ED = Extreme Duty
{"Name":"Note (5)","SpecificationId":null,"TextValue":"ED = Extreme Duty","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Note (3)

MP = Multi Purpose
{"Name":"Note (3)","SpecificationId":null,"TextValue":"MP = Multi Purpose","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Front Counterweight - Counterweights - Option 3

1015 lb 460 kg
{"Name":"Front Counterweight - Counterweights - Option 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1015","MetricUnit":"kg","MetricValue":"460","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Rear Counterweight

198 lb 90 kg
{"Name":"Rear Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"198","MetricUnit":"kg","MetricValue":"90","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

Ergonomic Operator Station

Adjustable Seat Mounted Controls improve ergonomics by increasing operator comfort and legroom. Operators have Loader and Backhoe Controls in the palm of their hands, whether they are facing the Loader, the Backhoe, or sitting off set. Variable Speed Steer reduces operator fatigue in applications, such as truck loading, by reducing the number of steering wheel rotations required to turn the machine. The new Spring Applied Hydraulically Released (SAHR) Parking Brake is controlled by simply pressing a button.

Advanced Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands. The advanced hydraulic system allows the operator to adjust Loader and Backhoe Auxiliary Flow matching attachment specifications, program Loader Bucket Kickout and Return to Dig, and Enable Parallel Lift.

Machine Performance

The Cat C4.4 ACERT™ engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage IV emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The new Backhoe design and optimized Loader Linkage increases lift capacity and breakout forces on both ends of the machine. A redesigned Loader System provides superior machine balance and stability regardless of the ground conditions.

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Cat Attachments

A variety of Mechanical and Hydraulic Cat Backhoe Couplers are available from the factory or for field installation. Options include, but not limited to, Dual Lock Pin Grabber Couplers and Pin Lock Couplers. Redesigned General Purpose and Multi Purpose Loader Buckets increase digging performance and improve bucket durability for long term value.

Equipment Info

STANDARD EQUIPMENT

4572 mm (15 ft) center pivot excavator style backhoe

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3
