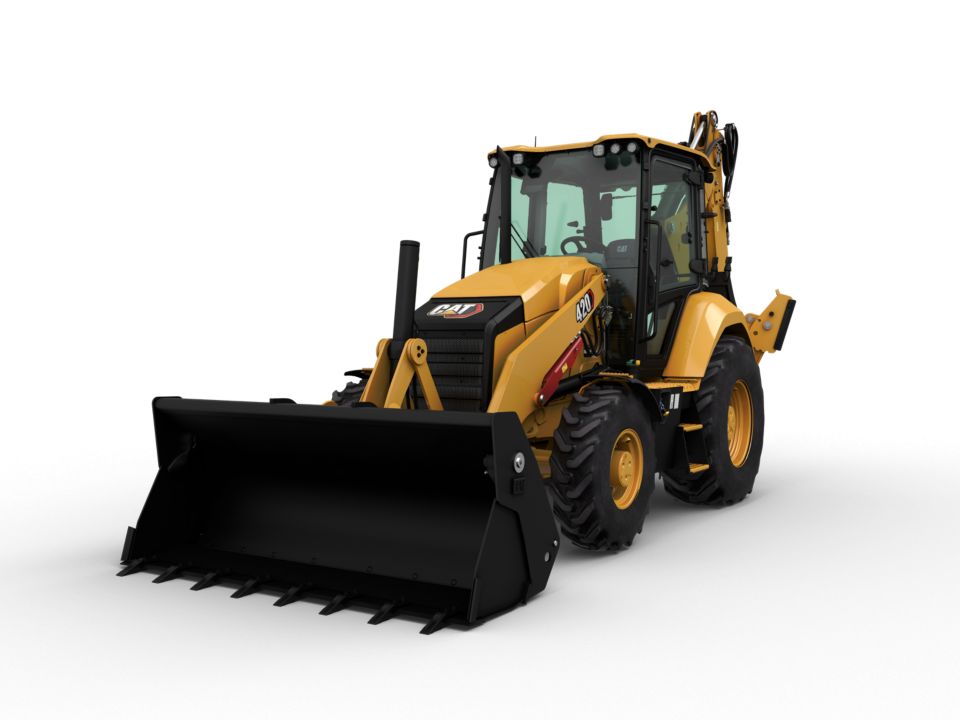

420 | Toromont Cat

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Axle Ratings

Rear Axle - Dynamic

22046 lb 10000 kg
{"Name":"Rear Axle - Dynamic","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"22046","MetricUnit":"kg","MetricValue":"10000","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Rear Axle - Static

58422 lb 26500 kg
{"Name":"Rear Axle - Static","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"58422","MetricUnit":"kg","MetricValue":"26500","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Front Axle, AWD - Static

51808 lb 23500 kg
{"Name":"Front Axle, AWD - Static","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"51808","MetricUnit":"kg","MetricValue":"23500","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}
Front Axle, AWD - Dynamic

19841 lb 9000 kg
{"Name":"Front Axle, AWD - Dynamic","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"19841","MetricUnit":"kg","MetricValue":"9000","Type":"measurement","SpecificationGroup":"Axle Ratings","SortOrder":"99"}

Backhoe

Dig Depth - Standard

14 ft 4278 mm
{"Name":"Dig Depth - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14","MetricUnit":"mm","MetricValue":"4278","Type":"measurement","SpecificationGroup":"Backhoe","SortOrder":"2"}

Engine

Net Power - SAE J1349

92 HP (68 kW) / 103 HP (76 kW)
{"Name":"Net Power - SAE J1349","SpecificationId":null,"TextValue":"92 HP (68 kW) / 103 HP (76 kW)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Displacement

220 in³ 3.6 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"220","MetricUnit":"l","MetricValue":"3.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"90"}
Power Rating Conditions - No De-Rating Required Up To

10000 ft 3048 m
{"Name":"Power Rating Conditions - No De-Rating Required Up To","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10000","MetricUnit":"m","MetricValue":"3048","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Ratings at 2,200 rpm - Gross Power ISO 14396

100 hp 74 kW
{"Name":"Ratings at 2,200 rpm - Gross Power ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"100","MetricUnit":"kW","MetricValue":"74","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Torque Rise - 1,400 rpm - SAE J1349

322 ft-lb 436 N·m
{"Name":"Net Torque Rise - 1,400 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft-lb","EnglishValue":"322","MetricUnit":"N·m","MetricValue":"436","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Power Rating - ISO 9249 at 1,800 rpm

105 hp 78 kW
{"Name":"Net Peak Power Rating - ISO 9249 at 1,800 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"105","MetricUnit":"kW","MetricValue":"78","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power Rating at 2,200 rpm - ISO 9249

91 hp 68 kW
{"Name":"Net Power Rating at 2,200 rpm - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"91","MetricUnit":"kW","MetricValue":"68","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model

C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
{"Name":"Engine Model","SpecificationId":null,"TextValue":"C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Emissions

Engine meets Tier 4 Final/Stage V emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Engine meets Tier 4 Final/Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Ratings at 2,200 rpm - Gross Power SAE J1995

102 hp 76 kW
{"Name":"Ratings at 2,200 rpm - Gross Power SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"102","MetricUnit":"kW","MetricValue":"76","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Torque Rise - 1,400 rpm

47%
{"Name":"Net Torque Rise - 1,400 rpm","SpecificationId":null,"TextValue":"47%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Net Power Rating at 2,200 rpm - SAE J1349

92 hp 68 kW
{"Name":"Net Power Rating at 2,200 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"92","MetricUnit":"kW","MetricValue":"68","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Dimensions - Bore

3.86 in 98 mm
{"Name":"Dimensions - Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.86","MetricUnit":"mm","MetricValue":"98","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Dimensions - Stroke

4.72 in 120 mm
{"Name":"Dimensions - Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.72","MetricUnit":"mm","MetricValue":"120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Net Peak Power Rating @ 1,800 rpm - SAE J1349

105 hp 79 kW
{"Name":"Net Peak Power Rating @ 1,800 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"105","MetricUnit":"kW","MetricValue":"79","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Pump Type

Variable-flow, Axial Piston
{"Name":"Pump Type","SpecificationId":null,"TextValue":"Variable-flow, Axial Piston","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"91"}
System Pressure - Loader

3626 psi 25000 kPa
{"Name":"System Pressure - Loader","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3626","MetricUnit":"kPa","MetricValue":"25000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Pump Capacity at 2,200 rpm

49.4 gal/min 187 l/min
{"Name":"Pump Capacity at 2,200 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"49.4","MetricUnit":"l/min","MetricValue":"187","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
System Pressure - Backhoe

3626 psi 25000 kPa
{"Name":"System Pressure - Backhoe","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3626","MetricUnit":"kPa","MetricValue":"25000","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Type

Closed Center
{"Name":"Type","SpecificationId":null,"TextValue":"Closed Center","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Service Refill Capacities

Engine Oil - With Filter

2.4 gal (US) 9 l
{"Name":"Engine Oil - With Filter","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.4","MetricUnit":"l","MetricValue":"9","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Rear Axle - Planetaries

0.4 gal (US) 1.7 l
{"Name":"Rear Axle - Planetaries","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.4","MetricUnit":"l","MetricValue":"1.7","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Rear Axle

4.2 gal (US) 16 l
{"Name":"Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.2","MetricUnit":"l","MetricValue":"16","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System with Air Conditioning

4.8 gal (US) 18 l
{"Name":"Cooling System with Air Conditioning","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.8","MetricUnit":"l","MetricValue":"18","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

11.1 gal (US) 42 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11.1","MetricUnit":"l","MetricValue":"42","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

42.3 gal (US) 160 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"42.3","MetricUnit":"l","MetricValue":"160","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic System

25.1 gal (US) 95 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"25.1","MetricUnit":"l","MetricValue":"95","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Diesel Exhaust Fluid (DEF)

5 gal (US) 19 l
{"Name":"Diesel Exhaust Fluid (DEF)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Front Axle (AWD) - Planetaries

0.2 gal (US) 0.7 l
{"Name":"Front Axle (AWD) - Planetaries","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.2","MetricUnit":"l","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission - Power Shuttle - AWD

4.8 gal (US) 18 l
{"Name":"Transmission - Power Shuttle - AWD","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.8","MetricUnit":"l","MetricValue":"18","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission - Power Shift - AWD

5 gal (US) 19 l
{"Name":"Transmission - Power Shift - AWD","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Front Axle (AWD)

2.9 gal (US) 11 l
{"Name":"Front Axle (AWD)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.9","MetricUnit":"l","MetricValue":"11","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Steering

Turning Circle - (inner wheel not braked) - Outside Front Wheels

26.92 ft 8.205 m
{"Name":"Turning Circle - (inner wheel not braked) - Outside Front Wheels","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"26.92","MetricUnit":"m","MetricValue":"8.205","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Bore

2.6 in 65 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.6","MetricUnit":"mm","MetricValue":"65","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Axle Oscillation

11°
{"Name":"Axle Oscillation","SpecificationId":null,"TextValue":"11°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Type

Front Wheel
{"Name":"Type","SpecificationId":null,"TextValue":"Front Wheel","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Rod Diameter

1.6 in 40 mm
{"Name":"Rod Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.6","MetricUnit":"mm","MetricValue":"40","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket

35.25 ft 10.745 m
{"Name":"Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"35.25","MetricUnit":"m","MetricValue":"10.745","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Stroke

4.2 in 106 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.2","MetricUnit":"mm","MetricValue":"106","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"99"}
Power Steering

Hydrostatic
{"Name":"Power Steering","SpecificationId":null,"TextValue":"Hydrostatic","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}
Cylinder

One Double-Acting
{"Name":"Cylinder","SpecificationId":null,"TextValue":"One Double-Acting","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"99"}

Sustainability

Recyclability

92%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"92%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Transmission

Power-Shift Transmission - Optional - Reverse - 2nd

7.7 mile/h 12 km/h
{"Name":"Power-Shift Transmission - Optional - Reverse - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 2nd

5.8 mile/h 9.4 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.8","MetricUnit":"km/h","MetricValue":"9.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 4th

12 mile/h 20 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 4th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12","MetricUnit":"km/h","MetricValue":"20","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 5th

17 mile/h 27 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 5th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Reverse - 3rd

17 mile/h 27 km/h
{"Name":"Power Shift Transmission - Standard - Reverse - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Forward - 3rd

8 mile/h 12 km/h
{"Name":"Power-Shift Transmission - Optional - Forward - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Forward - 3rd

12 mile/h 20 km/h
{"Name":"Power Shift Transmission - Standard - Forward - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12","MetricUnit":"km/h","MetricValue":"20","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 1st

3.7 mile/h 5.9 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Forward - 2nd

5.8 mile/h 9.4 km/h
{"Name":"Power Shift Transmission - Standard - Forward - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.8","MetricUnit":"km/h","MetricValue":"9.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 6th LTC*

25 mile/h 40 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 6th LTC*","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"40","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Reverse - 2nd

7.7 mile/h 12 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Reverse - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Reverse - 1st

3.7 mile/h 5.9 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Reverse - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Forward -1st

3.7 mile/h 5.9 km/h
{"Name":"Power-Shift Transmission - Optional - Forward -1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Reverse - 3rd

17 mile/h 27 km/h
{"Name":"Power-Shift Transmission - Optional - Reverse - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Forward - 6th

25 mile/h 41 km/h
{"Name":"Power-Shift Transmission - Optional - Forward - 6th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"41","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Forward - 4th

12 mile/h 20 km/h
{"Name":"Power-Shift Transmission - Optional - Forward - 4th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12","MetricUnit":"km/h","MetricValue":"20","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Reverse - 2nd

7.7 mile/h 12.4 km/h
{"Name":"Power Shift Transmission - Standard - Reverse - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Forward - 4th

25 mile/h 41 km/h
{"Name":"Power Shift Transmission - Standard - Forward - 4th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"41","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Reverse - 1st

3.7 mile/h 5.9 km/h
{"Name":"Power-Shift Transmission - Optional - Reverse - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 6th

25 mile/h 41 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 6th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25","MetricUnit":"km/h","MetricValue":"41","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Forward - 1st

3.7 mile/h 5.9 km/h
{"Name":"Power Shift Transmission - Standard - Forward - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Forward - 2nd

5.8 mile/h 9.4 km/h
{"Name":"Power-Shift Transmission - Optional - Forward - 2nd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.8","MetricUnit":"km/h","MetricValue":"9.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 3rd

8 mile/h 12 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Reverse - 3rd

17 mile/h 27 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Reverse - 3rd","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power Shift Transmission - Standard - Reverse - 1st

3.7 mile/h 5.9 km/h
{"Name":"Power Shift Transmission - Standard - Reverse - 1st","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.7","MetricUnit":"km/h","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission with LTC - Optional - Forward - 5th LTC

18 mile/h 29 km/h
{"Name":"Power-Shift Transmission with LTC - Optional - Forward - 5th LTC","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"18","MetricUnit":"km/h","MetricValue":"29","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Power-Shift Transmission - Optional - Forward - 5th

17 mile/h 27 km/h
{"Name":"Power-Shift Transmission - Optional - Forward - 5th","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17","MetricUnit":"km/h","MetricValue":"27","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Note (1)

Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}
Note (2)

*Limited by engine speed to 40 km/h (25 mph).
{"Name":"Note (2)","SpecificationId":null,"TextValue":"*Limited by engine speed to 40 km/h (25 mph).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}

Weights

Operating Weight - Maximum

24251 lb 11000 kg
{"Name":"Operating Weight - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"24251","MetricUnit":"kg","MetricValue":"11000","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"3"}
Cab - ROPS/FOPS

320 lb 145 kg
{"Name":"Cab - ROPS/FOPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"320","MetricUnit":"kg","MetricValue":"145","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"75"}
Ride Control

33 lb 15 kg
{"Name":"Ride Control","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33","MetricUnit":"kg","MetricValue":"15","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"77"}
Air Conditioning

99 lb 45 kg
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"99","MetricUnit":"kg","MetricValue":"45","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"83"}
Note

Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP loader bucket, 610 mm (24 in) standard duty hoe bucket, 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
{"Name":"Note","SpecificationId":null,"TextValue":"Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP loader bucket, 610 mm (24 in) standard duty hoe bucket, 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks

1642 lb 745 kg
{"Name":"MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1642","MetricUnit":"kg","MetricValue":"745","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Operating Weight - Maximum - ROPS Capacity

24251 lb 11000 kg
{"Name":"Operating Weight - Maximum - ROPS Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"24251","MetricUnit":"kg","MetricValue":"11000","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks

2017 lb 915 kg
{"Name":"MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2017","MetricUnit":"kg","MetricValue":"915","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Counterweights, base - Stackable, one

529 lb 240 kg
{"Name":"Counterweights, base - Stackable, one","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"529","MetricUnit":"kg","MetricValue":"240","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Loader QC

540 lb 245 kg
{"Name":"Loader QC","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"540","MetricUnit":"kg","MetricValue":"245","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Operating Weight (estimated)

17271 lb 7834 kg
{"Name":"Operating Weight (estimated)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"17271","MetricUnit":"kg","MetricValue":"7834","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Counterweights, base

256 lb 115 kg
{"Name":"Counterweights, base","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"256","MetricUnit":"kg","MetricValue":"115","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Counterweights, base - Maximum

1014 lb 460 kg
{"Name":"Counterweights, base - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1014","MetricUnit":"kg","MetricValue":"460","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
All-Wheel Drive

STD
{"Name":"All-Wheel Drive","SpecificationId":null,"TextValue":"STD","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Power-Shift Transmission

STD
{"Name":"Power-Shift Transmission","SpecificationId":null,"TextValue":"STD","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Extendible Stick (excludes ft. counterweight)

595 lb 270 kg
{"Name":"Extendible Stick (excludes ft. counterweight)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"595","MetricUnit":"kg","MetricValue":"270","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

Ergonomic Operator Station

Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading. New backhoe control pods allow for unlimited adjustability.

Load Sensing Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.

Machine Performance

The Cat C3.6 engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage V emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The system allows the operator to disconnect the machine, even while the diesel exhaust fluid is being purged from the system.

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Cat Attachments

A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.

Powershift Transmission

A Four Speed Powershift Transmission is standard to make shifting gears smooth and as simple as twisting the Powershuttle Lever.

Spring Applied Hydraulically Released (SAHR) Parking Brake

The SAHR Parking Brake is activated at the push of a button and automatically engages when the machine is powered down.

Lift Performance

The redesigned boom cylinder increases lift performance by 15%.

Sustainability

The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to:
• 20% biodiesel FAME (fatty acid methyl ester)
• 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels
Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.3 metric tonnes (2.5 tons).

Operator Sound Pressure Level (ISO 6396:2008) – 76 dB(A)*
Exterior Sound Power Level (ISO 6395:2008) – 101 dB(A)
* Measurements were conducted with properly installed and maintained cab doors and windows closed.

Caterpillar factory fills with ethylene glycol coolants. Cat Diesel Engine Antifreeze/Coolant (DEAC) and Cat Extended Life Coolant (ELC) can be recycled. Consult your Cat dealer for more information.
Cat Bio HYDO™ Advanced is an EU Ecolabel approved biodegradable hydraulic oil.
Additional fluids are likely to be present, please consult the Operations and Maintenance Manual or the Application and Installation guide for complete fluid recommendations and maintenance intervals.

The following features and technology may contribute to fuel savings and/or carbon reduction. Features may vary. Consult your Cat dealer for details.
– Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes selectable through the display and with fuel management modes.
– Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
– Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.

Equipment Info

STANDARD EQUIPMENT

Adjustable auxiliary controls, backhoe loader

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3
