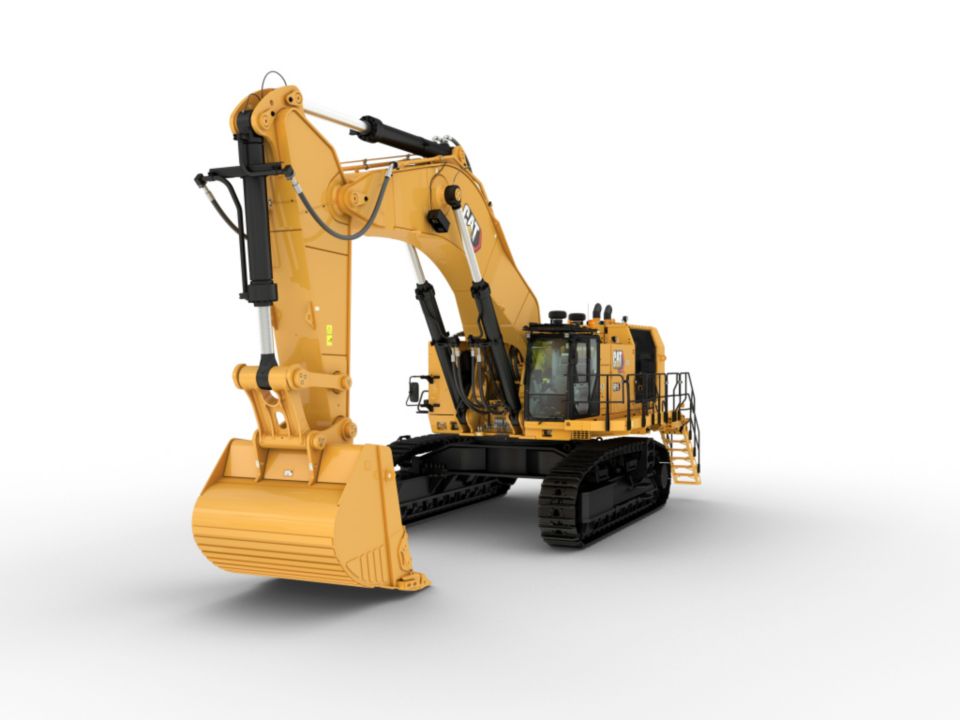

Cat Hydraulic Mining Shovels 6015 | Mining

Proven success in nearly every surface mining application across the globe substantiates the durability of Cat® hydraulic shovels. Our equipment is engineered to endure the most difficult digging environments and the harshest conditions to afford our customers the greatest productivity. Simply stated, Cat hydraulic shovels are built to last.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Attachments

Type (1)

Boom and stick torsion-resistant with welded box design
{"Name":"Type (1)","SpecificationId":null,"TextValue":"Boom and stick torsion-resistant with welded box design","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Attachments","SortOrder":"141"}
Type (2)

High-tensile steel with solid steel castings at pivot areas
{"Name":"Type (2)","SpecificationId":null,"TextValue":"High-tensile steel with solid steel castings at pivot areas","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Attachments","SortOrder":"142"}
Type (3)

Boom and stick stress-relieved after welding
{"Name":"Type (3)","SpecificationId":null,"TextValue":"Boom and stick stress-relieved after welding","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Attachments","SortOrder":"143"}
Type (4)

Float valve for boom down function
{"Name":"Type (4)","SpecificationId":null,"TextValue":"Float valve for boom down function","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Attachments","SortOrder":"144"}
Buckets Equipped With

– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
{"Name":"Buckets Equipped With","SpecificationId":null,"TextValue":"– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Attachments","SortOrder":"145"}

Automatic Lubrication System

Capacity - Grease Barrel

18 gal (US) 68 l
{"Name":"Capacity - Grease Barrel","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"18","MetricUnit":"l","MetricValue":"68","Type":"measurement","SpecificationGroup":"Automatic Lubrication System","SortOrder":"131"}
Type (1)

Central bank lubrication system
{"Name":"Type (1)","SpecificationId":null,"TextValue":"Central bank lubrication system","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Automatic Lubrication System","SortOrder":"132"}
Type (2)

Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing
{"Name":"Type (2)","SpecificationId":null,"TextValue":"Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Automatic Lubrication System","SortOrder":"133"}
Type (3)

Standard grease reel on machine for bucket linkage
{"Name":"Type (3)","SpecificationId":null,"TextValue":"Standard grease reel on machine for bucket linkage","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Automatic Lubrication System","SortOrder":"134"}
Type (4)

Grease refill service point accessible from ground
{"Name":"Type (4)","SpecificationId":null,"TextValue":"Grease refill service point accessible from ground","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Automatic Lubrication System","SortOrder":"135"}

Backhoe Attachment (BH) - Backhoe

Capacity 1:1

10.6 yd³ 8.1 m³
{"Name":"Capacity 1:1","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"10.6","MetricUnit":"m³","MetricValue":"8.1","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Backhoe","SortOrder":"180"}
Total Width

8.8 ft 2682 mm
{"Name":"Total Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.8","MetricUnit":"mm","MetricValue":"2682","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Backhoe","SortOrder":"181"}
Number of Teeth

5
{"Name":"Number of Teeth","SpecificationId":null,"TextValue":"5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Backhoe Attachment (BH) - Backhoe","SortOrder":"182"}
Tooth System

Cat C70 or M75
{"Name":"Tooth System","SpecificationId":null,"TextValue":"Cat C70 or M75","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Backhoe Attachment (BH) - Backhoe","SortOrder":"183"}
Weight - Including Standard Wear Package

18521 lb 8401 kg
{"Name":"Weight - Including Standard Wear Package","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"18521","MetricUnit":"kg","MetricValue":"8401","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Backhoe","SortOrder":"184"}
Maximum Material Density - Loose

3030 lb/yd³ 1.8 t/m³
{"Name":"Maximum Material Density - Loose","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/yd³","EnglishValue":"3030","MetricUnit":"t/m³","MetricValue":"1.8","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Backhoe","SortOrder":"185"}

Backhoe Attachment (BH) - Digging Forces

Bucket Digging Force - ISO

120947 lbf 538 kN
{"Name":"Bucket Digging Force - ISO","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"120947","MetricUnit":"kN","MetricValue":"538","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Digging Forces","SortOrder":"171"}
Bucket Digging Force - SAE

112600 lbf 501 kN
{"Name":"Bucket Digging Force - SAE","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"112600","MetricUnit":"kN","MetricValue":"501","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Digging Forces","SortOrder":"171"}
Stick Digging Force - ISO

104761 lbf 466 kN
{"Name":"Stick Digging Force - ISO","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"104761","MetricUnit":"kN","MetricValue":"466","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Digging Forces","SortOrder":"172"}
Stick Digging Force - SAE

98800 lbf 439 kN
{"Name":"Stick Digging Force - SAE","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"98800","MetricUnit":"kN","MetricValue":"439","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Digging Forces","SortOrder":"172"}

Backhoe Attachment (BH) - Working Range

Maximum Digging Depth

26.3 ft 8 m
{"Name":"Maximum Digging Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"26.3","MetricUnit":"m","MetricValue":"8","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Working Range","SortOrder":"161"}
Maximum Digging Reach

45.6 ft 13.9 m
{"Name":"Maximum Digging Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"45.6","MetricUnit":"m","MetricValue":"13.9","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Working Range","SortOrder":"162"}
Maximum Digging Height

41.9 ft 12.8 m
{"Name":"Maximum Digging Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"41.9","MetricUnit":"m","MetricValue":"12.8","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Working Range","SortOrder":"163"}
Maximum Dump Height

27.9 ft 8.5 m
{"Name":"Maximum Dump Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"27.9","MetricUnit":"m","MetricValue":"8.5","Type":"measurement","SpecificationGroup":"Backhoe Attachment (BH) - Working Range","SortOrder":"164"}

Centralized Service Area

Feature

Accessible from ground level
{"Name":"Feature","SpecificationId":null,"TextValue":"Accessible from ground level","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Centralized Service Area","SortOrder":"100"}
Equipped With (1)

Emergency stop
{"Name":"Equipped With (1)","SpecificationId":null,"TextValue":"Emergency stop","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Centralized Service Area","SortOrder":"101"}
Equipped With (2)

Quick couplings for: Diesel fuel and Grease
{"Name":"Equipped With (2)","SpecificationId":null,"TextValue":"Quick couplings for: Diesel fuel and Grease","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Centralized Service Area","SortOrder":"102"}

Drive

Travel Speed - Two Stages - 1st Stage - Maximum

1.4 mile/h 2.3 km/h
{"Name":"Travel Speed - Two Stages - 1st Stage - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.4","MetricUnit":"km/h","MetricValue":"2.3","Type":"measurement","SpecificationGroup":"Drive","SortOrder":"51"}
Travel Speed - Two Stages - 2nd Stage - Maximum

2.1 mile/h 3.3 km/h
{"Name":"Travel Speed - Two Stages - 2nd Stage - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"2.1","MetricUnit":"km/h","MetricValue":"3.3","Type":"measurement","SpecificationGroup":"Drive","SortOrder":"52"}
Maximum Drawbar Pull - Forward

192886 lbf 858 kN
{"Name":"Maximum Drawbar Pull - Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"192886","MetricUnit":"kN","MetricValue":"858","Type":"measurement","SpecificationGroup":"Drive","SortOrder":"53"}
Maximum Drawbar Pull - Reverse

220987 lbf 983 kN
{"Name":"Maximum Drawbar Pull - Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"220987","MetricUnit":"kN","MetricValue":"983","Type":"measurement","SpecificationGroup":"Drive","SortOrder":"54"}
Gradeability - Travel Drives

Approximately 42%
{"Name":"Gradeability - Travel Drives","SpecificationId":null,"TextValue":"Approximately 42%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Drive","SortOrder":"55"}
Hydraulic Track Tensioning

With accumulator
{"Name":"Hydraulic Track Tensioning","SpecificationId":null,"TextValue":"With accumulator","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Drive","SortOrder":"56"}
Maximum Drawbar Pull

179847 lbf 800 kN
{"Name":"Maximum Drawbar Pull","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"179847","MetricUnit":"kN","MetricValue":"800","Type":"measurement","SpecificationGroup":"Drive","SortOrder":"113"}

Electrical System

System Voltage

24 V
{"Name":"System Voltage","SpecificationId":null,"TextValue":"24 V","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"71"}
Batteries

4 × 200 Ah (12 V each)
{"Name":"Batteries","SpecificationId":null,"TextValue":"4 × 200 Ah (12 V each)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"72"}
Alternator Rating

150 A (24 V) in total
{"Name":"Alternator Rating","SpecificationId":null,"TextValue":"150 A (24 V) in total","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"73"}
Components (1)

Emergency stop in cabin, engine module, pump room and on service station accessible from ground level
{"Name":"Components (1)","SpecificationId":null,"TextValue":"Emergency stop in cabin, engine module, pump room and on service station accessible from ground level","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"74"}
Components (2)

Four maintenance free batteries
{"Name":"Components (2)","SpecificationId":null,"TextValue":"Four maintenance free batteries","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"75"}
Components (3)

Lockable battery isolation switch
{"Name":"Components (3)","SpecificationId":null,"TextValue":"Lockable battery isolation switch","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"76"}
Components (5)

14 LED high-brightness working lights
{"Name":"Components (5)","SpecificationId":null,"TextValue":"14 LED high-brightness working lights","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"77"}
Components (4)

5 LED service lights
{"Name":"Components (4)","SpecificationId":null,"TextValue":"5 LED service lights","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"78"}
Components (6)

2 electric horns
{"Name":"Components (6)","SpecificationId":null,"TextValue":"2 electric horns","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"79"}
Components (7)

Two (2) lights for rear end
{"Name":"Components (7)","SpecificationId":null,"TextValue":"Two (2) lights for rear end","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"99"}
Components (9)

One (1) beacon light on cabin roof
{"Name":"Components (9)","SpecificationId":null,"TextValue":"One (1) beacon light on cabin roof","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"99"}
Components (8)

One (1) light for machine deck/service
{"Name":"Components (8)","SpecificationId":null,"TextValue":"One (1) light for machine deck/service","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical System","SortOrder":"99"}

Engine

Emissions

U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1
{"Name":"Emissions","SpecificationId":null,"TextValue":"U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}

Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards

Number of Cylinders

12
{"Name":"Number of Cylinders","SpecificationId":null,"TextValue":"12","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards","SortOrder":"16"}
Bore

5.4 in 137.2 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.4","MetricUnit":"mm","MetricValue":"137.2","Type":"measurement","SpecificationGroup":"Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards","SortOrder":"17"}
Stroke

6 in 152.4 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"152.4","Type":"measurement","SpecificationGroup":"Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards","SortOrder":"18"}
Displacement

1648 in³ 27 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"1648","MetricUnit":"l","MetricValue":"27","Type":"measurement","SpecificationGroup":"Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards","SortOrder":"19"}
Aspiration

Turbocharged and air-to-air aftercooled
{"Name":"Aspiration","SpecificationId":null,"TextValue":"Turbocharged and air-to-air aftercooled","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards","SortOrder":"20"}

Engine - Cat C27 with Tier 4 Final Emission Standards

Number of Cylinders

12
{"Name":"Number of Cylinders","SpecificationId":null,"TextValue":"12","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine - Cat C27 with Tier 4 Final Emission Standards","SortOrder":"8"}
Bore

5.4 in 137.2 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.4","MetricUnit":"mm","MetricValue":"137.2","Type":"measurement","SpecificationGroup":"Engine - Cat C27 with Tier 4 Final Emission Standards","SortOrder":"9"}
Stroke

6 in 152.4 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6","MetricUnit":"mm","MetricValue":"152.4","Type":"measurement","SpecificationGroup":"Engine - Cat C27 with Tier 4 Final Emission Standards","SortOrder":"10"}
Displacement

1648 in³ 27 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"1648","MetricUnit":"l","MetricValue":"27","Type":"measurement","SpecificationGroup":"Engine - Cat C27 with Tier 4 Final Emission Standards","SortOrder":"11"}

Engine - Equivalent to U.S. EPA Tier 2

Engine Model

Cat® C27
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C27","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine - Equivalent to U.S. EPA Tier 2","SortOrder":"13"}
Gross Power - SAE J1995

839 hp 626 kW
{"Name":"Gross Power - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"839","MetricUnit":"kW","MetricValue":"626","Type":"measurement","SpecificationGroup":"Engine - Equivalent to U.S. EPA Tier 2","SortOrder":"14"}
Net Power - SAE J1349

746 hp 556 kW
{"Name":"Net Power - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"746","MetricUnit":"kW","MetricValue":"556","Type":"measurement","SpecificationGroup":"Engine - Equivalent to U.S. EPA Tier 2","SortOrder":"15"}

Engine - U.S. EPA Tier 4 Final

Engine Model

Cat® C27
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C27","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine - U.S. EPA Tier 4 Final","SortOrder":"4"}
Gross Power - SAE J1995

824 hp 615 kW
{"Name":"Gross Power - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"824","MetricUnit":"kW","MetricValue":"615","Type":"measurement","SpecificationGroup":"Engine - U.S. EPA Tier 4 Final","SortOrder":"6"}
Net Power - SAE J1349

746 hp 556 kW
{"Name":"Net Power - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"746","MetricUnit":"kW","MetricValue":"556","Type":"measurement","SpecificationGroup":"Engine - U.S. EPA Tier 4 Final","SortOrder":"7"}

General

Engine Output - SAE J1995

824 hp 615 kW
{"Name":"Engine Output - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"824","MetricUnit":"kW","MetricValue":"615","Type":"measurement","SpecificationGroup":"General","SortOrder":"1"}
Bucket Payload

16.1 ton (US) 14.6 t
{"Name":"Bucket Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"16.1","MetricUnit":"t","MetricValue":"14.6","Type":"measurement","SpecificationGroup":"General","SortOrder":"2"}
Operating Weight

154.3 ton (US) 140 t
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"154.3","MetricUnit":"t","MetricValue":"140","Type":"measurement","SpecificationGroup":"General","SortOrder":"3"}
Note

Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
{"Name":"Note","SpecificationId":null,"TextValue":"Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"General","SortOrder":"4"}

Hydraulic System

Main Pumps

3 × variable swash plate pumps
{"Name":"Main Pumps","SpecificationId":null,"TextValue":"3 × variable swash plate pumps","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"80"}
Main Pumps - Maximum Total Oil Flow

407 gal/min 1544 l/min
{"Name":"Main Pumps - Maximum Total Oil Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"407","MetricUnit":"l/min","MetricValue":"1544","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"81"}
Main Pumps - Maximum Pressure - Attachment

4641 psi 320 bar
{"Name":"Main Pumps - Maximum Pressure - Attachment","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4641","MetricUnit":"bar","MetricValue":"320","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"82"}
Pilot Pump

1 × gear pump
{"Name":"Pilot Pump","SpecificationId":null,"TextValue":"1 × gear pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"83"}
Pilot Pump - Maximum Flow, Pilot

40.4 gal/min 153 l/min
{"Name":"Pilot Pump - Maximum Flow, Pilot","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"40.4","MetricUnit":"l/min","MetricValue":"153","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"83"}
Pilot Pump - Maximum Pressure, Pilot

1378 psi 95 bar
{"Name":"Pilot Pump - Maximum Pressure, Pilot","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1378","MetricUnit":"bar","MetricValue":"95","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"83"}
Main Pumps - Maximum Pressure - Travel

4641 psi 320 bar
{"Name":"Main Pumps - Maximum Pressure - Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4641","MetricUnit":"bar","MetricValue":"320","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"83"}
Swing Pump

1 × variable swash plate pump
{"Name":"Swing Pump","SpecificationId":null,"TextValue":"1 × variable swash plate pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"84"}
Engine Fan Pump - Maximum Flow, Engine Fan

53.1 gal/min 201 l/min
{"Name":"Engine Fan Pump - Maximum Flow, Engine Fan","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"53.1","MetricUnit":"l/min","MetricValue":"201","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"84"}
Engine Fan Pump - Maximum Pressure, Engine Fan

3191 psi 220 bar
{"Name":"Engine Fan Pump - Maximum Pressure, Engine Fan","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3191","MetricUnit":"bar","MetricValue":"220","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"84"}
Engine Fan Pump

1 × variable swash plate pump
{"Name":"Engine Fan Pump","SpecificationId":null,"TextValue":"1 × variable swash plate pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"84"}
Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan

22.7 gal/min 86 l/min
{"Name":"Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"22.7","MetricUnit":"l/min","MetricValue":"86","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"85"}
Swing Pump - Maximum Flow - Swing

127 gal/min 479 l/min
{"Name":"Swing Pump - Maximum Flow - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"127","MetricUnit":"l/min","MetricValue":"479","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"85"}
Hydraulic Fan Pump

1 × variable swash plate pump
{"Name":"Hydraulic Fan Pump","SpecificationId":null,"TextValue":"1 × variable swash plate pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"85"}
Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan

1958 psi 135 bar
{"Name":"Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1958","MetricUnit":"bar","MetricValue":"135","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"85"}
Swing Pump - Maximum Pressure - Swing

5294 psi 365 bar
{"Name":"Swing Pump - Maximum Pressure - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5294","MetricUnit":"bar","MetricValue":"365","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"86"}
Hydraulic Oil Cooling - Maximum Flow

284 gal/min 1075 l/min
{"Name":"Hydraulic Oil Cooling - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"284","MetricUnit":"l/min","MetricValue":"1075","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"87"}
Hydraulic Oil Cooling - Diameter of Fan

40 in 1016 mm
{"Name":"Hydraulic Oil Cooling - Diameter of Fan","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"40","MetricUnit":"mm","MetricValue":"1016","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"88"}
Filters (1)

Full-flow high-pressure filters (200 µm) for main pumps
{"Name":"Filters (1)","SpecificationId":null,"TextValue":"Full-flow high-pressure filters (200 µm) for main pumps","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"89"}
Filters (2)

Full-flow filters (20 µm) for complete return circuit
{"Name":"Filters (2)","SpecificationId":null,"TextValue":"Full-flow filters (20 µm) for complete return circuit","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"90"}
Filters (3)

Pressure filters (16 µm) for servo circuit
{"Name":"Filters (3)","SpecificationId":null,"TextValue":"Pressure filters (16 µm) for servo circuit","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"91"}
Filters (4)

Full-flow filters (6 µm) for engine cooling return circuit
{"Name":"Filters (4)","SpecificationId":null,"TextValue":"Full-flow filters (6 µm) for engine cooling return circuit","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"92"}
Filters (5)

Swing charge filter (15 µm)
{"Name":"Filters (5)","SpecificationId":null,"TextValue":"Swing charge filter (15 µm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"93"}
Filters (6)

Pump case return screens (125 µm)
{"Name":"Filters (6)","SpecificationId":null,"TextValue":"Pump case return screens (125 µm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"94"}

Operating Weights - Backhoe

Operating Weight

154 ton (US) 140 t
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"154","MetricUnit":"t","MetricValue":"140","Type":"measurement","SpecificationGroup":"Operating Weights - Backhoe","SortOrder":"30"}

Operator's Cab

Components (1)

Pressurized operator station with positive filtration
{"Name":"Components (1)","SpecificationId":null,"TextValue":"Pressurized operator station with positive filtration","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"120"}
Components (2)

Heated cab mirror
{"Name":"Components (2)","SpecificationId":null,"TextValue":"Heated cab mirror","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"121"}
Components (3)

Sliding upper door window (left-hand cab door)
{"Name":"Components (3)","SpecificationId":null,"TextValue":"Sliding upper door window (left-hand cab door)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"122"}
Components (4)

Glass-breaking safety hammer
{"Name":"Components (4)","SpecificationId":null,"TextValue":"Glass-breaking safety hammer","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"123"}
Components (5)

Removable lower windshield with in cab storage bracket
{"Name":"Components (5)","SpecificationId":null,"TextValue":"Removable lower windshield with in cab storage bracket","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"124"}
Components (6)

Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM
{"Name":"Components (6)","SpecificationId":null,"TextValue":"Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"125"}
Components (7)

Beverage holder
{"Name":"Components (7)","SpecificationId":null,"TextValue":"Beverage holder","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"126"}
Components (8)

Literature holder
{"Name":"Components (8)","SpecificationId":null,"TextValue":"Literature holder","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"127"}
Components (9)

AM/FM radio
{"Name":"Components (9)","SpecificationId":null,"TextValue":"AM/FM radio","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"128"}
Components (10)

Radio with MP3 auxiliary audio port
{"Name":"Components (10)","SpecificationId":null,"TextValue":"Radio with MP3 auxiliary audio port","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"129"}
Components (11)

Two stereo speakers
{"Name":"Components (11)","SpecificationId":null,"TextValue":"Two stereo speakers","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"130"}
Components (12)

Storage shelf suitable for lunch or toolbox
{"Name":"Components (12)","SpecificationId":null,"TextValue":"Storage shelf suitable for lunch or toolbox","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"131"}
Components (13)

Color LCD display with warning, filter/fluid change, and working hour information
{"Name":"Components (13)","SpecificationId":null,"TextValue":"Color LCD display with warning, filter/fluid change, and working hour information","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"132"}
Components (14)

Adjustable armrest
{"Name":"Components (14)","SpecificationId":null,"TextValue":"Adjustable armrest","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"133"}
Components (15)

Height-adjustable joystick consoles
{"Name":"Components (15)","SpecificationId":null,"TextValue":"Height-adjustable joystick consoles","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"134"}
Components (16)

Neutral lever (lock out) for all controls
{"Name":"Components (16)","SpecificationId":null,"TextValue":"Neutral lever (lock out) for all controls","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"135"}
Components (17)

Travel control pedals with removable hand levers
{"Name":"Components (17)","SpecificationId":null,"TextValue":"Travel control pedals with removable hand levers","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"136"}
Components (18)

Two power outlets, 10 amp (total)
{"Name":"Components (18)","SpecificationId":null,"TextValue":"Two power outlets, 10 amp (total)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"137"}
Components (19)

Laminated glass front upper window and tempered other windows
{"Name":"Components (19)","SpecificationId":null,"TextValue":"Laminated glass front upper window and tempered other windows","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"138"}

Service Refill Capacities

Fuel Tank

449 gal (US) 1700 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"449","MetricUnit":"l","MetricValue":"1700","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"61"}
Cooling System

44 gal (US) 165 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"44","MetricUnit":"l","MetricValue":"165","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"62"}
Engine Oil

23 gal (US) 87 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"23","MetricUnit":"l","MetricValue":"87","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"63"}
Swing Drive

2.4 gal (US) 9 l
{"Name":"Swing Drive","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.4","MetricUnit":"l","MetricValue":"9","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"64"}
Hydraulic System - Including Tank

463 gal (US) 1752 l
{"Name":"Hydraulic System - Including Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"463","MetricUnit":"l","MetricValue":"1752","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"65"}
Hydraulic Tank

253 gal (US) 956 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"253","MetricUnit":"l","MetricValue":"956","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"66"}
Grease Tank

18 gal (US) 68 l
{"Name":"Grease Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"18","MetricUnit":"l","MetricValue":"68","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"67"}

Swing System

Swing Drive

Two (2) compact planetary transmissions with axial piston motors
{"Name":"Swing Drive","SpecificationId":null,"TextValue":"Two (2) compact planetary transmissions with axial piston motors","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"91"}
Parking Brake

Wet multiple disc brake, spring-loaded/hydraulically released
{"Name":"Parking Brake","SpecificationId":null,"TextValue":"Wet multiple disc brake, spring-loaded/hydraulically released","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"92"}
Maximum Swing Speed

4.9 r/min 4.9 r/min
{"Name":"Maximum Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"4.9","MetricUnit":"r/min","MetricValue":"4.9","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"93"}
Swing Ring

Cross roller bearing with sealed internal gearing
{"Name":"Swing Ring","SpecificationId":null,"TextValue":"Cross roller bearing with sealed internal gearing","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"94"}
Features (1)

Closed-loop swing circuit with speed control
{"Name":"Features (1)","SpecificationId":null,"TextValue":"Closed-loop swing circuit with speed control","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"95"}
Features (2)

Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
{"Name":"Features (2)","SpecificationId":null,"TextValue":"Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"96"}
Features (3)

All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
{"Name":"Features (3)","SpecificationId":null,"TextValue":"All raceways and the internal gearing of swing ring supplied by automatic central lubrication system","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Swing System","SortOrder":"97"}

Track

Standard

28 in 700 mm
{"Name":"Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28","MetricUnit":"mm","MetricValue":"700","Type":"measurement","SpecificationGroup":"Track","SortOrder":"41"}
Wide

36 in 900 mm
{"Name":"Wide","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36","MetricUnit":"mm","MetricValue":"900","Type":"measurement","SpecificationGroup":"Track","SortOrder":"42"}
Extra Wide

39 in 1000 mm
{"Name":"Extra Wide","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"39","MetricUnit":"mm","MetricValue":"1000","Type":"measurement","SpecificationGroup":"Track","SortOrder":"43"}
Number of Shoes - Each Side

46
{"Name":"Number of Shoes - Each Side","SpecificationId":null,"TextValue":"46","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Track","SortOrder":"44"}
Number of Track Rollers - Each Side

9
{"Name":"Number of Track Rollers - Each Side","SpecificationId":null,"TextValue":"9","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Track","SortOrder":"45"}
Number of Carrier Rollers - Each Side

3
{"Name":"Number of Carrier Rollers - Each Side","SpecificationId":null,"TextValue":"3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Track","SortOrder":"46"}
Track Pads

Double grouser
{"Name":"Track Pads","SpecificationId":null,"TextValue":"Double grouser","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Track","SortOrder":"47"}

Undercarriage

Travel Speed - Two Stages - 1st Stage - Maximum

1.6 mile/h 2.6 km/h
{"Name":"Travel Speed - Two Stages - 1st Stage - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.6","MetricUnit":"km/h","MetricValue":"2.6","Type":"measurement","SpecificationGroup":"Undercarriage","SortOrder":"110"}
Travel Speed - Two Stages - 2nd Stage - Maximum

2.3 mile/h 3.7 km/h
{"Name":"Travel Speed - Two Stages - 2nd Stage - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"2.3","MetricUnit":"km/h","MetricValue":"3.7","Type":"measurement","SpecificationGroup":"Undercarriage","SortOrder":"111"}
Maximum Drawbar Pull - Forward

192886 lbf 858 kN
{"Name":"Maximum Drawbar Pull - Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"192886","MetricUnit":"kN","MetricValue":"858","Type":"measurement","SpecificationGroup":"Undercarriage","SortOrder":"112"}
Maximum Tractive Force

197157 lbf 877 kN
{"Name":"Maximum Tractive Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"197157","MetricUnit":"kN","MetricValue":"877","Type":"measurement","SpecificationGroup":"Undercarriage","SortOrder":"112"}
Maximum Drawbar Pull - Reverse

220987 lbf 983 kN
{"Name":"Maximum Drawbar Pull - Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"220987","MetricUnit":"kN","MetricValue":"983","Type":"measurement","SpecificationGroup":"Undercarriage","SortOrder":"113"}
Gradeability - Travel Drives

38°/78% (SAE J1309)
{"Name":"Gradeability - Travel Drives","SpecificationId":null,"TextValue":"38°/78% (SAE J1309)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"114"}
Hydraulic Track Tensioning

With accumulator
{"Name":"Hydraulic Track Tensioning","SpecificationId":null,"TextValue":"With accumulator","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"115"}
Number of Shoes - Each Side

46
{"Name":"Number of Shoes - Each Side","SpecificationId":null,"TextValue":"46","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"115"}
Number of Track Rollers - Each Side

9
{"Name":"Number of Track Rollers - Each Side","SpecificationId":null,"TextValue":"9","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"116"}
Number of Carrier Rollers - Each Side

3
{"Name":"Number of Carrier Rollers - Each Side","SpecificationId":null,"TextValue":"3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"117"}
Components (1)

Forged double-grouser track pads
{"Name":"Components (1)","SpecificationId":null,"TextValue":"Forged double-grouser track pads","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"118"}
Components (2)

Chain links connected by hardened pins and bushings
{"Name":"Components (2)","SpecificationId":null,"TextValue":"Chain links connected by hardened pins and bushings","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"119"}
Components (3)

Postive Pin Retention (PPR2) sealed and greased track design
{"Name":"Components (3)","SpecificationId":null,"TextValue":"Postive Pin Retention (PPR2) sealed and greased track design","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"120"}
Components (4)

All running surfaces of sprockets, idlers, rollers and track chain links hardened
{"Name":"Components (4)","SpecificationId":null,"TextValue":"All running surfaces of sprockets, idlers, rollers and track chain links hardened","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"121"}
Components (5)

Fully hydraulic self-adjusting track tensioning system with accumulator
{"Name":"Components (5)","SpecificationId":null,"TextValue":"Fully hydraulic self-adjusting track tensioning system with accumulator","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"122"}
Components (6)

Automatic hydraulic retarder valve to prevent overspeed on downhill travel
{"Name":"Components (6)","SpecificationId":null,"TextValue":"Automatic hydraulic retarder valve to prevent overspeed on downhill travel","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"123"}
Components (7)

Audible travel alarm
{"Name":"Components (7)","SpecificationId":null,"TextValue":"Audible travel alarm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Undercarriage","SortOrder":"124"}

Weights

Ground Pressure

23.6 psi 16.3 N/cm²
{"Name":"Ground Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"23.6","MetricUnit":"N/cm²","MetricValue":"16.3","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"31"}
Note

Operating weight includes: 700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants
{"Name":"Note","SpecificationId":null,"TextValue":"Operating weight includes: 700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"32"}
Operating Weight

308000 lb 140000 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"308000","MetricUnit":"kg","MetricValue":"140000","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

SAFETY

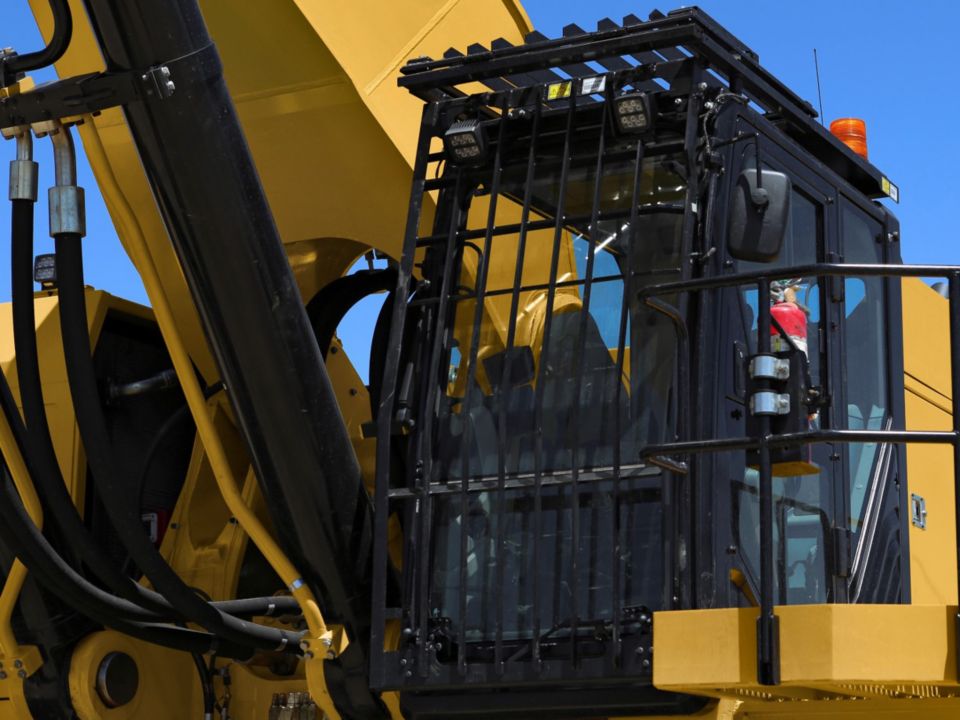

Operator Protective Guard (Top Guard) certified cab plus optional front guard.
Excellent visibility with unobstructed view of digging environment and upward view through skylight, plus optional two-camera system to reduce blind spots and enhance situational awareness.
Safer access and egress with anti-slip walkways and optional powered 45-degree access stairway.
Five emergency shut-off switches, with one easily accessible in the cab to shut down the electrical system in case of emergency.
Safer service with lockable starter and battery isolation switch cabinet.

OPERATOR CAB

Heated, pneumatically-cushioned and fully adjustable suspension seat that provides height and weight adjustments, lumbar support, wide arm/wrist rests and a wide retractable seat belt for full operator comfort and support.
Maintained internal ambient temperature with air conditioning, heat and defroster, and improved filtration with fresh air filter that removes dust and particles, plus a second internal filter that cleans recirculated air inside the cab.
Easily accessible ergonomic joysticks with Electronic-Hydraulic Servo Control, which delivers dynamic and precise response and ensures no hydraulic lines are present in the cab.
Large, 7 in (178 mm) color touchscreen for convenient troubleshooting and service assistance.
Independently adjustable joystick consoles, plus joystick controls that allow pattern to be changed for enhanced safety and improved operator experience.

RELIABILITY & DURABILITY

Rugged Cat heavy duty undercarriage designed to increase uptime, deliver longer service life and withstand increased tramming over rough mine site terrain, with features such as grease lubrication, GLT4 sealing technology and oil-filled rolling components that help it last at least 2,000 hours longer than dry track designs.
Cat exclusive Positive Pin Retention 2 (PPR2) track design, which mechanically locks the link to the pin to resist pin walking and link cracking to deliver reliable sealing and maximum track life.
Heavy duty fixed-axle rollers and idlers for improved performance, increased wear life, reduced internal friction and overheating, and elimination of grease consumption and lines.
Heavy duty track group, which handles high field loads, and reduced pitch extension wear, which increases track chain life by 20% to 40%.
Structures designed and fabricated to withstand the toughest digging conditions, with high-strength steel; full penetration, profiled and ground welds at critical junctures; and booms and sticks that are stress-relieved after welding.
Efficient Independent Oil Cooling system, which protects and extends the life of hydraulic components.
Improved hydraulic system for reduced crosstalk, less cross-contamination and new electrical integration for updated lighting and sensors.
New suction header and swing pump for better inlet routing.
Segregated case drain lines with new return hoses and tubes.
Improved engine enclosure, main control valve mounting bracket and main frame.

PRODUCTIVITY & PERFORMANCE

Faster cycle times and increased productivity thanks to Cat C27 engine, which is the most powerful in its class and provides top performance over an exceptional service life.
Fast cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
Proportional Priority Pressure Compensating (PPPC) hydraulic system, which varies hydraulic oil flow for smooth, predictable operation and greater operator efficiency.
Load Enhanced Anticipatory Control (LEAC), which ensures faster and more consistent engine regulation by preventing lug, which, in turn, reduces fuel consumption.
Engine Torque Load Control (ETLC), which reduces hydraulic pump output based on available engine torque, desired engine speed, actual engine speed and estimated hydraulic load — providing power to the functions that need it to move material quickly and efficiently.

BUCKETS & GET

Buckets and ground engaging tools (GET) designed to maximize durability and productivity, ideally matched to your shovel and application, and rebuildable, with wear components available as service parts.
Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
Hammerless GET designed specifically for the 6015, with no special tools required for removal and installation.
New standard rock bucket equipped with the new M75 GET, which is 20% stronger than the previous C70 GET and moves 8.1 m3 (10.6 yd3) of material, carrying up to 14.6 tonnes (16.1 tons).
Wear packages that protect your investment, including special liner material and lip shrouds, wing shrouds and heel shrouds.

CONNECTIVITY & TECHNOLOGY

Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6015 and allows it to collect and transmit information into locally hosted or cloud-hosted applications.
Factory-ready for Cat MineStar™ Solutions, with a range of capabilities that meet the needs of your fleet.
MineStar Health, which lets you collect and monitor machine data so you can be proactive and maximize uptime.
MineStar Edge™, which makes it possible to measure, manage, analyze and optimize your entire operation.
Designed for the future, with expandable electronic systems that allow smooth integration of MineStar or other electronic capabilities.

SERVICEABILITY

Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
Enhanced warning levels for hydraulic oil temperature and improved data link diagnostics for reduced downtime.
Visual inspection ports for slew drive pinions and ring gear, commonization of charging ports and charging tool and new electronic pilot pressure monitoring via ET.
Ground-level service station that provides easy access to fast-fill diesel fuel and grease connections.
Maintenance-free Positive Pin Retention tracks that are specially machined to extend internal pin/bushing wear life and fatigue resistance.
Larger, heavier hydraulic tank for improved performance.
New hydraulic oil cooler configuration is easier to service.
Second cooling core for increased capacity.
Externally routed margin relief drain ports.

SUSTAINABILITY

Highly regulated C27 engine certified to meet U.S. EPA Tier 4 Final/EU Stage V emissions standards without the need for DEF — saving time and cost during maintenance.
Reduce fuel consumption with Load Enhanced Anticipatory Control (LEAC) system.
Sound-suppressed power module to keep spectator sound levels low.
Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman and Cat Rebuild programs, which return end-of-life components to like-new condition.

Equipment Info
