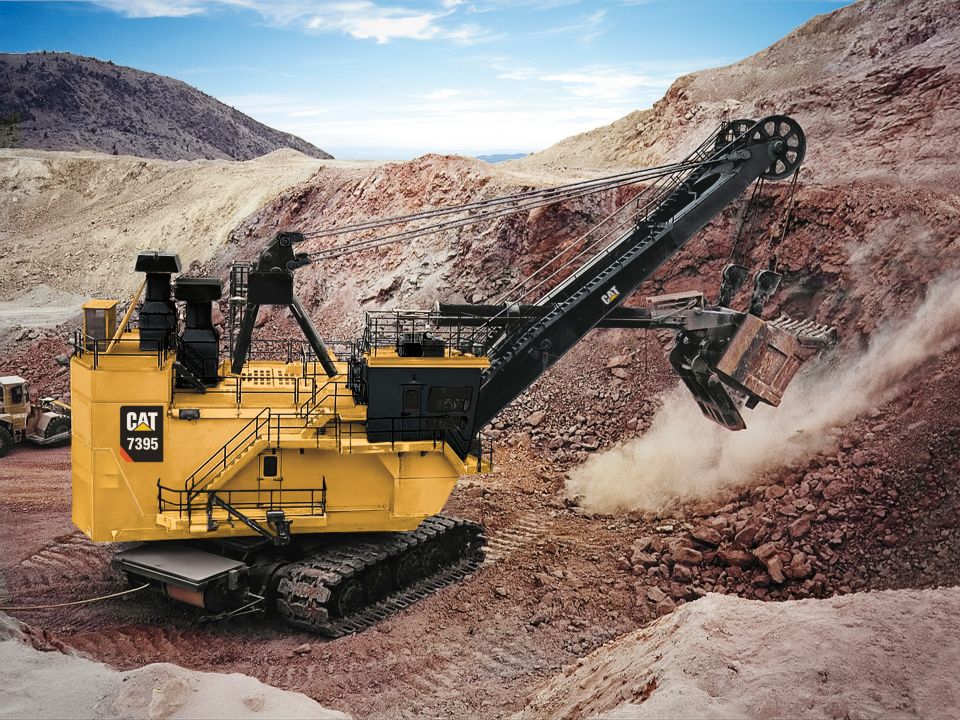

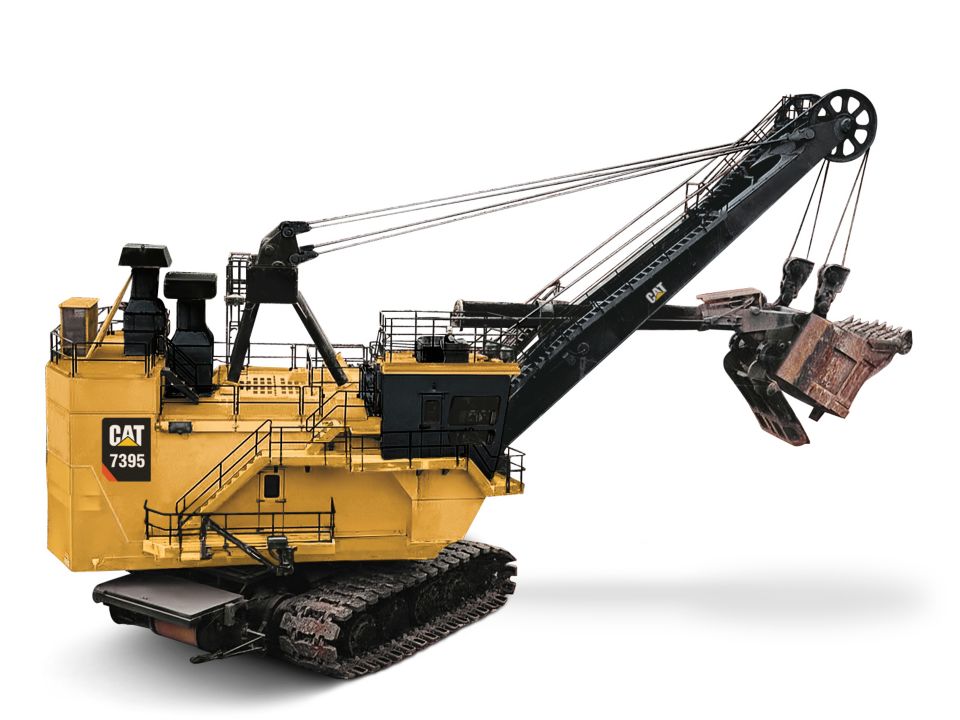

Cat Electric Rope Shovels 7395 | Mining

Dimensions

Dipper Payload

70 t 64 t
{"Name":"Dipper Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"t","EnglishValue":"70","MetricUnit":"t","MetricValue":"64","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"1"}
Dipper Capacity

20.6-55.8 m3 (27-73 yd3)
{"Name":"Dipper Capacity","SpecificationId":null,"TextValue":"20.6-55.8 m3 (27-73 yd3)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"2"}
Note

Dependent on application and material density.
{"Name":"Note","SpecificationId":null,"TextValue":"Dependent on application and material density.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"100"}

Electrical

Drive

IGBT Acutrol drive system.
{"Name":"Drive","SpecificationId":null,"TextValue":"IGBT Acutrol drive system.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical","SortOrder":"99"}
Power Requirements - Peak power

4165 hp 3106 kW
{"Name":"Power Requirements - Peak power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"4165","MetricUnit":"kW","MetricValue":"3106","Type":"measurement","SpecificationGroup":"Electrical","SortOrder":"99"}
Power Requirements - Voltage

3 phase, 50/60 Hz, 7,200V
{"Name":"Power Requirements - Voltage","SpecificationId":null,"TextValue":"3 phase, 50/60 Hz, 7,200V","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical","SortOrder":"99"}
Power Requirements - Average Power Demand

777-1087 kW (1,042-1,458 hp)
{"Name":"Power Requirements - Average Power Demand","SpecificationId":null,"TextValue":"777-1087 kW (1,042-1,458 hp)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical","SortOrder":"99"}
Power Requirements - 60 Hz

7,200V
{"Name":"Power Requirements - 60 Hz","SpecificationId":null,"TextValue":"7,200V","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical","SortOrder":"99"}
Power Requirements - 50 Hz

6,000V, 6,600V, 7,200V, 11,000V
{"Name":"Power Requirements - 50 Hz","SpecificationId":null,"TextValue":"6,000V, 6,600V, 7,200V, 11,000V","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical","SortOrder":"99"}
Note

Other voltages available to suit customer requirements.
{"Name":"Note","SpecificationId":null,"TextValue":"Other voltages available to suit customer requirements.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Electrical","SortOrder":"100"}

Front End

Rope Data - Crowd - Diameter

2.5 in 64 mm
{"Name":"Rope Data - Crowd - Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.5","MetricUnit":"mm","MetricValue":"64","Type":"measurement","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Dipper Trip - Diameter

0.625 in 16 mm
{"Name":"Rope Data - Dipper Trip - Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.625","MetricUnit":"mm","MetricValue":"16","Type":"measurement","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Hoist - Diameter

2.75 in 70 mm
{"Name":"Rope Data - Hoist - Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.75","MetricUnit":"mm","MetricValue":"70","Type":"measurement","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Boom Suspension - Diameter

3.25 in 83 mm
{"Name":"Rope Data - Boom Suspension - Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.25","MetricUnit":"mm","MetricValue":"83","Type":"measurement","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Crowd - No.

1
{"Name":"Rope Data - Crowd - No.","SpecificationId":null,"TextValue":"1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Retract - No.

1
{"Name":"Rope Data - Retract - No.","SpecificationId":null,"TextValue":"1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Dipper Trip - No.

1
{"Name":"Rope Data - Dipper Trip - No.","SpecificationId":null,"TextValue":"1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Components

One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
{"Name":"Components","SpecificationId":null,"TextValue":"One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Boom Suspension - No.

4
{"Name":"Rope Data - Boom Suspension - No.","SpecificationId":null,"TextValue":"4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Crowd

Rope Crowd: the crowd machinery is located at the front center of the revolving frame; consisting of a motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
{"Name":"Crowd","SpecificationId":null,"TextValue":"Rope Crowd: the crowd machinery is located at the front center of the revolving frame; consisting of a motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Hoist - No.

2
{"Name":"Rope Data - Hoist - No.","SpecificationId":null,"TextValue":"2","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"99"}
Rope Data - Retract - Diameter

2.5 in 64 mm
{"Name":"Rope Data - Retract - Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.5","MetricUnit":"mm","MetricValue":"64","Type":"measurement","SpecificationGroup":"Front End","SortOrder":"99"}
Note

High impact ropes available as an option
{"Name":"Note","SpecificationId":null,"TextValue":"High impact ropes available as an option","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Front End","SortOrder":"100"}

Lube System

Type

Automatic, single-line system for open gear lubricant and grease.
{"Name":"Type","SpecificationId":null,"TextValue":"Automatic, single-line system for open gear lubricant and grease.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Lube System","SortOrder":"99"}
Components (1)

6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.
{"Name":"Components (1)","SpecificationId":null,"TextValue":"6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Lube System","SortOrder":"100"}
Components (2)

External fast fill from lower level.
{"Name":"Components (2)","SpecificationId":null,"TextValue":"External fast fill from lower level.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Lube System","SortOrder":"101"}

Main Structures

Ground Bearing Pressure - 274.3 cm (108 in) Treads

43 psi 296 kPa
{"Name":"Ground Bearing Pressure - 274.3 cm (108 in) Treads","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"43","MetricUnit":"kPa","MetricValue":"296","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Planetary Propel

Dual-motor independent drive.
{"Name":"Planetary Propel","SpecificationId":null,"TextValue":"Dual-motor independent drive.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Main Structures","SortOrder":"99"}
Crawler Dimensions - Overall Width 213.4 cm (84 in) Treads, Standard

32.75 ft 10 m
{"Name":"Crawler Dimensions - Overall Width 213.4 cm (84 in) Treads, Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32.75","MetricUnit":"m","MetricValue":"10","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Ground Bearing Pressure - Total Effective Bearing Area (2)

442 ft² 41 m²
{"Name":"Ground Bearing Pressure - Total Effective Bearing Area (2)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"442","MetricUnit":"m²","MetricValue":"41","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Ground Bearing Pressure

Ground bearing pressure is dependent upon many factors.
{"Name":"Ground Bearing Pressure","SpecificationId":null,"TextValue":"Ground bearing pressure is dependent upon many factors.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Main Structures","SortOrder":"99"}
Ground Bearing Pressure - Total Effective Bearing Area (1)

343 ft² 32 m²
{"Name":"Ground Bearing Pressure - Total Effective Bearing Area (1)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"343","MetricUnit":"m²","MetricValue":"32","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Upper Works Overall Width - Including Standard Walkways

44.25 ft 13.5 m
{"Name":"Upper Works Overall Width - Including Standard Walkways","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"44.25","MetricUnit":"m","MetricValue":"13.5","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Crawler Dimensions - Overall Width 274.3 cm (108 in) Treads

34.75 ft 10.6 m
{"Name":"Crawler Dimensions - Overall Width 274.3 cm (108 in) Treads","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"34.75","MetricUnit":"m","MetricValue":"10.6","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Ground Bearing Pressure - 213.4 cm (84 in) Treads - Standard

54 psi 371 kPa
{"Name":"Ground Bearing Pressure - 213.4 cm (84 in) Treads - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"54","MetricUnit":"kPa","MetricValue":"371","Type":"measurement","SpecificationGroup":"Main Structures","SortOrder":"99"}
Swing

Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
{"Name":"Swing","SpecificationId":null,"TextValue":"Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Main Structures","SortOrder":"99"}
Hoist

A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
{"Name":"Hoist","SpecificationId":null,"TextValue":"A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Main Structures","SortOrder":"99"}

Optimal Working Ranges*

Cutting Height - Maximum

48.75 ft 14.9 m
{"Name":"Cutting Height - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"48.75","MetricUnit":"m","MetricValue":"14.9","Type":"measurement","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"99"}
Dumping Height - With Clearance to Open Dipper Door

30.84 ft 9.4 m
{"Name":"Dumping Height - With Clearance to Open Dipper Door","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"30.84","MetricUnit":"m","MetricValue":"9.4","Type":"measurement","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"99"}
Cutting Radius - Maximum

74.75 ft 22.8 m
{"Name":"Cutting Radius - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"74.75","MetricUnit":"m","MetricValue":"22.8","Type":"measurement","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"99"}
Radius of Level Floor

52.49 ft 16 m
{"Name":"Radius of Level Floor","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"52.49","MetricUnit":"m","MetricValue":"16","Type":"measurement","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"99"}
Revolving Frame Tail Swing Radius

30.51 ft 9.3 m
{"Name":"Revolving Frame Tail Swing Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"30.51","MetricUnit":"m","MetricValue":"9.3","Type":"measurement","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"99"}
Note (1)

Optimal working ranges based on loading a Cat® 793F truck.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Optimal working ranges based on loading a Cat® 793F truck.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"100"}
Note (2)

*All specifications are based on a 24 m3 (32 yd3) dipper and standard 213.4 cm (84 in) treads.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"*All specifications are based on a 24 m3 (32 yd3) dipper and standard 213.4 cm (84 in) treads.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Working Ranges*","SortOrder":"101"}

Weights

Working Weight - With Dipper and Standard Links

2652000 lb 1202927 kg
{"Name":"Working Weight - With Dipper and Standard Links","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2652000","MetricUnit":"kg","MetricValue":"1202927","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"3"}
Ballast - Furnished By Customer

574000 lb 260362 kg
{"Name":"Ballast - Furnished By Customer","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"574000","MetricUnit":"kg","MetricValue":"260362","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Note (1)

These weights will vary slightly depending upon dipper and optional equipment selection.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"These weights will vary slightly depending upon dipper and optional equipment selection.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"100"}
Note (2)

All specifications are based on a 24 m3 (32 yd3) dipper and standard 213.4 cm (84 in) treads.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"All specifications are based on a 24 m3 (32 yd3) dipper and standard 213.4 cm (84 in) treads.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"101"}
