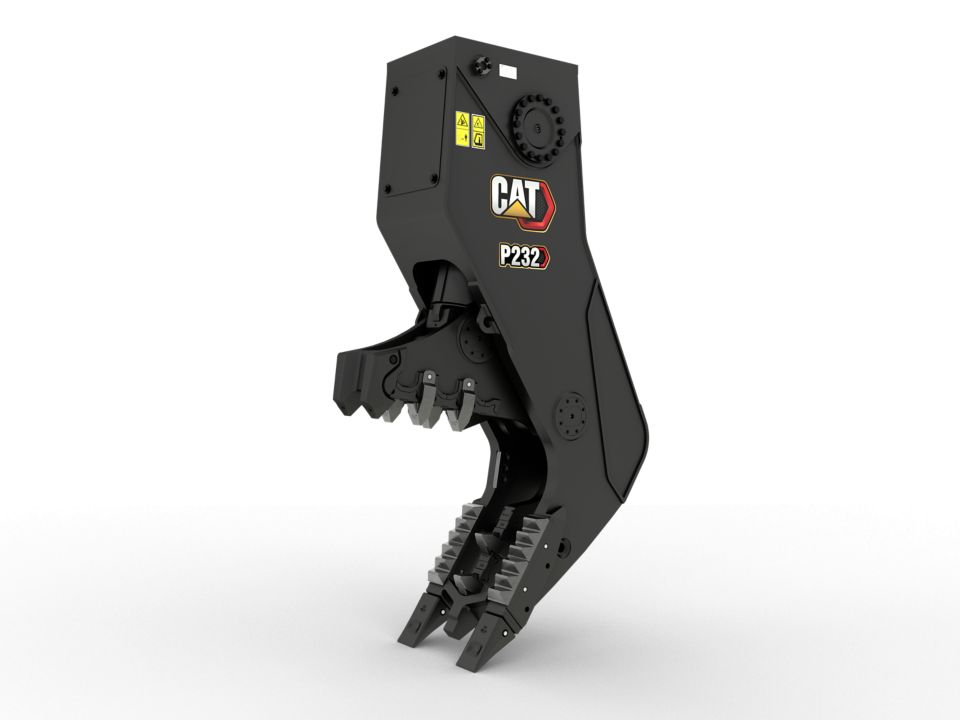

P232 Secondary Pulverizer
P232 Secondary Pulverizer
A Secondary Pulverizer offers wide jaws with pick-up tips, large opening, reversible cutting edges and fast closing times that bring a high return on your investment. This high force-to-weight work tool has been specially developed to reduce the largest possible amount of concrete in the shortest possible time.
Book a Demo
Explore my deals
Specifications
Dimensions - Housing + Jaw
-
Length117.9 in 2995 mm
-
Height69.1 in 1755 mm
-
Width26.4 in 670 mm
Dimensions - Jaw
-
Jaw Depth36.6 in 930 mm
-
Cutter Length7.9 in 200 mm
-
Jaw Opening - Maximum50.4 in 1280 mm
-
Jaw Width - Fixed26.4 in 670 mm
-
Jaw Width - Moveable15 in 380 mm
Hydraulic Requirements
-
Jaw Circuit - Max. Oil Pressure4786 psi 33000 kPa
-
Jaw Circuit - Max. Oil Flow95 gal/min 360 l/min
Performance
-
Cycle Time - Open1.9 s 1.9 s
-
Cycle Time - Close1.4 s 1.4 s
-
Crushing Force - Primary Cutter479 Sh Ton 4265 kN
-
Crushing Force - Tip153 Sh Ton 1360 kN
-
Crushing Force - Primary Tooth252 Sh Ton 2240 kN
Recommended Carrier Weight
-
Excavator Minimum32000 kg (70500 lb)
-
Excavator Maximum50000 kg (110200 lb)
Weight
-
Weight - Housing, Jaw and Bracket7628 lb 3460 kg
Benefits
HIGH PERFORMANCE
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
EASY TO MAINTAIN
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
RELIABILITY AND DURABILITY
- Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.
- Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
VERSATILITY AND CONVENIENCE WITH COUPLERS
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
