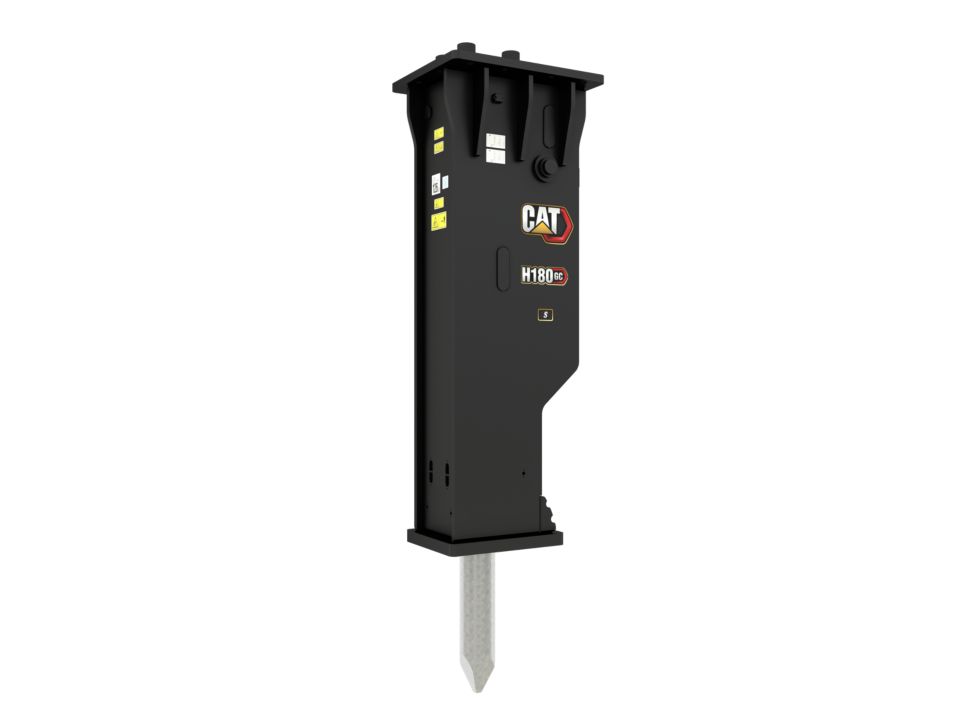

H180 GC S
H180 GC S
Cat® GC Hammers are powerful breakers, designed for efficient performance on demolition, construction and road work.
Book a Demo
Explore my deals
Specifications
-
Blows per Minute200 to 400
-
Minimum Operating Weight8616 lb 3908 kg
-
Rated Flow - Minimum66 gal/min 250 l/min
-
Rated Flow - Maximum79 gal/min 300 l/min
-
Minimum Operating Pressure2030 psi 14000 kPa
-
Maximum Operating Pressure2320 psi 16000 kPa
-
Tool Shaft Diameter7.1 in 180 mm
-
Minimum Carrier Weight88100 lb 40 t
-
Maximum Carrier Weight121200 lb 55 t
Benefits
High Performance
- Automatic shutoff offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
- Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
- The standard silencing feature allows you to use a GC S hammer on job sites in noise sensitive areas like neighborhoods or near hospitals where noise is regulated.
Reliability and Durability
- The internal buffering system helps reduce machine vibration and increase noise suppression.
- Simple hammer design for easy maintenance and faster rebuilds to help lower owning and operating costs.
- Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
Easy to Maintain
- Standard onboard autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
- The slip-fit lower bushing allows for easy replacement in the field, helping reduce service time.
- Verify the gas charge of the hammer without removing it from your machine.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
- Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
