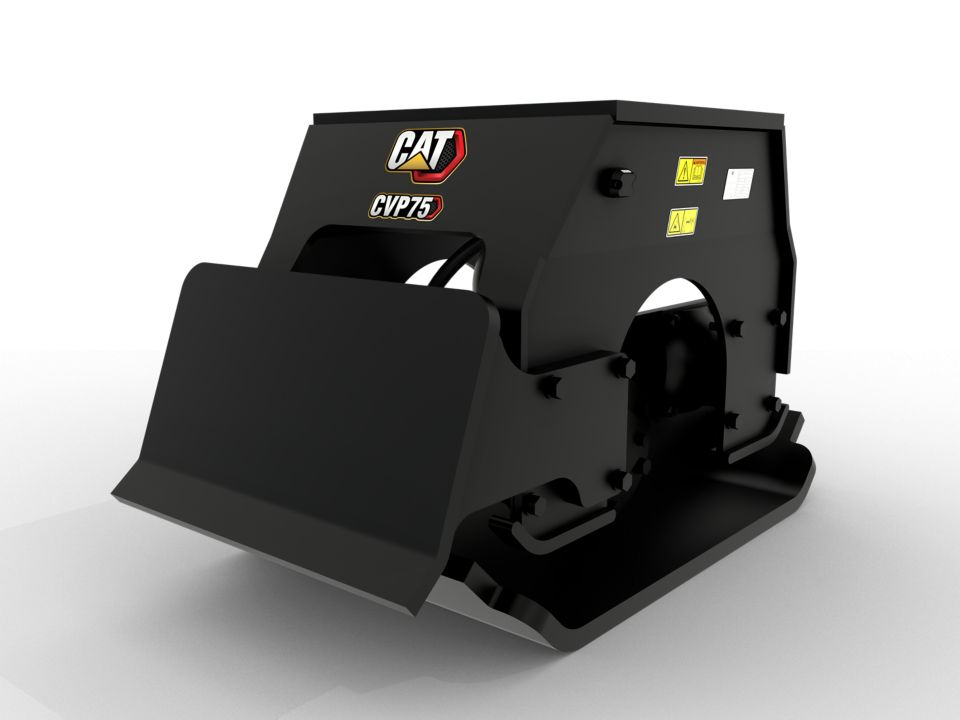

CVP75

Cat® Vibratory Plate Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Impulse Force

16508 lb 74 kN
{"Name":"Impulse Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"16508","MetricUnit":"kN","MetricValue":"74","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Cycles/Minimum

2200
{"Name":"Cycles/Minimum","SpecificationId":null,"TextValue":"2200","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"2"}
Base Plate Width

29 in 737 mm
{"Name":"Base Plate Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29","MetricUnit":"mm","MetricValue":"737","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Compaction Area

8.6 ft² 0.8 m²
{"Name":"Compaction Area","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"8.6","MetricUnit":"m²","MetricValue":"0.8","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Base Plate Pressure

13.33 psi 91.91 kPa
{"Name":"Base Plate Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"13.33","MetricUnit":"kPa","MetricValue":"91.91","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Plate Length

43 in 109 mm
{"Name":"Base Plate Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"43","MetricUnit":"mm","MetricValue":"109","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Minimum Hydraulic Flow

28 gal/min 106 l/min
{"Name":"Minimum Hydraulic Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/min","EnglishValue":"28","MetricUnit":"l/min","MetricValue":"106","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Minimum Operating Pressure

2000 psi 13790 kPa
{"Name":"Minimum Operating Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2000","MetricUnit":"kPa","MetricValue":"13790","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Weight

1765 lb 801 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1765","MetricUnit":"kg","MetricValue":"801","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}

Product Brochures

Product Brochure #1
