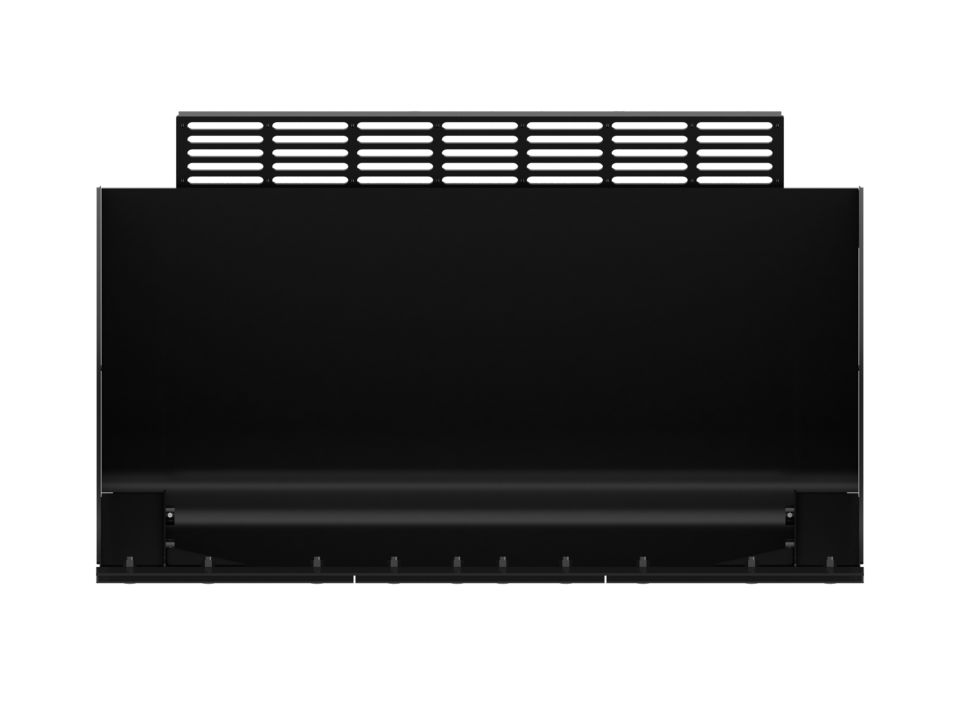

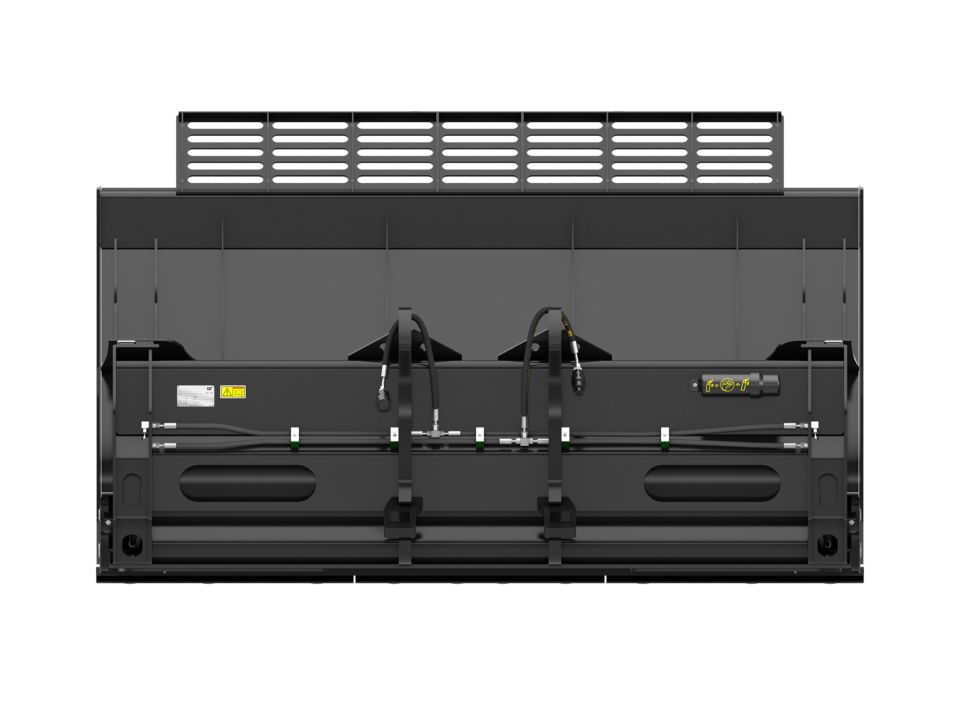

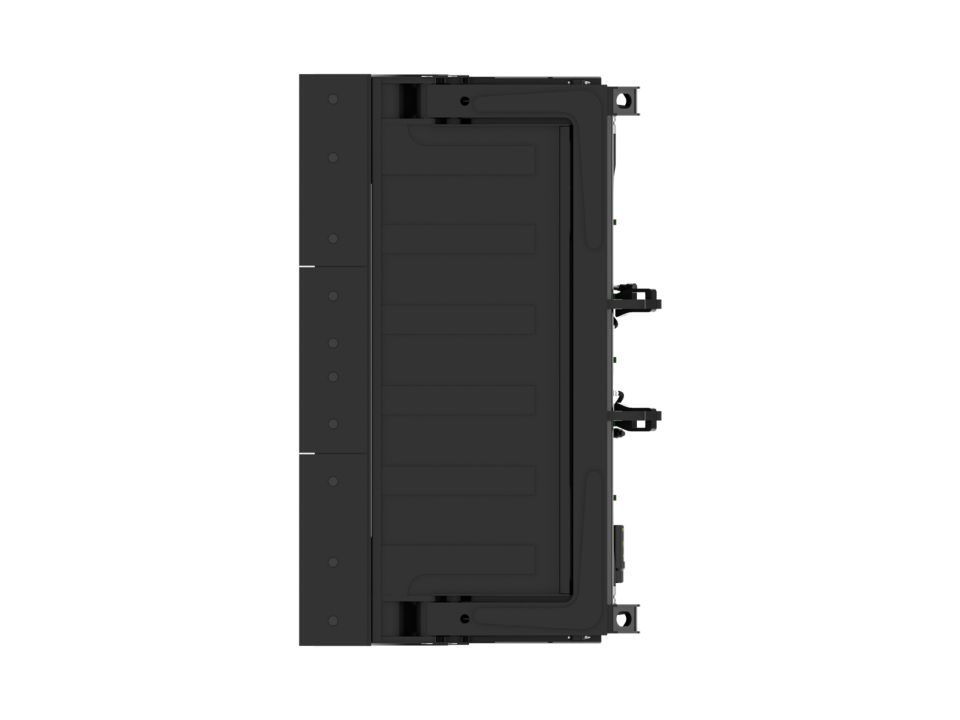

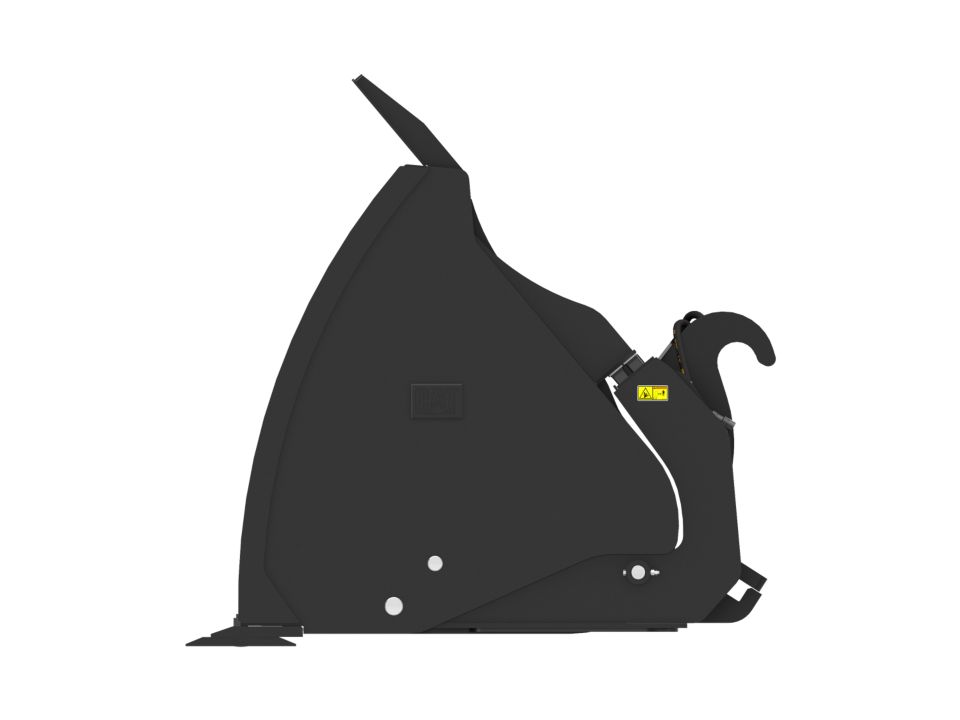

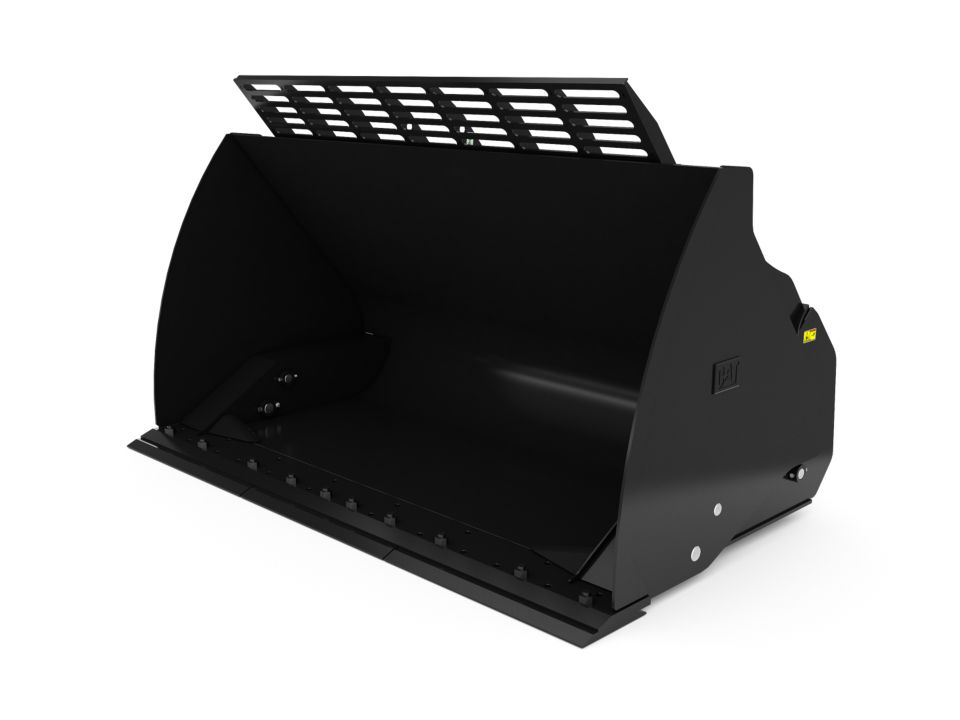

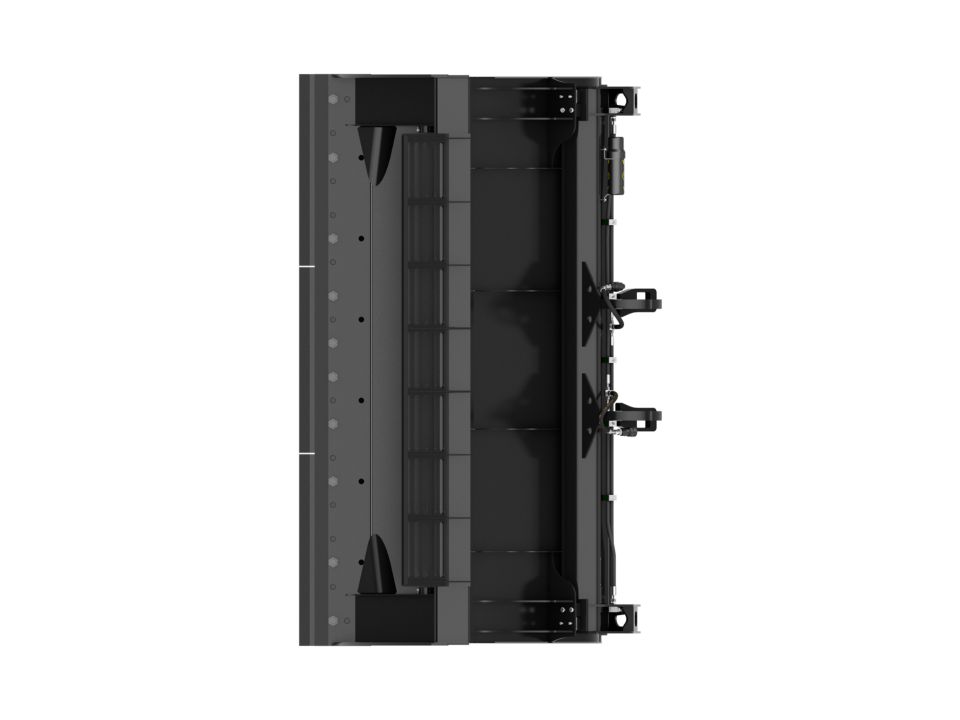

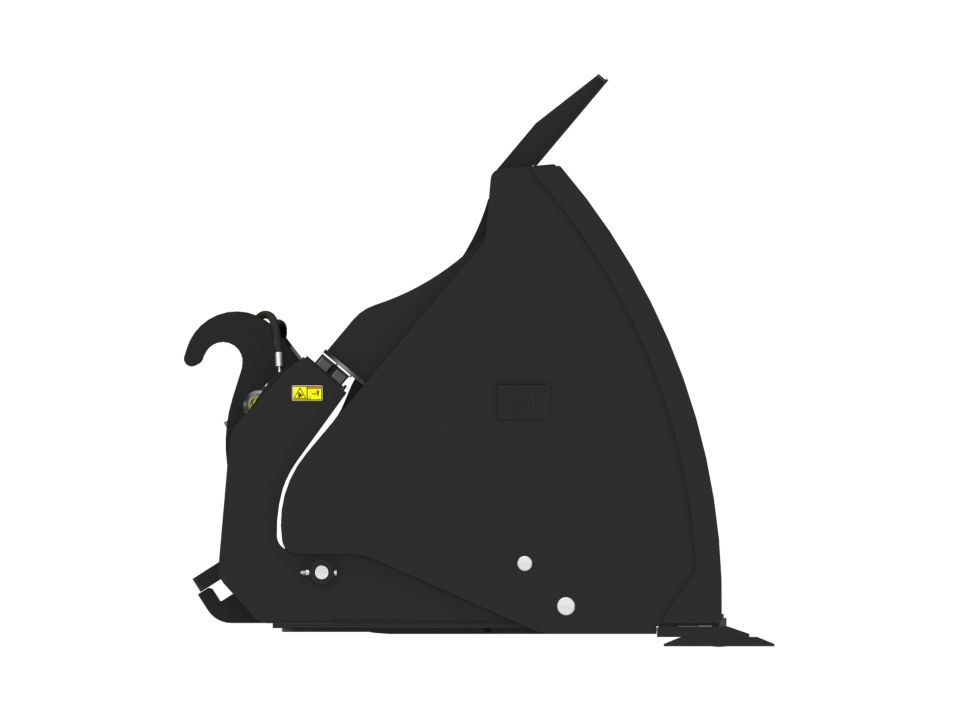

5.0 m3 (6.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

High Dump Buckets feature greatly increased dump height over standard material-handling buckets. Whether loading trucks, feeding compactors or just working in the pile, high dump buckets offer the performance you need.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

119.4 in 3032 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"119.4","MetricUnit":"mm","MetricValue":"3032","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Height

73.3 in 1863 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"73.3","MetricUnit":"mm","MetricValue":"1863","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

4909.7 lb 2227 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4909.7","MetricUnit":"kg","MetricValue":"2227","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

75.7 in 1922 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"75.7","MetricUnit":"mm","MetricValue":"1922","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Capacity

6.5 yd³ 5 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"6.5","MetricUnit":"m³","MetricValue":"5","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

1.4 in 35 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.4","MetricUnit":"mm","MetricValue":"35","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Cutting Edge Thickness

1.2 in 30 mm
{"Name":"Cutting Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.2","MetricUnit":"mm","MetricValue":"30","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Interface Type

Fusion™ Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Required Hydraulics

3rd Function
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"3rd Function","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}

Benefits

Application

Designed with an increased dump height for better truck loading.

High Performance in Light Material

High Dump buckets are designed for putting light materials right where you want them. Handle coal, fertilizer, grain or woodchips; wherever a little extra clearance is needed.
