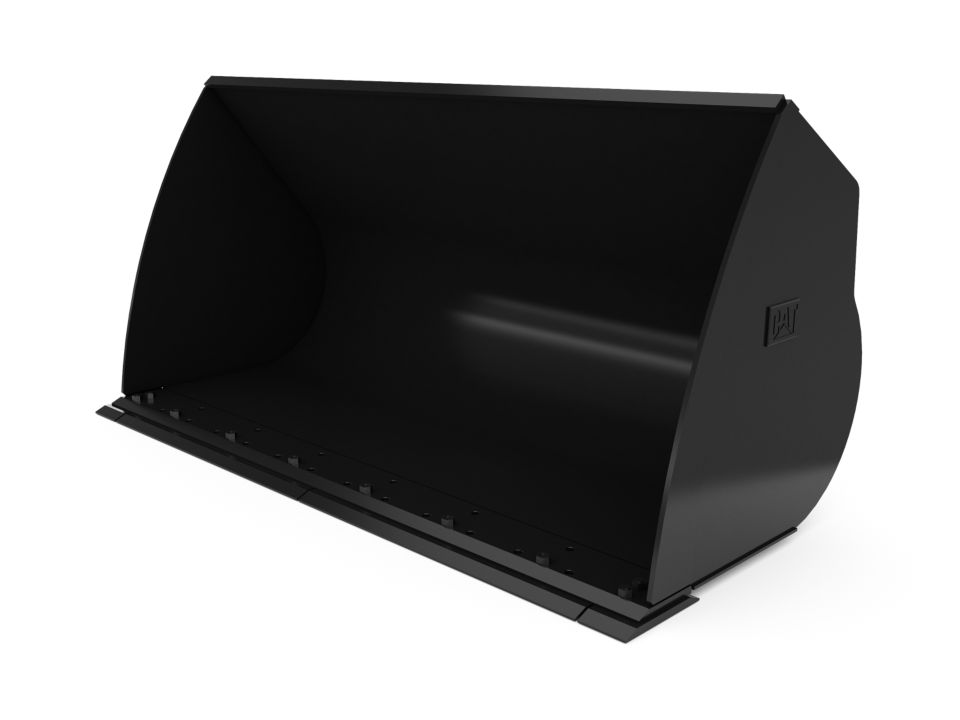

3.0 m3 (4.0 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

Light Material Buckets are specially designed for maximum efficiency and increased capacity when loading light, loosely-packed materials.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

108 in 2750 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"108","MetricUnit":"mm","MetricValue":"2750","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Height

53.9 in 1369 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"53.9","MetricUnit":"mm","MetricValue":"1369","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

2689.6 lb 1220 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2689.6","MetricUnit":"kg","MetricValue":"1220","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

55.3 in 1404 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.3","MetricUnit":"mm","MetricValue":"1404","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Capacity

4 yd³ 3 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"4","MetricUnit":"m³","MetricValue":"3","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

1 in 25 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Cutting Edge Thickness

1 in 25 mm
{"Name":"Cutting Edge Thickness","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Interface Type

Fusion™ Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}

Benefits

Application

Designed for carrying light, loosely-packed materials.

Versatile Design

Easily hauls, loads, digs and piles light materials such as snow, hay or woodchips.

High Capacity Design

Increased capacity up to 60% over standard buckets.

Material Density Rating

Designed for loading material with a density of 1300 lb/yd3 (770 kg/m3) or less.

Optional Top Clamp

Optional full-width top clamp tightly holds loose materials such as hay with minimum spillage, and holds large round bales securely.
