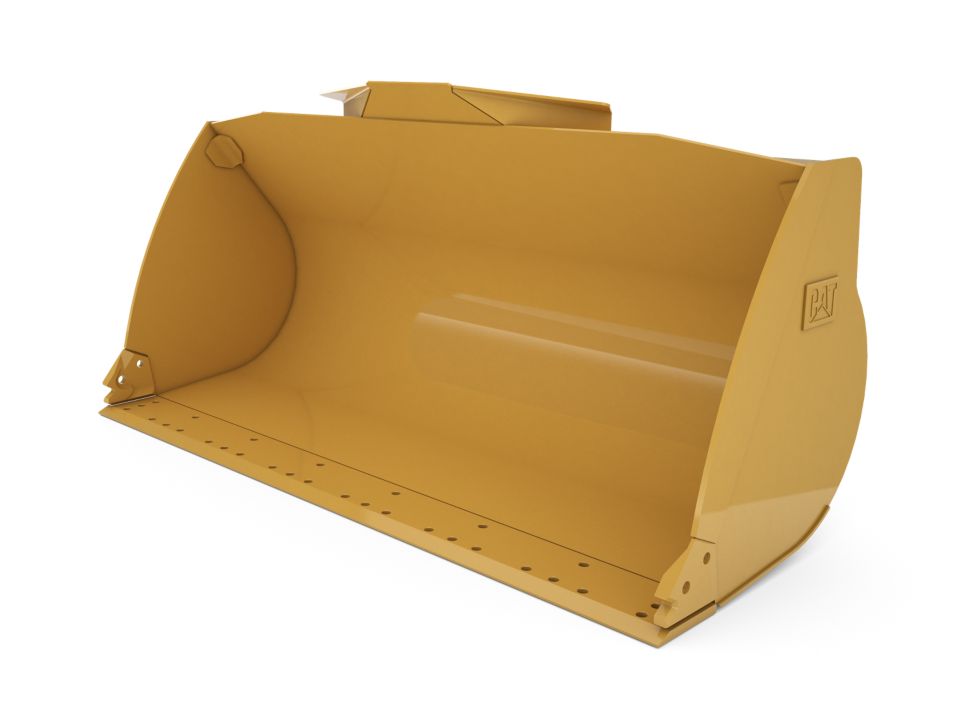

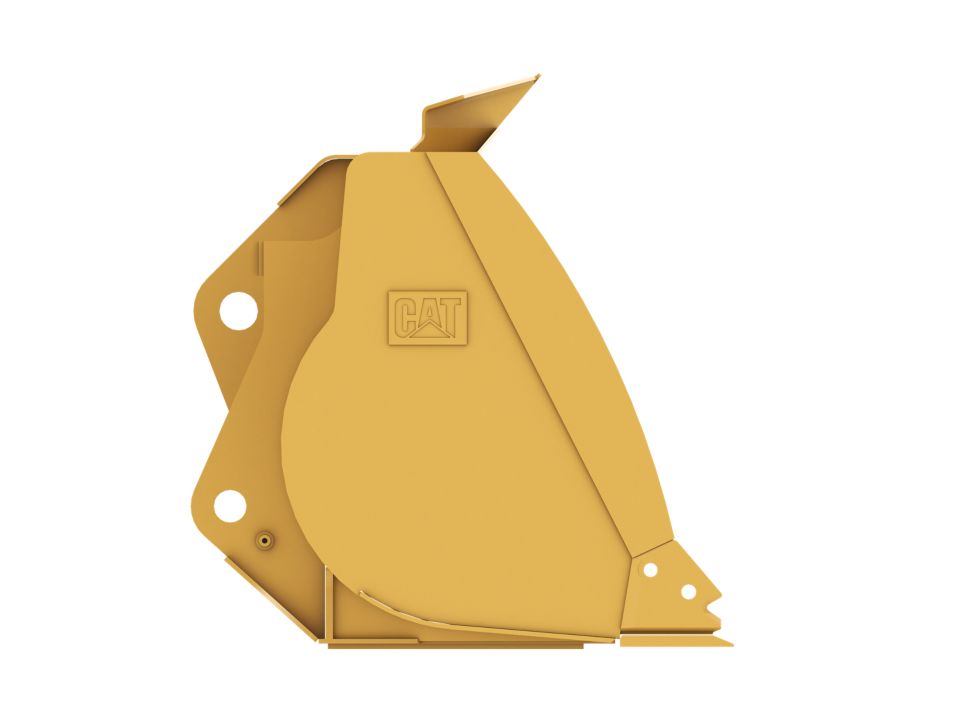

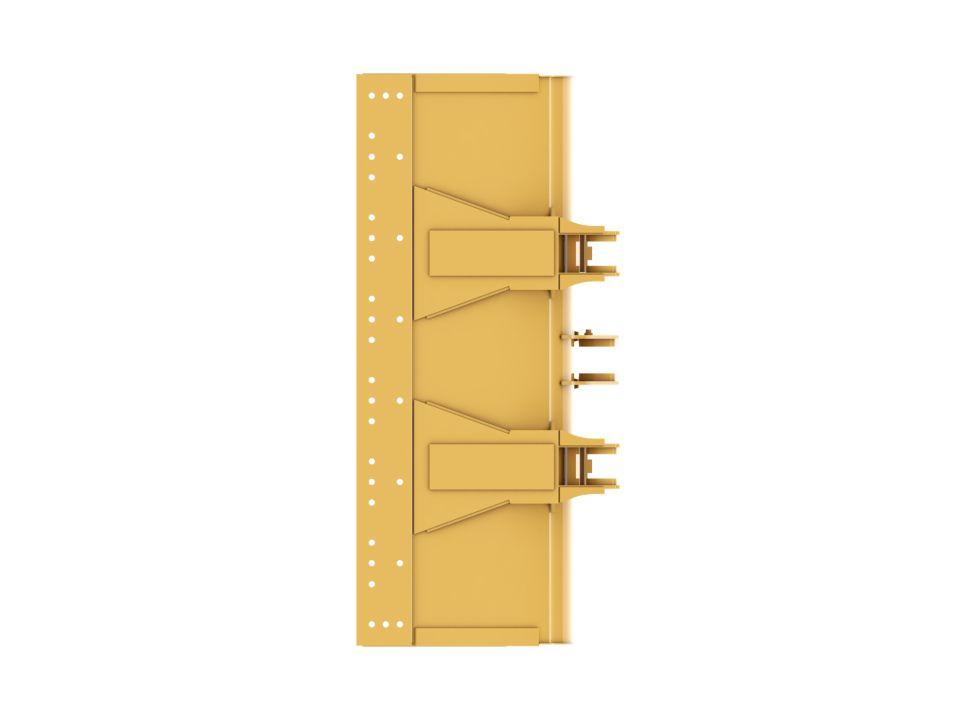

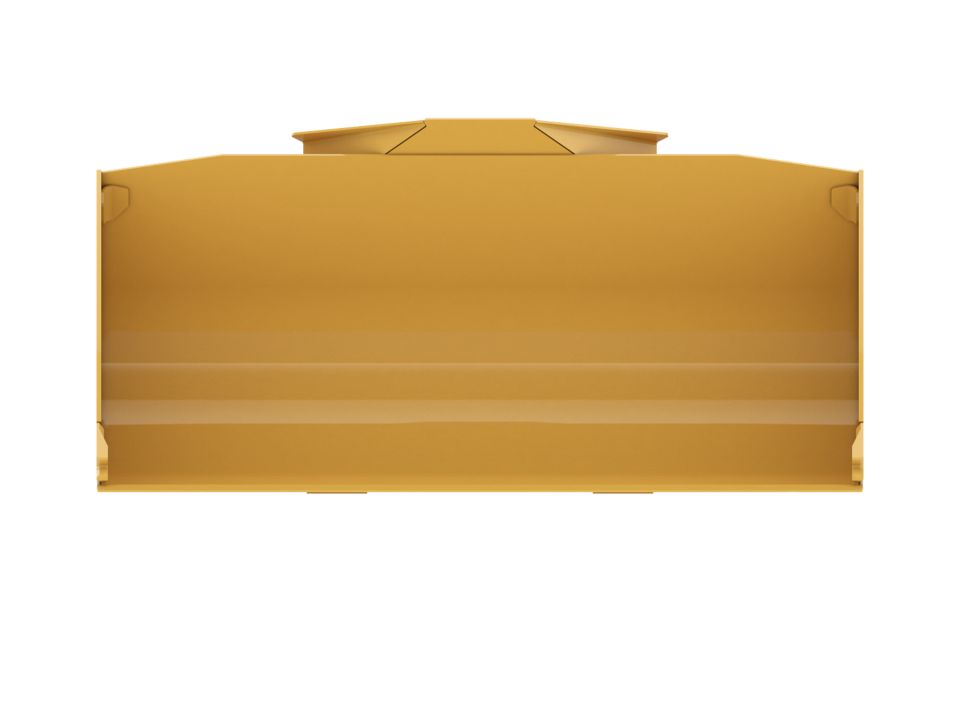

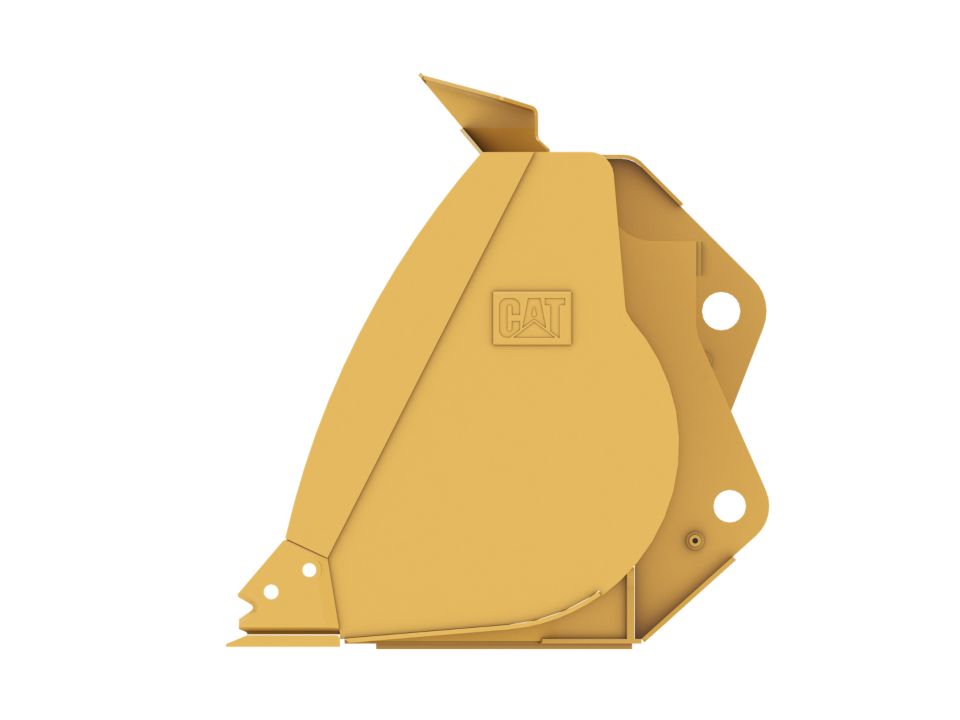

1.9 m3 (2.5 yd3), 2550 mm (100 in), Pin On, Bolt-On Cutting Edge

General Purpose Performance Buckets for Cat® Small Wheel Loaders provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

100 in 2550 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2550","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Height

48.8 in 1240 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"48.8","MetricUnit":"mm","MetricValue":"1240","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

1787.9 lb 811 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1787.9","MetricUnit":"kg","MetricValue":"811","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

46 in 1168 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"46","MetricUnit":"mm","MetricValue":"1168","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Capacity

2.5 yd³ 1.9 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"2.5","MetricUnit":"m³","MetricValue":"1.9","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

1 in 25 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Interface Type

Pin On
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}

Benefits

Open Throat Design

Open throat design improves heap size and fill factor.

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.

Application

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Application

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
