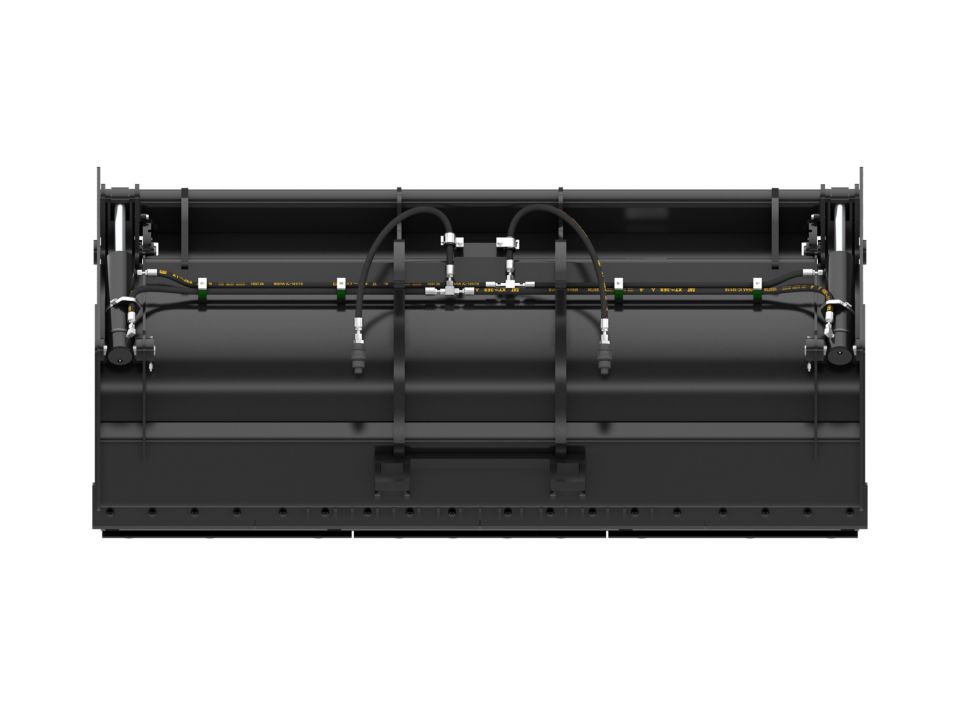

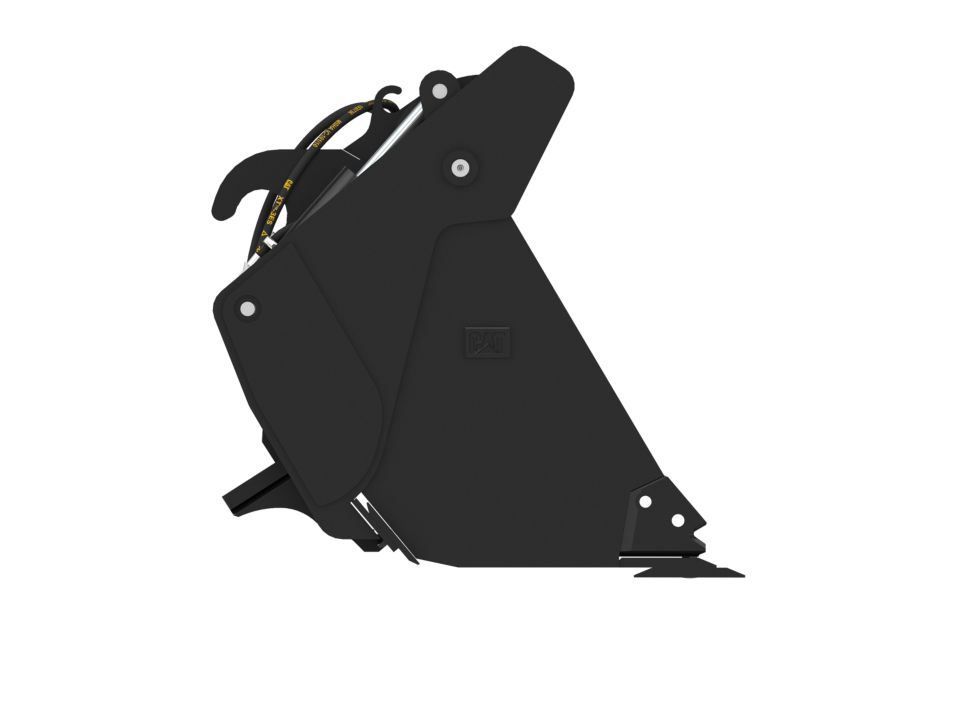

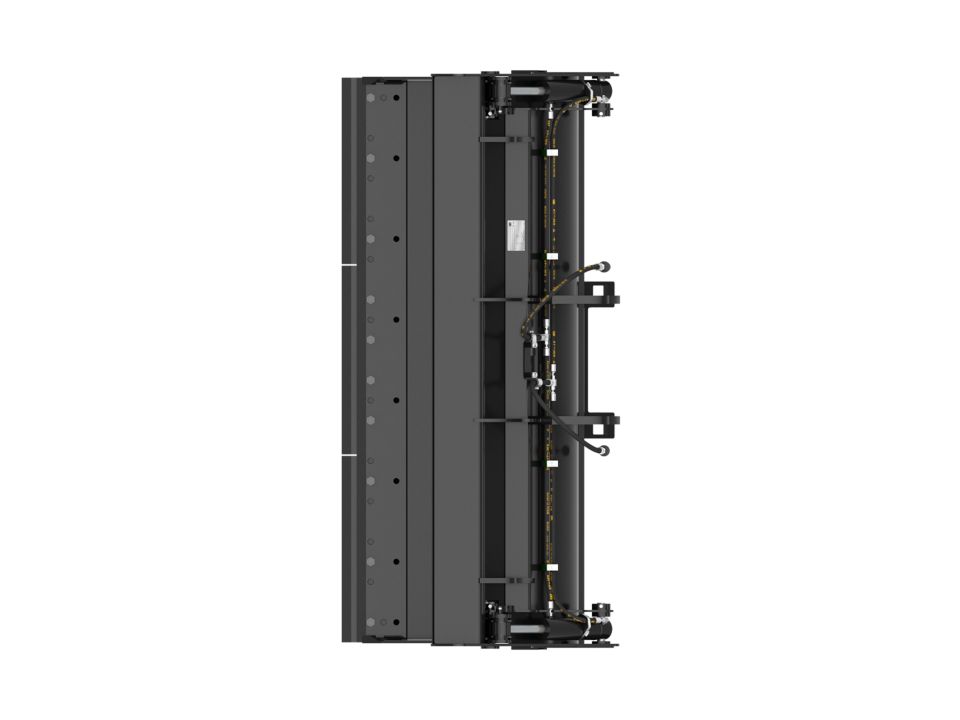

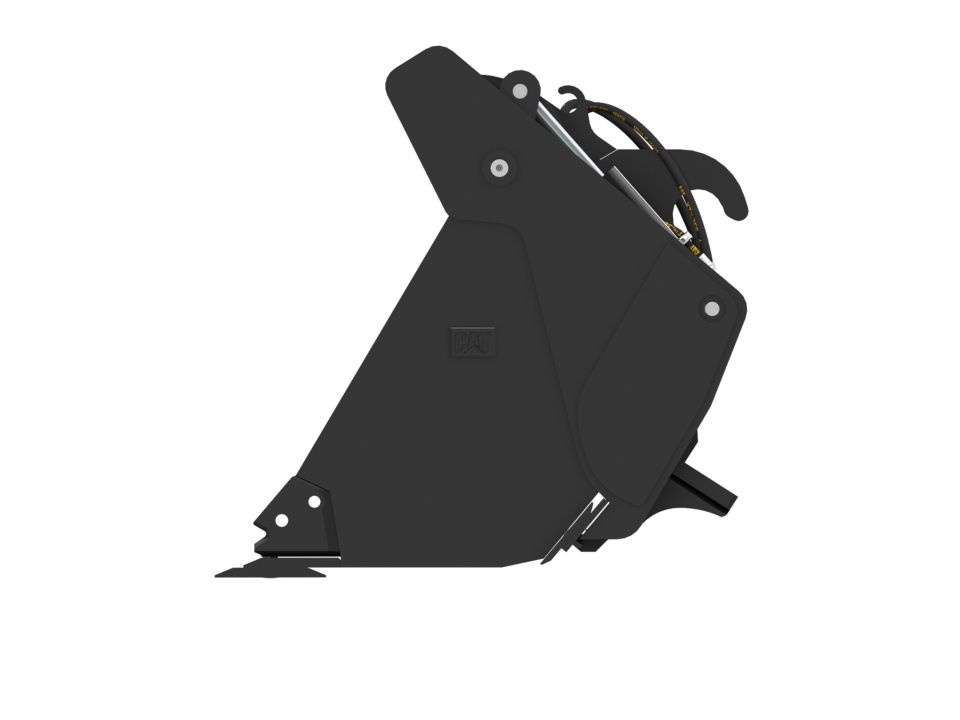

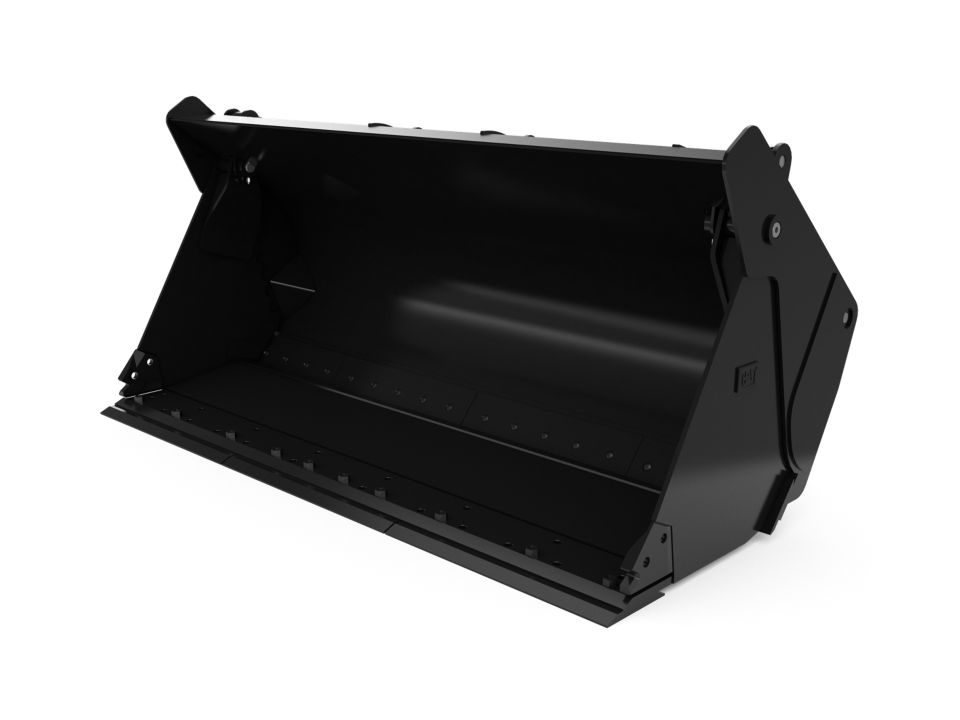

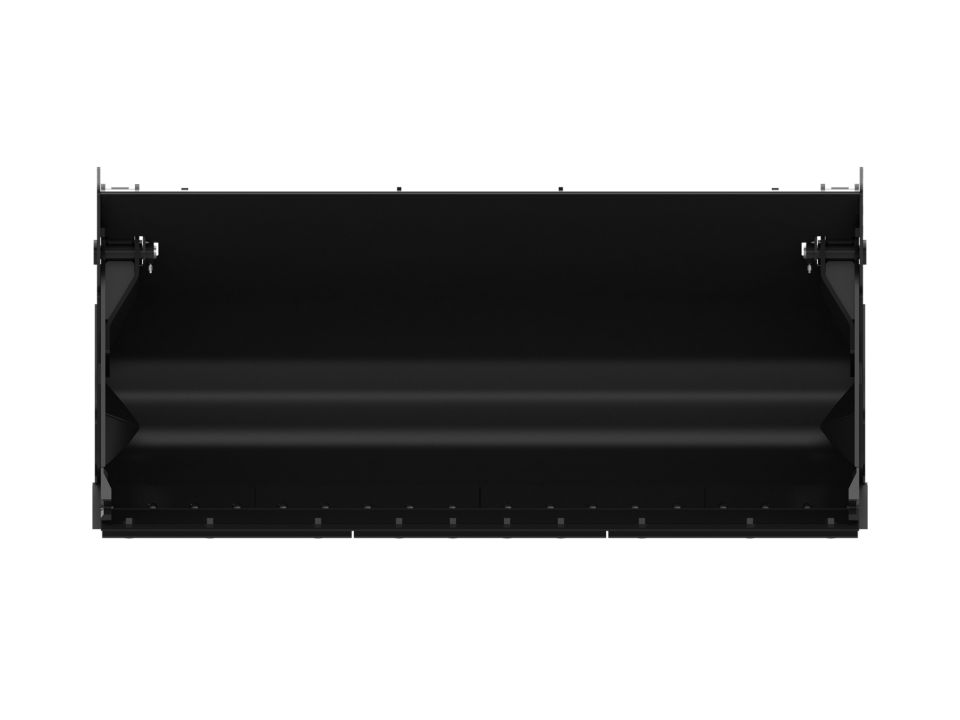

2.7 m3 (3.5 yd3), Fusion™ Coupler, Bolt-On Cutting Edge

Multi-Purpose Buckets for Cat® Wheel Loaders offer excellent versatility by enabling one work tool to do the job of many. This bucket is ideal for material handling, clamping, grading, leveling and grasping irregularly shaped objects.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

108.3 in 2750 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"108.3","MetricUnit":"mm","MetricValue":"2750","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Height

52.6 in 1337 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"52.6","MetricUnit":"mm","MetricValue":"1337","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

3443.6 lb 1562 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3443.6","MetricUnit":"kg","MetricValue":"1562","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

52.9 in 1343 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"52.9","MetricUnit":"mm","MetricValue":"1343","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Interface Type

Fusion™ Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Capacity

3.5 yd³ 2.7 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"3.5","MetricUnit":"m³","MetricValue":"2.7","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Base Edge Thickness

1 in 25 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Cutting Edge Thickness

1 in 25 mm
{"Name":"Cutting Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Jaw Opening

44.6 in 1134 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"44.6","MetricUnit":"mm","MetricValue":"1134","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Clam Angle

71 degrees
{"Name":"Clam Angle","SpecificationId":null,"TextValue":"71 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}
Required Hydraulics

3rd Function
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"3rd Function","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}

Benefits

Application

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Bucket Design

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Serrated Clam Sidewall

Aids in grasping material and ensuring it stays within the bucket.

Ground Engaging Tools

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
